EP1032108A3 - Battery pack - Google Patents

Battery pack Download PDF

Info

Publication number
EP1032108A3
EP1032108A3 EP00103902A EP00103902A EP1032108A3 EP 1032108 A3 EP1032108 A3 EP 1032108A3 EP 00103902 A EP00103902 A EP 00103902A EP 00103902 A EP00103902 A EP 00103902A EP 1032108 A3 EP1032108 A3 EP 1032108A3
Authority
EP
European Patent Office
Prior art keywords
protection circuit
battery pack
rechargeable cell
package unit
control
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Granted
Application number
EP00103902A
Other languages
German (de)
French (fr)
Other versions
EP1032108B1 (en
EP1032108A2 (en
Inventor
Atsushi Watanabe
Yasushi Inoue
Ryosuke Kubo
Keiji Ishihama
Yasuhiro Yamagami
Takuya Matsuda
Mikitaka Tamai
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Sanyo Electric Co Ltd
Original Assignee
Sanyo Electric Co Ltd
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Sanyo Electric Co Ltd filed Critical Sanyo Electric Co Ltd
Publication of EP1032108A2 publication Critical patent/EP1032108A2/en
Publication of EP1032108A3 publication Critical patent/EP1032108A3/en
Application granted granted Critical
Publication of EP1032108B1 publication Critical patent/EP1032108B1/en
Anticipated expiration legal-status Critical
Expired - Lifetime legal-status Critical Current

Links

Classifications

    • H—ELECTRICITY
    • H01—ELECTRIC ELEMENTS
    • H01M—PROCESSES OR MEANS, e.g. BATTERIES, FOR THE DIRECT CONVERSION OF CHEMICAL ENERGY INTO ELECTRICAL ENERGY
    • H01M50/00—Constructional details or processes of manufacture of the non-active parts of electrochemical cells other than fuel cells, e.g. hybrid cells
    • H01M50/20—Mountings; Secondary casings or frames; Racks, modules or packs; Suspension devices; Shock absorbers; Transport or carrying devices; Holders
    • H01M50/204—Racks, modules or packs for multiple batteries or multiple cells
    • H01M50/207—Racks, modules or packs for multiple batteries or multiple cells characterised by their shape
    • H01M50/209—Racks, modules or packs for multiple batteries or multiple cells characterised by their shape adapted for prismatic or rectangular cells
    • H—ELECTRICITY
    • H01—ELECTRIC ELEMENTS
    • H01M—PROCESSES OR MEANS, e.g. BATTERIES, FOR THE DIRECT CONVERSION OF CHEMICAL ENERGY INTO ELECTRICAL ENERGY
    • H01M10/00—Secondary cells; Manufacture thereof
    • H01M10/42—Methods or arrangements for servicing or maintenance of secondary cells or secondary half-cells
    • H01M10/425—Structural combination with electronic components, e.g. electronic circuits integrated to the outside of the casing
    • H01M10/4257—Smart batteries, e.g. electronic circuits inside the housing of the cells or batteries
    • H—ELECTRICITY
    • H01—ELECTRIC ELEMENTS
    • H01M—PROCESSES OR MEANS, e.g. BATTERIES, FOR THE DIRECT CONVERSION OF CHEMICAL ENERGY INTO ELECTRICAL ENERGY
    • H01M10/00—Secondary cells; Manufacture thereof
    • H01M10/05—Accumulators with non-aqueous electrolyte
    • H01M10/052—Li-accumulators
    • H01M10/0525—Rocking-chair batteries, i.e. batteries with lithium insertion or intercalation in both electrodes; Lithium-ion batteries
    • H—ELECTRICITY
    • H01—ELECTRIC ELEMENTS
    • H01M—PROCESSES OR MEANS, e.g. BATTERIES, FOR THE DIRECT CONVERSION OF CHEMICAL ENERGY INTO ELECTRICAL ENERGY
    • H01M10/00—Secondary cells; Manufacture thereof
    • H01M10/42—Methods or arrangements for servicing or maintenance of secondary cells or secondary half-cells
    • H01M10/48—Accumulators combined with arrangements for measuring, testing or indicating the condition of cells, e.g. the level or density of the electrolyte
    • H—ELECTRICITY
    • H01—ELECTRIC ELEMENTS
    • H01M—PROCESSES OR MEANS, e.g. BATTERIES, FOR THE DIRECT CONVERSION OF CHEMICAL ENERGY INTO ELECTRICAL ENERGY
    • H01M50/00—Constructional details or processes of manufacture of the non-active parts of electrochemical cells other than fuel cells, e.g. hybrid cells
    • H01M50/50—Current conducting connections for cells or batteries
    • H01M50/569—Constructional details of current conducting connections for detecting conditions inside cells or batteries, e.g. details of voltage sensing terminals
    • H—ELECTRICITY
    • H02—GENERATION; CONVERSION OR DISTRIBUTION OF ELECTRIC POWER
    • H02J—ELECTRIC POWER NETWORKS; CIRCUIT ARRANGEMENTS OR SYSTEMS FOR SUPPLYING OR DISTRIBUTING ELECTRIC POWER; SYSTEMS FOR STORING ELECTRIC ENERGY
    • H02J7/00—Circuit arrangements for charging or discharging batteries or for supplying loads from batteries
    • H02J7/60—Circuit arrangements for charging or discharging batteries or for supplying loads from batteries including safety or protection arrangements
    • H02J7/663—Circuit arrangements for charging or discharging batteries or for supplying loads from batteries including safety or protection arrangements using battery or load disconnect circuits
    • Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
    • Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
    • Y02E—REDUCTION OF GREENHOUSE GAS [GHG] EMISSIONS, RELATED TO ENERGY GENERATION, TRANSMISSION OR DISTRIBUTION
    • Y02E60/00—Enabling technologies; Technologies with a potential or indirect contribution to GHG emissions mitigation
    • Y02E60/10—Energy storage using batteries

Landscapes

  • Engineering & Computer Science (AREA)
  • Chemical & Material Sciences (AREA)
  • Chemical Kinetics & Catalysis (AREA)
  • Electrochemistry (AREA)
  • General Chemical & Material Sciences (AREA)
  • Manufacturing & Machinery (AREA)
  • Microelectronics & Electronic Packaging (AREA)
  • Power Engineering (AREA)
  • Materials Engineering (AREA)
  • Battery Mounting, Suspending (AREA)
  • Connection Of Batteries Or Terminals (AREA)
  • Secondary Cells (AREA)

Abstract

The battery pack houses a protection circuit (3) along with a rechargeable cell (2) in a case (1). The protection circuit is provided with switching devices (7) to control current flow in the rechargeable cell, and a control circuit to control the switching devices. The protection circuit is molded in a single package with insulating material to make a one-package unit. The one-package unit is retained in a holding space in an insulating holder (6). The one-package unit, insulating holder, and rechargeable cell are held in the case.

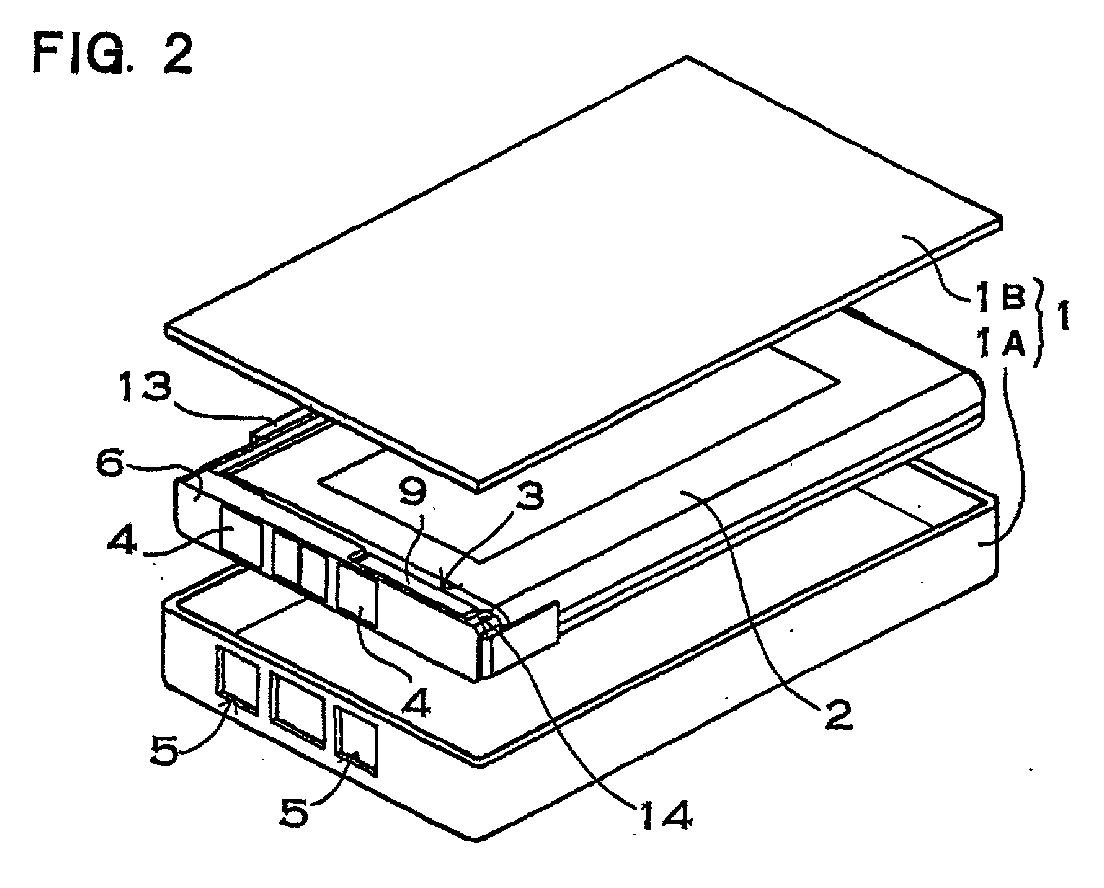

Figure 00000001
EP00103902A 1999-02-26 2000-02-24 Battery pack Expired - Lifetime EP1032108B1 (en)

Applications Claiming Priority (4)

Application Number Priority Date Filing Date Title
JP4981899 1999-02-26
JP4981899 1999-02-26
JP09162499A JP3454748B2 (en) 1999-02-26 1999-03-31 Battery pack
JP9162499 1999-03-31

Publications (3)

Publication Number Publication Date
EP1032108A2 EP1032108A2 (en) 2000-08-30
EP1032108A3 true EP1032108A3 (en) 2005-04-13
EP1032108B1 EP1032108B1 (en) 2008-09-10

Family

ID=26390273

Family Applications (1)

Application Number Title Priority Date Filing Date
EP00103902A Expired - Lifetime EP1032108B1 (en) 1999-02-26 2000-02-24 Battery pack

Country Status (7)

Country Link
US (1) US6492058B1 (en)
EP (1) EP1032108B1 (en)
JP (1) JP3454748B2 (en)
KR (1) KR100535739B1 (en)
DE (1) DE60040185D1 (en)
HU (1) HU227186B1 (en)
TW (1) TW437116B (en)

Families Citing this family (89)
