EP0903534A3 - Signal lamp - Google Patents

Signal lamp Download PDF

Info

Publication number
EP0903534A3
EP0903534A3 EP98114032A EP98114032A EP0903534A3 EP 0903534 A3 EP0903534 A3 EP 0903534A3 EP 98114032 A EP98114032 A EP 98114032A EP 98114032 A EP98114032 A EP 98114032A EP 0903534 A3 EP0903534 A3 EP 0903534A3
Authority
EP
European Patent Office
Prior art keywords
base body
signal lamp
shaped
axis
adapt
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Granted
Application number
EP98114032A
Other languages
German (de)
French (fr)
Other versions
EP0903534A2 (en
EP0903534B1 (en
Inventor
Frank Schlag
Jens Wizner
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Pfannenberg GmbH
Original Assignee
Otto Pfannenberg Elektro Spezialgeraetebau GmbH
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Otto Pfannenberg Elektro Spezialgeraetebau GmbH filed Critical Otto Pfannenberg Elektro Spezialgeraetebau GmbH
Publication of EP0903534A2 publication Critical patent/EP0903534A2/en
Publication of EP0903534A3 publication Critical patent/EP0903534A3/en
Application granted granted Critical
Publication of EP0903534B1 publication Critical patent/EP0903534B1/en
Anticipated expiration legal-status Critical
Expired - Lifetime legal-status Critical Current

Links

Classifications

    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F21—LIGHTING
    • F21V—FUNCTIONAL FEATURES OR DETAILS OF LIGHTING DEVICES OR SYSTEMS THEREOF; STRUCTURAL COMBINATIONS OF LIGHTING DEVICES WITH OTHER ARTICLES, NOT OTHERWISE PROVIDED FOR
    • F21V21/00—Supporting, suspending, or attaching arrangements for lighting devices; Hand grips
    • F21V21/14—Adjustable mountings
    • F21V21/30—Pivoted housings or frames
    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F21—LIGHTING
    • F21S—NON-PORTABLE LIGHTING DEVICES; SYSTEMS THEREOF; VEHICLE LIGHTING DEVICES SPECIALLY ADAPTED FOR VEHICLE EXTERIORS
    • F21S8/00—Lighting devices intended for fixed installation
    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F21—LIGHTING
    • F21W—INDEXING SCHEME ASSOCIATED WITH SUBCLASSES F21K, F21L, F21S and F21V, RELATING TO USES OR APPLICATIONS OF LIGHTING DEVICES OR SYSTEMS
    • F21W2111/00—Use or application of lighting devices or systems for signalling, marking or indicating, not provided for in codes F21W2102/00 – F21W2107/00
    • F21W2111/02—Use or application of lighting devices or systems for signalling, marking or indicating, not provided for in codes F21W2102/00 – F21W2107/00 for roads, paths or the like

Landscapes

  • Engineering & Computer Science (AREA)
  • General Engineering & Computer Science (AREA)
  • Non-Portable Lighting Devices Or Systems Thereof (AREA)
  • Liquid Crystal (AREA)
  • Optical Head (AREA)
  • Optical Communication System (AREA)
  • Fastening Of Light Sources Or Lamp Holders (AREA)

Abstract

Um eine Signalleuchte (100) mit einem eine Längsachse (11) aufweisenden Grundkörper (10) und mit wenigstens einer an dem Grundkörper angeordneten Leuchtquelle (12) unterschiedlicher Einsatzbedingungen und -zwecken anpassen zu können, weist der säulen- oder stabförmige Grundkörper (10) wenigstens ein Drehgelenk (16,18,20) mit einer Drehachse (22) auf, um den wenigstens zwei Abschnitte (24,26, 28) des Grundkörpers (10) gegeneinander drehbar sind.

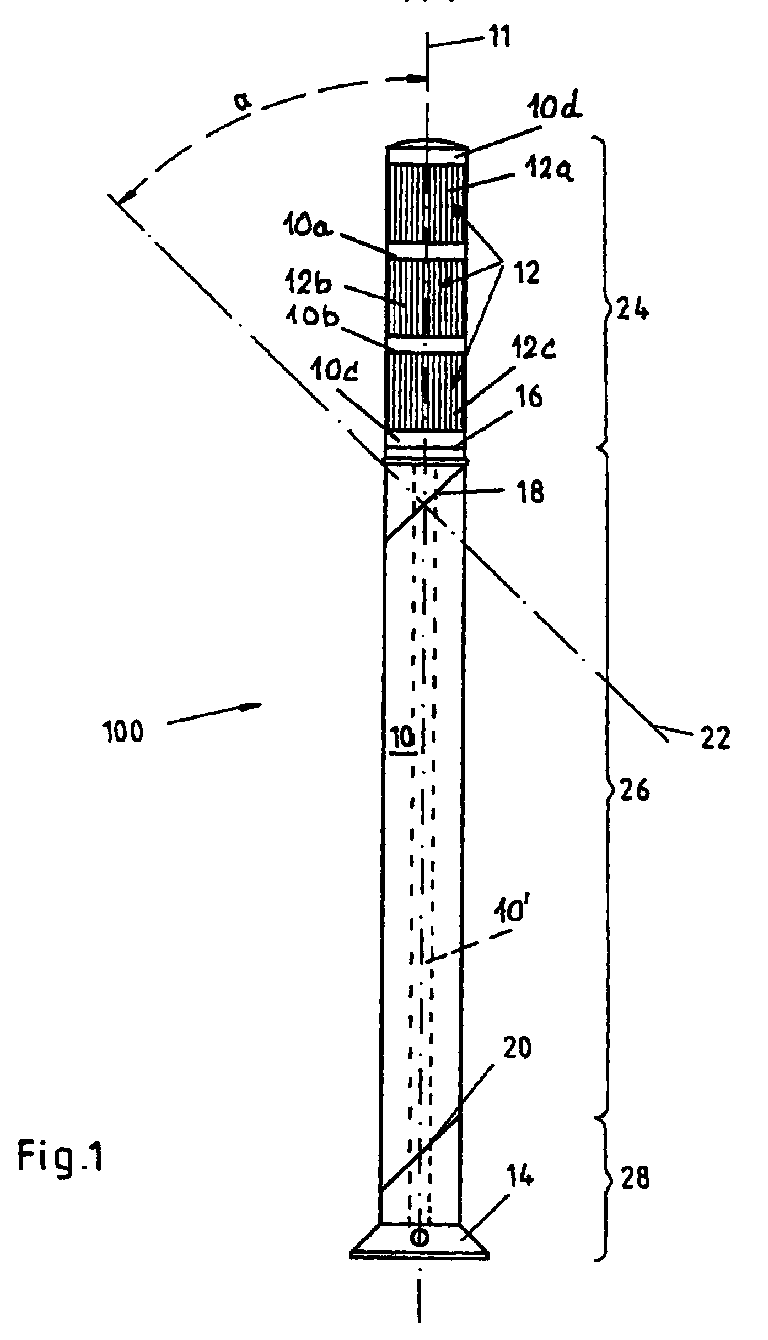

Figure 00000001
In order to be able to adapt a signal light (100) with a base body (10) having a longitudinal axis (11) and with at least one light source (12) arranged on the base body, the column-shaped or rod-shaped base body (10) has at least one a swivel joint (16, 18, 20) with an axis of rotation (22) around which at least two sections (24, 26, 28) of the base body (10) can be rotated relative to one another.
Figure 00000001
