EP0803304A3 - Warmhaltetiegel mit Vorkammer aus Graphit oder Metall - Google Patents

Warmhaltetiegel mit Vorkammer aus Graphit oder Metall Download PDF

Info

Publication number
EP0803304A3
EP0803304A3 EP97100045A EP97100045A EP0803304A3 EP 0803304 A3 EP0803304 A3 EP 0803304A3 EP 97100045 A EP97100045 A EP 97100045A EP 97100045 A EP97100045 A EP 97100045A EP 0803304 A3 EP0803304 A3 EP 0803304A3
Authority
EP
European Patent Office
Prior art keywords
chamber
interior
crucible
liquid metal
metal
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Withdrawn
Application number
EP97100045A
Other languages
English (en)
French (fr)
Other versions
EP0803304A2 (de
Inventor
Willi Eigemeier
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Femuk Betriebsberatung GmbH
Original Assignee
Femuk Betriebsberatung GmbH
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Femuk Betriebsberatung GmbH filed Critical Femuk Betriebsberatung GmbH
Publication of EP0803304A2 publication Critical patent/EP0803304A2/de
Publication of EP0803304A3 publication Critical patent/EP0803304A3/de
Withdrawn legal-status Critical Current

Links

Classifications

    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F27—FURNACES; KILNS; OVENS; RETORTS
    • F27B—FURNACES, KILNS, OVENS OR RETORTS IN GENERAL; OPEN SINTERING OR LIKE APPARATUS
    • F27B14/00—Crucible or pot furnaces
    • F27B14/08—Details specially adapted for crucible or pot furnaces
    • F27B14/10—Crucibles
    • B—PERFORMING OPERATIONS; TRANSPORTING
    • B22—CASTING; POWDER METALLURGY
    • B22D—CASTING OF METALS; CASTING OF OTHER SUBSTANCES BY THE SAME PROCESSES OR DEVICES
    • B22D41/00—Casting melt-holding vessels, e.g. ladles, tundishes, cups or the like
    • B22D41/04—Casting melt-holding vessels, e.g. ladles, tundishes, cups or the like tiltable
    • B22D41/05—Tea-pot spout ladles

Landscapes

  • Engineering & Computer Science (AREA)
  • Mechanical Engineering (AREA)
  • General Engineering & Computer Science (AREA)
  • Crucibles And Fluidized-Bed Furnaces (AREA)
  • Carbon And Carbon Compounds (AREA)

Abstract

An dem Warmhaltetiegel ist eine angeformte Vorkammer (4), (4.1) vorgesehen, die so konstruiert ist, dass zwischen dem Tiegelinnenraum (12) und dem Vorkammerinnenraum (13) eine Verbindungsöffnung (8),(8.1) verbleibt, die das Prinzip der kommunizierenden Röhren erfüllt.
Das bei Bedarf einzubringende Flüssigmetall wird ausschliesslich über die angeformte Vorkammer (4),(4.1) eingebracht.
Der Metallspiegel im Tiegelinnenraum steigt ohne Wirbelung auf die gewünschte Höhe an.
Bei dem einzubringenden Flüssigmetall handelt es sich vornehmlich um Alu-Legierungen.
Alu-Legierungen neigen leicht dazu, Oxide inform von Oxidhäuten zu bilden, die dann in der Schmelze schweben und zu Ausschuß der Gussteile führen.
Die Einbringung des Flüssigmetalls über die Vorkammer reduziert die Oxidbildung sehr stark, da keine Metallaufwirbelung erfolgt.
Der durch Oxidhäute entstehende Ausschuss der Gussteile wird erheblich eingeschränkt.

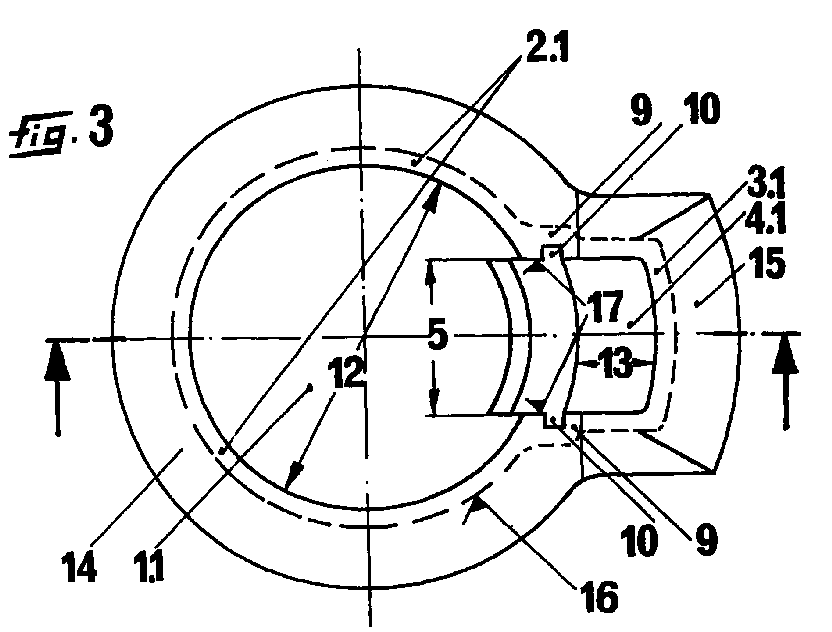

Figure 00000001
