本实用新型公开了一种可取代垃圾屋的防回掏可卸式垃圾箱及收运装置，包括不可回收垃圾箱(1)、可回收垃圾箱(2)、有害垃圾存储箱(3)和设置在底部两侧的垃圾液贮存箱(4)等，将传统的垃圾箱或垃圾房与垃圾中转站和二合一，与地面固定设施对接并与钩臂车配合使用，收集时为垃圾存放容器，转运时为垃圾车的车厢，可分离、可卸载、可分类投放、具有有效防回掏及消毒、除臭功能，克服了常规垃圾收运手段所存在的中间环节过多、费时、费力、效率低以及因拾荒回掏或设施本身的问题而造成垃圾散落、暴露、滋生蛆虫蚊蝇、散发臭味、垃圾液渗漏等缺陷，其大规模推广应用将可大大改善人居环境，符合当今人们追求生态和谐和高品位生活的诉求。
The utility model discloses a detachable anti-recovery garbage bin and a collecting and transporting device which can replace the garbage house, comprising a non-recyclable garbage box (1), a recyclable garbage box (2), a harmful garbage storage box (3) and Garbage liquid storage tanks (4), etc., arranged on both sides of the bottom, combine the traditional garbage bin or garbage room with the garbage transfer station and the two-in-one, dock with the fixed facilities on the ground and cooperate with the hook-arm truck to store garbage during collection. The container is the compartment of a garbage truck during transshipment. It can be separated, unloaded, and sorted, and has effective functions of anti-recovery, disinfection, and deodorization. It overcomes the excessive, time-consuming, and laborious intermediate links of conventional garbage collection and transportation methods , low efficiency, and defects such as garbage scattering, exposure, breeding of maggots, mosquitoes, odor, and leakage of garbage liquid caused by waste picking and recycling or the problems of the facility itself. Its large-scale promotion and application will greatly improve the living environment. People today pursue ecological harmony and high-quality life demands.
Description
技术领域 本实用新型涉及一种垃圾收运装置，更具体地讲，涉及一种可取代垃圾屋的防回掏可卸式垃圾箱及收运装置。Technical Field The utility model relates to a garbage collecting and transporting device, more specifically, to an anti-removal detachable garbage bin and a collecting and transporting device that can replace a garbage house.
技术背景 传统的垃圾收运方式一般是这样的：垃圾袋装后由居民放置于住宅楼下或进出通道两侧指定地点或容器内，保洁人员再用人力车将垃圾送至收集站(或垃圾房)，然后用垃圾收集车运往垃圾压缩站或直接送往垃圾处置场。这是一种人力、机械或半机械的收运方式，其特点是中间环节过多，从居民垃圾投放到填埋场或处理场之间要经过3～4道工序，费时、费力、效率低、成本高，并且在某些环节还因垃圾散落、暴露或设施本身设计的问题而滋生蛆虫蚊蝇、散发臭味、出现污水横流的情况，对周围环境造成一定的污染，是一种亟需改进、革新的方式。从技术上讲，减少中间环节、提高机械化与智能化将是可取的途径。Technical background The traditional way of collecting and transporting garbage is generally as follows: After the garbage is bagged, the residents place it in the designated place or container on the downstairs of the building or on both sides of the access passage, and the cleaning staff uses a rickshaw to send the garbage to the collection station (or garbage room) ), and then transported to a garbage compaction station or directly to a garbage disposal site by a garbage collection vehicle. This is a manpower, mechanical or semi-mechanical collection and transportation method, which is characterized by too many intermediate links. It takes 3 to 4 procedures from the disposal of residential waste to the landfill or disposal site, which is time-consuming, laborious and inefficient. , the cost is high, and in some links, maggots, mosquitoes and flies are bred, odor is emitted, and sewage cross-flow occurs due to garbage scattering, exposure or design problems of the facility itself, causing certain pollution to the surrounding environment, which is an urgent need Ways to improve and innovate. From a technical point of view, reducing intermediate links and improving mechanization and intelligence will be advisable ways.
本实用新型提供了一种适用于小区垃圾收集防回掏可卸式垃圾箱，将传统的垃圾箱(垃圾房、垃圾桶)和垃圾中转站和二合一，减少了收集与传送环节，可以基本杜绝垃圾收运对环卫工人身体健康的危害和对环境造成二次污染。使用该垃圾箱对提高城市生活垃圾收运管理水平，改善环境、提升城市整体形象具有积极而现实的意义。The utility model provides a detachable garbage bin suitable for garbage collection in communities, which combines traditional garbage bins (garbage rooms, garbage cans) and garbage transfer stations into one, reduces the collection and transmission links, and can Basically eliminate the health hazards of sanitation workers and secondary pollution to the environment caused by garbage collection and transportation. The use of the dustbin has positive and practical significance for improving the management level of urban domestic garbage collection and transportation, improving the environment and enhancing the overall image of the city.
发明内容 本实用新型的目的在于改进现有的垃圾收集与运输方式，克服其缺陷与不足，提供一种将传统的垃圾箱和垃圾中转站和二合为一，收集时为垃圾存放容器，转运时为垃圾车的车厢，可分离、可卸载、可分类投放、适用于小区垃圾收运的垃圾箱及收运装置。Summary of the invention The purpose of this utility model is to improve the existing garbage collection and transportation methods, overcome its defects and deficiencies, and provide a combination of traditional garbage bins and garbage transfer stations, which can be used as garbage storage containers during collection and transport It is the compartment of a garbage truck, which can be separated, unloaded, sorted and placed, and is suitable for garbage bins and collection and transportation devices for community garbage collection and transportation.
为了达到上述目的，本实用新型提供了如下技术方案：设计一种适用于小区垃圾收集、可分离、可卸载、可分类投放、具有防回掏、除臭等功能的垃圾箱，包括不可回收垃圾箱(1)、可回收垃圾箱(2)、有害垃圾存储箱(3)和设置在底部两侧的垃圾液贮存箱(4)，在不可回收垃圾箱(1)的顶部设置两个投料对接口(11)，其间距与两个地面固定的不回收投料口(14)间距一致，在两个投料对接口(11)之间正中位置设置消毒除臭装置(5)，在可回收垃圾箱(2)一侧顶部设置可回收垃圾投料口(18)，另一侧下部设置可回收垃圾取料口(17)，在有害垃圾存储箱(3)一侧顶部设置有害垃圾投料口(19)，下部设置有害垃圾取料口(20)，在垃圾箱后端设可以从底部向上开启的后箱门(9)，靠近后箱门处设置后门锁定装置(10)，在垃圾箱前端正中位置设钩环(27)，底部设置导轨(7)及滚轮(6)。In order to achieve the above purpose, the utility model provides the following technical solutions: design a garbage bin suitable for community garbage collection, which can be separated, unloaded, sorted, and has functions such as anti-recovery and deodorization, including non-recyclable garbage bin (1), recyclable garbage bin (2), harmful garbage storage bin (3) and garbage liquid storage bins (4) arranged on both sides of the bottom, and two feeding pairs are set on the top of the non-recyclable garbage bin (1). Interface (11), its spacing is consistent with the spacing of two fixed non-recoverable feeding ports (14) on the ground, a disinfection and deodorization device (5) is arranged in the middle position between the two feeding interface (11), and a recyclable garbage bin (2) A recyclable garbage feeding port (18) is arranged at the top of one side, a recyclable garbage feeding port (17) is arranged at the lower part of the other side, and a harmful garbage feeding port (19) is arranged at the top of one side of the hazardous waste storage box (3) , the lower part is provided with a harmful waste retrieving port (20), a rear door (9) that can be opened upwards from the bottom is provided at the rear end of the dustbin, a rear door locking device (10) is arranged near the rear door, and a rear door locking device (10) is arranged at the front end of the dustbin. Shackle (27) is set at the position, and guide rail (7) and roller (6) are set at the bottom.
本实用新型较好的技术方案可以是：该垃圾箱与地面附属设施配合使用，地面附属设施包括不回收垃圾投料口(14)、固定支架(13)和设置在地面的导轨(7)，在不回收垃圾投料口(14)旁侧设置光电感应开关(15)，固定支架内设有导线与地面固定电源插座(16)连接，当卸空的垃圾箱与地面附属设施成功对接后，光电感应开关(15)感应到有人投放垃圾时，垃圾箱投料对接口(11)平时关闭的档板会自动打开，投放完毕，人离开后会又自动关闭，这样做的好处是，使垃圾箱保持密封状态，防止垃圾臭气散发及滋生蚊蝇。The preferred technical scheme of the utility model can be: the dustbin is used in conjunction with the auxiliary facilities on the ground, and the auxiliary facilities on the ground include a non-recyclable garbage feeding port (14), a fixed support (13) and a guide rail (7) arranged on the ground. A photoelectric sensor switch (15) is arranged on the side of the non-recyclable garbage feeding port (14), and a wire is provided in the fixed bracket to connect with the ground fixed power socket (16). When the switch (15) senses that someone puts in the garbage, the normally closed baffle plate of the garbage bin feeding interface (11) will be automatically opened, and after the feeding is completed, it will be automatically closed again after the person leaves. The advantage of doing this is that the garbage bin is kept sealed state, to prevent the emission of garbage odor and the breeding of mosquitoes and flies.
本实用新型较好的技术方案可以是：该垃圾箱与钩臂车配套使用，钩臂车设置有液压控制的钩臂(22)及其钩头(26)，钩臂车底盘上设有导轨(7)和滚轮(6)，这样设置的有益效果是可以轻易地完成垃圾箱与钩臂车之间的装卸。The preferred technical scheme of the utility model can be: the dustbin is used in conjunction with the hook arm truck, the hook arm truck is provided with a hydraulically controlled hook arm (22) and its hook head (26), and the hook arm truck chassis is provided with a guide rail (7) and roller (6), the beneficial effect that arranges like this can finish loading and unloading between dustbin and hook arm car easily.
本实用新型较好的技术方案也可以是：消毒除臭装置采用紫外C光波消毒除臭器，这样做的好处是在通电状况下可对箱内的生活垃圾消毒、除臭，不会对垃圾收集箱存放地点周边居民产生臭气污染。The preferred technical scheme of the utility model can also be: the disinfection and deodorization device adopts an ultraviolet C light wave disinfection and deodorization device. Odor pollution will be generated by residents around the collection box storage location.
本实用新型较好的技术方案又可以是：垃圾箱后门锁定装置(10)采用油缸锁紧机构，这样做的好处是驾驶员可以轻易地控制垃圾箱后门的开启与关闭，利于进入垃圾场后垃圾箱内垃圾的倾泄。The better technical scheme of the utility model can be again: the locking device (10) of the rear door of the garbage bin adopts an oil cylinder locking mechanism, and the advantage of doing like this is that the driver can easily control the opening and closing of the rear door of the garbage bin, which is beneficial to the rear door of the garbage bin after entering the garbage dump. The dumping of rubbish in the dustbin.
与目前常用的垃圾收运手段和设备相比，本实用新型具有以下明显优点：1、该实用新型所涉及的垃圾厢在转运时可作为垃圾车的车厢，收集时为垃圾存放的容器，减少了中间环节，并且一台钩臂车可与多个垃圾箱配合使用，装卸速度快，收运效率高，无亏载现象，大大节省了人力、物力；2、机械化、智能化程度高，操作简便，减少了收运过程中人与垃圾的接触；3、整个垃圾箱划分为不回收、回收、有害垃圾存放等功能箱体，可提醒人们根据垃圾性质进行分类及回收，利于垃圾处理及避免资源浪费；4、具有防回掏的功能，能有效防止了因拾荒回掏垃圾而造成的环境污染；5、设有专用的密闭的垃圾液贮存箱及排泄机关，可以有效防止一般垃圾屋或垃圾箱存在的垃圾液渗漏，特别是下雨天出现污水横流的情况；6、从垃圾投放到处理场的全过程是密闭的，并设有消毒除臭装置，避免了传统收运手段所存在的垃圾散落、臭气散发、蚊蝇滋生等环境污染问题，其大规模推广与应用将大大改善人居环境，符合当今人们追求生态和谐和高品位生活的诉求。Compared with the currently commonly used means and equipment for collecting and transporting garbage, the utility model has the following obvious advantages: 1. The garbage compartment involved in the utility model can be used as a compartment of a garbage truck during transshipment, and is a container for garbage storage during collection, reducing It eliminates the intermediate link, and one hook-arm truck can be used in conjunction with multiple garbage bins. The loading and unloading speed is fast, the collection and transportation efficiency is high, and there is no shortage of load, which greatly saves manpower and material resources; 2. High degree of mechanization and intelligence, easy operation It is simple and reduces the contact between people and garbage during the collection and transportation process; 3. The entire garbage bin is divided into functional boxes such as non-recycling, recycling, and harmful garbage storage, which can remind people to classify and recycle according to the nature of garbage, which is beneficial to garbage disposal and avoidance. Waste of resources; 4. It has the function of preventing reclaiming, which can effectively prevent environmental pollution caused by picking up waste and reclaiming garbage; 5. It is equipped with a special closed garbage liquid storage tank and excretion mechanism, which can effectively prevent general garbage houses or Leakage of garbage liquid in the garbage bin, especially in the case of cross flow of sewage in rainy days; 6. The whole process from garbage dumping to the disposal site is airtight, and equipped with disinfection and deodorization devices, which avoids the existence of traditional means of collection and transportation Its large-scale promotion and application will greatly improve the living environment and meet people's demands for ecological harmony and high-quality life today.
附图说明 下面通过附图对本实用新型的结构进行详细说明：Description of drawings The structure of the present utility model is described in detail below by means of the accompanying drawings:
图-1是俯视图，在图-1中，18是可回收垃圾投料口，19是有害垃圾投料口，20是有害垃圾取料口，21是箱体骨架，4是垃圾液贮存箱。Figure-1 is a top view. In Figure-1, 18 is a recyclable waste feeding port, 19 is a harmful waste feeding port, 20 is a harmful waste retrieving port, 21 is a box skeleton, and 4 is a garbage liquid storage tank.
图-2是本实用新型A-A剖面图，在图-2中，2是可回收垃圾箱，3是有害垃圾存储箱，4是垃圾液贮存箱，17是可回收垃圾取料口，18可回收垃圾投料口，19是有害垃圾投料口，20是有害垃圾取料口。Figure-2 is a sectional view of A-A of the utility model, in Figure-2, 2 is a recyclable garbage bin, 3 is a harmful garbage storage box, 4 is a garbage liquid storage box, 17 is a recyclable garbage feeding port, and 18 is recyclable Garbage feeding port, 19 is a harmful waste feeding port, and 20 is a harmful waste feeding port.

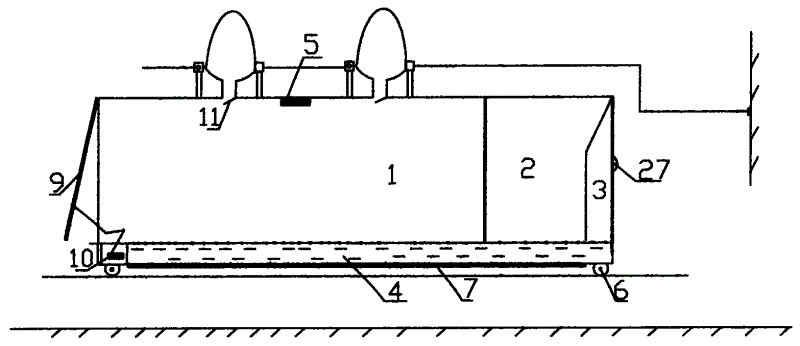

图-3本实用新型的B-B剖面图，在图-3中，1是不可回垃圾收箱，2是可回收垃圾箱，3是有害垃圾存储箱，4是垃圾液贮存箱，5是消毒除臭装置，6是滚轮，7是导轨，27是钩环，9是后箱门，10是后门锁定装置，11是投料对接口。Figure-3 B-B sectional view of the utility model, in Figure-3, 1 is the non-recyclable garbage collection box, 2 is the recyclable garbage box, 3 is the harmful garbage storage box, 4 is the garbage liquid storage box, 5 is the disinfection and removal Smelly device, 6 is roller, and 7 is guide rail, and 27 is shackle, and 9 is rear box door, and 10 is rear door locking device, and 11 is the docking port of feeding.
图-4是地面附属设施布置图，在图-4中，7是导轨，13是固定支架，14是不回收垃圾投料口，15是光电感应开关，16是地面固定电源插座。Figure-4 is the layout of the auxiliary facilities on the ground. In Figure-4, 7 is the guide rail, 13 is the fixed bracket, 14 is the non-recyclable garbage feeding port, 15 is the photoelectric sensor switch, and 16 is the ground fixed power socket.
图-5是垃圾箱装卸示意图，在图-5中，24是钩臂车，22是钩臂，26是钩头，7是导轨，6是滚轮。Figure-5 is a schematic diagram of garbage bin loading and unloading. In Figure-5, 24 is a hook arm vehicle, 22 is a hook arm, 26 is a hook head, 7 is a guide rail, and 6 is a roller.
具体实施方式 以下通过具体的实施方式对本实用新型进行更加详细地描述：Specific embodiments The utility model is described in more detail below through specific embodiments:
参照图-1、图-2、图-3和图-4，一种可取代垃圾屋的防回掏可卸式垃圾箱及收运装置，包括不可回收垃圾箱(1)、可回收垃圾箱(2)、有害垃圾存储箱(3)和设置底部两侧的垃圾液贮存箱(4)，在不可回收垃圾箱(1)的顶部设置两个投料对接口(11)，其间距与两个地面固定的投料口(14)间距一致，在两个投料对接口(11)之间正中位置设置消毒除臭装置(5)，在可回收垃圾箱(2)一侧顶部设置可回收垃圾投料口(18)，另一侧下部设置回收垃圾取料口(17)，在有害垃圾存储箱(3)一侧顶部设置有害垃圾投料口(19)，下部设置有害垃圾取料口(20)，在垃圾箱后端设可以从底部向上开启的后箱门(9)，靠近后箱门处设置后门锁定装置(10)，在垃圾箱前端正中位置设钩环(27)，底部设置导轨(7)及滚轮(6)。Referring to Fig.-1, Fig.-2, Fig.-3 and Fig.-4, a kind of anti-retractable detachable garbage bin and collection and transportation device that can replace the garbage house, including non-recyclable garbage bin (1), recyclable garbage bin (2), hazardous waste storage box (3) and the garbage liquid storage box (4) on both sides of the bottom are set, and two feeding docking ports (11) are set on the top of the non-recyclable garbage box (1), and its spacing is the same as that of the two The distance between the feeding ports (14) fixed on the ground is the same, a disinfection and deodorization device (5) is set in the middle between the two feeding ports (11), and a recyclable garbage feeding port is set on the top of one side of the recyclable garbage bin (2) (18), the lower part of the other side is provided with a recycling garbage intake (17), and the hazardous waste storage box (3) side top is provided with a harmful waste feed opening (19), and the bottom is provided with a harmful waste intake (20). The dustbin rear end is provided with the back door (9) that can be opened upwards from the bottom, a rear door locking device (10) is set near the back door, a shackle (27) is established at the front center of the dustbin, and a guide rail (7) is set at the bottom. ) and rollers (6).
本实用新型所涉及的垃圾箱工作过程是这样的：钩臂车底盘上设置由钩臂、钩头、导轨、轨轮等组成的起卸装置，通过起卸装置对已经装满或卸空的垃圾箱进行装箱和卸箱。垃圾箱卸空后与地面附属设施对接，从而成为垃圾储存容器，当设置在不回收垃圾投料口(14)旁侧的光电感应开关(15)探测到有人要投放垃圾时，平时闭合的投料对接口(11)的档板自动打开，垃圾投放完毕，人离开后再次自动闭合，设置在箱顶部的消毒除臭装置定时启动消毒、灭菌、除臭，当垃圾箱装满后，钩臂车装箱运输至处理场卸空垃圾后再进行下一轮操作。The working process of the garbage bin involved in the utility model is as follows: a lifting device composed of a hook arm, a hook head, a guide rail, a rail wheel, etc. is arranged on the chassis of the hook arm car, and the garbage bin that has been filled or unloaded is cleaned by the lifting device. Bins for binning and unbinning. After the garbage bin is unloaded, it is docked with the auxiliary facilities on the ground to become a garbage storage container. When the photoelectric sensor switch (15) arranged on the side of the non-recyclable garbage feeding port (14) detects that someone is about to throw in garbage, the usually closed feeding pair The baffle plate of the interface (11) is automatically opened, the garbage is put in, and it is automatically closed again after the person leaves. The disinfection and deodorization device arranged on the top of the box starts disinfection, sterilization and deodorization regularly. Packing and transportation to the disposal site to unload the garbage before proceeding to the next round of operation.
