Abstract
一种导带式广告机，包括灯箱以及设置在灯箱两侧的与传动装置相连接的可转动的卷画轴，在卷画轴之间的灯箱内还均匀设置有若干组相互平行且有一定间距的导向轴和展示板，广告纸呈“S”形绕过导向轴和展示板，且广告纸的两端分别与卷画轴固定连接。由于本实用新型的广告纸呈S形绕过导向轴和展示板，并利用广告纸等间距的印刷方式，将画面容量均布于各个导向轴和展示板之间。通过卷轴卷纸、实现纸张联动，从而完成画面的变换展示。
A belt-guiding advertising machine, including a light box and rotatable scroll scrolls connected to transmission devices arranged on both sides of the light box, and several groups of parallel and spaced scroll scrolls are evenly arranged in the light box between the scroll scrolls. The guide shaft and the display board, the advertisement paper bypasses the guide shaft and the display board in an "S" shape, and the two ends of the advertisement paper are respectively fixedly connected with the scroll scroll. Since the advertisement paper of the present invention bypasses the guide shaft and the display board in an S shape, and utilizes the printing method of equal intervals on the advertisement paper, the picture capacity is evenly distributed between each guide shaft and the display board. The paper is rolled by the scroll to realize the linkage of the paper, so as to complete the transformation and display of the screen.
Description
Technical field
The utility model relates to a kind of dynamic picture-changing advertising machine, particularly a kind of guide belt advertisement machine.
Background technology
At present, dynamic picture-changing advertising machine both domestic and external mainly contains three surface-turning advertising placard and tumbling-type advertising lamp box etc.Three surface-turning advertising placard is that the triangular prism by a group and registration constitutes.Triangular prism is made by special aluminium section bar, centers on self central shaft rotation by all triangular prisms of motor-driven, utilizes three sides of triangular prism can form three width of cloth pictures.The tumbling-type advertising lamp box is that the mode with spool volume picture shows the different advertisement picture of 2 to 10 width of cloth successively on same lamp box.In two kinds of mechanisms more than enumerating, wherein three faces turn over the picture finite capacity as can be seen, can only show three width of cloth pictures to greatest extent, and cost of manufacture and cost of use are higher, and the installation and maintenance difficulty is bigger.And the tumbling-type advertising lamp box relies on the spool scrolling to change picture, and it is longer that scrolling changes the picture time, and the picture flatness is not good, is unfavorable for viewing and admiring.
Summary of the invention
The purpose of this utility model is to provide a kind of guide belt advertisement machine simple in structure, practical, with low cost.
For achieving the above object, the technical solution adopted in the utility model is: the rotating volume painted scroll that is connected with gearing that comprises lamp box and be arranged on the lamp box both sides, be characterized in, also evenly being provided with some groups in the lamp box between two volume painted scrolls is parallel to each other and the axis of guide at regular intervals and Graphic Panel, poster paper is serpentine and walks around the axis of guide and Graphic Panel, and fixedlys connected with the volume painted scroll respectively in the two ends of poster paper.
Another characteristics of the present utility model are: the poster paper equal intervals is printed with advertisement poster, and this spacing equates with the width of Graphic Panel.
Because poster paper of the present utility model is S-shaped walks around the axis of guide and Graphic Panel, and utilizes the equally spaced mode of printing of poster paper, and the picture capacity is distributed between each axis of guide and the Graphic Panel.By spool coil paper, the interlock of realization paper, thereby the conversion of finishing picture is showed.
Description of drawings

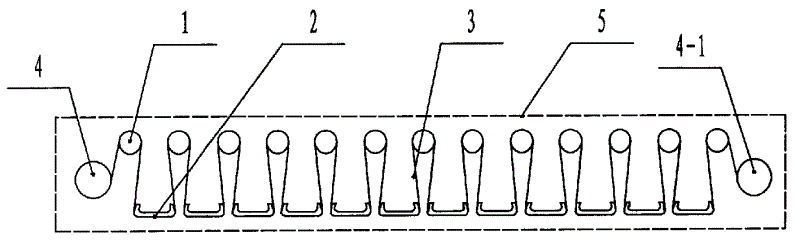

Accompanying drawing is an one-piece construction synoptic diagram of the present utility model.
Embodiment
Below in conjunction with accompanying drawing structural principle of the present utility model and principle of work are described in further detail.
Referring to accompanying drawing, the rotating volume painted scroll 4 and the 4-1 that are connected with gearing that the utility model comprises lamp box 5 and is arranged on lamp box 5 both sides, also evenly being provided with some groups in the lamp box 5 between volume painted scroll 4 and volume painted scroll 4-1 is parallel to each other and the axis of guide at regular intervals 1 and Graphic Panel 2, poster paper 3 is serpentine and walks around the axis of guide 1 and Graphic Panel 2, and fixedly connected with volume painted scroll 4 and volume painted scroll 4-1 respectively in the two ends of poster paper 3, poster paper 3 equal intervals are printed with advertisement poster, and this spacing equates with the width of Graphic Panel 2.
Volume painted scroll 4 of the present utility model, 4-1 show the advertisement picture that several are different in the mode of volume picture successively on same lamp box 5.Poster paper 3 passes through the axis of guide 1 and Graphic Panel 2 successively with the form of conduction band, shown in the axis of guide 1 and Graphic Panel 2 be row and spacing equates, be parallel to each other between the axis of guide 1 and the Graphic Panel 2 and at regular intervals, the size of this spacing is the principal element of this mechanism's picture capacity of decision.Poster paper 3 two ends are fixed on volume painted scroll 4, the 4-1, and when volume painted scroll 4 licks certain angle, this mechanism drives poster paper 3 and makes corresponding sports along route, just our said interlock.Because single display panel is narrower, just can make picture accomplish the effect of Fast transforms so lick very little angle at the effect last volume painted scroll 4 that links.This mechanism has and the picture classification can be stretched simultaneously, makes picture that flatness preferably be arranged.
Claims (2)
1, a kind of guide belt advertisement machine, the rotating volume painted scroll [4] and [4-1] that are connected with gearing that comprise lamp box [5] and be arranged on lamp box [5] both sides, it is characterized in that: also evenly be provided with some groups in the lamp box [5] between volume painted scroll [4] and volume painted scroll [4-1] and be parallel to each other and the axis of guide at regular intervals [1] and Graphic Panel [2], poster paper [3] is serpentine and walks around the axis of guide [1] and Graphic Panel [2], and fixedlys connected with volume painted scroll [4] and volume painted scroll [4-1] respectively in the two ends of poster paper [3].
2, guide belt advertisement machine according to claim 1 is characterized in that: said poster paper [3] equal intervals is printed with advertisement poster, and this spacing equates with the width of Graphic Panel [2].
