Abstract
The utility model relates to a medical appliance, particularly a clamping and needle-inserting device of an acupuncture filiform needle, which is used for acupuncture. The clamping and needle-inserting device of an acupuncture filiform needle of the utility model is composed of a clamping moving body, a rotating shaft, a pressing moving rod and pressing moving reset elastic bodies, wherein the rotating shaft is positioned between the pressing moving rod and the clamping moving body, and the clamping moving body is connected with the pressing moving rod to form an integral body by the rotating shaft. The pressing moving rod is composed of an upper pressing moving rod and a lower pressing moving rod which are corresponding to each other, and the pressing moving reset elastic bodies are respectively arranged on the corresponding surfaces of the upper pressing moving rod and the lower pressing moving rod. The clamping moving body is composed of an upper clamping moving body and a lower clamping moving body which are corresponding to each other, and filiform needle clamping plates are respectively arranged on the corresponding surfaces of the upper clamping moving body and the lower clamping moving body. The utility model can avoid directly touching and polluting a needle body by fingers, and iatrogenic infection can be effectively avoided.
Description
Technical field
This utility model relates to a kind of medical apparatus and instruments, especially a kind of acupuncture acupuncture needle clamping inserting needle device that is used for acupuncture.
Background technology
In the science of acupuncture and moxibustion roughly there be technique of filiform needle acupuncture at present: 1, fingernail-pressure needle inserting (referring to Fig. 4); 2, clamping method of needle insertion (referring to Fig. 5); 3, skin-pinching up needle inserting (referring to Fig. 7); 4, skin stretching needle inserting (referring to Fig. 6); 5, syringe method of needle insertion (referring to Fig. 8, Fig. 9).Above traditional inserting needle method, though it is easy to operation, but the science part is not apparent to run counter to sterile working's principle, they all run counter to the requirement of sterile working, in the tradition inserting needle method preceding 4 kinds during to the acupuncture needle inserting needle more than 1.5 cun, operator's finger tip pressing technique (being left hand) and needle-holding hand (being the right hand), though also sterilization, but be difficult to reach the requirement of sterile working, particularly the operator is directly with fingerhold or bump or hold up needle body, will inevitably cause the pollution of needle body, the possibility that causes patient's nosocomial infection is arranged; And the syringe method of needle insertion, aspect the sterile working, though slightly be better than preceding 4 kinds, during the inserting needle transdermal not as preceding 4 kinds easy to operate, moreover acupuncture needle is different in size, the length respective change of syringe is difficulty, particularly diagonal stabbing or flat thorn, its more apparent inconvenience; Moreover west doctor and patient, though the clinical efficacy of approval Chinese acupuncture and moxibustion owing to query the sterile working of Chinese acupuncture and moxibustion, causes it to become a big obstacle that goes to the world.In order to address the above problem, in clinical treatment for many years, explore through long-term, invented this cover acupuncture needle clamping inserting needle device.
Summary of the invention
In view of above-mentioned existing in prior technology problem; The purpose of this utility model is that a kind of can avoiding of development can be avoided the acupuncture acupuncture needle clamping inserting needle device of nosocomial infection effectively with pointing directly touch and polluting needle body.It is all flexible that no matter the undemanding problem in sterile working when this utility model has solved the operation of employing needled conventionally method well is straight thrust, diagonal stabbing, minute hand, the inserting needle device is originally held in the hour hand use.One people, one tool spininess meets aseptic requirement when having accomplished acupuncture and moxibustion therapy.
Acupuncture acupuncture needle clamping inserting needle device described in the utility model is by folder kinetoplast, rotating shaft, pressure rod, press the Flexible Reset body and formed; Rotating shaft will be pressed from both sides kinetoplast by rotating shaft and is connected with pressure rod and be one between pressure rod and folder kinetoplast; Pressure rod is made up of the corresponding institute with following pressure rod of last pressure rod; On the corresponding surface of last pressure rod and following pressure rod, be separately installed with and press the Flexible Reset body; The folder kinetoplast is by last folder kinetoplast and press from both sides down that kinetoplast is corresponding to combine; On last folder kinetoplast and following folder kinetoplast corresponding, the acupuncture needle grip block is housed all.Described in the utility model to press the Flexible Reset body can be spring, press the elastic rod that resets.
The inner surface of folder kinetoplast of the present utility model is smooth, not damaging needle body when its material will be with clamping acupuncture needle needle body and being difficult for slippage is standard, can select high-quality timber, bamboo material, alloy, metal, safety glass, artificial material, plastic cement etc. for use, the pressure rod material can be selected high-quality rustless steel or other material for use, and selected materials will be to be easy to sterilization degree of being.The size of this acupuncture acupuncture needle clamper is as the criterion flexibly so that the doctor is easy to use.This holds the inserting needle device, and is simple in structure, and its manufactured materials aboundresources is various, and little light weight of volume and cost are lower, and sterilization is convenient, uses flexibly, and easy to operate, face shaping is various, can and easy to usely select different styles for use according to the doctor personal preference.
This acupuncture needle clamping inserting needle implement body has solved following problem: when (1) has solved existing acupuncture needle traditional method inserting needle, and the undemanding problem in sterile working; (2) solved the acupuncture needle inserting needle difficulty of longer dimension and easily pollute the problem of needle body; When (3) having solved employing syringe inserting needle, limited by acupuncture needle length, the problem of straight thrust diagonal stabbing inconvenience; (4) solved and wear sterile gloves and hold problems such as the easy slippage of inserting needle and feel be not strong; (5) use this acupuncture needle to hold the inserting needle device, can observe aseptic technique well, reduce this difficult problem of nosocomial infection, cleared away a big obstacle for Chinese acupuncture and moxibustion goes to the world.
Prove that through time clinical use of medical institutions of army department of acupuncture and moxibustion 5000 many cases nosocomial infection takes place none example of acupuncture and moxibustion therapy of using this acupuncture acupuncture needle clamping inserting needle device to implement.
Description of drawings

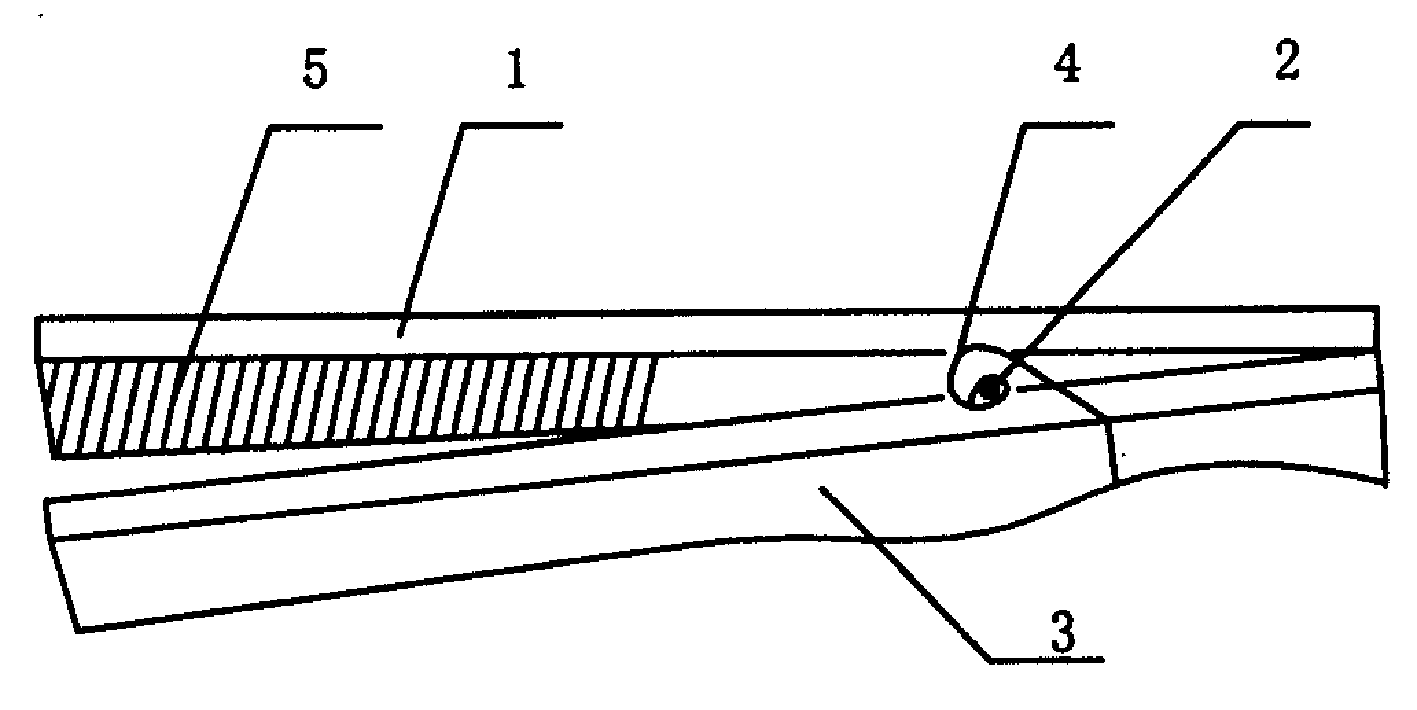

Accompanying drawing 1 is an acupuncture acupuncture needle clamping inserting needle device A type structural representation
Accompanying drawing 2 is acupuncture acupuncture needle clamping inserting needle device Type B structural representations
Accompanying drawing 3 is acupuncture acupuncture needle clamping inserting needle device C type structural representations
Accompanying drawing 4 is meant cuts the method for needle insertion sketch map
Accompanying drawing 5 is clamping method of needle insertion sketch maps
Accompanying drawing 6 is skin stretching needle inserting sketch maps
Accompanying drawing 7 is skin-pinching up needle inserting sketch maps
Accompanying drawing 8 is syringe method of needle insertion sketch maps
Accompanying drawing 9 is syringe method of needle insertion sketch maps
Among the figure: 1, the folder kinetoplast 2, rotating shaft 3, pressure rod 4, press Flexible Reset body 5, grip block
The specific embodiment:
Embodiment 1: A type acupuncture acupuncture needle clamper is a longitudinal bodies as shown in Figure 1, by folder kinetoplast 1, rotating shaft 2, pressure rod 3, press back-moving spring 4 and formed; Rotating shaft 2 will be pressed from both sides kinetoplast 1 by rotating shaft 2 and is connected with pressure rod 3 and be one between pressure rod 3 and folder kinetoplast 1; Pressure rod 3 is made up of the corresponding institute with following pressure rod of last pressure rod; On the corresponding surface of last pressure rod and following pressure rod, be separately installed with and press back-moving spring 4; Folder kinetoplast 1 is by last folder kinetoplast and press from both sides down that kinetoplast is corresponding to combine; On last folder kinetoplast and following folder kinetoplast corresponding acupuncture needle grip block 5 is housed all, folder kinetoplast 1 is connected with 3 one-tenth of pressure rods " " font.
Embodiment 2: Type B acupuncture acupuncture needle clamper as shown in Figure 2, by folder kinetoplast 1, rotating shaft 2, pressure rod 3, press the elastic rod 4 that resets and formed; Rotating shaft 2 will be pressed from both sides kinetoplast 1 by rotating shaft 2 and is connected with pressure rod 3 and be one between pressure rod 3 and folder kinetoplast 1; Pressure rod 3 is made up of the corresponding institute with following pressure rod of last pressure rod; On the corresponding surface of last pressure rod and following pressure rod, be separately installed with and press the elastic rod 4 that resets; Folder kinetoplast 1 is by last folder kinetoplast and press from both sides down that kinetoplast is corresponding to combine; On last folder kinetoplast and following folder kinetoplast corresponding, acupuncture needle grip block 5 all is housed, folder kinetoplast 1 and 3 one-tenth of pressure rods
Shape connects.
Embodiment 3: C type acupuncture acupuncture needle clamper as shown in Figure 3, by folder kinetoplast 1, rotating shaft 2, pressure rod 3, press back-moving spring 4 and formed; Rotating shaft 2 will be pressed from both sides kinetoplast 1 by rotating shaft 2 and is connected with pressure rod 3 and be one between pressure rod 3 and folder kinetoplast 1; Pressure rod 3 is made up of the corresponding institute with following pressure rod of last pressure rod; On the corresponding surface of last pressure rod and following pressure rod, be separately installed with and press back-moving spring 4; Folder kinetoplast 1 is by last folder kinetoplast and press from both sides down that kinetoplast is corresponding to combine; On last folder kinetoplast and following folder kinetoplast corresponding acupuncture needle grip block 5 is housed all, folder kinetoplast 1 is connected with 3 one-tenth of pressure rods " T " font.
Concrete operation method is as follows: the two well-known doctors author that works preferably during operation, wherein one be called the assistant, the assistant only is responsible for the point skin routine disinfection chosen, after operator's both hands are cleaned routine disinfection, left hand (being the finger tip pressing technique) should be worn sterile gloves, can not wear sterile gloves for the easy to operate right hand (being needle-holding hand), hold aseptic acupuncture needle clamping inserting needle device, get suitable acupuncture needle, be held on the clamping pin place of inserting needle device, long acupuncture needle need clip needle body portion, and short acupuncture needle then can be clamped needle body or needle handle portion, and needle point exposes about 1～1.5cm, right-handed forefinger, thumbs etc. firmly make to be held the inserting needle device acupuncture needle is clipped, thrust rapidly in the place, acupuncture point that disinfects, short acupuncture needle can directly enter, long acupuncture needle then can make full use of holds inserting needle device better elastic structure, the right hand is controlled flexibly, adopts and is interrupted the clamping inserting needle, until " bringing about the desired sensation ".After also can adopting this to hold inserting needle device inserting needle and thrust point skin, use traditional method voluntarily instead by assistant or operator and hold the acupuncture needle needle handle and continue again to thrust, until " bringing about the desired sensation ".
Claims (2)
1, a kind of acupuncture acupuncture needle clamping inserting needle device is characterized in that by folder kinetoplast (1), rotating shaft (2), pressure rod (3), presses Flexible Reset body (4) and formed; Rotating shaft (2) is positioned between pressure rod (3) and folder kinetoplast (1), will press from both sides kinetoplast (1) by rotating shaft (2) and be connected with pressure rod (3) and be one; Pressure rod (3) is made up of the corresponding institute with following pressure rod of last pressure rod; On the corresponding surface of last pressure rod and following pressure rod, be separately installed with and press Flexible Reset body (4); Folder kinetoplast (1) is by last folder kinetoplast and press from both sides down that kinetoplast is corresponding to combine; On last folder kinetoplast and following folder kinetoplast corresponding, acupuncture needle grip block (5) is housed all.
2, acupuncture acupuncture needle clamping inserting needle device according to claim 1, to it is characterized in that pressing Flexible Reset body (4) can be spring, press the elastic rod that resets.
