Abstract
A kind of movable paint spray booth is the improvement that belongs to paint spraying apparatus.The utility model is exactly at the problems referred to above, provides a kind of simple in structure, movable paint spray booth free from environmental pollution.The utility model comprises gantry frame (4), its structural feature is that the same motor of roller (3) (2) of the bottom of gantry frame (4) links to each other, the top of gantry frame (4) is operating platform (9), the both sides of gantry frame (4) are provided with the descending operation case (5) that has to inner opening (7) respectively, the both sides of descending operation case (5) are provided with exhaust outlet (17), chain (14) on the same gantry frame of sprocket wheel (13) (4) on the descending operation case (5) links to each other, the top of descending operation case (5) links to each other with the telescopic air draft tube (8) with exhaust blower (10), and the both sides at the top of gantry frame (4) are respectively arranged with air intake machine (11).
Description
Technical field:
The utility model is the improvement that belongs to paint spraying apparatus.
Background technology:
At present domestic when oversize vehicle is carried out paint spraying, adopt in the paint spray booth or in the factory building more, utilize movably platform or scaffold to operate.A last big paint spray booth, investment is big, and it is big to take up room, and is restricted so use.If in factory building, carry out, pollute the environment again, the falling of coating cloud simultaneously also can influence the effect of spraying paint of vehicle.
The utility model content:
The utility model is exactly at the problems referred to above, provides a kind of simple in structure, movable paint spray booth free from environmental pollution.
The utility model adopts following technical scheme: the utility model comprises gantry frame, its structural feature is that the roller of the bottom of gantry frame links to each other with motor, the top of framework is an operating platform, the both sides of framework are provided with the descending operation case that has to inner opening respectively, the both sides of descending operation case are provided with exhaust outlet, sprocket wheel on the descending operation case links to each other with the chain on the gantry frame, the top of descending operation case links to each other with the telescopic air draft tube with exhaust blower, and the both sides at the top of gantry frame are respectively arranged with the air intake machine.
The beneficial effects of the utility model:
1, easy to use:
Because the bottom of gantry frame of the present utility model is provided with roller, roller can be placed on the track during use, just can make the descending operation case also can be in operation up and down, very convenient surface lacquer to large-scale workpiece with the gantry frame traverse motion;
2, free from environmental pollution:
The wind that the enterprising blower fan of gantry frame of the present utility model is sent, the excessive of coating cloud that suppress to spray paint, the both sides of descending operation chamber are provided with the coating cloud that exhaust outlet will spray paint and are discharged to telescopic air draft tube, discharge through filter, have avoided the pollution of coating cloud to environment;
3, save the energy:
Member of the present utility model is few and simple in structure; Especially therefore blower fan quantity and installed power, have saved the energy greatly more than other facility much less that sprays paint;
Description of drawings:

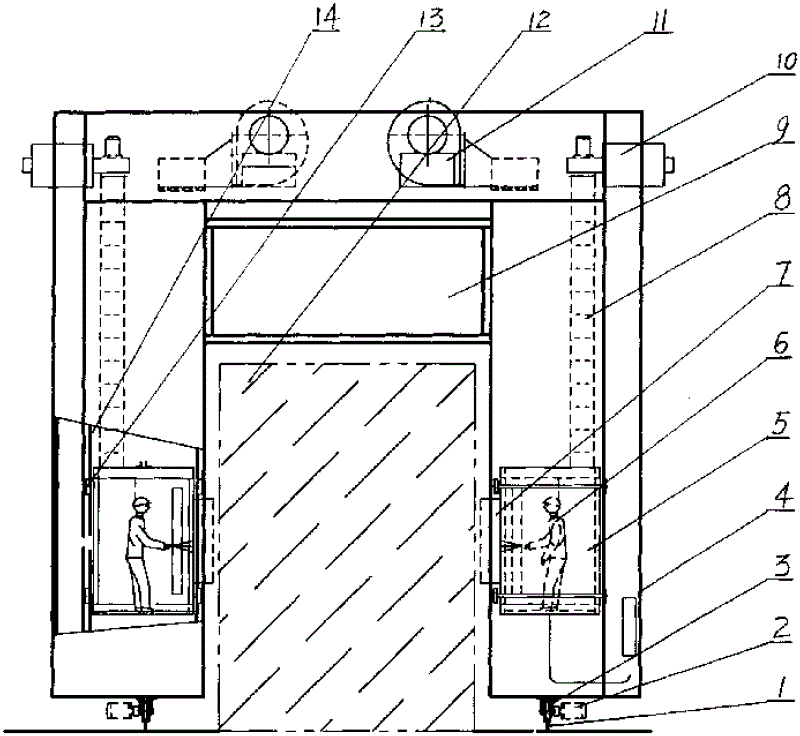

Fig. 1 is a structural representation of the present utility model;
Fig. 2 is the right view of Fig. 1;
Fig. 3 is the vertical view of Fig. 2.
The specific embodiment:
The utility model comprises gantry frame 4, the roller 3 of the bottom of gantry frame 4 links to each other with motor 2, the top of gantry frame 4 is an operating platform 9, the both sides of gantry frame 4 are provided with the descending operation case 5 that has to inner opening 7 respectively, the both sides of descending operation case 5 are provided with exhaust outlet 17, sprocket wheel 13 on the descending operation case 5 links to each other with the chain on the gantry frame 4 14, the top of descending operation case 5 links to each other with the telescopic air draft tube 8 with exhaust blower 10, and the both sides at the top of gantry frame 4 are respectively arranged with air intake machine 11.
For preventing secondary pollution, can be respectively arranged with air cleaner 15, air cleaner 16 in air intake machine 11 porch, exit; The air cleaner 16 in exit can be filter cotton.
Filter on the exhaust blower 10 can be the NACF felt, to reach environmental emission standard.
During use, roller 3 of the present utility model is placed on the ground track 1; The motion of roller 3 can make the utility model move back and forth on track 1, and descending operation case 5 just can be reciprocating thereupon; Descending operation case 5 also can move up and down by the chain 14 of sprocket wheel 13 on gantry frame 4, and like this, descending operation case 5 just can move by upper and lower, forward and backward four direction, and operating personnel 6 are very convenient spraying paint to large-scale workpiece 12 just.Meanwhile, the wind that the air intake machine 11 on the gantry frame 4 is sent suppresses to spray paint the excessive of coating cloud, and the coating cloud that the exhaust outlet 17 that descending operation case 5 both sides are provided with will spray paint is discharged through telescopic air draft tube 8.
Claims (2)
1. movable paint spray booth, comprise gantry frame (4), the same motor of roller (3) (2) that it is characterized in that the bottom of gantry frame (4) links to each other, the top of gantry frame (4) is operating platform (9), the both sides of gantry frame (4) are provided with the descending operation case (5) that has to inner opening (7) respectively, the both sides of descending operation case (5) are provided with exhaust outlet (17), chain (14) on the same gantry frame of sprocket wheel (13) (4) on the descending operation case (5) links to each other, the top of descending operation case (5) links to each other with the telescopic air draft tube (8) with exhaust blower (10), and the both sides at the top of gantry frame (4) are respectively arranged with air intake machine (11).
2. a kind of movable paint spray booth according to claim 1 is characterized in that being respectively arranged with air cleaner (15), air cleaner (16) in air intake machine (11) porch, exit.
