Abstract
The utility model belongs to the technical field of building material, particularly a composite sandwich type fire-proof wall board. The utility model is characterized in that the wall board is provided with a protection surface layer with high strength; a heat insulation sandwich layer with light weight is arranged in the protection surface layer; a fiber layer is attached between the surface layer and the sandwich layer, wherein the protection surface layer is made of gelled material of magnesium oxychloride cement or sulfur and oxygen magnesium cement, and is doped with a small amount of inert stone powder, lightweight powder material and converted material; the heat insulation sandwich layer with light weight is provided with a floater heat insulation sandwich part which is made of a hollow glass sphere and can also be made of haydite and pearlite mixed material; the fiber layer uses a glass fiber lattic cloth to increase strength and refractory performance. The impact resistance strength can achieve 18 kj/m#+ [2] at the strength aspect. The utility model is difficult to damage in construction, and the surface layer is difficult to scratch or collide to generate dents, etc. Wall cabinets, air conditioners and heave objects can be directly hung on the utility model. The wall board with the thickness of 9 to 11 cm is formed by a single board with the thickness of 10 to 18 mm added with rock wool, and the refractory limitation can achieve more than 3 to 4 hours. The utility model has the advantages of good integral performance, light weight, good fire-proof performance, high intensity, etc.
Description
Technical field:
The utility model belongs to building materials technology field, is a kind of compound core pattern firewall body board that adds.
Background technology:
In technique known, be used for the lightgage steel joist inner partition plate and usually adopt more to be gypsum plank,, to install and use middle easy fracture, damage, can't directly hang weight that poor water resistance, fireproof performance are not high because gypsum plank intensity is not high.
Summary of the invention:
The purpose of this utility model provides that a kind of overall performance is good, in light weight, intensity is high, water-fast and the compound core pattern firewall body board that adds that fireproof performance is good.
Realize that the technical scheme that the purpose of this utility model is taked is: this ash wall body plate has high-intensity protection surface layer, be provided with the light heat-insulating sandwich layer in the surface layer, be attached with fibrage between surface layer and the sandwich layer, wherein, the protection surface layer is to do cementitious material by magnesia oxychloride cement or magnesium oxysulfide concrete, and mixes a spot of inertia stone flour, lightweight powder and material modified making; The light heat-insulating sandwich layer adopts hollow glass spheroid formation to float the pearl core, also can adopt haydite, perlite mixed material to make the insulation core; Fibrage adopts fiberglass gridding cloth.
According to the compound core pattern firewall body board that adds that such scheme is made, its functional performance is far above gypsum plank, and aspect intensity, its impact strength can reach 18kj/m2.Not fragile in the construction, the depression that surface layer be difficult for to scratch or collision produces etc. can directly be hung built-in wardrobe, air-conditioning even weight body more, and wallboard inside need not keel and strengthens at hanging position.Be A level incombustible material after testing, add rock wool with the thick lamina of 10～18mm and form the thick body of wall of 9～11Cm that fire endurance can satisfy different fire protection requirements more than 3～4 hours.And in water, soak and do not have phenomenons such as bubbling, peel off layering in 40 days.Use this plate, can follow closely, can saw, can dig, can arbitrarily excavate junction box, switch enclosure and water pipe access, installation is very convenient.This plate not only is suitable for and does firewall body board, but also can do the fireproof jointing sheath usefulness of highrise building, ventilating duct, raceway.
Utilize accompanying drawing to further describe embodiment of the present utility model below.
Description of drawings:

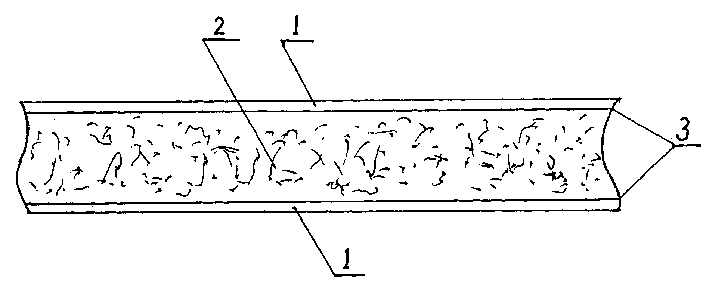

Fig. 1 is a structural representation of the present utility model;
The specific embodiment:
Referring to Fig. 1, the compound core pattern firewall body board that adds of the present utility model, this ash wall body plate has high-intensity protection surface layer 1, be provided with light heat-insulating sandwich layer 2 in the surface layer, be attached with fibrage 3 between surface layer and the sandwich layer, wherein, topping 1 is to do cementitious material by magnesia oxychloride cement or magnesium oxysulfide concrete, and mixes a spot of inertia stone flour, lightweight powder and chlorine material and make; What the lightweight powder adopted is wood fiber powder, material modified employing water repellent agent, accent thermit powder and stabilizing agent etc.Light heat-insulating sandwich layer 2 adopts, and to float pearl insulation core be the light hollow glass spheres of extracting from waste material-flyash, and pearl is inner to be the partial vacuum shape owing to float, and can resist 1400 ℃ of high temperature, and the ball wall thickness is real, has very high intensity and refractoriness.Also can adopt haydite, perlite mixed material to make heat preservation core layer, its haydite and perlitic proportioning are 1: 4, can utilize perlite to improve heat insulation effect, can utilize haydite to improve core intensity again.Adopt the good tencel material glass fibrous mesh cloth of high strength, fire resistance to gain in strength simultaneously; through once-forming; and with the extrusion modling simultaneously of protection surface layer; block with mechanism sizing in service; after the special process maintenance; the surface is carried out sanding and is handled, promptly can be made into a kind of in light weight, fireproof performance is high, intensity is much higher than gypsum plank, thickness is the compound core pattern firewall body board that adds uniformly.
Claims (6)
1, a kind of compound core pattern firewall body board that adds, it is characterized in that: this ash wall body plate has high-intensity protection surface layer, is provided with the light heat-insulating sandwich layer in the surface layer, is attached with fibrage between surface layer and the sandwich layer.
2, the compound core pattern firewall body board that adds according to claim 1 is characterized in that: the protection surface layer is to do cementitious material by magnesia oxychloride cement or magnesium oxysulfide concrete, and mixes a small amount of inertia stone flour, lightweight powder and multiple material modified formation.
3, the compound core pattern firewall body board that adds according to claim 1 and 2 is characterized in that: what the lightweight powder adopted is wood fiber powder, material modified employing be water repellent agent, transfer thermit powder and stabilizing agent.
4, the compound core pattern firewall body board that adds according to claim 1 is characterized in that: the light heat-insulating sandwich layer adopts hollow glass spheroid formation to float different insulation core.
5, the compound core pattern firewall body board that adds according to claim 1, it is characterized in that: the light heat-insulating sandwich layer can adopt haydite, perlite mixed material to make, and wherein haydite and perlitic proportioning are 1: 4.
6, the compound core pattern firewall body board that adds according to claim 1 is characterized in that: fibrage adopts fiberglass gridding cloth.
