Abstract

The utility model belongs to the technical field of film cutting equipment, and particularly relates to a film processing cutting machine which comprises a base, a U-shaped plate, a first adjusting component, an electric cylinder, a first strip-shaped plate, a second adjusting component, a third adjusting component, a cutting knife, two support plates and an unreeling roller. The utility model has reasonable design and simple and convenient operation, can adjust the position and the angle of the cutting knife according to the actual cutting requirement, and can cut different shapes on the film, thereby ensuring that the device has better applicability, is convenient for quickly disassembling and assembling the unreeling roller, and has better practicability.

Description

Film processing cutting machine

Technical Field

The utility model relates to the technical field of film cutting equipment, in particular to a film processing cutting machine.

Background

The film is a thin, soft transparent sheet. Made of plastic, adhesive, rubber or other materials. The scientific interpretation of thin films is that 2-dimensional materials are formed by atomic, molecular or ionic deposition on the surface of a substrate. Examples are optical films, composite films, superconducting films, polyester films, nylon films, plastic films, and the like. The film is widely used in the industries of electronic appliances, machinery, printing and the like. The film is rectangular form after producing, use the roller to accomodate it, often need cut it into required length when the film is used, need use film processing cutting device, traditional film is cut it to use the cutting knife to cut it after pulling out required length, generally only can vertically cut and the slant is cut, when need will cut out the shape of different sizes then need the operating personnel to use tools such as ruler to measure, and use the cutting knife to cut after measuring to accomplish, the operation is comparatively loaded down with trivial details, can influence the efficiency of cutting, therefore, the utility model provides a film processing cutting bed in order to solve above-mentioned problem.

Disclosure of Invention

The utility model aims to solve the defects of the prior art and provides a film processing cutting machine.

The technical aim of the utility model is realized by the following technical scheme: a film processing cutting machine comprises a base, a U-shaped plate, a first adjusting component, an electric cylinder, a first strip-shaped plate, a second adjusting component, a third adjusting component, a cutting knife, two support plates and an unreeling roller;

the base is provided with a strip-shaped opening, the first adjusting component is arranged in the strip-shaped opening, the U-shaped plate is arranged on the first adjusting component, the electric cylinder is fixedly arranged on the U-shaped plate, the first strip-shaped plate is slidably arranged in the U-shaped plate, the working end of the electric cylinder is fixedly arranged on the top side of the first strip-shaped plate, the second strip-shaped plate is rotatably arranged on the bottom side of the first strip-shaped plate, the bottom side of the second strip-shaped plate is provided with a strip-shaped groove, the strip-shaped groove is internally provided with a mounting block in a sliding manner, the cutting knife is fixedly arranged on the bottom side of the mounting block, the second adjusting component is arranged on the second strip-shaped plate and is connected with the mounting block, the third adjusting component is arranged on one side, close to the first strip-shaped plate and the second strip-shaped plate, of the first strip-shaped plate, the two support plates are fixedly arranged on one side of the top of the base, and the unreeling roller is detachably arranged on the two support plates.

Preferably, the first adjusting component comprises two first lead screws, a hand wheel, a guide block, two belt wheels and a belt, the guide block is slidably mounted in the strip-shaped opening, the two first lead screws are rotatably mounted in the strip-shaped opening and are in threaded connection with the guide block, the first lead screws located at the rear side extend to one side of the base and are fixedly sleeved with the hand wheel, the belt wheels are fixedly sleeved on the first lead screws, and the belt wheels are connected with the same belt in a transmission mode.

Preferably, the second adjusting component comprises a second screw rod and an adjusting motor, the second screw rod is rotatably arranged in the strip-shaped groove, the mounting block is arranged on the second screw rod in a threaded mode, the adjusting motor is fixedly arranged on the front side of the second strip-shaped plate, and an output shaft of the adjusting motor is fixedly connected with the second screw rod in the axial direction.

Preferably, the third adjusting component comprises a servo motor, a driving gear and an inner fluted disc, wherein the servo motor and the inner fluted disc are fixedly arranged on one side, close to each other, of the first strip-shaped plate and the second strip-shaped plate respectively, the driving gear is fixedly sleeved on an output shaft of the servo motor, and the driving gear is meshed with the inner fluted disc.

Preferably, two guide pins are fixedly installed on the front side and the rear side of the first strip-shaped plate, two guide openings are formed in the inner walls of the front side and the rear side of the U-shaped plate, and the four guide pins are respectively and slidably installed in the corresponding guide openings.

Preferably, one side of the first strip-shaped plate and one side of the second strip-shaped plate, which are close to each other, are respectively and fixedly provided with a guide frame and a plurality of L-shaped plates, and the L-shaped plates are all in sliding connection with the guide frame.

Preferably, one side of the support plate is fixedly provided with wedge blocks, and the two wedge blocks are rotatably provided with the same guide roller.

Preferably, the top sides of the two support plates are provided with placing grooves, the unreeling roller is fixedly provided with a mandrel, and the mandrel is movably arranged in the two placing grooves.

The beneficial effects of the utility model are as follows: according to the utility model, the cutting knife can be adjusted to the position above the required cutting position by the cooperation of the first adjusting component and the second adjusting component, then the cutting knife is controlled to be in downward abutting connection with the film by the electric cylinder, and is controlled to move along the long side direction of the second strip-shaped plate by the third adjusting component, so that the film can be cut, the position and the cutting angle of the cutting knife can be adjusted according to the actual cutting requirement, and the required shape can be cut on the film by the cooperation of the second adjusting component and the third adjusting component, so that the device has good applicability, the film can be guided by the guide roller, the posture of the film can be adjusted conveniently, and the film can be cut conveniently by the adjusted cutting knife.

The unreeling roller can be supported through the support plate and the setting of the placing groove, and meanwhile, the unreeling roller can be conveniently and rapidly disassembled and assembled.

Drawings

In order to more clearly illustrate the technical solutions of the embodiments of the present utility model, the drawings required for the description of the embodiments will be briefly described below, and it is apparent that the drawings in the following description are only some embodiments of the present utility model, and other drawings may be obtained according to these drawings without inventive effort for a person skilled in the art.

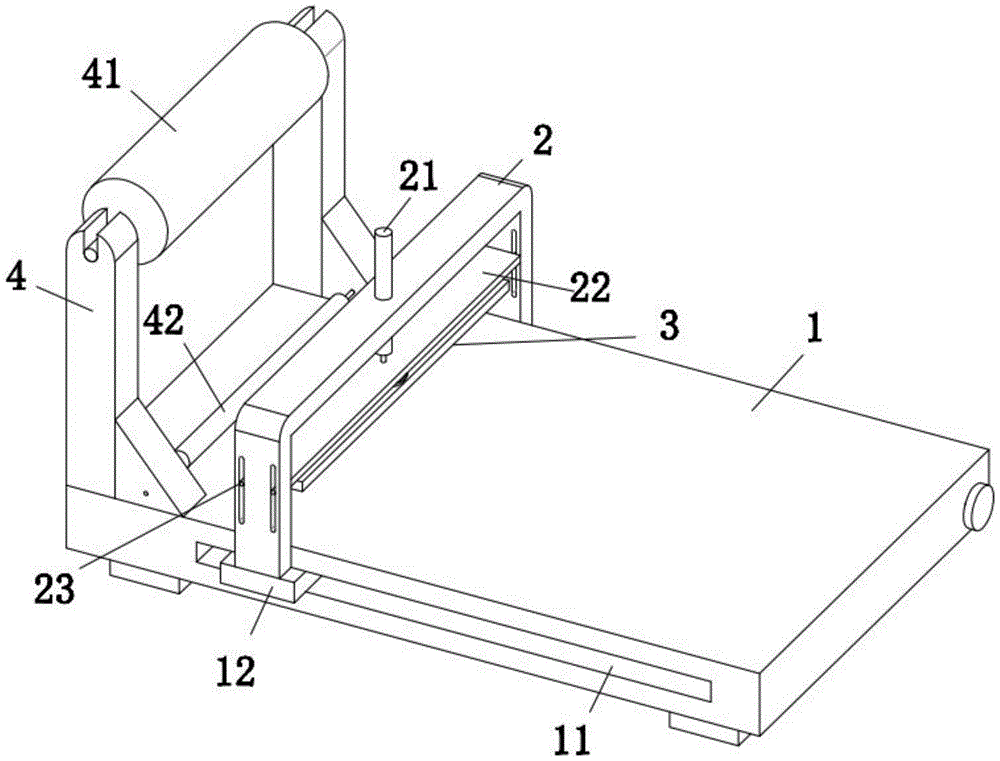

Fig. 1 is a schematic perspective view of a film processing cutting machine according to the present utility model;

FIG. 2 is a schematic cross-sectional view of a film processing cutter according to the present utility model;

FIG. 3 is a schematic diagram of a portion A of a film processing cutter according to the present utility model;

fig. 4 is a schematic structural view of the second strip-shaped plate, the adjusting motor, the second screw rod, the mounting block and the cutting knife part.

In the figure: 1. a base; 11. a strip-shaped opening; 12. a guide block; 13. a belt wheel; 14. a first screw rod; 2. a U-shaped plate; 21. an electric cylinder; 22. a strip-shaped plate I; 23. a guide pin; 24. a servo motor; 5. a drive gear; 26. an inner fluted disc; 3. a strip-shaped plate II; 31. a mounting block; 32. a second screw rod; 33. a cutting knife; 34. adjusting a motor; 4. a support plate; 41. an unreeling roller; 42. and a guide roller.

Detailed Description

The technical scheme of the present utility model will be clearly and completely described in connection with specific embodiments. It will be apparent that the described embodiments are only some, but not all, embodiments of the utility model. All other embodiments, which can be made by those skilled in the art based on the embodiments of the utility model without making any inventive effort, are intended to fall within the scope of the utility model.

Referring to fig. 1-4, a film processing cutting machine comprises a base 1, a U-shaped plate 2, an electric cylinder 21, a first strip-shaped plate 22, a second strip-shaped plate 3, a cutting knife 33, two support plates 4 and an unreeling roller 41, wherein the base 1 is provided with a strip-shaped opening 11, a guide block 12 is slidably arranged in the strip-shaped opening 11, the U-shaped plate 2 is fixedly arranged on the guide block 12, two first lead screws 14 are rotatably arranged in the strip-shaped opening 11, the two first lead screws 14 are in threaded connection with the guide block 12, the first lead screws 14 positioned at the rear side extend to one side of the base 1 and are fixedly sleeved with a hand wheel, the two first lead screws 14 are fixedly sleeved with belt wheels 13, the two belt wheels 13 are in transmission connection with the same belt, the transverse position of the U-shaped plate 2 can be adjusted as required, the first strip-shaped plate 22 is slidably arranged in the U-shaped plate 2, the working end of the electric cylinder 21 is fixedly arranged at the top side of the first strip-shaped plate 22, the second strip-shaped plate 3 is rotatably arranged at the bottom side of the first strip-shaped plate 22, a strip-shaped groove is formed at the bottom side of the second strip-shaped plate 3, a mounting block 31 is slidably arranged in the strip-shaped groove, a cutting knife 33 is fixedly arranged at the bottom side of the mounting block 31, a second screw rod 32 is rotatably arranged in the groove, the mounting block 31 is threadedly arranged on the second screw rod 32, an adjusting motor 34 is fixedly arranged at the front side of the second strip-shaped plate 3, an output shaft of the adjusting motor 34 is fixedly connected with the second screw rod 32 in an axial direction, the mounting block 31 can be controlled to enable the cutting knife 33 to perform position adjustment along the long side direction of the second strip-shaped plate 3, a servo motor 24 and an internal tooth disk 26 are fixedly arranged at one side, close to each other, of the first strip-shaped plate 22 and the second strip-shaped plate 3 are fixedly sleeved with a driving gear 5, the driving gear 5 is meshed with the internal tooth disk 26, the first strip-shaped plate 22 can be controlled to rotate, two extension boards 4 are all fixed mounting in the top one side of base 1, and standing groove has all been seted up to the top side of two extension boards 4, and fixed mounting has the dabber on unreeling roller 41, and dabber movable mounting can be convenient for carry out quick assembly disassembly to unreeling roller 41 when providing the support in two standing grooves.

In this embodiment, two guide pins 23 are fixedly installed on the front side and the rear side of the first strip-shaped plate 22, two guide openings are formed in the inner walls of the front side and the rear side of the U-shaped plate 2, the four guide pins 23 are respectively installed in the corresponding guide openings in a sliding mode, the first strip-shaped plate 22 can be guided, so that the first strip-shaped plate 22 and the second strip-shaped plate 3 can stably lift, a guide frame and a plurality of L-shaped plates are fixedly installed on one side, close to each other, of the first strip-shaped plate 22 and the second strip-shaped plate 3 respectively, and the plurality of L-shaped plates are connected with the guide frame in a sliding mode, so that the second strip-shaped plate 3 can stably rotate.

In this embodiment, a wedge block is fixedly installed on one side of the support plate 4, and the same guide roller 42 is rotatably installed on two wedge blocks, so that the film can be guided.

The related circuits, electronic components, modules and the like are all implemented by the prior art, and the related circuits, electronic components, modules and the like can be completely implemented by those skilled in the art, so that the protection content of the application does not relate to the improvement of software, cables and methods.

Working principle: when the film cutting device is used, a power supply is firstly switched on, an unreeling roller 41 around which a film is arranged is placed in two placing grooves, one end of the film passes through a guide roller 42 and then is pulled to the right side of a U-shaped plate 2, a first guide block 12 is controlled by a regulating wheel to drive the U-shaped plate 2 to be regulated to a proper position through a first regulating wheel rotating screw rod 14, then a second strip plate 3 is controlled by a servo motor 24, a driving gear 5 and an inner fluted disc 26 to deflect to a required cutting direction, a first strip plate 22 is controlled by an electric cylinder 21 to move downwards, the second strip plate 3 drives a cutting knife 33 to be contacted with the film below the first strip plate, a second strip plate 32 is controlled by a regulating motor 34 to drive a mounting block 31 to enable the cutting knife 33 to cut the film along the long side direction of the second strip plate 3, and when different shapes are required to be cut, the cutting knife 33 can be controlled to cut on the film in different shapes through the cooperation of the servo motor 24, the driving gear 5, the inner toothed disc 26, the second screw rod 32 and the regulating motor 34.

The thin film processing cutting bed provided by the utility model is described in detail above. The principles and embodiments of the present utility model have been described herein with reference to specific examples, which are intended to be merely illustrative of the methods of the present utility model and their core ideas. It should be noted that it will be apparent to those skilled in the art that various modifications and adaptations of the utility model can be made without departing from the principles of the utility model and these modifications and adaptations are intended to be within the scope of the utility model as defined in the following claims.

Claims

1. The film processing cutting machine is characterized by comprising a base (1), a U-shaped plate (2), a first adjusting component, an electric cylinder (21), a first strip-shaped plate (22), a second strip-shaped plate (3), a second adjusting component, a third adjusting component, a cutting knife (33), two support plates (4) and an unreeling roller (41);

the base (1) is provided with a strip-shaped opening (11), the first adjusting component is arranged in the strip-shaped opening (11), the U-shaped plate (2) is arranged on the first adjusting component, the electric cylinder (21) is fixedly arranged on the U-shaped plate (2), the first strip-shaped plate (22) is slidably arranged in the U-shaped plate (2), the working end of the electric cylinder (21) is fixedly arranged on the top side of the first strip-shaped plate (22), the second strip-shaped plate (3) is rotatably arranged on the bottom side of the first strip-shaped plate (22), the bottom side of the second strip-shaped plate (3) is provided with a strip-shaped groove, the strip-shaped groove is internally provided with a mounting block (31) in a sliding manner, a cutting knife (33) is fixedly mounted on the bottom side of the mounting block (31), a second adjusting component is arranged on a second strip-shaped plate (3), the second adjusting component is connected with the mounting block (31), a third adjusting component is arranged on one side, close to each other, of the first strip-shaped plate (22) and the second strip-shaped plate (3), two support plates (4) are fixedly mounted on one side of the top of the base (1), and the unreeling roller (41) is detachably mounted on the two support plates (4).

2. A film processing cutting machine as defined in claim 1, wherein: the first adjusting component comprises two first lead screws (14), a hand wheel, a guide block (12), two belt wheels (13) and a belt, the guide block (12) is slidably installed in the strip-shaped opening (11), the two first lead screws (14) are rotatably installed in the strip-shaped opening (11), the two first lead screws (14) are in threaded connection with the guide block (12), the first lead screws (14) located at the rear side extend to one side of the base (1) and are fixedly sleeved with the hand wheel, the belt wheels (13) are fixedly sleeved on the two first lead screws (14), and the two belt wheels (13) are connected with the same belt in a transmission mode.

3. A film processing cutting machine as defined in claim 1, wherein: the second adjusting assembly comprises a second screw rod (32) and an adjusting motor (34), the second screw rod (32) is rotatably arranged in the strip-shaped groove, the mounting block (31) is mounted on the second screw rod (32) in a threaded mode, the adjusting motor (34) is fixedly mounted on the front side of the second strip-shaped plate (3), and an output shaft of the adjusting motor (34) is fixedly connected with the second screw rod (32) in the axial direction.

4. A film processing cutting machine as defined in claim 1, wherein: the third adjusting component comprises a servo motor (24), a driving gear (5) and an inner toothed disc (26), wherein the servo motor (24) and the inner toothed disc (26) are fixedly installed on one side, close to each other, of the first strip-shaped plate (22) and the second strip-shaped plate (3), and the driving gear (5) is fixedly sleeved on an output shaft of the servo motor (24) and meshed with the inner toothed disc (26).

5. A film processing cutting machine as defined in claim 1, wherein: two guide pins (23) are fixedly arranged on the front side and the rear side of the first strip-shaped plate (22), two guide openings are formed in the inner walls of the front side and the rear side of the U-shaped plate (2), and the four guide pins (23) are respectively and slidably arranged in the corresponding guide openings.

6. A film processing cutting machine as defined in claim 1, wherein: one side that strip shaped plate one (22) and strip shaped plate two (3) are close to each other is fixed mounting respectively has leading truck and a plurality of L shaped plate, and a plurality of L shaped plates all are with leading truck sliding connection.

7. A film processing cutting machine as defined in claim 1, wherein: one side of the support plate (4) is fixedly provided with wedge blocks, and the two wedge blocks are rotatably provided with the same guide roller (42).

8. A film processing cutting machine as defined in claim 1, wherein: the top sides of the two support plates (4) are provided with placing grooves, the unreeling roller (41) is fixedly provided with a mandrel, and the mandrel is movably arranged in the two placing grooves.
