Abstract

The utility model relates to the technical field of sample collection bottle disinfection, in particular to a sample collection bottle disinfector which improves the effect of the disinfector on simultaneous disinfection treatment of a plurality of sample collection bottles at one time, improves the disinfection efficiency of the sample collection bottles and improves the disinfection cleaning effect of the sample collection bottles; the device comprises a box body, a first groove body and a drain valve, wherein an operation port is formed in the upper part of the left end of the box body, the first groove body is arranged on the left part of the inner side wall of the box body, and the drain valve is communicated with the lower part of the first groove body; still include drive arrangement, clamping device, cleaning device, quick-witted case, slider, electric jar and electric turntable, the machine case is installed at box inner wall top, and the machine incasement is provided with the spout, and the slider passes through drive arrangement side-to-side sliding setting on the spout, and the stiff end of multiunit electric jar is all installed in the slider bottom, and electric turntable is installed on the mobile terminal of multiunit electric jar, and electric turntable output is provided with multiunit clamping device, and clamping device is used for the centre gripping to the sample collection bottle fixedly.

Description

Sample collection bottle sterilizer

Technical Field

The utility model relates to the technical field of sample collection bottle disinfection, in particular to a sample collection bottle disinfector.

Background

The sample collection bottle is mainly used for medical examination such as microbiological immunity examination, and the sample collection bottle needs to be disinfected after each examination so as to be convenient for subsequent collection and use, and currently, when the sample collection bottle is disinfected, in the prior art CN201720998478.7, the device comprises a bottom plate, a bracket, a left-right moving mechanism, a rotating mechanism, a liquid outlet mechanism and a sponge brush; the left-right moving mechanism is fixedly connected to the top surface of the bottom plate; the support is fixedly connected to an output end of the left-right moving mechanism, and a placing port for placing the acquisition bottle is formed in the side part of the support; the rotating mechanism is fixedly connected to the other output end of the left-right moving mechanism, the sponge brush is in transmission connection with the output end of the rotating mechanism, but the device is found in use: the device can only clean and disinfect one sample collection bottle at a time, and reduces the disinfection treatment efficiency of the sample collection bottle, so that the sample collection bottle disinfector convenient for disinfecting and cleaning a plurality of sample collection bottles at one time is provided.

Disclosure of Invention

In order to solve the technical problems, the utility model provides the sample collection bottle sterilizer which improves the effect of the sterilizer on simultaneously sterilizing a plurality of sample collection bottles at one time, improves the sterilization efficiency of the sample collection bottles and improves the sterilization cleaning effect of the sample collection bottles.

The utility model relates to a sample collection bottle sterilizer, which comprises a box body, a first groove body and a drain valve, wherein an operation port is arranged at the upper part of the left end of the box body; the device comprises a box body, a plurality of groups of electric cylinders, a plurality of groups of clamping devices, a machine box, a sliding block, an electric cylinder and an electric turntable, wherein the machine box is arranged at the top of the inner side wall of the box body, a sliding groove is formed in the machine box, the sliding block is arranged on the sliding groove in a left-right sliding mode through the driving device, the fixed ends of the plurality of groups of electric cylinders are all arranged at the bottom end of the sliding block, the electric turntable is arranged at the moving ends of the plurality of groups of electric cylinders, the output end of the electric turntable is provided with the plurality of groups of clamping devices, the clamping devices are used for clamping and fixing sample collection bottles, the cleaning device is arranged at the right part in the box body, and the cleaning device is used for secondarily cleaning the sample collection bottles; the disinfectant or high-temperature hot water is placed in the first tank body, a plurality of sample collection bottles are respectively fixed on a plurality of groups of clamping devices through operation ports, then the electric turntable is driven to move downwards through a plurality of groups of electric cylinder moving ends, the electric turntable drives the plurality of sample collection bottles to move downwards through the clamping devices, the sample collection bottles are immersed in the liquid of the first tank body, then the electric turntable output ends drive the plurality of groups of clamping devices to rotate, the plurality of groups of clamping devices drive the plurality of sample collection bottles to rotate circumferentially, so that the effect of the sterilizer on simultaneous disinfection treatment of the plurality of sample collection bottles is improved through the liquid disinfection cleaning in the first tank body in the rotating process of the sample collection bottles, the disinfection efficiency of the sample collection bottles is improved, and then the slide blocks drive the plurality of sample collection bottles to move rightwards to the cleaning device.

Preferably, the cleaning device comprises a shell, a first motor, a first gear, a plurality of groups of connecting rods and a plurality of groups of brushes, wherein the shell is arranged on the right part of the inner side wall of the box body, the first motor is arranged on the inner side wall of the shell, the first gear is concentrically arranged at the output end of the first motor, the middle parts of the plurality of groups of connecting rods are rotatably arranged on the upper part of the shell, the bottom ends of the plurality of groups of connecting rods are concentrically provided with a plurality of groups of second gears respectively, the plurality of groups of second gears are meshed with the first gear, the plurality of groups of brushes are respectively sleeved at the top ends of the plurality of groups of connecting rods, and the positions of the plurality of groups of brushes are respectively matched with the positions of the plurality of groups of clamping devices; after the sample collection bottle is disinfected and cleaned in the liquid of the first groove body, the plurality of groups of electric cylinders move the electric rotary table upwards, so that the sample collection bottle moves to the upper portion of the first groove body to stand for water control, then the driving device drives the sliding block to move rightwards, the sliding block drives the sample collection bottle to move to the upper portion of the plurality of groups of brushes, the electric rotary table is controlled to rotate and position, the openings at the bottom ends of the plurality of sample collection bottles are respectively corresponding to the positions of the plurality of groups of brushes, the plurality of groups of electric cylinders drive the electric rotary table to move downwards, the plurality of sample collection bottles are respectively sleeved outside the plurality of groups of brushes, the first motor is opened to drive the first gear to rotate, the plurality of groups of connecting rods are driven to rotate through meshing with the plurality of groups of second gears, so that the plurality of groups of connecting rods drive the plurality of groups of brushes to rotate, the plurality of groups of brushes are used for secondarily cleaning the inner side walls of the sample collection bottle, and the cleaning efficiency of the sample collection bottle is improved.

Preferably, the clamping device comprises a connecting piece, connecting arms, arc clamping plates and tension springs, wherein the top ends of the connecting piece are communicated with the output end of the electric turntable, the top ends of the two groups of connecting arms are respectively rotatably arranged at the left side and the right side of the outer side wall of the connecting piece, the two groups of arc clamping plates are respectively arranged at the bottom ends of the two groups of connecting arms, and the left end and the right end of each tension spring are respectively connected with the outer side wall of the two groups of connecting arms; placing the sample collection bottle upper portion between two sets of arc splint, providing pulling force to two sets of linking arms through the extension spring, make two sets of linking arms drive two sets of arc splint with sample collection bottle centre gripping fixed, improve sample collection bottle's fixed convenience.

Preferably, the air conditioner further comprises an air heater and an exhaust hood, wherein the air heater is arranged on the outer side wall of the box body, the exhaust hood is arranged on the right part of the inner side wall of the box body, and the exhaust hood is communicated with the output end of the air heater; after the cleaning of the sample collection bottle by the plurality of groups of brushes is completed, the plurality of groups of electric cylinders drive the sample collection bottle to move upwards through the electric turntable, and then the air heater is opened to blow the sample collection bottle through the exhaust hood, so that the drying effect of the sample collection bottle is improved.

Preferably, the driving device comprises a screw and a second motor, the left end and the right end of the screw are rotatably arranged on the inner side wall of the chute, the sliding block is matched and sleeved on the outer side wall of the screw, the second motor is arranged on the outer side wall of the box body, and the output end of the second motor is concentrically connected with the screw; and the second motor is turned on to drive the screw rod to rotate, and the screw rod drives the sliding block to move leftwards or rightwards, so that the convenience of moving and cleaning the sample collection bottle is improved.

Preferably, the device further comprises a collecting cover and a second groove body, wherein the collecting cover is covered at the top end of the shell, a drain pipe is arranged at the side part of the collecting cover, the second groove body is arranged at the bottom of the inner side wall of the box body, and the second groove body is arranged below the output end of the drain pipe; when a plurality of sample collection bottles move to multiunit brush top, the water droplet on the sample collection bottle falls the casing top, collects water through the collection cover, later discharges water to the inside of second cell body through the drain pipe, reduces that remaining water causes the pollution to the box is inside.

Preferably, the electric heater is arranged on the inner side wall of the first groove body; when clear water is put into the first tank body, the clear water is continuously heated by the electric heater, so that the disinfection effect of the clear water on the sample collection bottle is improved.

Compared with the prior art, the utility model has the beneficial effects that: the sample collection bottle is immersed in the liquid of the first groove body, then the electric turntable output end drives the multiple groups of clamping devices to rotate, so that the multiple groups of clamping devices drive the multiple sample collection bottles to rotate circumferentially, the liquid in the first groove body is sterilized and cleaned in the rotation process of the sample collection bottle, the effect of the sterilizer on simultaneous sterilization treatment of the multiple sample collection bottles is improved, the sterilization efficiency of the sample collection bottles is improved, the slide block drives the multiple sample collection bottles to move to the cleaning device right, the sample collection bottles are cleaned secondarily through the cleaning device, and the sterilization cleaning effect of the sample collection bottles is improved.

Drawings

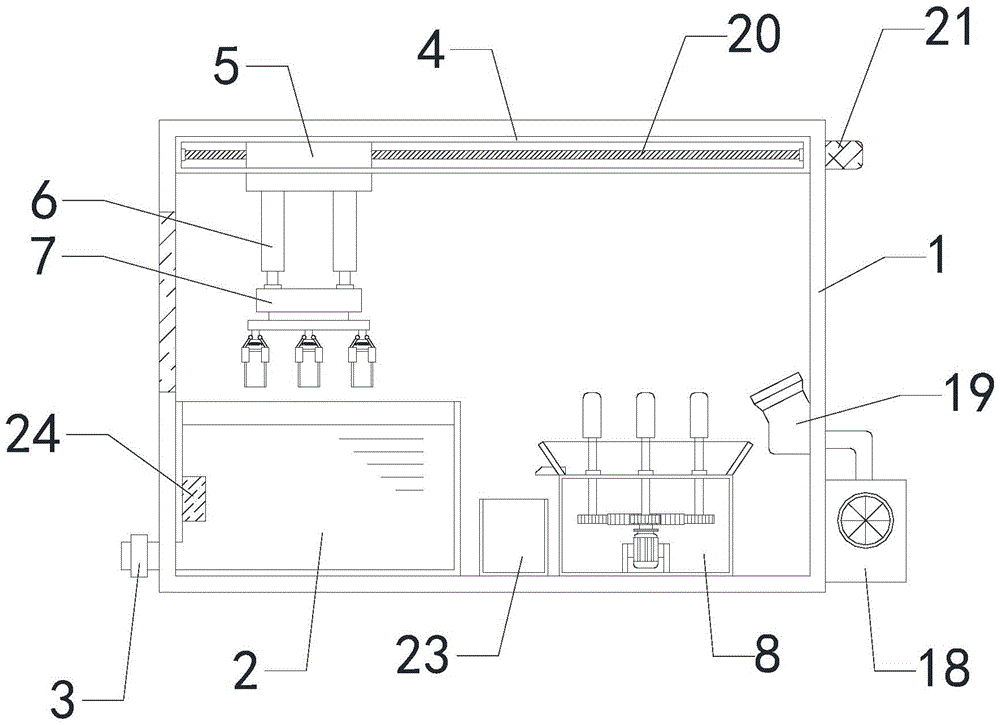

FIG. 1 is a schematic diagram of the structure of the present utility model;

FIG. 2 is a schematic view of a part of the structure of the connection of the housing with the collection hood or the like;

FIG. 3 is a schematic view of a partial structure of the connection of the connecting arm with the arc clamp plate and the like;

FIG. 4 is a schematic illustration of a partial structure of a coupling lever coupled to a second gear or the like;

the reference numerals in the drawings: 1. a case; 2. a first tank body; 3. a drain valve; 4. a chassis; 5. a slide block; 6. an electric cylinder; 7. an electric turntable; 8. a housing; 9. a first motor; 10. a first gear; 11. a connecting rod; 12. a second gear; 13. a brush; 14. a connecting piece; 15. a connecting arm; 16. an arc clamping plate; 17. a tension spring; 18. an air heater; 19. an exhaust hood; 20. a screw rod; 21. a second motor; 22. a collection cover; 23. a second tank body; 24. an electric heater.

Detailed Description

In order that the utility model may be readily understood, a more complete description of the utility model will be rendered by reference to the appended drawings. This utility model may be embodied in many different forms and is not limited to the embodiments described herein. Rather, these embodiments are provided so that this disclosure will be thorough and complete.

Examples

As shown in fig. 1 to 4, the sample collection bottle sterilizer of the present utility model comprises a box 1, a first tank 2 and a drain valve 3, wherein an operation port is arranged at the upper part of the left end of the box 1, the first tank 2 is arranged at the left part of the inner side wall of the box 1, and the drain valve 3 is communicated with the lower part of the first tank 2; the device comprises a box body 1, and is characterized by further comprising a driving device, a clamping device, a cleaning device, a box 4, a sliding block 5, electric cylinders 6 and an electric turntable 7, wherein the box 4 is arranged at the top of the inner side wall of the box body 1, a sliding groove is formed in the box 4, the sliding block 5 is arranged on the sliding groove in a left-right sliding manner through the driving device, fixed ends of the plurality of groups of electric cylinders 6 are all arranged at the bottom end of the sliding block 5, the electric turntable 7 is arranged at the moving ends of the plurality of groups of electric cylinders 6, a plurality of groups of clamping devices are arranged at the output end of the electric turntable 7 and are used for clamping and fixing sample collection bottles, the cleaning device is arranged at the right part in the box body 1 and is used for secondarily cleaning the sample collection bottles;

as shown in fig. 2 and fig. 4, the cleaning device comprises a housing 8, a first motor 9, a first gear 10, a plurality of groups of connecting rods 11 and a plurality of groups of brushes 13, wherein the housing 8 is arranged at the right part of the inner side wall of the housing 1, the first motor 9 is arranged on the inner side wall of the housing 8, the first gear 10 is concentrically arranged at the output end of the first motor 9, the middle parts of the plurality of groups of connecting rods 11 are rotatably arranged at the upper part of the housing 8, a plurality of groups of second gears 12 are concentrically arranged at the bottom ends of the plurality of groups of connecting rods 11 respectively, the plurality of groups of second gears 12 are meshed with the first gears 10, the plurality of groups of brushes 13 are respectively sleeved at the top ends of the plurality of groups of connecting rods 11, and the positions of the plurality of groups of brushes 13 are respectively matched with the positions of the plurality of groups of clamping devices;

as shown in fig. 3, the clamping device comprises a connecting piece 14, connecting arms 15, arc clamping plates 16 and tension springs 17, wherein the top ends of the connecting piece 14 are communicated with the output end of the electric turntable 7, the top ends of the two groups of connecting arms 15 are respectively rotatably arranged at the left side and the right side of the outer side wall of the connecting piece 14, the two groups of arc clamping plates 16 are respectively arranged at the bottom ends of the two groups of connecting arms 15, and the left end and the right end of each tension spring 17 are respectively connected with the outer side walls of the two groups of connecting arms 15;

as shown in fig. 1, the collecting cover 22 and the second groove 23 are also included, the collecting cover 22 is covered on the top end of the shell 8, the side part of the collecting cover 22 is provided with a drain pipe, the second groove 23 is installed at the bottom of the inner side wall of the box 1, and the second groove 23 is arranged below the output end of the drain pipe.

The utility model relates to a sample collection bottle sterilizer, which is characterized in that when in work, disinfectant or hot water is placed in a first tank body 2, a plurality of sample collection bottles are respectively fixed on a plurality of groups of clamping devices through an operation port, then an electric rotary table 7 is driven to move downwards through a plurality of groups of moving ends of an electric cylinder 6, the electric rotary table 7 drives the plurality of sample collection bottles to move downwards through the clamping devices, the sample collection bottles are immersed in the liquid of the first tank body 2, then the plurality of groups of clamping devices are driven to rotate through the output ends of the electric rotary table 7, the plurality of groups of clamping devices drive the plurality of sample collection bottles to rotate circumferentially, so that the sample collection bottles are sterilized and cleaned through the liquid in the first tank body 2 in the rotating process of the sample collection bottles, the movable ends of the plurality of groups of electric cylinders 6 drive the electric rotating disc 7 to move upwards, so that the sample collection bottle moves to the upper side of the first groove body 2, and is kept stand for controlling water, then the driving device drives the sliding block 5 to move rightwards, so that the sliding block 5 drives the sample collection bottle to move to the upper side of the plurality of groups of brushes 13, the electric rotating disc 7 is controlled to rotate and position, and therefore the bottom end openings of the plurality of sample collection bottles respectively correspond to the positions of the plurality of groups of brushes 13, then the plurality of groups of electric cylinders 6 drive the electric rotating disc 7 to move downwards, the plurality of sample collection bottles are respectively sleeved outside the plurality of groups of brushes 13, the first motor 9 is turned on to drive the first gear 10 to rotate, the plurality of groups of connecting rods 11 are meshed with the plurality of groups of second gears 12 to drive the plurality of groups of connecting rods 11 to rotate, and the plurality of groups of brushes 13 are enabled to drive the plurality of groups of brushes 13 to clean the inner side walls of the sample collection bottles for the second time.

The main functions realized by the utility model are as follows: the sample collection bottle is immersed in the liquid of the first groove body 2, then the output end of the electric turntable 7 drives the multiple groups of clamping devices to rotate, so that the multiple groups of clamping devices drive the multiple sample collection bottles to rotate circumferentially, the liquid in the first groove body 2 is sterilized and cleaned in the rotation process of the sample collection bottles, the effect of the sterilizer on simultaneous sterilization treatment of the multiple sample collection bottles is improved, the sterilization efficiency of the sample collection bottles is improved, the slide block 5 drives the multiple sample collection bottles to move to the cleaning device right, the sample collection bottles are cleaned secondarily through the cleaning device, and the sterilization cleaning effect of the sample collection bottles is improved.

The electric cylinder 6, the electric turntable 7, the first motor 9, the air heater 18, the second motor 21 and the electric heater 24 of the sample collection bottle sterilizer are purchased in the market, and a person skilled in the art only needs to install and operate according to the attached using instruction without creative labor of the person skilled in the art.

The foregoing is merely a preferred embodiment of the present utility model, and it should be noted that it will be apparent to those skilled in the art that modifications and variations can be made without departing from the technical principles of the present utility model, and these modifications and variations should also be regarded as the scope of the utility model.

Claims (7)

1. The utility model provides a sample collection bottle sterilizer, includes box (1), first cell body (2) and drain valve (3), and box (1) left end upper portion is provided with the operation mouth, and first cell body (2) are installed in box (1) inside wall left portion, and drain valve (3) intercommunication sets up in first cell body (2) lower part; the device is characterized by further comprising a driving device, clamping devices, cleaning devices, a case (4), a sliding block (5), electric cylinders (6) and an electric rotating disc (7), wherein the case (4) is installed at the top of the inner side wall of the case body (1), a sliding groove is formed in the case (4), the sliding block (5) is arranged on the sliding groove in a sliding manner through the driving devices in a left-right sliding manner, fixed ends of the electric cylinders (6) are all installed at the bottom ends of the sliding block (5), the electric rotating disc (7) is installed at the moving ends of the electric cylinders (6), a plurality of groups of clamping devices are arranged at the output ends of the electric rotating disc (7), the clamping devices are used for clamping and fixing sample collection bottles, and the cleaning devices are arranged on the right part in the case body (1) and used for secondarily cleaning the sample collection bottles.

2. A sample collection bottle sterilizer as claimed in claim 1, wherein the cleaning device comprises a housing (8), a first motor (9), a first gear (10), a plurality of groups of connecting rods (11) and a plurality of groups of brushes (13), the housing (8) is arranged on the right part of the inner side wall of the housing (1), the first motor (9) is arranged on the inner side wall of the housing (8), the first gear (10) is concentrically arranged at the output end of the first motor (9), the middle parts of the plurality of groups of connecting rods (11) are rotatably arranged on the upper part of the housing (8), a plurality of groups of second gears (12) are concentrically arranged at the bottom ends of the plurality of groups of connecting rods (11) respectively, the plurality of groups of second gears (12) are meshed with the first gears (10), the plurality of groups of brushes (13) are respectively sleeved on the top ends of the plurality of groups of connecting rods (11), and the positions of the plurality of groups of brushes (13) are respectively matched with the positions of the plurality of groups of clamping devices.

3. The sample collection bottle sterilizer as claimed in claim 1, wherein the clamping device comprises a connecting piece (14), connecting arms (15), arc clamping plates (16) and tension springs (17), the top ends of the connecting piece (14) are communicated with the output end of the electric rotating disc (7), the top ends of the two groups of connecting arms (15) are respectively rotatably arranged at the left side and the right side of the outer side wall of the connecting piece (14), the two groups of arc clamping plates (16) are respectively arranged at the bottom ends of the two groups of connecting arms (15), and the left end and the right end of each tension spring (17) are respectively connected with the outer side walls of the two groups of connecting arms (15).

4. A sample collection bottle sterilizer as claimed in claim 1, further comprising a hot air blower (18) and an exhaust hood (19), wherein the hot air blower (18) is mounted on the outer side wall of the box body (1), the exhaust hood (19) is mounted on the right part of the inner side wall of the box body (1), and the exhaust hood (19) is communicated with the output end of the hot air blower (18).

5. A sample collection bottle sterilizer as claimed in claim 1, wherein the driving device comprises a screw (20) and a second motor (21), the left and right ends of the screw (20) are rotatably arranged on the inner side wall of the chute, the sliding block (5) is matched and sleeved on the outer side wall of the screw (20), the second motor (21) is arranged on the outer side wall of the box body (1), and the output end of the second motor (21) is concentrically connected with the screw (20).

6. A sample collection bottle sterilizer as claimed in claim 2, further comprising a collection cover (22) and a second tank (23), wherein the collection cover (22) is covered on the top end of the housing (8), and a drain pipe is provided at the side of the collection cover (22), the second tank (23) is installed at the bottom of the inner side wall of the case (1), and the second tank (23) is provided below the output end of the drain pipe.

7. A sample collection vial sterilizer as claimed in claim 1, further comprising an electric heater (24), the electric heater (24) being mounted on the inner side wall of the first tank (2).
