Abstract
The utility model relates to the technical field of building facilities, and provides a small hoisting device for municipal building construction, which comprises a bracket, a motor box, a hoisting positioning assembly and a hoisting adjusting assembly, wherein the motor box is fixed at the top of the bracket; the hoisting and positioning assembly comprises a first motor, an output shaft, a wind-up roll, a rope, a connecting plate, a hook, a positioning rod, a positioning cylinder and a piston; the hoisting adjusting assembly comprises a connecting block, a moving block, a sliding chute, a hollow cylinder, a threaded hole, a sliding block, a second motor and a screw. The connecting plate and the hook are driven to move up and down through the arranged hoisting positioning assembly, and in the moving process, the piston of the positioning rod slides up and down in the positioning cylinder, so that the connecting plate is limited from shaking, and the stability is improved; through the hoist and mount adjusting part that sets up, the movable block reciprocates for the connecting block, can adjust according to the building material of different volumes.
Description
Technical Field
The utility model relates to the technical field of building facilities, in particular to a small hoisting device for municipal building construction.
Background
The hoisting refers to the general term that a crane or a hoisting mechanism is used for installing and positioning equipment, various hoisting machines are used for hoisting equipment, workpieces, appliances, materials and the like in the process of overhauling or maintaining, so that the position of the equipment is changed, along with the acceleration of the urban process, the modern construction industry develops at a high speed, the installation requirement on the construction equipment in the construction industry is increased, and the use frequency of hoisting facilities is increased.
The hoisting device used in the construction of general building is mostly large-scale devices such as a crane, when people move or the small area is used, steering and hoisting work cannot be effectively carried out, the hoisting operation precision is poor, the construction progress of the subsequent building is affected, the hoisting efficiency is reduced, and when the general hoisting device is used, steel ropes are used for binding and fixing equipment, workpieces, appliances, materials and the like, the hoisting device is easily affected by wind force in the hoisting process, so that the hoisting object shakes and rotates, the situation that the hoisting object falls off and collides with surrounding things easily occurs, the safety is poor, and the small-sized hoisting device used in the market is mostly hoisted by adopting a single lifting hook, part of objects are not suitable for hoisting with the lifting hook in the municipal building construction site, so that the whole practicality of the hoisting device is poor, and the part of the hoisting device cannot be adjusted to cope with building materials with different volumes, so that various inconvenience is brought to the use.
Disclosure of Invention
In order to overcome the defects of the prior art, the utility model aims to provide a small hoisting device for municipal building construction, so as to solve the problems in the prior art.
In order to achieve the purpose, the technical scheme of the utility model is realized as follows: the small hoisting device for municipal building construction comprises a bracket, a motor box, a hoisting positioning assembly and a hoisting adjusting assembly, wherein the motor box is fixed at the top of the bracket, the hoisting positioning assembly penetrates through the bracket, and the hoisting adjusting assembly is arranged at the bottom of the hoisting positioning assembly;
the hoisting positioning assembly comprises a first motor, an output shaft, a winding roller, a rope, a connecting plate, a hook, a positioning rod, a positioning cylinder and a piston, wherein the output end of the first motor is connected with the output shaft, the winding roller is integrally fixed on the output shaft, the rope is wound on the winding roller, the bottom end of the rope is fixed on the connecting plate through a bracket, the bottom end of the rope is connected with the positioning rod on one side of the connecting plate, the top end of the positioning rod is provided with the positioning cylinder, the top end of the positioning rod is led into the positioning cylinder, and the piston which is matched with the shape and the size of the positioning cylinder is fixed on the top end of the positioning rod;
the lifting adjusting assembly comprises a connecting block, a moving block, a sliding groove, a hollow cylinder, threaded holes, a sliding block, a second motor and a screw rod, wherein the number of the connecting block is two, the moving block is arranged in the connecting block, the bottom end of the moving block is communicated with the connecting block, the hollow cylinder is welded at the top of the moving block, the threaded holes are formed in the top of the hollow cylinder, the second motor is fixed at the inner top of the connecting block through bolts, the output end of the second motor is connected with the screw rod, the bottom end of the screw rod is connected with the threaded holes through the threaded holes, and the screw rod is in threaded connection with the threaded holes.
Preferably, the first motor is fixed in the motor case by bolts.
Preferably, a hook is integrally fixed at the middle position of the bottom end of the connecting plate.
Preferably, the top of the positioning cylinder is fixed on the bracket.
Preferably, the shape of the moving block is an L shape.
Preferably, the two sides in the connecting block are respectively provided with a sliding groove.
Preferably, the sliding blocks are arranged at left and right sides, and the other ends of the two sliding blocks are arranged in the sliding groove in a sliding manner.
The beneficial effects of the utility model are as follows: through the lifting positioning assembly, the first motor controls the output shaft and the wind-up roller to rotate, so that the rope is wound or unwound, the connecting plate, the hook and the lifting adjusting assembly are driven to move up and down, and in the moving process, the piston of the positioning rod slides up and down in the positioning cylinder, so that the effects of limiting the connecting plate from shaking and improving the stability are achieved; through the hoist and mount adjusting part that sets up, second motor control screw rod rotates for hollow cylinder, movable block reciprocate for the screw rod, and the movable block reciprocates for the connecting block promptly, can adjust according to the building material of different volumes, and the suitability is good.
Drawings
In the drawings:

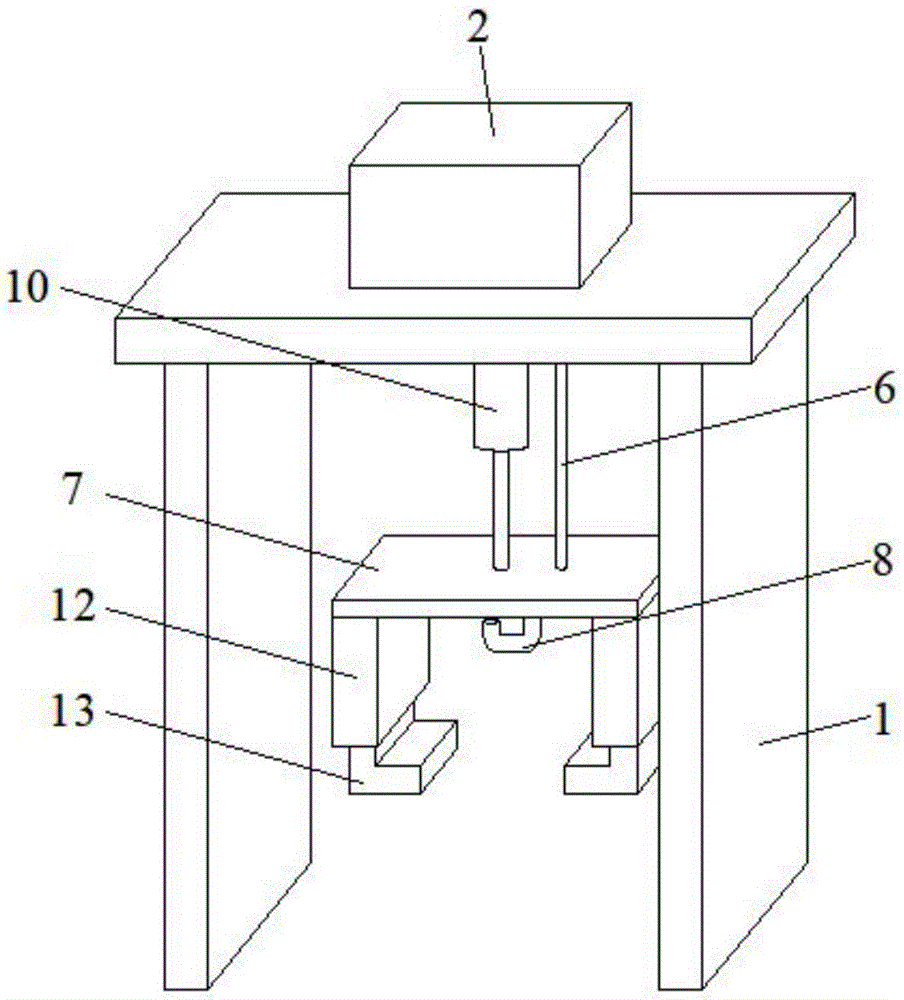

FIG. 1 is a schematic diagram of the overall structure of the present utility model;
FIG. 2 is a plan view of the overall structure of the present utility model;
FIG. 3 is a schematic cross-sectional view of a connecting block and a moving block of the present utility model;
FIG. 4 is a schematic view of a hoist adjustment assembly of the present utility model;
reference numerals illustrate:
1. a bracket; 2. a motor case; 3. a first motor; 4. an output shaft; 5. a wind-up roll; 6. a rope; 7. a connecting plate; 8. a hook; 9. a positioning rod; 10. a positioning cylinder; 11. a piston; 12. a connecting block; 13. a moving block; 14. a chute; 15. a hollow cylinder; 16. a threaded hole; 17. a slide block; 18. a second motor; 19. and (3) a screw.
Detailed Description
The present utility model will now be described in further detail with reference to the drawings and examples, wherein it is apparent that the examples described are only some, but not all, of the examples of the utility model. Embodiments and features of embodiments in this application may be combined with each other without conflict. All other embodiments, based on the embodiments of the utility model, which would be apparent to one of ordinary skill in the art without inventive effort are within the scope of the utility model.
It should be noted that, in the embodiment of the present utility model, directional indications (such as up, down, left, right, front, and rear … …) are referred to, and the directional indications are merely used to explain the relative positional relationship, movement conditions, and the like between the components in a specific posture (as shown in the drawings), and if the specific posture is changed, the directional indications are correspondingly changed.
In addition, "a plurality of" means two or more. In addition, the technical solutions of the embodiments may be combined with each other, but it is necessary to base that the technical solutions can be realized by those skilled in the art, and when the technical solutions are contradictory or cannot be realized, the combination of the technical solutions should be considered to be absent and not within the scope of protection claimed by the utility model.
Example 1:
referring to the attached drawings 1-2 of the specification, the utility model provides a small lifting device for municipal building construction, which comprises a bracket 1, a motor box 2, a lifting positioning assembly and a lifting adjusting assembly, wherein the motor box 2 is fixed at the top of the bracket 1, the lifting positioning assembly penetrates through the bracket 1, and the lifting adjusting assembly is arranged at the bottom of the lifting positioning assembly;
in this embodiment, hoist and mount locating component includes first motor 3, output shaft 4, wind-up roll 5, rope 6, connecting plate 7, couple 8, locating lever 9, locating cylinder 10 and piston 11, the output of first motor 3 is connected with output shaft 4, an organic whole is fixed with wind-up roll 5 on the output shaft 4, the winding has rope 6 on the wind-up roll 5, rope 6 bottom passes through support 1, rope 6 bottom fixing is on connecting plate 7, one side is connected with locating lever 9 on connecting plate 7, locating lever 9 top is provided with locating cylinder 10, locating lever 9 top lets in locating cylinder 10, locating lever 9 top is fixed with the piston 11 with locating cylinder 10 shape size looks adaptation, hoist and mount locating component through setting up, first motor 3 control output shaft 4 and wind-up roll 5 rotate to with rope 6 rolling or unreel, thereby drive connecting plate 7, couple 8 and hoist and mount adjusting component and reciprocate, in the removal process, the piston 11 of locating lever 9 slides from top to bottom in locating cylinder 10, has played the effect of limiting connecting plate 7, has improved stability and has rocked.
The first motor 3 is fixed in the motor case 2 through bolts, a hook 8 is integrally fixed at the middle position of the bottom end of the connecting plate 7, and the top of the positioning cylinder 10 is fixed on the bracket 1.
Wherein, a small hole (not shown) is arranged at the top of the positioning cylinder 10, and the piston 11 can move conveniently by sucking and discharging gas.
Example 2:
referring to the attached drawings 1-4 of the specification, the utility model provides a small lifting device for municipal building construction, which comprises a bracket 1, a motor box 2, a lifting positioning assembly and a lifting adjusting assembly, wherein the motor box 2 is fixed at the top of the bracket 1, the lifting positioning assembly penetrates through the bracket 1, and the lifting adjusting assembly is arranged at the bottom of the lifting positioning assembly;
in this embodiment, hoist and mount adjusting part includes connecting block 12, movable block 13, spout 14, hollow cylinder 15, screw hole 16, slider 17, second motor 18 and screw rod 19, connecting block 12 is left and right sides two be provided with movable block 13 in the connecting block 12, the connecting block 12 is led out to the movable block 13 bottom, hollow cylinder 15 has been welded at movable block 13 top, screw hole 16 has been seted up at hollow cylinder 15 top, second motor 18 passes through the bolt fastening at connecting block 12 internal top, the output of second motor 18 is connected with screw rod 19, screw rod 19 bottom passes through screw hole 16, screw rod 19 and screw hole 16 threaded connection, through the hoist and mount adjusting part of setting, second motor 18 control screw rod 19 rotates for hollow cylinder 15, movable block 13 reciprocate for screw rod 19, and movable block 13 can adjust according to the building material of different volumes about promptly.
The moving block 13 is L-shaped, two sides in the connecting block 12 are respectively provided with a chute 14, the number of the sliding blocks 17 is two, and the other ends of the two sliding blocks 17 are slidably arranged in the chute 14.
When the lifting and positioning device is used, the first motor 3 controls the output shaft 4 and the winding roller 5 to rotate, so that the rope 6 is wound or unwound, the connecting plate 7, the hook 8 and the lifting and positioning assembly are driven to move up and down, and in the moving process, the piston 11 of the positioning rod 9 slides up and down in the positioning cylinder 10, so that the connecting plate 7 cannot shake, and the stability is improved; through the hoist and mount adjusting part that sets up, second motor 18 control screw 19 rotates for hollow cylinder 15, movable block 13 reciprocate for screw 19, and movable block 13 reciprocates for connecting block 12 promptly, can adjust according to the building material of different volumes, and the suitability is good.
The foregoing description of the preferred embodiments of the utility model is not intended to be limiting, but rather is intended to cover all modifications, equivalents, alternatives, and improvements that fall within the spirit and scope of the utility model.
Claims (7)
1. The small lifting device for municipal building construction is characterized by comprising a bracket (1), a motor box (2), a lifting positioning assembly and a lifting adjusting assembly, wherein the motor box (2) is fixed at the top of the bracket (1), the lifting positioning assembly penetrates through the bracket (1), and the lifting adjusting assembly is arranged at the bottom of the lifting positioning assembly;
the hoisting positioning assembly comprises a first motor (3), an output shaft (4), a winding roller (5), a rope (6), a connecting plate (7), a hook (8), a positioning rod (9), a positioning cylinder (10) and a piston (11), wherein the output end of the first motor (3) is connected with the output shaft (4), the winding roller (5) is integrally fixed on the output shaft (4), the rope (6) is wound on the winding roller (5), the bottom end of the rope (6) is fixed on the connecting plate (7) through a support (1), one side of the connecting plate (7) is connected with the positioning rod (9), the top end of the positioning rod (9) is provided with the positioning cylinder (10), and the top end of the positioning rod (9) is fixedly provided with the piston (11) which is matched with the shape and the size of the positioning cylinder (10);
hoist and mount adjusting part includes connecting block (12), movable block (13), spout (14), hollow cylinder (15), screw hole (16), slider (17), second motor (18) and screw rod (19), connecting block (12) are left and right sides two be provided with movable block (13) in connecting block (12), movable block (13) bottom lets out connecting block (12), movable block (13) top welding has hollow cylinder (15), threaded hole (16) have been seted up at hollow cylinder (15) top, second motor (18) are fixed at connecting block (12) interior top through the bolt, the output of second motor (18) is connected with screw rod (19), screw rod (19) bottom is through screw hole (16), screw rod (19) and screw hole (16) threaded connection.
2. The small lifting device for municipal building construction according to claim 1, wherein the first motor (3) is fixed in the motor case (2) by bolts.
3. The small lifting device for municipal building construction according to claim 1, wherein a hook (8) is integrally fixed at the middle position of the bottom end of the connecting plate (7).
4. The small hoisting device for municipal building construction according to claim 1, wherein the top of the positioning cylinder (10) is fixed on the bracket (1).
5. The small-sized lifting device for municipal construction according to claim 1, wherein the moving block (13) is L-shaped.
6. The small hoisting device for municipal building construction according to claim 1, wherein sliding grooves (14) are respectively formed in two inner sides of the connecting block (12).
7. The small hoisting device for municipal building construction according to claim 6, wherein the number of the sliding blocks (17) is two, and the other ends of the two sliding blocks (17) are slidably arranged in the sliding groove (14).
