CN219150788U - Tea processing and classifying device with ash removal function - Google Patents
Tea processing and classifying device with ash removal function Download PDFInfo
- Publication number
- CN219150788U CN219150788U CN202223530331.5U CN202223530331U CN219150788U CN 219150788 U CN219150788 U CN 219150788U CN 202223530331 U CN202223530331 U CN 202223530331U CN 219150788 U CN219150788 U CN 219150788U
- Authority
- CN
- China
- Prior art keywords
- dust collection
- box
- bottom plate
- classifying
- tealeaves
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02W—CLIMATE CHANGE MITIGATION TECHNOLOGIES RELATED TO WASTEWATER TREATMENT OR WASTE MANAGEMENT
- Y02W30/00—Technologies for solid waste management
- Y02W30/10—Waste collection, transportation, transfer or storage, e.g. segregated refuse collecting, electric or hybrid propulsion
Landscapes
- Tea And Coffee (AREA)
Abstract
The utility model discloses a tea processing and classifying device with a dust removing function, and relates to the technical field of tea processing. This tea processing sorter that possesses deashing function, including bottom plate, dust absorption mechanism, selection by winnowing mechanism and branch sieve mechanism, the top fixed mounting of bottom plate has the classification case, divides the sieve mechanism to set up in the inside of classification case, divides the sieve mechanism to include the gim peg, divide sieve and first motor, fixed mounting has the gim peg on the opposite side inner wall of bottom plate, rotates on the gim peg and installs the division sieve. This possess tealeaves processing sorter of deashing function, through screening mechanism and the cooperation of pneumatic separation mechanism, can carry out shake screening to it before tealeaves carries out the selection by winnowing classification to break up the tealeaves that is in the same place to carry out filtering earlier with the tea ash wherein and get rid of, carry out the selection by winnowing classification with remaining tealeaves, improved the categorised efficiency of tealeaves, promoted the practicality of device.
Description
Technical Field
The utility model relates to the technical field of tea processing, in particular to a tea processing and classifying device.
Background
In the course of tea processing, need use the device to classify tealeaves to carry out the selection by winnowing to the tealeaves of equidimension not in order to guarantee the uniformity of tealeaves quality, but current partial device is when using, owing to contain the tea ash (the superfine garrulous powder that leaves when processing tealeaves) in the tealeaves, though can classify through the selection by winnowing in order to get rid of, still contain some tealeaves that mix in together in the tealeaves, lead to it to wrap up the tea ash and classify and lead to the tea ash to mix in the tealeaves of better quality, both cause the reduction of tealeaves classification efficiency, also cause the reduction of tealeaves overall quality, for this reason, we propose a tealeaves processing sorter that possesses the deashing function.
Disclosure of Invention
The utility model aims to provide a tea processing and classifying device with a dust removing function, which can solve the problem that the existing part of devices cannot sufficiently remove tea dust, so that the tea dust is mixed into tea with good quality.
In order to achieve the above purpose, the present utility model provides the following technical solutions: tea processing and classifying device with ash removal function comprises:
the top of the bottom plate is fixedly provided with a classification box;
the dust collection mechanism is arranged at the top of the bottom plate and is used for collecting dust on tea leaves;
the air separation mechanism is arranged on one side of the classifying box and is used for classifying tea leaves;
the screening mechanism is arranged in the classifying box and comprises a fixed bolt, a screening plate and a first motor, the fixed bolt is fixedly arranged on the inner wall of the other side of the bottom plate, the screening plate is rotatably arranged on the fixed bolt, the first motor is fixedly arranged on the outer surface of the front side of the classifying box, and the first motor is used for driving the screening plate to continuously swing on the fixed bolt.
Preferably, the screening mechanism further comprises a screening plate and a cam, the screening plate is fixedly provided with the screening plate, the cam is fixedly arranged between the inner walls of the front side and the rear side of the classification box, the rotating shaft of the first motor is connected with the cam in a transmission manner, and the outer surface of the cam is attached to the bottom of the screening plate.
Preferably, the dust collection mechanism comprises a dust collection box, an induced draft fan, a dust collection cover, a filter screen and a dust collection pipe, wherein a mounting groove is formed in one side of the bottom plate, the dust collection cover and the filter screen are fixedly arranged on the inner wall of the mounting groove, the dust collection box is fixedly arranged at the top of the bottom plate, the induced draft fan is fixedly arranged at the top of the dust collection box, the dust collection pipe is fixedly arranged at the top of the induced draft fan, the input end of the filter screen is fixedly connected with one end of the dust collection pipe, the other end of the dust collection pipe is communicated with the inside of the dust collection cover, and the output end of the induced draft fan is communicated with the inside of the dust collection box.
Preferably, the winnowing mechanism comprises a transmission case, a second motor, belt pulleys, a belt, fans and a blocking net, wherein a through groove is formed in one side of the bottom plate, the transmission case and the blocking net are fixedly arranged on the inner wall of the through groove, two groups of belt pulleys are rotatably arranged between the inner walls of two sides of the transmission case, the belt is sleeved between the two groups of belt pulleys, a rotating shaft of the second motor is in transmission connection with one group of belt pulleys, two groups of fans are rotatably arranged on the outer surface of the other side of the transmission case, and the rotating shafts of the two groups of fans are in transmission connection with the two groups of belt pulleys.
Preferably, the inclined plate is fixedly arranged on the inner wall of the other side of the bottom plate, the collecting tank is arranged on the other side of the bottom plate, and the collecting box is carried on the top of the bottom plate, so that the effect of collecting tea ash is achieved.
Preferably, the classification box is mounted at the bottom of the inner side of the classification box, and the partition plate is fixedly mounted at the bottom of the inner side of the classification box.
Preferably, the front side of the classifying box is provided with a mounting hole, and an observation window is embedded in the mounting hole.
Compared with the prior art, the utility model has the beneficial effects that:
(1) This possess tealeaves processing sorter of deashing function, cooperation through screening mechanism and selection by winnowing mechanism, can carry out shake screening to tealeaves before the tealeaves carries out the selection by winnowing classification, break up the tealeaves that presss from both sides together, and carry out filtering removal with the tealeaves that is in the middle of wherein earlier fully, then carry out the selection by winnowing classification with remaining tealeaves, when having solved current partial device and using, because contain the tealeaves in the tealeaves, though can classify with getting rid of through the selection by winnowing, still contain some tealeaves that mingle together in the tealeaves, lead to it to wrap up the tealeaves that the tealeaves is classified and lead to the tealeaves to mix in the better tealeaves of quality, both caused the reduction of tealeaves classification efficiency, also caused the problem of tealeaves bulk quality reduction, improved the efficiency of tealeaves classification, the practicality of device has been promoted.
(2) This tea processing sorter that possesses deashing function can be when shaking screening tealeaves through dust absorption mechanism, absorbs the dust of lifting of its surface, both avoided adhesion dust escape device on the tealeaves to cause the pollution of environment, also improved the quality after the tealeaves is selected separately, guaranteed the result of use of device, be favorable to the popularization and the use of device.
Drawings
The utility model is further illustrated by the following examples in conjunction with the accompanying drawings:

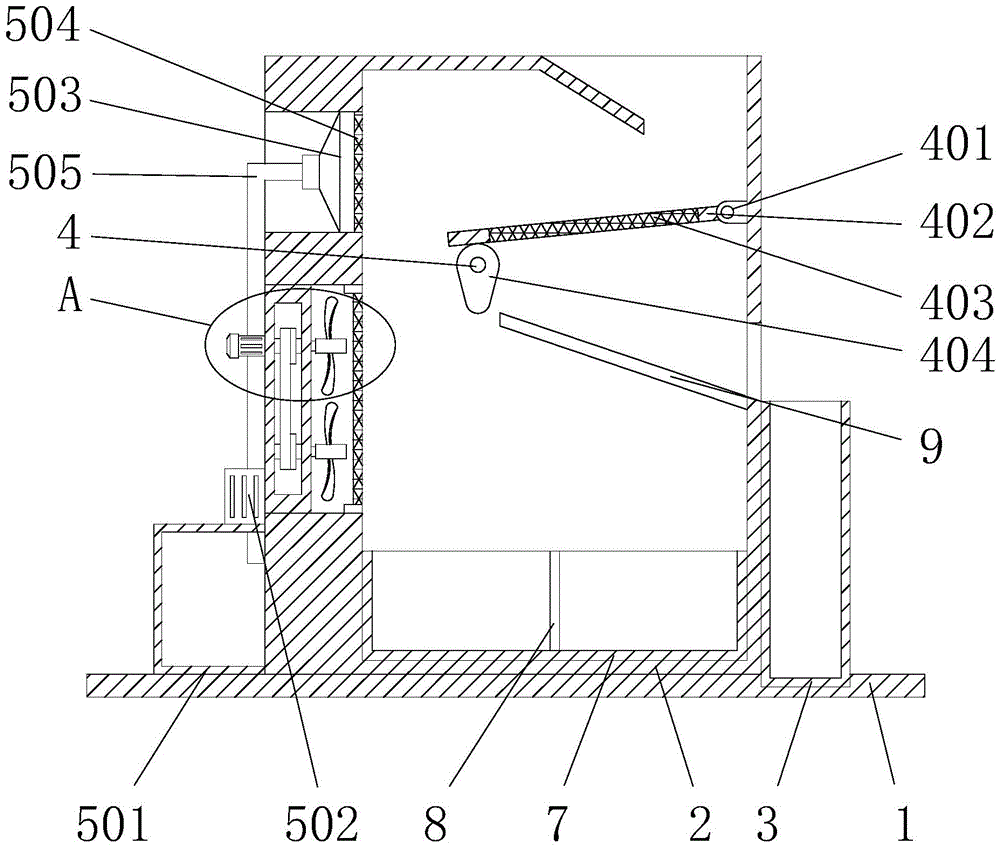

FIG. 1 is a cross-sectional view of the present utility model;
FIG. 2 is a front view of the present utility model;
fig. 3 is an enlarged view of the portion a of the present utility model.
Reference numerals: 1. a bottom plate; 2. a classification box; 3. a collection box; 4. a screening mechanism; 401. a fixing bolt; 402. dividing the sieve plate; 403. separating a screen; 404. a cam; 405. a first motor; 5. a dust collection mechanism; 501. a dust collection box; 502. an induced draft fan; 503. a dust collection cover; 504. a filter screen; 505. a dust collection pipe; 6. a wind separation mechanism; 601. a transmission case; 602. a second motor; 603. a belt pulley; 604. a belt; 605. a fan; 606. a blocking net; 7. a classification box; 8. a partition plate; 9. and a sloping plate.
Detailed Description
Reference will now be made in detail to the present embodiments of the present utility model, examples of which are illustrated in the accompanying drawings, wherein the accompanying drawings are used to supplement the description of the written description so that one can intuitively and intuitively understand each technical feature and overall technical scheme of the present utility model, but not to limit the scope of the present utility model.
Referring to fig. 1-3, the present utility model provides a technical solution: the utility model provides a tealeaves processing sorter that possesses deashing function, including bottom plate 1, dust absorption mechanism 5, selection by winnowing mechanism 6 and screening mechanism 4, classification box 2 is fixedly installed at the top of bottom plate 1, dust absorption mechanism 5 sets up in the top of bottom plate 1, dust absorption mechanism 5 is used for collecting the dust on the tealeaves, selection by winnowing mechanism 6 sets up in one side of classification box 2, selection by winnowing mechanism 6 is used for selecting tea, the opposite side inner wall fixed mounting of bottom plate 1 has swash plate 9, the collecting vat has been seted up to the opposite side of bottom plate 1, collection box 3 has been carried at the top of bottom plate 1, classification box 7 has been carried to the inboard bottom of classification box 7, baffle 8 has been fixedly installed to the inboard bottom of classification box 2, the front side of classification box 2 has been seted up and has been installed the entrance to install the entrance to the cave in the embedding and has been installed the observation window;
the screening mechanism 4 is arranged in the classifying box 2, the screening mechanism 4 comprises a fixing bolt 401, a screening plate 402 and a first motor 405, the fixing bolt 401 is fixedly arranged on the inner wall of the other side of the bottom plate 1, the screening plate 402 is rotatably arranged on the fixing bolt 401, the first motor 405 is fixedly arranged on the outer surface of the front side of the classifying box 2, and the first motor 405 is used for driving the screening plate 402 to continuously swing on the fixing bolt 401.
The screening mechanism 4 further comprises a screening screen 403 and a cam 404, the screening screen 403 is fixedly arranged on the screening screen 402, the cam 404 is fixedly arranged between the inner walls of the front side and the rear side of the classifying box 2, a rotating shaft of the first motor 405 is in transmission connection with the cam 404, and the outer surface of the cam 404 is attached to the bottom of the screening screen 402.
The dust collection mechanism 5 comprises a dust collection box 501, an induced draft fan 502, a dust collection cover 503, a filter screen 504 and a dust collection pipe 505, wherein a mounting groove is formed in one side of the bottom plate 1, the dust collection cover 503 and the filter screen 504 are fixedly arranged on the inner wall of the mounting groove, the dust collection box 501 is fixedly arranged at the top of the bottom plate 1, the induced draft fan 502 is fixedly arranged at the top of the induced draft fan 502, the input end of the filter screen 504 is fixedly connected with one end of the dust collection pipe 505, the other end of the dust collection pipe 505 is communicated with the inside of the dust collection cover 503, the output end of the induced draft fan 502 is communicated with the inside of the dust collection box 501, and under the action of the dust collection mechanism 5, raised dust on the surface of the induced draft fan can be absorbed when shaking and screening tea, so that the environment pollution caused by an adhering dust escape device on the tea is avoided, the quality of the tea after sorting is improved, the use effect of the device is ensured, and the popularization and the use of the device are facilitated.
The winnowing mechanism 6 comprises a transmission case 601, a second motor 602, belt pulleys 603, belts 604, fans 605 and a blocking net 606, a through groove is formed in one side of the bottom plate 1, the transmission case 601 and the blocking net 606 are fixedly installed on the inner wall of the through groove, the second motor 602 is fixedly installed on the outer surface of one side of the transmission case 601, two groups of belt pulleys 603 are rotatably installed between the inner walls of two sides of the transmission case 601, the belts 604 are sleeved between the two groups of belt pulleys 603, a rotating shaft of the second motor 602 is in transmission connection with one group of belt pulleys 603, two groups of fans 605 are rotatably installed on the outer surface of the other side of the transmission case 601, the rotating shaft of the two groups of fans 605 is in transmission connection with the two groups of belt pulleys 603, shaking and screening can be carried out on tea leaves before the tea leaves are classified by winnowing under the cooperation of the screening mechanism 4 and the air selecting mechanism 6, tea leaves clamped together are sufficiently filtered and removed, the rest tea leaves are classified by winnowing firstly, the tea leaves are improved in classification efficiency, and practicability of the device is improved.
Working principle: when the novel tea sorting box is used, the first motor 405, the second motor 602 and the induced draft fan 502 are controlled to start, tea leaves fall into the sorting box 2 from the top of the sorting box 2 and are placed on the sorting screen 403, the first motor 405 drives the cam 404 to rotate, so that the sorting screen 402 continuously swings up and down to shake the tea leaves on the sorting screen 403, tea dust in the tea leaves can fall onto the inclined plate 9 through the sorting screen 403 until entering the collecting box 3 to be collected, dust generated during shaking can be sucked by the dust collecting cover 503 and enter the dust collecting box 501 to be collected through the dust collecting pipe 505, the rest tea leaves can be shaken off, under the action of the second motor 602, the second motor 602 drives the two groups of belt pulleys 603 to rotate through the belt 604, the two groups of belt pulleys 603 drive the two groups of fans 605 to rotate to form wind power blowing rightward, so that the fallen tea leaves can be winnowed under the action of different sizes and gravity and respectively fall into two sides of the partition 8 in the sorting box 7 to be sorted, and the sorting box 7 and the collecting box 3 can be collected after the sorting is completed.
The embodiments of the present utility model have been described in detail with reference to the accompanying drawings, but the present utility model is not limited to the above embodiments, and various changes can be made within the knowledge of one of ordinary skill in the art without departing from the spirit of the present utility model.
Claims (7)
1. Tea processing and classifying device with ash removal function, which is characterized by comprising:
a classifying box (2) is fixedly arranged at the top of the bottom plate (1);
the dust collection mechanism (5) is arranged at the top of the bottom plate (1), and the dust collection mechanism (5) is used for collecting dust on tea leaves;
the air separation mechanism (6) is arranged on one side of the classifying box (2), and the air separation mechanism (6) is used for classifying tea leaves;
screening mechanism (4), set up in the inside of classifying box (2), screening mechanism (4) are including gim peg (401), divide sieve (402) and first motor (405), fixed mounting has gim peg (401) on the opposite side inner wall of bottom plate (1), rotate on gim peg (401) and install branch sieve (402), the front side surface fixed mounting of classifying box (2) has first motor (405), first motor (405) are used for driving branch sieve (402) swing on gim peg (401).
2. The tea processing and sorting device with the ash removal function according to claim 1, wherein: the screening mechanism (4) further comprises a screening plate (403) and a cam (404), the screening plate (402) is fixedly provided with the screening plate (403), the cam (404) is fixedly arranged between the inner walls of the front side and the rear side of the classifying box (2), the rotating shaft of the first motor (405) is in transmission connection with the cam (404), and the outer surface of the cam (404) is attached to the bottom of the screening plate (402).
3. The tea processing and sorting device with the ash removal function according to claim 2, wherein: the dust collection mechanism (5) comprises a dust collection box (501), an induced draft fan (502), a dust collection cover (503), a filter screen (504) and a dust collection pipe (505), wherein a mounting groove is formed in one side of a base plate (1), the dust collection cover (503) and the filter screen (504) are fixedly mounted on the inner wall of the mounting groove, the dust collection box (501) is fixedly mounted on the top of the base plate (1), the induced draft fan (502) is fixedly mounted on the top of the dust collection box (501), the dust collection pipe (505) is fixedly mounted on the top of the induced draft fan (502), the input end of the filter screen (504) is fixedly connected with one end of the dust collection pipe (505), the other end of the dust collection pipe (505) is communicated with the inside of the dust collection cover (503), and the output end of the induced draft fan (502) is communicated with the inside of the dust collection box (501).
4. A tea processing and sorting device with ash removal function according to claim 3, characterized in that: the winnowing mechanism (6) comprises a transmission case (601), a second motor (602), belt pulleys (603), belts (604), fans (605) and a blocking net (606), a through groove is formed in one side of the base plate (1), the transmission case (601) and the blocking net (606) are fixedly arranged on the inner wall of the through groove, two groups of belt pulleys (603) are rotatably arranged between the inner walls of two sides of the transmission case (601), the belts (604) are sleeved between the two groups of belt pulleys (603), the rotating shafts of the second motor (602) are in transmission connection with one group of belt pulleys (603), the two groups of fans (605) are rotatably arranged on the outer surface of the other side of the transmission case (601), and the rotating shafts of the two groups of fans (605) are in transmission connection with the two groups of belt pulleys (603).
5. The tea processing and sorting device with the ash removal function according to claim 4, wherein: the collecting tank is characterized in that an inclined plate (9) is fixedly arranged on the inner wall of the other side of the bottom plate (1), a collecting tank is arranged on the other side of the bottom plate (1), and a collecting box (3) is mounted on the top of the bottom plate (1).
6. The tea processing and sorting device with the ash removal function according to claim 5, wherein: the classifying box (2) is characterized in that a classifying box (7) is mounted at the inner bottom of the classifying box (2), and a partition plate (8) is fixedly mounted at the inner bottom of the classifying box (7).
7. The tea processing and sorting device with the ash removal function according to claim 6, wherein: the front side of the classifying box (2) is provided with a mounting hole, and an observation window is embedded in the mounting hole.
