Abstract
The utility model relates to a grey cloth inspecting device, which comprises an uncoiling unit, a inspecting unit and a coiling unit; the uncoiling unit comprises an uncoiling frame, an uncoiling guide roller and an uncoiling motor, and the uncoiling motor is in transmission connection with the uncoiling guide roller; the cloth inspecting unit comprises a cloth inspecting table, an upper guide roller and a lower guide roller, wherein the upper guide roller is arranged at the upper end of the cloth inspecting table, the lower guide roller is arranged at the lower end of the cloth inspecting table, and a bottom lamp and a spot lamp are arranged on the cloth inspecting table; the rolling unit comprises a rolling frame, a rolling guide roller, a rolling motor and a deviation adjusting mechanism, wherein the rolling motor is in transmission connection with the rolling guide roller, the deviation adjusting mechanism comprises a base, a hydraulic cylinder and a photoelectric sensor, a slide way is arranged on the base, a roller is arranged at the lower end of the rolling frame, the rolling frame is arranged in the slide way through the roller, the hydraulic cylinder is arranged on the base, one end of the hydraulic cylinder is connected with the rolling frame, the other end of the hydraulic cylinder is connected with the base, and the photoelectric sensor is arranged above gray cloth on one side of the rolling guide roller. The utility model can rapidly detect the grey cloth and ensure the flatness and the winding uniformity of the grey cloth.
Description
Technical Field
The utility model relates to the technical field of product detection equipment, in particular to grey cloth inspection equipment.
Background
The abrasive cloth is also called iron abrasive cloth and silicon carbide abrasive cloth, and is made by uniformly adhering abrasive materials on a solid cloth base plate by using a bonding agent, wherein in the production process of the abrasive cloth, the quality of the gray cloth determines the subsequent production quality, after the gray cloth is produced, the gray cloth is required to be inspected, judged and repaired so as to ensure the quality of the gray cloth, in the actual production, a cloth inspection machine is generally adopted to detect the gray cloth, an inspection table is arranged on the cloth inspection machine, and in the travelling process of the gray cloth, the visual inspection is carried out manually to repair and weave the positions with flaws. The existing cloth inspecting machine often has the problems of unstable tension and irregular winding, so that the gray cloth is uneven after winding, the follow-up process is influenced, and the quality of a finished product of the abrasive cloth is further influenced.
Disclosure of Invention
The utility model aims to provide a gray fabric testing device which solves the problems of unstable tension and irregular winding in the gray fabric testing process.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the grey cloth inspecting equipment comprises an uncoiling unit, a inspecting unit and a coiling unit which are sequentially arranged; the uncoiling unit comprises an uncoiling frame, an uncoiling guide roller and an uncoiling motor, wherein the uncoiling guide roller is arranged on the uncoiling frame, and the uncoiling motor is in transmission connection with the uncoiling guide roller; the cloth inspecting unit comprises a cloth inspecting table, an upper guide roller and a lower guide roller, wherein the upper guide roller is arranged at the upper end of the cloth inspecting table, the lower guide roller is arranged at the lower end of the cloth inspecting table, and a bottom lamp and a spotlight are arranged on the cloth inspecting table; the winding unit comprises a winding frame, a winding guide roller, a winding motor and a deviation adjusting mechanism, wherein the winding guide roller is arranged on the winding frame, the winding motor is in transmission connection with the winding guide roller, the deviation adjusting mechanism comprises a base, a hydraulic cylinder and a photoelectric sensor, a slide way is arranged on the base, a roller is arranged at the lower end of the winding frame, the winding frame is arranged in the slide way through the roller, the hydraulic cylinder is arranged on the base, one end of the hydraulic cylinder is connected with the winding frame, the other end of the hydraulic cylinder is connected with the base, the photoelectric sensor is arranged on one side of the winding guide roller, the photoelectric sensor is used for detecting axial movement of grey cloth, and the hydraulic cylinder is used for driving the winding frame to move axially according to signals detected by the photoelectric sensor.
Further, the two uncoiling guide rollers are recorded as a first uncoiling roller and a second uncoiling roller, wherein the first uncoiling roller is arranged on the left side of the second uncoiling roller, one side of the uncoiling frame is provided with a grey cloth supporting frame for supporting coiled grey cloth, and the grey cloth on the grey cloth supporting frame sequentially bypasses the second uncoiling roller and the first uncoiling roller and then enters the cloth inspection unit.
Further, a foot switch for controlling the start and stop of the uncoiling motor and the coiling motor is arranged on the cloth inspection table.
Further, a seat slide rail is arranged on the cloth inspection table along the width direction, and a cloth inspection seat is arranged on the seat slide rail in a sliding manner.
Further, the upper end of the cloth inspection table is also provided with a dust removal roller, and the grey cloth enters the winding unit after being dedusted by the dust removal roller and bypassing the upper guide roller and the lower guide roller.
Further, the number of the winding guide rollers is two, namely a first winding guide roller and a second winding guide roller, wherein the first winding guide roller is arranged at the left side of the second winding guide roller, and the grey cloth is wound into the coiled grey cloth after bypassing the first winding guide roller.
Further, a limiting plate used for limiting rolled grey cloth after rolling is arranged on the rolling frame, and the limiting plate is arranged on the rolling frame in a sliding mode.
The utility model has the beneficial effects that:
according to the grey cloth inspecting equipment, the uncoiling motor and the uncoiling guide roller are used for controlling uncoiling of the grey cloth, a inspector performs visual inspection on the grey cloth on the inspecting table, the visual inspection grey cloth is coiled by the coiling guide roller and the coiling motor, the tension of the grey cloth can be adjusted by controlling the rotating speeds of the uncoiling motor and the coiling motor, the photoelectric sensor can be used for detecting displacement of the coiled grey cloth, and the hydraulic cylinder is used for controlling the coiling frame to move through signals of the photoelectric sensor so as to ensure the uniformity of coiling.
Drawings

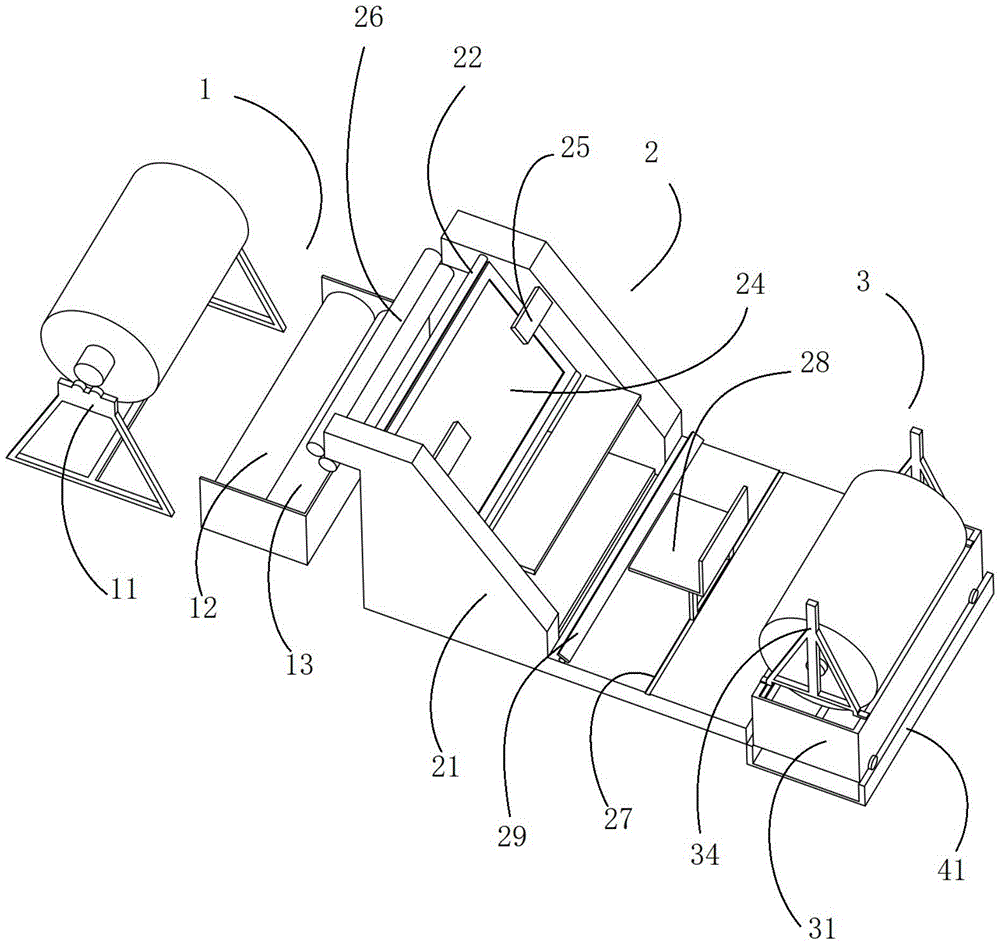

FIG. 1 is a schematic view of a construction of a blank inspection apparatus of the present utility model;
FIG. 2 is a schematic structural view of a cloth inspecting unit in the gray cloth inspecting apparatus of the present utility model;
FIG. 3 is a schematic view showing the structure of a winding unit in the gray fabric inspecting apparatus of the present utility model;
FIG. 4 is a schematic view of the structure of the base in the blank inspection apparatus of the present utility model;
fig. 5 is a schematic view of the winding direction of the raw fabric.
Name corresponding to each label in the figure:
1. the device comprises an uncoiling unit, 11, an uncoiling frame, 12, a first uncoiling guide roller, 13, a second uncoiling guide roller, 14, a grey cloth supporting frame, 2, a cloth inspection unit, 21, a cloth inspection table, 22, an upper guide roller, 23, a lower guide roller, 24, a bottom lamp, 25, a shot lamp, 26, a dust removal roller, 27, a seat slide rail, 28, a cloth inspection seat, 29, a foot switch, 3, a rolling unit, 31, a rolling frame, 32, a first rolling guide roller, 33, a second rolling guide roller, 34, a limiting plate, 41, a base, 411, a slide rail, 42, a hydraulic cylinder, 43 and a photoelectric sensor.
Detailed Description
The following description of the embodiments of the present utility model will be made clearly and completely with reference to the accompanying drawings, in which it is apparent that the embodiments described are only some embodiments of the present utility model, but not all embodiments. All other embodiments, which are derived by a person skilled in the art based on the embodiments of the utility model, fall within the scope of protection of the utility model.
Example 1 of the present utility model:
according to the grey cloth inspecting equipment, the rapid detection of the grey cloth is completed through the cooperation of the uncoiling unit, the inspecting unit and the winding unit which are sequentially arranged, meanwhile, the tension of the grey cloth is adjusted through the uncoiling motor and the winding motor, the position during winding is adjusted through the deviation adjusting mechanism, the regular winding of the grey cloth is achieved, and the winding quality is improved.
Specifically, as shown in fig. 1, the gray fabric inspecting device comprises an uncoiling unit 1, a fabric inspecting unit 2 and a coiling unit 3 which are sequentially arranged, after the gray fabric is produced, the gray fabric is placed in the uncoiling unit 1, enters the fabric inspecting unit 2 through the uncoiling unit 1, a bottom lamp 24 and a spotlight 25 are arranged in the fabric inspecting unit 2, a inspector can inspect flaws of the gray fabric through visual inspection, repair the gray fabric, and the inspected gray fabric is coiled in the coiling unit 3 and ready for the next procedure.
As shown in fig. 1, the unwinding unit 1 includes an unwinding frame 11, an unwinding guide roller and an unwinding motor (not shown in the drawing), both of which are provided in the unwinding frame 11, the unwinding motor is in transmission connection with the unwinding guide roller for driving the unwinding guide roller to rotate, in this embodiment, two unwinding guide rollers, a first unwinding guide roller 12 and a second unwinding guide roller 13 are provided, wherein the first unwinding guide roller 12 is provided at the left side of the second unwinding guide roller 13, a blank support frame 14 is provided at the left side of the unwinding frame 11, the blanks are wound together after the production is completed, a rolled blank is formed, the support frame is used for supporting the rolled blank, and the rolled blank can rotate on the support frame. In actual operation, the grey cloth sequentially bypasses the second uncoiling guide roller 13 and the first uncoiling guide roller 12 and then enters the cloth inspection unit 2.
As shown in fig. 2, the cloth inspecting unit 2 includes a cloth inspecting table 21, an upper guide roller 22 and a lower guide roller 23, an inclined cloth inspecting area is provided on the cloth inspecting table 21, the upper guide roller 22 is provided at the upper end of the cloth inspecting table 21, the lower guide roller 23 is provided at the lower end of the cloth inspecting table 21, a glass or acrylic panel is provided on the cloth inspecting area, a bottom lamp 24 is provided on the panel, a spotlight 25 is provided at the front side of the panel, the gray fabric sequentially bypasses the upper guide roller 22 and the lower guide roller 23, a part of gray fabric is always located in the cloth inspecting area, and the bottom lamp 24 and the spotlight 25 are matched, so that an inspector can clearly observe flaws on the gray fabric to repair. The cloth inspection table 21 is also provided with a control console, so that the work of the winding motor and the unwinding motor can be controlled.
When detecting the grey cloth, the cleaning degree of the grey cloth is important, in the embodiment, two dust removing rollers 26 are arranged at the upper end of the cloth inspecting table 21, bristles are arranged on the dust removing rollers 26, and dust and fluff on the grey cloth are brushed off by the dust removing rollers 26 after the grey cloth passes through between the two dust removing rollers 26, so that the cleaning of the grey cloth is ensured.
For the convenience of the detection personnel to move on the cloth inspection table 21 quickly to detect the grey cloth, and meanwhile, the physical strength of the detection personnel is saved, in the embodiment, the seat slide rail 27 is arranged on the cloth inspection table 21 along the width direction, the cloth inspection seat 28 is arranged in the seat slide rail 27 in a sliding manner, and the detection personnel can move quickly to detect the grey cloth after sitting on the cloth inspection seat 28.
As shown in fig. 3, the winding unit 3 includes a winding frame 31, a winding guide roller and a winding motor (not shown in the drawing), both of which are disposed in the winding frame 31, the winding motor is in transmission connection with the winding guide roller for driving the winding guide roller to rotate, in this embodiment, two winding guide rollers, namely a first winding guide roller 32 and a second winding guide roller 33, are provided, wherein the first winding guide roller 32 is disposed at the left side of the second winding guide roller 33, after the detection of the grey cloth is completed, the first winding guide roller 32 is wound around the winding drum from below the first winding guide roller 32, the winding drum is disposed between the first winding guide roller 32 and the second winding guide roller 33, and the first winding guide roller 32 and the second winding guide roller 33 can drive the winding drum to rotate, thereby winding the detected grey cloth.
In this embodiment, when the gray fabric is wound between the guide rollers, the offset is easy to occur, and the flatness of the gray fabric is finally affected, so that the subsequent process is affected.
As shown in fig. 3, the winding frame 31 is further provided with two limiting plates 34, two limiting plates 34 are slidably arranged on the winding frame 31 and used for limiting the wound grey cloth after winding, further ensuring the uniformity of winding, adjusting the distance between the two limiting plates 34 according to the width of the grey cloth, enabling the wound grey cloth to be located between the two limiting plates 34, and then fixing the limiting plates 34 through bolts to avoid sliding of the limiting plates 34.
In order to facilitate the detection of the grey cloth by the detection personnel in detail, in this embodiment, the pedal switch 29 is arranged on the cloth inspection table 21, the detection personnel can control the start and stop of the uncoiling motor and the coiling motor by stepping on the pedal switch 29, so as to control the movement of the grey cloth.
Working principle:
after the production of the grey cloth, the grey cloth is wound into a rolled grey cloth, as shown in fig. 5, the rolled grey cloth is placed on a grey cloth supporting frame 14, the grey cloth sequentially bypasses a second uncoiling guide roller 13 and a first uncoiling guide roller 12, upwards bypasses an upper guide roller 22 and downwards bypasses a lower guide roller 23, a detector performs eye examination on the grey cloth positioned between the upper guide roller 22 and the lower guide roller 23 on a cloth inspection table 21, the detected grey cloth bypasses the first coiling guide roller 32 from below the first coiling guide roller 32 through the lower guide roller 23, then is wound into a rolled grey cloth, the rolled grey cloth is abutted against the first coiling guide roller 32 and a second coiling guide roller 33, the rolling is performed through the rotation of the first coiling guide roller 32 and the second coiling guide roller 33, the tension of the grey cloth between the uncoiling unit 1 and the coiling unit 3 is controlled through the control console, the rolling effect is ensured, meanwhile, the photoelectric sensor 43 detects the displacement of the grey cloth in real time, sends a signal to the control console, the control console controls the telescopic position of a rolling cylinder 42 to adjust the rolling frame 31 in order.
The grey cloth inspecting device is reasonable in structure, can ensure that inspection staff can rapidly inspect the grey cloth, can adjust winding tension in real time, can automatically adjust winding positions in real time, ensures that the winding of the grey cloth is smooth and neat, provides guarantee for subsequent procedures, and improves product quality.
Claims (7)
1. A grey cloth inspection device, characterized in that: the device comprises an uncoiling unit, a cloth inspecting unit and a coiling unit which are sequentially arranged; the uncoiling unit comprises an uncoiling frame, an uncoiling guide roller and an uncoiling motor, wherein the uncoiling guide roller is arranged on the uncoiling frame, and the uncoiling motor is in transmission connection with the uncoiling guide roller; the cloth inspecting unit comprises a cloth inspecting table, an upper guide roller and a lower guide roller, wherein the upper guide roller is arranged at the upper end of the cloth inspecting table, the lower guide roller is arranged at the lower end of the cloth inspecting table, and a bottom lamp and a spotlight are arranged on the cloth inspecting table; the winding unit comprises a winding frame, a winding guide roller, a winding motor and a deviation adjusting mechanism, wherein the winding guide roller is arranged on the winding frame, the winding motor is in transmission connection with the winding guide roller, the deviation adjusting mechanism comprises a base, a hydraulic cylinder and a photoelectric sensor, a slide way is arranged on the base, a roller is arranged at the lower end of the winding frame, the winding frame is arranged in the slide way through the roller, the hydraulic cylinder is arranged on the base, one end of the hydraulic cylinder is connected with the winding frame, the other end of the hydraulic cylinder is connected with the base, the photoelectric sensor is arranged on one side of the winding guide roller, the photoelectric sensor is used for detecting axial movement of grey cloth, and the hydraulic cylinder is used for driving the winding frame to move axially according to signals detected by the photoelectric sensor.
2. The blank inspection apparatus of claim 1, wherein: the two uncoiling guide rollers are recorded as a first uncoiling roller and a second uncoiling roller, wherein the first uncoiling roller is arranged on the left side of the second uncoiling roller, one side of the uncoiling frame is provided with a grey cloth supporting frame for supporting coiled grey cloth, and the grey cloth on the grey cloth supporting frame sequentially bypasses the second uncoiling roller and the first uncoiling roller and then enters the cloth inspection unit.
3. The blank inspection apparatus of claim 1, wherein: the cloth inspection bench is provided with a foot switch for controlling the start and stop of the uncoiling motor and the coiling motor.
4. The blank inspection apparatus of claim 1, wherein: the cloth inspection bench is provided with a seat slide rail along the width direction, and the seat slide rail is provided with a cloth inspection seat in a sliding manner.
5. The blank inspection apparatus of claim 1, wherein: the upper end of the cloth inspection table is also provided with a dust removal roller, and the grey cloth passes through the dust removal roller to remove dust and then bypasses the upper guide roller and the lower guide roller to enter the winding unit.
6. The blank inspection apparatus of claim 1, wherein: the two winding guide rollers are recorded as a first winding guide roller and a second winding guide roller, wherein the first winding guide roller is arranged at the left side of the second winding guide roller, and the grey cloth is wound into coiled grey cloth after bypassing the first winding guide roller.
7. The blank inspection apparatus of claim 1, wherein: the rolling frame is provided with a limiting plate for limiting rolled grey cloth after rolling, and the limiting plate is arranged on the rolling frame in a sliding mode.
