Abstract
The utility model discloses a high-performance power distribution cabinet which comprises a power distribution cabinet main body and a supporting frame, wherein a protection door is arranged on the front surface of the power distribution cabinet main body, and the power distribution cabinet main body is connected to the inner wall of the supporting frame in a sliding mode. The beneficial effects of the utility model are as follows: when the components and parts to switch board main part lower part are overhauld, through lifting means for the supporting seat upwards moves, makes the switch board main part remove, until being in suitable position, and the switch board main part of being convenient for is in suitable maintenance height, makes the maintenance to switch board main part lower part comparatively convenient, is convenient for operate, through peg graft spacing socket in the slot that corresponds on the mount inner wall, makes the mount be connected with the switch board main part, thereby stabilizes the position of switch board main part, can overhaul this moment.
Description
Technical Field
The utility model relates to a power distribution cabinet, in particular to a high-performance power distribution cabinet, and belongs to the technical field of building electromechanics.
Background
The electromechanical engineering of building is an important engineering in the building industry, and problems in the construction process can influence the construction period of the whole construction, influence the benefit of the whole project, and the electromechanical engineering quality directly influences the whole quality of the construction engineering, including the operation effect, whether energy is saved and whether the building is actually put into use or not.
In the building electromechanical engineering, the cooperation needs to be carried out through a plurality of electromechanical devices, and the cooperation between each electromechanical device needs to be controlled through the power distribution cabinet in the center, so that each electromechanical device can safely and orderly operate, the circuit is protected and controlled, different electrical elements can be arranged according to different using requirements, and a special high-performance power distribution cabinet is formed.
When the power distribution cabinet is used, the power distribution cabinet needs to be overhauled regularly, the service life of the power distribution cabinet is prolonged, and because the power distribution cabinet needs to be overhauled comprehensively, when the lower part of the power distribution cabinet needs to be overhauled by manually squatting on the ground, so that an overhauling staff is inconvenient to operate, the overhauling efficiency and the effect are influenced, and therefore, the power distribution cabinet with high performance is provided.
Disclosure of Invention
The utility model aims to solve the problems and provide a high-performance power distribution cabinet.
The utility model realizes the aim through the following technical scheme, and the high-performance power distribution cabinet comprises:
the power distribution cabinet comprises a power distribution cabinet main body, wherein a protection door is arranged on the front surface of the power distribution cabinet main body;
the power distribution cabinet main body is connected to the inner wall of the support frame in a sliding manner;
the power distribution cabinet comprises a power distribution cabinet body and is characterized in that a lifting assembly is arranged between the power distribution cabinet body and a supporting frame and comprises a supporting seat, a connecting seat and a bidirectional screw rod, wherein the connecting seat is connected with the supporting frame, the supporting seat is located right above the connecting seat, and the supporting seat is attached to the lower surface of the power distribution cabinet body.
Preferably, two fixing frames are arranged on the supporting frame, a plurality of slots are formed in the inner wall of each fixing frame, and a limiting socket is connected between the power distribution cabinet main body and each fixing frame.
Preferably, the bidirectional screw rod is rotationally connected to the inner wall of the connecting seat, the outer surface of the bidirectional screw rod is in threaded connection with two limiting seats, and the limiting seats are in sliding connection to the inner wall of the connecting seat.
Preferably, the inner wall of the connecting seat is provided with a limit groove, the upper surface of the limit seat is connected with a movable seat, the limit seat is slidably connected on the inner wall of the limit groove, and the movable seat is slidably connected on the upper surface of the connecting seat through the limit seat.
Preferably, the outer surface of the movable seat is rotatably connected with two rotating rods, and the other ends of the rotating rods are rotatably connected with the lower surface of the supporting seat.
The beneficial effects of the utility model are as follows: when the components and parts to switch board main part lower part are overhauld, through lifting means for the supporting seat upwards moves, makes the switch board main part remove, until being in suitable position, and the switch board main part of being convenient for is in suitable maintenance height, makes the maintenance to switch board main part lower part comparatively convenient, is convenient for operate, through peg graft spacing socket in the slot that corresponds on the mount inner wall, makes the mount be connected with the switch board main part, thereby stabilizes the position of switch board main part, can overhaul this moment.
Drawings

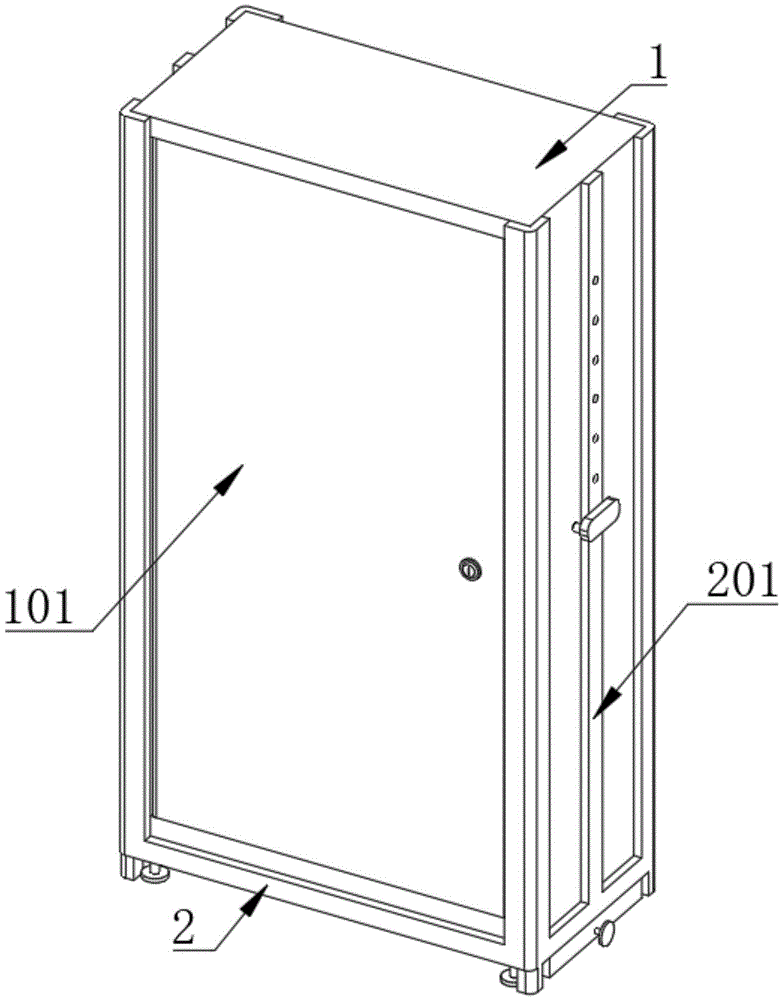

FIG. 1 is a schematic diagram of the structure of the present utility model;
FIG. 2 is a schematic view of a support frame according to the present utility model;
FIG. 3 is a cross-sectional view of a connector housing of the present utility model;
fig. 4 is an enlarged view of a of fig. 3 according to the present utility model.
In the figure: 1. a power distribution cabinet main body; 101. a protective door; 2. a support frame; 201. a fixing frame; 202. a limit socket; 3. a support base; 301. a connecting seat; 4. a two-way screw rod; 401. a movable seat; 402. a rotating lever; 403. a limit seat; 404. and a limit groove.
Detailed Description
The following description of the embodiments of the present utility model will be made clearly and completely with reference to the accompanying drawings, in which it is apparent that the embodiments described are only some embodiments of the present utility model, but not all embodiments. All other embodiments, which can be made by those skilled in the art based on the embodiments of the utility model without making any inventive effort, are intended to be within the scope of the utility model.
The embodiment of the utility model discloses a high-performance power distribution cabinet.
According to the drawings, as shown in fig. 1 and 2, the power distribution cabinet comprises a power distribution cabinet body 1 and a support frame 2, wherein a protection door 101 is arranged on the front surface of the power distribution cabinet body 1, and the power distribution cabinet body 1 is connected to the inner wall of the support frame 2 in a sliding manner;
two fixing frames 201 are arranged on the supporting frame 2, a plurality of slots are formed in the inner wall of the fixing frames 201, and a limiting socket 202 is connected between the power distribution cabinet main body 1 and the fixing frames 201;
when using switch board main part 1, through placing support frame 2 in suitable position for switch board main part 1 is in suitable position, uses through the cooperation of the inside components and parts of switch board main part 1.
When the power distribution cabinet main body 1 needs to be overhauled, the protection door 101 is opened at the moment, so that the inside of the power distribution cabinet main body 1 is opened, and at the moment, the components in the power distribution cabinet main body 1 can be overhauled, and when the components at the lower part of the power distribution cabinet main body 1 need to be overhauled;
through the lifting assembly, the supporting seat 3 moves upwards, so that the power distribution cabinet main body 1 moves until the power distribution cabinet main body 1 is at a proper position, the power distribution cabinet main body 1 is at a proper maintenance height, and the lower part of the power distribution cabinet main body 1 is convenient to maintain and operate;
at this time, the limiting socket 202 is inserted into a corresponding slot on the inner wall of the fixing frame 201, so that the fixing frame 201 is connected with the power distribution cabinet main body 1, and the position of the power distribution cabinet main body 1 is stabilized, and overhaul can be performed at this time;
after the overhaul is completed, the limit socket 202 is disassembled, the bidirectional screw rod 4 is reversely rotated to perform the opposite movement, and the supporting seat 3 drives the power distribution cabinet main body 1 to move downwards until the support on the lower surface of the power distribution cabinet main body 1 is in contact with the ground, so that the power distribution cabinet main body 1 can be moved to the original position.
According to the drawings 2-4, a lifting assembly is arranged between a power distribution cabinet main body 1 and a support frame 2, the lifting assembly comprises a support seat 3, a connecting seat 301 and a bidirectional screw rod 4, the connecting seat 301 is connected with the support frame 2, the support seat 3 is positioned right above the connecting seat 301, and the support seat 3 is attached to the lower surface of the power distribution cabinet main body 1;
the bidirectional screw rod 4 is rotationally connected to the inner wall of the connecting seat 301, the outer surface of the bidirectional screw rod 4 is in threaded connection with two limiting seats 403, and the limiting seats 403 are in sliding connection with the inner wall of the connecting seat 301;
a limiting groove 404 is formed in the inner wall of the connecting seat 301, the upper surface of the limiting seat 403 is connected with a movable seat 401, the limiting seat 403 is slidably connected to the inner wall of the limiting groove 404, and the movable seat 401 is slidably connected to the upper surface of the connecting seat 301 through the limiting seat 403;
the outer surface of the movable seat 401 is rotationally connected with two rotating rods 402, and the other ends of the rotating rods 402 are rotationally connected with the lower surface of the supporting seat 3;
when the components at the lower part of the power distribution cabinet main body 1 need to be overhauled, the two limiting seats 403 are moved in opposite directions by rotating the bidirectional screw rod 4, the two moving seats 401 are driven to move in opposite directions, the two rotating rods 402 move along with the moving seats, and the rotating rods rotate between the moving seats 401 and the supporting seats 3;
at this time, the rotation angles of the plurality of rotation rods 402 are the same, the support seat 3 moves upwards under the support of the rotation rods 402, and the attached power distribution cabinet main body 1 moves on the upper surface of the support seat 3 under the movement of the support seat 3;
because switch board main part 1 sliding connection is on the inner wall of support frame 2 to make switch board main part 1 upwards remove comparatively stably, when removing suitable position, be in suitable maintenance height in switch board main part 1 of being convenient for, make it is comparatively convenient to the maintenance of switch board main part 1 lower part, be convenient for operate.
Working principle: when using switch board main part 1, through placing support frame 2 in suitable position for switch board main part 1 is in suitable position, uses through the cooperation of the inside components and parts of switch board main part 1.
When the power distribution cabinet main body 1 needs to be overhauled, the protection door 101 is opened at the moment, so that the inside of the power distribution cabinet main body 1 is opened, and at the moment, the components in the power distribution cabinet main body 1 can be overhauled, and when the components at the lower part of the power distribution cabinet main body 1 need to be overhauled;
firstly, the two limit sockets 202 are pulled out, at the moment, the fixing frame 201 is not fixed with the power distribution cabinet main body 1, at the moment, the two limit seats 403 which are in threaded connection with the outer surfaces of the two-way screw rod 4 are moved in opposite directions by rotating the two-way screw rod 4, and the two movable seats 401 which are fixedly connected with the upper surfaces of the limit seats 403 are driven to move in opposite directions;
under the movement of the movable seat 401, two rotating rods 402 rotationally connected with the movable seat 401 move along with the movable seat, and rotate between the movable seat 401 and the supporting seat 3, at the moment, the rotating angles of the rotating rods 402 are the same, and under the support of the rotating rods 402, the supporting seat 3 moves upwards;
under the removal of supporting seat 3 for supporting seat 3 upper surface, the switch board main part 1 of laminating removes, because switch board main part 1 sliding connection is on the inner wall of support frame 2, thereby makes switch board main part 1 upwards remove comparatively stably, when removing suitable position, be in suitable maintenance height for switch board main part 1 of being convenient for, it is comparatively convenient to the maintenance of switch board main part 1 lower part, is convenient for operate;
at this time, the limiting socket 202 is inserted into a corresponding slot on the inner wall of the fixing frame 201, so that the fixing frame 201 is connected with the power distribution cabinet main body 1, and the position of the power distribution cabinet main body 1 is stabilized, and overhaul can be performed at this time;
after the overhaul is completed, the limit socket 202 is disassembled, the bidirectional screw rod 4 is reversely rotated to perform the opposite movement, and the supporting seat 3 drives the power distribution cabinet main body 1 to move downwards until the support on the lower surface of the power distribution cabinet main body 1 is in contact with the ground, so that the power distribution cabinet main body 1 can be moved to the original position.
Furthermore, it should be understood that although the present disclosure describes embodiments, not every embodiment is provided with a separate embodiment, and that this description is provided for clarity only, and that the disclosure is not limited to the embodiments described in detail below, and that the embodiments described in the examples may be combined as appropriate to form other embodiments that will be apparent to those skilled in the art.
Claims (5)
1. A high performance power distribution cabinet comprising:
the power distribution cabinet comprises a power distribution cabinet main body (1), wherein a protection door (101) is arranged on the front surface of the power distribution cabinet main body (1);
the power distribution cabinet comprises a support frame (2), wherein the power distribution cabinet main body (1) is connected to the inner wall of the support frame (2) in a sliding manner;
the method is characterized in that: the power distribution cabinet is characterized in that a lifting assembly is arranged between the power distribution cabinet body (1) and the supporting frame (2), the lifting assembly comprises a supporting seat (3), a connecting seat (301) and a bidirectional screw rod (4), the connecting seat (301) is connected with the supporting frame (2), the supporting seat (3) is located right above the connecting seat (301), and the supporting seat (3) is attached to the lower surface of the power distribution cabinet body (1).
2. A high performance power distribution cabinet according to claim 1, characterized in that: two fixing frames (201) are arranged on the supporting frame (2), a plurality of slots are formed in the inner wall of each fixing frame (201), and a limiting socket (202) is connected between the power distribution cabinet main body (1) and each fixing frame (201).
3. A high performance power distribution cabinet according to claim 1, characterized in that: the bidirectional screw rod (4) is rotationally connected to the inner wall of the connecting seat (301), two limiting seats (403) are connected to the outer surface of the bidirectional screw rod (4) in a threaded mode, and the limiting seats (403) are connected to the inner wall of the connecting seat (301) in a sliding mode.
4. A high performance power distribution cabinet according to claim 3, characterized in that: the inner wall of the connecting seat (301) is provided with a limit groove (404), the upper surface of the limit seat (403) is connected with a movable seat (401), the limit seat (403) is slidably connected to the inner wall of the limit groove (404), and the movable seat (401) is slidably connected to the upper surface of the connecting seat (301) through the limit seat (403).
5. The high-performance power distribution cabinet of claim 4, wherein: the outer surface of the movable seat (401) is rotatably connected with two rotating rods (402), and the other ends of the rotating rods (402) are rotatably connected with the lower surface of the supporting seat (3).
