CN219054056U - Closed sand blasting machine with self-cleaning function - Google Patents
Closed sand blasting machine with self-cleaning function Download PDFInfo
- Publication number
- CN219054056U CN219054056U CN202222986761.1U CN202222986761U CN219054056U CN 219054056 U CN219054056 U CN 219054056U CN 202222986761 U CN202222986761 U CN 202222986761U CN 219054056 U CN219054056 U CN 219054056U
- Authority
- CN
- China
- Prior art keywords
- fixedly connected
- blasting machine
- sand blasting
- wall
- motor
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02P—CLIMATE CHANGE MITIGATION TECHNOLOGIES IN THE PRODUCTION OR PROCESSING OF GOODS
- Y02P70/00—Climate change mitigation technologies in the production process for final industrial or consumer products
- Y02P70/10—Greenhouse gas [GHG] capture, material saving, heat recovery or other energy efficient measures, e.g. motor control, characterised by manufacturing processes, e.g. for rolling metal or metal working
Landscapes
- Cleaning In General (AREA)
Abstract
The utility model relates to the technical field of sand blasting machine equipment and discloses a closed sand blasting machine with a self-cleaning function, which comprises a sand blasting machine body, wherein a rotary groove is fixedly connected to the inner wall of the sand blasting machine body, a cleaning pipe is rotatably connected to the inner wall of the rotary groove, a spray head is fixedly connected to the outer surface of the cleaning pipe, a motor is fixedly connected to the inner wall of a motor box, and a motor rotating shaft is fixedly connected to the output end of the motor. The utility model has the following advantages and effects: the motor is started to enable the motor rotating shaft to start rotating, the fixing plate is driven to enable the cleaning pipe to rotate on the inner wall of the rotating groove, workers fill water into the cleaning pipe through the water injection pipe, the cleaning pipe rotates on the outer surface of the water injection pipe when the water is filled, water flows are sprayed out of the cleaning pipe through the spraying head, powerful strong impact water flows are formed under rotation, accordingly dust and sand particles remained on the inner wall of the sand blasting machine body are washed cleanly, and effort and time are saved for the workers.
Description
Technical Field
The utility model relates to the technical field of sand blasting machine equipment, in particular to a closed sand blasting machine with a self-cleaning function.
Background
The sand blasting machine uses compressed air as power, and the abrasive is sucked into the spray gun through the sand conveying pipe by the negative pressure formed in the spray gun through the high-speed movement of the air flow and is ejected out through the nozzle, so that the expected polishing effect is achieved.
When the existing sand blasting machine is used for processing, a large amount of dust scraps and sand grains are often accompanied, the inner wall of the sand blasting machine is often covered by dust after the processing is finished, workers are required to manually clean the sand blasting machine, labor and time are consumed, and the sand blasting machine is not easy to clean, so that the closed sand blasting machine with a self-cleaning function is required.
Disclosure of Invention
The utility model aims to provide a closed sand blasting machine with a self-cleaning function, which has the effect of cleaning the inner wall of the sand blasting machine and facilitating the adjustment of the machining angle during workpiece machining.
The technical aim of the utility model is realized by the following technical scheme: the utility model provides a closed sand blasting machine with self-cleaning function, includes the sand blasting machine body, the inner wall fixedly connected with of sand blasting machine body changes the groove, the inner wall of change groove rotates and is connected with the wash pipe, the surface fixedly connected with sprinkler head of wash pipe, the one end of sprinkler head extends to the inside of wash pipe, the other end fixedly connected with fixed plate of wash pipe, the inner wall fixedly connected with motor case of sand blasting machine body, the inner wall fixedly connected with motor of motor case, the output fixedly connected with motor pivot of motor, the motor pivot extends to the surface of motor case, the other end of motor pivot and a side fixedly connected with of fixed plate, the surface fixedly connected with mount of sand blasting machine body, the inside fixedly connected with water injection pipe of mount, the surface rotation connection of wash pipe and water injection pipe.
Through adopting above-mentioned technical scheme, during the staff uses, the starter motor makes the motor pivot begin to rotate, drive the fixed plate and make the wash pipe rotate at the inner wall of changeing the groove, the mount is fixed with the water injection pipe, the staff is through the water injection pipe to the intraductal water injection of wash, the wash pipe rotates at the surface of water injection pipe in the time of the water injection, can constantly carry out the water injection continually, rivers are through sprinkler head blowout in the wash pipe, form powerful impact rivers under rotating, the motor case protection motor is not wetted, thereby make the remaining dust of sand blasting machine body inner wall, the sand grain is washed cleanly, save strength and time for the staff.
The utility model is further provided with: the inner wall fixedly connected with filter screen of sand blasting machine body, the sliding mouth has been seted up to the surface of sand blasting machine body, the inner wall sliding connection of sliding mouth has the collecting vat.
Through adopting above-mentioned technical scheme, wash the sewage that produces along the filter screen, flow into the collecting vat, the staff can stimulate the collecting vat, makes the collecting vat be pulled out from the sliding port, is convenient for fall sewage treatment.
The utility model is further provided with: the inner wall fixedly connected with cylinder of collecting vat, the output fixedly connected with telescopic link of cylinder, the other end fixedly connected with arc scraper blade of telescopic link.
Through adopting above-mentioned technical scheme, sand grain and partial dust can sink at the bottom, and the staff is when pouring sewage, and difficult processing is clean, and the staff falls the back with the sewage on surface, starts the cylinder and makes the telescopic link promote arc scraper blade, pushes away the sand grain of collecting vat sediment to the centre, and the staff of being convenient for shovel out the sand grain.
The utility model is further provided with: the top fixedly connected with connecting plate of filter screen, the top fixedly connected with carousel of connecting plate, the inner wall of carousel rotates and is connected with the pivot, the top fixedly connected with of pivot places the board, the top fixedly connected with baffle of placing the board.
Through adopting above-mentioned technical scheme, the staff will need the work piece of processing place on placing the board, and the baffle is rotated to the hand, makes the inner wall rotation of pivot at the carousel, places the board through the rotation, but the machining angle of adjustable work piece.
The utility model is further provided with: the number of the spraying heads is a plurality of, and the distances between every two spraying heads are equal.
By adopting the technical scheme, the number of the spray heads is more, and the spray heads are uniformly distributed, so that the range of water flow spraying is larger.
The utility model is further provided with: the number of the arc-shaped scrapers is two, and the distances between every two arc-shaped scrapers are equal.
By adopting the technical scheme, the two arc scraping plates work simultaneously, and time is saved when sand grains are scraped.
The beneficial effects of the utility model are as follows:
1. according to the utility model, through the cooperation arrangement among the sand blasting machine body, the rotary groove, the cleaning pipe, the spray head, the fixing plate, the motor box, the motor rotating shaft, the fixing frame and the water injection pipe, when the sand blasting machine is used by a worker, the motor is started to enable the motor rotating shaft to start rotating to drive the fixing plate to enable the cleaning pipe to rotate on the inner wall of the rotary groove, the fixing frame fixes the water injection pipe, the worker injects water into the cleaning pipe through the water injection pipe, the cleaning pipe rotates on the outer surface of the water injection pipe while injecting water, water can be injected continuously, water is sprayed out through the spray head, powerful impact water is formed under rotation, the motor box protects the motor from being wetted, and therefore dust and sand particles remained on the inner wall of the sand blasting machine body are washed cleanly, and strength and time are saved for the worker.
2. According to the utility model, through the cooperation arrangement among the filter screen, the sliding port, the collecting tank, the air cylinder, the telescopic rod, the arc scraping plate, the connecting plate, the turntable, the rotating shaft, the placing plate and the baffle plate, when the device is used, sewage generated by cleaning flows into the collecting tank along the filter screen, a worker can pull the collecting tank to pull the collecting tank out of the sliding port so as to facilitate sewage disposal, sand particles and part of dust can sink on the water, when the worker pours sewage, the worker is not easy to treat cleanly, after the worker pours sewage on the surface, the air cylinder is started to enable the telescopic rod to push the arc scraping plate to push the sand particles deposited in the collecting tank to the middle, so that the worker can conveniently scoop out the sand particles, the worker places a workpiece to be processed on the placing plate, holds the baffle plate to rotate, the rotating shaft rotates on the inner wall of the turntable, and the processing angle of the workpiece can be adjusted by rotating the placing plate.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present utility model, the drawings required for the description of the embodiments will be briefly described below, and it is apparent that the drawings in the following description are only some embodiments of the present utility model, and other drawings may be obtained according to these drawings without inventive effort for a person skilled in the art.

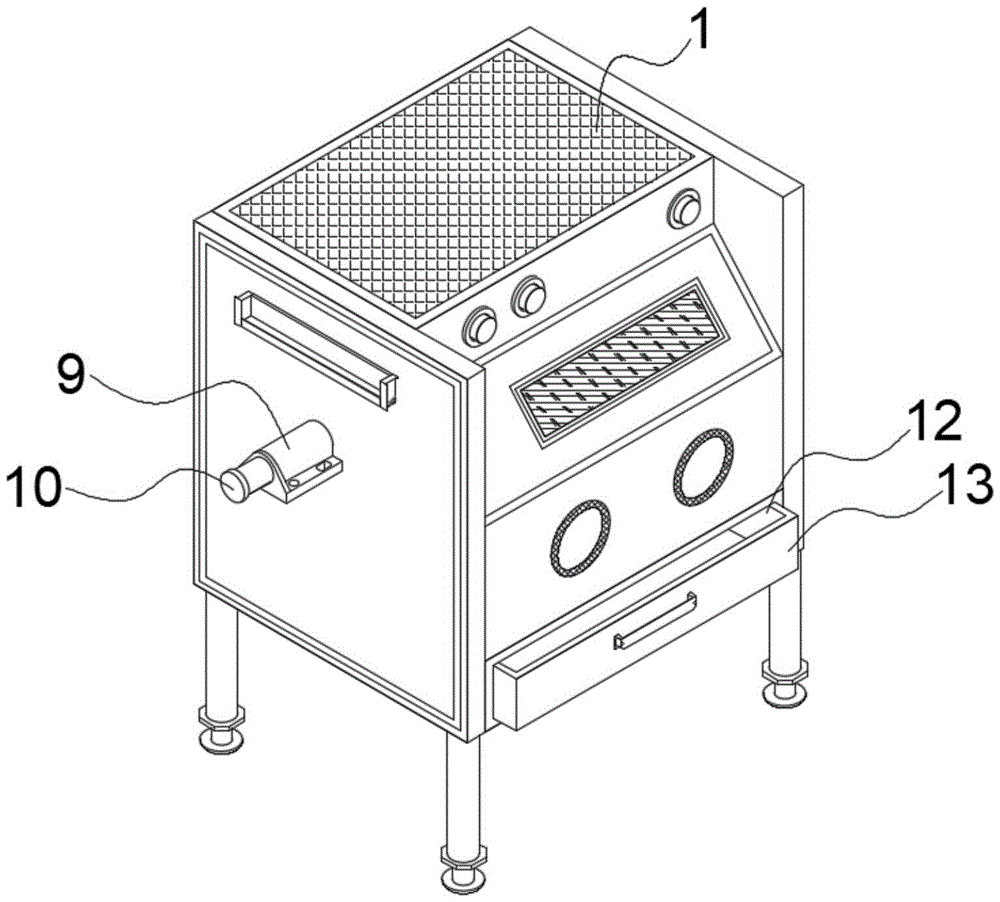

FIG. 1 is a schematic diagram of the structure of the present utility model;
FIG. 2 is a schematic view of the structure of a cleaning tube according to the present utility model;
FIG. 3 is an enlarged schematic view of the structure of FIG. 2A according to the present utility model;
fig. 4 is an enlarged schematic view of the structure of fig. 2B according to the present utility model.
In the figure, 1, a sand blasting machine body; 2. a rotary groove; 3. cleaning the tube; 4. a spray head; 5. a fixing plate; 6. a motor case; 7. a motor; 8. a motor shaft; 9. a fixing frame; 10. a water injection pipe; 11. a filter screen; 12. a sliding port; 13. a collection tank; 14. a cylinder; 15. a telescopic rod; 16. an arc-shaped scraping plate; 17. a connecting plate; 18. a turntable; 19. a rotating shaft; 20. placing a plate; 21. and a baffle.
Detailed Description
The technical scheme of the present utility model will be clearly and completely described in connection with specific embodiments. It will be apparent that the described embodiments are only some, but not all, embodiments of the utility model. All other embodiments, which can be made by those skilled in the art based on the embodiments of the utility model without making any inventive effort, are intended to fall within the scope of the utility model.
Referring to FIGS. 1 to 4, a closed type sand blasting machine with self-cleaning function comprises a sand blasting machine body 1, a rotary groove 2 is fixedly connected to the inner wall of the sand blasting machine body 1, a cleaning pipe 3 is rotatably connected to the inner wall of the rotary groove 2, a spray head 4 is fixedly connected to the outer surface of the cleaning pipe 3, one end of the spray head 4 extends to the inside of the cleaning pipe 3, a fixing plate 5 is fixedly connected to the other end of the cleaning pipe 3, a motor box 6 is fixedly connected to the inner wall of the sand blasting machine body 1, a motor 7 is fixedly connected to the inner wall of the motor box 6, a motor rotating shaft 8 is fixedly connected to the output end of the motor 7, the motor rotating shaft 8 extends to the outer surface of the motor box 6, the other end of the motor rotating shaft 8 is fixedly connected to one side surface of the fixing plate 5, a fixing frame 9 is fixedly connected to the outer surface of the sand blasting machine body 1, a water injection pipe 10 is fixedly connected to the inside of the fixing frame 9, the cleaning pipe 3 is rotatably connected to the outer surface of the water injection pipe 10, when a worker uses the sand blasting machine, the motor 7 starts the motor rotating shaft 8 to rotate, the fixing plate 5 is driven to enable the cleaning pipe 3 to rotate on the inner wall of the rotating groove 2, the fixing frame 9 fixes the water injection pipe 10, the worker injects water into the cleaning pipe 3 through the water injection pipe 10, the cleaning pipe 3 rotates on the outer surface of the water injection pipe 10 at the same time of injecting water, water can be continuously injected, water flow is sprayed out of the cleaning pipe 3 through the spraying heads 4, powerful impact water flow is formed under the rotation, the motor box 6 protects the motor from being wetted, so that dust and sand particles remained on the inner wall of the sand blasting machine body 1 are washed cleanly, the labor and time are saved for the worker, the filter screen 11 is fixedly connected on the inner wall of the sand blasting machine body 1, the sliding opening 12 is formed on the outer surface of the sand blasting machine body 1, the collecting groove 13 is connected on the inner wall of the sliding opening 12 in a sliding way, the sewage generated by cleaning flows into the collecting tank 13 along the filter screen 11, a worker can pull the collecting tank 13 to enable the collecting tank 13 to be pulled out from the sliding port 12, so that the sewage is convenient to be treated, the inner wall of the collecting tank 13 is fixedly connected with the air cylinder 14, the output end of the air cylinder 14 is fixedly connected with the telescopic rod 15, the other end of the telescopic rod 15 is fixedly connected with the arc scraping plate 16, sand particles and part of dust can sink at the bottom, when the worker pours the sewage, the worker is not easy to treat cleanly, after pouring the sewage on the surface, the air cylinder 14 is started to enable the telescopic rod 15 to push the arc scraping plate 16, the sand particles deposited in the collecting tank 13 are pushed to the middle, so that the worker can conveniently scoop out the sand particles, the top of the filter screen 11 is fixedly connected with the connecting plate 17, the top of the connecting plate 17 is fixedly connected with the turntable 18, the inner wall rotation of carousel 18 is connected with pivot 19, the top fixedly connected with of pivot 19 places board 20, place the top fixedly connected with baffle 21 of board 20, the staff will need the work piece of processing place on board 20, hand baffle 21 rotates, make pivot 19 rotate at the inner wall of carousel 18, through rotating place board 20, the processing angle of adjustable work piece, the quantity of sprinkler head 4 is a plurality of, the distance between sprinkler head 4 is equal, sprinkler head 4 quantity is more, evenly distributed makes rivers spun scope bigger, the quantity of arc scraper blade 16 is two, the distance between arc scraper blade 16 two liang equals, two arc scraper blade 16 simultaneous working, more save time when scraping the sand grain.
In the utility model, through the matching arrangement among the sand blasting machine body 1, the rotary groove 2, the cleaning pipe 3, the spray head 4, the fixing plate 5, the motor box 6, the motor 7, the motor rotating shaft 8, the fixing frame 9 and the water injection pipe 10, when the sand blasting machine is used, when a worker uses the sand blasting machine, the motor box 6 protects the motor from being wetted, so that the dust and sand particles remained on the inner wall of the sand blasting machine body 1 are washed cleanly by starting the motor 7 to start rotating the motor rotating shaft 8, driving the fixing plate 5 to rotate the cleaning pipe 3 on the inner wall of the rotary groove 2, the fixing frame 9 fixes the water injection pipe 10, the worker injects water into the cleaning pipe 3 through the water injection pipe 10, and simultaneously, the cleaning pipe 3 rotates on the outer surface of the water injection pipe 10, so that water injection can be continuously carried out, water flow is sprayed out through the spray head 4 under rotation, strong impact water flow is formed, the motor box 6 protects the motor from being wetted, the device saves effort and time for workers, through the matching arrangement among the filter screen 11, the sliding port 12, the collecting tank 13, the air cylinder 14, the telescopic rod 15, the arc scraping plate 16, the connecting plate 17, the rotary table 18, the rotary shaft 19, the placing plate 20 and the baffle 21, when the device is used, sewage generated by cleaning flows into the collecting tank 13 along the filter screen 11, the workers can pull the collecting tank 13 to pull the collecting tank 13 from the sliding port 12, the collecting tank is convenient to dispose the sewage, sand and part of dust can sink at the water bottom, the workers are not easy to dispose cleanly when pouring the sewage, after pouring the sewage on the surface, the air cylinder 14 is started to enable the telescopic rod 15 to push the arc scraping plate 16, the sand of the collecting tank 13 is pushed to the middle, the workers are convenient to scoop out the sand, the workers place the workpieces to be processed on the placing plate 20, and hold the baffle 21 to rotate, the rotation shaft 19 is rotated on the inner wall of the turntable 18, and the machining angle of the workpiece can be adjusted by rotating the placing plate 20.
Although embodiments of the present utility model have been shown and described, it will be understood by those skilled in the art that various changes, modifications, substitutions and alterations can be made therein without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. Closed sand blasting machine with self-cleaning function, including sand blasting machine body (1), its characterized in that: the inner wall fixedly connected with changes groove (2) of sand blasting machine body (1), the inner wall of change groove (2) rotates and is connected with washs tub (3), the surface fixedly connected with sprinkler head (4) of wasing tub (3), the one end of sprinkler head (4) extends to the inside of wasing tub (3), the other end fixedly connected with fixed plate (5) of wasing tub (3), the inner wall fixedly connected with motor case (6) of sand blasting machine body (1), the inner wall fixedly connected with motor (7) of motor case (6), the output fixedly connected with motor pivot (8) of motor (7), the surface of motor pivot (8) extension to motor case (6), the other end of motor pivot (8) and a side fixedly connected with fixed plate (5), the surface fixedly connected with mount (9) of sand blasting machine body (1), the inside fixedly connected with water injection pipe (10) of mount (9), the surface rotation of wasing tub (3) and water injection pipe (10) is connected.
2. A closed type sand blasting machine with self-cleaning function according to claim 1, wherein: the sand blasting machine is characterized in that a filter screen (11) is fixedly connected to the inner wall of the sand blasting machine body (1), a sliding opening (12) is formed in the outer surface of the sand blasting machine body (1), and a collecting groove (13) is slidably connected to the inner wall of the sliding opening (12).
3. A closed sand blasting machine with self-cleaning function according to claim 2, wherein: the inner wall fixedly connected with cylinder (14) of collecting vat (13), the output fixedly connected with telescopic link (15) of cylinder (14), the other end fixedly connected with arc scraper blade (16) of telescopic link (15).
4. A closed sand blasting machine with self-cleaning function according to claim 2, wherein: the top fixedly connected with connecting plate (17) of filter screen (11), the top fixedly connected with carousel (18) of connecting plate (17), the inner wall rotation of carousel (18) is connected with pivot (19), the top fixedly connected with of pivot (19) places board (20), the top fixedly connected with baffle (21) of placing board (20).
5. A closed type sand blasting machine with self-cleaning function according to claim 1, wherein: the number of the spraying heads (4) is a plurality of, and the distances between every two spraying heads (4) are equal.
6. A closed type sand blasting machine with self-cleaning function according to claim 3, wherein: the number of the arc-shaped scrapers (16) is two, and the distances between every two arc-shaped scrapers (16) are equal.
