CN219045034U

CN219045034U - Textile fabric desizing equipment for textile production

Info

Publication number: CN219045034U
Application number: CN202223276053.5U
Authority: CN
Inventors: 褚淼
Original assignee: Suzhou Omniapiega Crinkled Fabric Co ltd
Current assignee: Suzhou Omniapiega Crinkled Fabric Co ltd
Priority date: 2022-12-07
Filing date: 2022-12-07
Publication date: 2023-05-19
Anticipated expiration: 2032-12-07

Abstract

The utility model discloses a textile fabric desizing device for textile production, which belongs to the technical field of textile production and comprises a desizing box, wherein a desizing tank is arranged in the desizing box, two sides of the desizing tank are respectively and rotationally connected with a first conveying roller, two sides of the upper end of the desizing tank are respectively and rotationally connected with a second conveying roller, one side of the desizing box is provided with a feed inlet, the other side of the desizing box is provided with a discharge outlet, the side wall of the desizing box at one side of the discharge outlet is provided with a cleaning mechanism, one side of the desizing box is provided with a mounting plate, the upper end of the mounting plate is connected with a winding shaft through a clamping mechanism, one side of the desizing box is rotationally connected with a driving shaft, the driving shaft is provided with a brushing mechanism, the other end of the driving shaft is provided with a driving mechanism, and a transmission mechanism is arranged between the driving shaft and the winding shaft; the utility model can drive the two brush rollers to rotate relatively, and can effectively rub the textile fabric and scrape the sizing agent on the surface of the textile fabric, thereby improving the desizing effect of the desizing equipment on the textile fabric.

Description

Textile fabric desizing equipment for textile production

Technical Field

The utility model belongs to the technical field of textile production, and particularly relates to textile fabric desizing equipment for textile production.

Background

In the current textile production process, in order to better scour and bleach textiles, desizing is required for textile fabrics, which refers to the technological process of immersing the textiles in hot water, acid, alkali or enzyme solutions for treatment so as to remove sizing agents from the textiles during weaving. Desizing equipment is typically used to desize textile fabrics.

However, the existing desizing equipment has the following defects in use: when the existing desizing equipment is used for desizing the textile fabric, the sizing agent on the textile fabric cannot be thoroughly removed, so that the sizing agent still remains on the fabric, and the desizing effect of the textile fabric is reduced.

Disclosure of Invention

The utility model aims to provide a textile fabric desizing device for textile production, which aims to solve the problems in the background technology.

In order to achieve the above purpose, the present utility model provides the following technical solutions: the utility model provides a textile fabric desizing equipment for textile production, includes the desizing case, be equipped with the desizing pond in the desizing case, the equal rotation in desizing pond both sides is connected with first conveying roller, is located desizing pond upper end both sides all rotate in the desizing case and be connected with the second conveying roller, the feed inlet has been seted up to desizing case one side, the bin outlet has been seted up to the desizing case opposite side, is located bin outlet one side the desizing case lateral wall is equipped with clearance mechanism, desizing case one side is equipped with the mounting panel, the mounting panel upper end is connected with the take-up spool through joint mechanism, desizing case one side rotation is connected with the drive shaft, the drive shaft is equipped with brushing mechanism, the drive shaft other end is equipped with actuating mechanism, be equipped with drive mechanism between drive shaft and the take-up spool.

As a preferred implementation mode, the clearance mechanism is including setting up the locating plate in destarch case one side, the locating plate runs through and is equipped with the rectangle mouth, both sides all rotate about the rectangle mouth and be connected with the clearance board, two clearance board lateral wall all is equipped with spacing spring, the spacing spring other end sets up on the rectangle mouth lateral wall.

As a preferred implementation mode, the clamping mechanism comprises clamping plates arranged on two sides of the upper end of the mounting plate, clamping grooves matched with the winding shaft are formed in the clamping plates, and two ends of the winding shaft penetrate through the two clamping grooves respectively and are connected with the side walls of the clamping grooves in a rotating mode.

As a preferred implementation mode, the brushing mechanism comprises a transmission shaft which is rotationally connected to the upper end of the driving shaft, the driving shaft and one end of the transmission shaft penetrate through the side wall of the desizing box and are rotationally connected to the side wall of the desizing tank, the driving shaft and the outer side wall of the transmission shaft which are positioned in the desizing tank are respectively provided with a brushing roller, the driving shaft and the end part of the transmission shaft are respectively provided with a positioning wheel, and the two positioning wheels are in meshed connection.

As a preferred embodiment, the driving mechanism comprises a bearing plate arranged on one side of the desizing box, a motor is arranged at the upper end of the bearing plate, and one end of the driving shaft is arranged on the output end of the motor.

As a preferred implementation mode, the transmission mechanism comprises a horizontal shaft which is rotatably connected to the side wall of one side clamping plate, driven wheels are arranged on the outer side walls of the horizontal shaft and the winding shaft, two driven wheels are connected in a meshed mode, fixed wheels are arranged on the driving shaft and the outer side wall of the horizontal shaft, and the two fixed wheels are connected with the same transmission belt.

Compared with the prior art, the utility model has the beneficial effects that:

according to the utility model, the motor drives the driving shaft and the transmission shaft to rotate, so that the two brush rollers can be driven to rotate relatively, the textile fabric can be effectively rubbed, and the sizing agent on the surface of the textile fabric is scraped off, so that the desizing effect of the desizing equipment on the textile fabric is improved;

according to the utility model, through the two clamping plates and the horizontal shaft, the winding shaft can be driven to rotate to wind the textile fabric, the wound textile fabric is convenient to disassemble, and the desizing efficiency of the textile fabric is improved.

According to the utility model, the two cleaning plates and the limiting spring in the positioning plate can clean the moisture and impurities on the textile fabric after the textile fabric is desized, so that the production quality of the textile fabric is improved.

Drawings

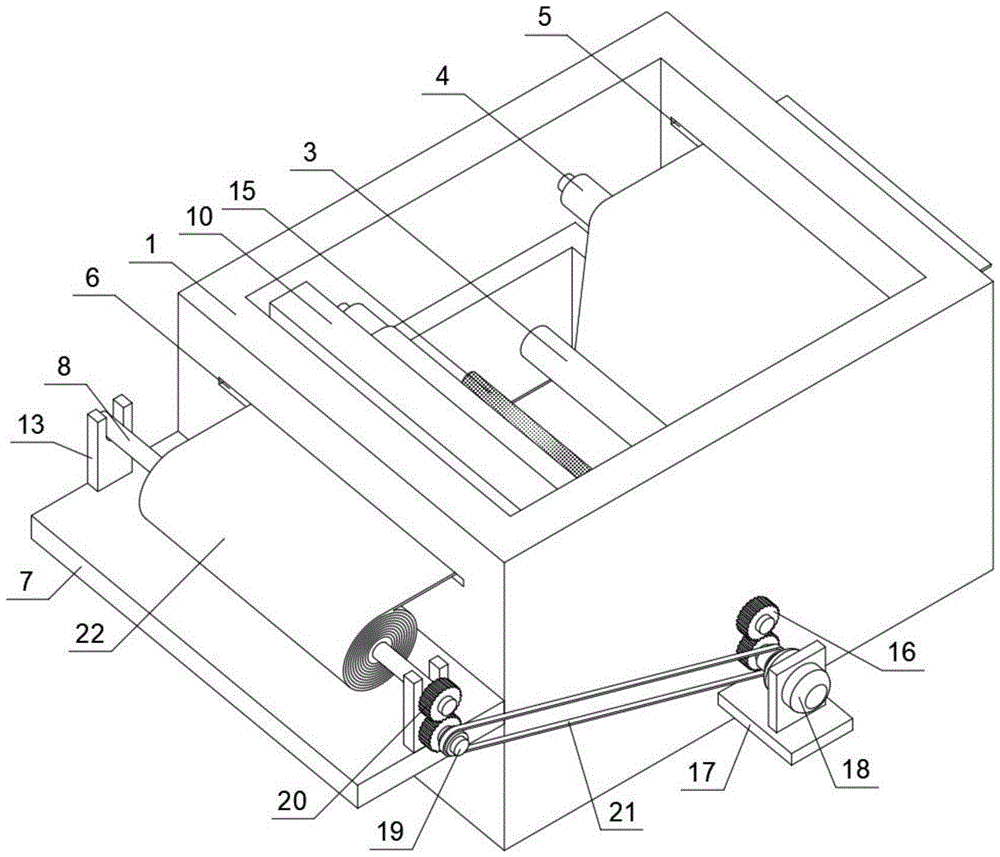

FIG. 1 is a schematic view of the appearance of a main body of the structure of the present utility model;

FIG. 2 is a schematic cross-sectional front view of the structure of the present utility model;

FIG. 3 is a schematic front view of the structure of the present utility model

Fig. 4 is an enlarged schematic view of the structure at a in fig. 2.

In the figure: 1. desizing box; 2. desizing pool; 3. a first conveying roller; 4. a second conveying roller; 5. a feed inlet; 6. a discharge port; 7. a mounting plate; 8. a winding shaft; 9. a drive shaft; 10. a positioning plate; 11. a cleaning plate; 12. a limit spring; 13. a clamping plate; 14. a transmission shaft; 15. a brush roller; 16. a positioning wheel; 17. a carrying plate; 18. a motor; 19. a horizontal axis; 20. driven wheel; 21. a transmission belt; 22. and (5) spinning the cloth.

Detailed Description

The utility model is further described below with reference to examples.

The following examples are illustrative of the present utility model but are not intended to limit the scope of the utility model. The conditions in the examples can be further adjusted according to specific conditions, and simple modifications of the method of the utility model under the premise of the conception of the utility model are all within the scope of the utility model as claimed.

Referring to fig. 1-4, the utility model provides a textile fabric desizing device for textile production, which comprises a desizing box 1, wherein a desizing tank 2 is arranged in the desizing box 1, both sides of the desizing tank 2 are rotationally connected with first conveying rollers 3, both sides of the upper end of the desizing tank 2 are rotationally connected with second conveying rollers 4 in the desizing box 1, a plurality of first conveying rollers 3 and second conveying rollers 4 can drive and limit textile fabrics 22 to move, one side of the desizing box 1 is provided with a feed inlet 5, the other side of the desizing box 1 is provided with a discharge outlet 6, the side wall of the desizing box 1 at one side of the discharge outlet 6 is provided with a cleaning mechanism, one side of the desizing box 1 is provided with a mounting plate 7, the upper end of the mounting plate 7 is connected with a winding shaft 8 through a clamping mechanism, one side of the desizing box 1 is rotationally connected with a driving shaft 9, the driving shaft 9 is provided with a brushing mechanism, and the other end of the driving shaft 9 is provided with a transmission mechanism between the driving shaft 9 and the winding shaft 8.

Specifically, as shown in fig. 2 and 4, the cleaning mechanism includes a positioning plate 10 disposed at one side of the desizing box 1, the positioning plate 10 is provided with a rectangular opening in a penetrating manner, the upper side and the lower side of the rectangular opening are respectively connected with a cleaning plate 11 in a rotating manner, the side walls of the two cleaning plates 11 are respectively provided with a limiting spring 12, the other ends of the limiting springs 12 are disposed on the side walls of the rectangular opening, the two limiting springs 12 can limit the positions of the cleaning plates 11, the cleaning plates 11 can be abutted against the textile fabric 22, and moisture and impurities on the textile fabric 22 are removed.

Specifically, as shown in fig. 1 and 3, the clamping mechanism comprises clamping plates 13 arranged on two sides of the upper end of the mounting plate 7, the clamping plates 13 are provided with clamping grooves matched with the winding shaft 8, two ends of the winding shaft 8 respectively penetrate through the two clamping grooves and are rotationally connected with the side walls of the clamping grooves, and the winding shaft 8 can be detached through the two clamping grooves on the premise that the rotation of the winding shaft 8 is not affected, so that the winding shaft 8 is convenient to replace.

Specifically, as shown in fig. 1, fig. 2 and fig. 3, the brushing mechanism comprises a transmission shaft 14 rotatably connected to the upper end of a driving shaft 9, one ends of the driving shaft 9 and the transmission shaft 14 penetrate through the side wall of the desizing box 1 and are rotatably connected to the side wall of the desizing tank 2, brush rollers 15 are arranged on the outer side walls of the driving shaft 9 and the transmission shaft 14 in the desizing tank 2, positioning wheels 16 are arranged at the end parts of the driving shaft 9 and the transmission shaft 14, the two positioning wheels 16 are in meshed connection, the driving shaft 9 can drive the transmission shaft 14 to rotate by the two positioning wheels 16, the two brush rollers 15 are reversely rotated, and the slurry on the textile fabric 22 is removed better.

Specifically, as shown in fig. 1, the driving mechanism includes a carrying plate 17 disposed at one side of the desizing box 1, a motor 18 is disposed at an upper end of the carrying plate 17, the motor 18 is in the prior art, and the carrying plate 17 can limit a position of the motor 18, and one end of the driving shaft 9 is disposed at an output end of the motor 18.

Specifically, as shown in fig. 1 and 3, the transmission mechanism includes a horizontal shaft 19 rotatably connected to a side wall of the one-side clamping plate 13, driven wheels 20 are respectively disposed on the outer side walls of the horizontal shaft 19 and the winding shaft 8, the two driven wheels 20 can drive the horizontal shaft 19 to rotate the winding shaft 8, the two driven wheels 20 are in meshed connection, fixed wheels are respectively disposed on the outer side walls of the driving shaft 9 and the horizontal shaft 19, and the two fixed wheels are connected with the same transmission belt 21, so that the driving shaft 9 can drive the horizontal shaft 19 to rotate.

The working principle and the using flow of the utility model are as follows: when the textile fabric 22 is desized, firstly, a proper amount of hot water, acid, alkali or enzyme and other solutions are required to be poured into the desizing tank 2, then the textile fabric 22 is penetrated into the desizing tank 1 from the feed inlet 5, then the textile fabric 22 sequentially passes through the first conveying roller 3, the second conveying roller 4, the hairbrush roller 15 and the positioning plate 10, then the textile fabric is discharged through the discharge outlet 6, the textile fabric is wound on the winding shaft 8, then the motor 18 is started, the output end of the motor 18 drives the driving shaft 9 to rotate, the driving shaft 9 drives the horizontal shaft 19 to rotate through the driving belt 21, the horizontal shaft 19 drives the winding shaft 8 to rotate through the driven wheel 20 on the outer side wall, the driving shaft 9 drives the upper end of the driving shaft 14 to rotate through the positioning wheel 16 on the outer side wall, the driving shaft 9 and the driving shaft 14 respectively drive the two hairbrush rollers 15 to rub the textile fabric 22 immersed in the liquid, when the textile fabric 22 leaves the desizing tank 2 and passes through the positioning plate 10, the two cleaning plates 11 in the positioning plate 10 can abut against the textile fabric 22 under the action of the limiting springs 12, and finally, the moisture can be discharged on the outer side wall 22 and the winding side wall of the textile fabric through the positioning plate 8 to collect impurities.

Although embodiments of the present utility model have been shown and described, it will be understood by those skilled in the art that various changes, modifications, substitutions and alterations can be made therein without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.

Claims

1. Textile fabric desizing equipment for textile production, including desizing case (1), its characterized in that: be equipped with in desizing case (1) and move back thick liquid pond (2), it is connected with first conveying roller (3) all to move back thick liquid pond (2) both sides, is located to move back thick liquid pond (2) upper end both sides all rotate in desizing case (1) and be connected with second conveying roller (4), feed inlet (5) have been seted up to desizing case (1) one side, bin outlet (6) have been seted up to desizing case (1) opposite side, are located bin outlet (6) one side move back thick liquid case (1) lateral wall is equipped with clearance mechanism, desizing case (1) one side is equipped with mounting panel (7), mounting panel (7) upper end is connected with winding shaft (8) through joint mechanism, desizing case (1) one side rotates and is connected with drive shaft (9), drive shaft (9) are equipped with the brush thick liquid mechanism, the drive shaft (9) other end is equipped with actuating mechanism, be equipped with drive mechanism between drive shaft (9) and the winding shaft (8).

2. A textile fabric desizing apparatus for textile production as claimed in claim 1 wherein: the cleaning mechanism comprises a positioning plate (10) arranged on one side of the desizing box (1), the positioning plate (10) penetrates through a rectangular opening, the upper side and the lower side of the rectangular opening are respectively connected with a cleaning plate (11) in a rotating mode, two side walls of the cleaning plates (11) are respectively provided with a limiting spring (12), and the other ends of the limiting springs (12) are arranged on the side walls of the rectangular opening.

3. A textile fabric desizing apparatus for textile production as claimed in claim 1 wherein: the clamping mechanism comprises clamping plates (13) arranged on two sides of the upper end of the mounting plate (7), clamping grooves matched with the winding shaft (8) are formed in the clamping plates (13), and two ends of the winding shaft (8) penetrate through the two clamping grooves respectively and are connected with the side walls of the clamping grooves in a rotating mode.

4. A textile fabric desizing apparatus for textile production as claimed in claim 1 wherein: the pulp brushing mechanism comprises a transmission shaft (14) which is rotationally connected to the upper end of a driving shaft (9), the driving shaft (9) and one end of the transmission shaft (14) penetrate through the side wall of the desizing box (1) and are rotationally connected to the side wall of the desizing tank (2), brush rollers (15) are arranged on the outer side walls of the driving shaft (9) and the transmission shaft (14) which are positioned in the desizing tank (2), and positioning wheels (16) are arranged at the ends of the driving shaft (9) and the transmission shaft (14) respectively, and the two positioning wheels (16) are in meshed connection.

5. A textile fabric desizing apparatus for textile production as claimed in claim 1 wherein: the driving mechanism comprises a bearing plate (17) arranged on one side of the desizing box (1), a motor (18) is arranged at the upper end of the bearing plate (17), and one end of the driving shaft (9) is arranged at the output end of the motor (18).

6. A textile fabric desizing apparatus for textile production as claimed in claim 1 wherein: the transmission mechanism comprises a horizontal shaft (19) rotatably connected to the side wall of one side clamping plate (13), driven wheels (20) are arranged on the outer side walls of the horizontal shaft (19) and the winding shaft (8), two driven wheels (20) are connected in a meshed mode, fixed wheels are arranged on the outer side walls of the driving shaft (9) and the horizontal shaft (19), and the two fixed wheels are connected with the same transmission belt (21).
