Abstract
The utility model discloses a corrugated pipe falling film condensation cooler which comprises a shell, a first tube plate, a second tube plate, a first steam guide seal head and a second steam guide seal head, wherein corrugated heat exchange tubes are fixedly connected to the first tube plate and the second tube plate, the first steam guide seal head is arranged on the left side of the first tube plate, a secondary steam inlet is formed in the top of the first steam guide seal head, the second steam guide seal head is arranged on the right side of the second tube plate, a condensate outlet is formed in the bottom of the second steam guide seal head, a film distributor is arranged in a cavity above the corrugated heat exchange tubes, at least one exhaust port is formed in the top wall of the shell above the film distributor, a water receiving basin is arranged below the shell, a liquid inlet is formed in the water receiving basin, a circulating water pipe with a water pump is connected to a water outlet at the bottom of the water receiving basin, and the upper end of the circulating water pipe is connected with an inlet at the right end of the film distributor.
Description
Technical Field
The utility model relates to the technical field of falling film evaporators, in particular to a corrugated pipe falling film condensation cooler.
Background
The heat exchanger is a main device for heat energy exchange, has wide application in the fields of pharmacy, food, chemical industry, sugar production, salt production, caustic soda and the like, and is used for adding steam from a first effect when concentrating liquid materials, flash steam of the first effect is used for heating a second effect, and the like, the temperature of each effect is gradually reduced, and the temperature of final flash steam is about 50 ℃; the current treatment method for the end effect flash steam is that circulating water is used as a heat carrier, and a large amount of heat of the end effect flash steam is emitted to the atmosphere through a cooling tower; therefore, the final-effect flash steam is not fully utilized, and energy waste is caused. In order to improve the energy utilization rate, the Chinese patent specification with the bulletin number of CN203999466U discloses a device for utilizing the heat energy of the final-effect flash steam of a corn steep liquor evaporator, which comprises a surface condenser, a first circulating water pump, a pipeline, a cooling tower, a plate heat exchanger, a high-level water tank, a starch airflow heat exchanger and a second circulating water pump; the heat energy utilization device for the final-effect flash steam of the corn steep liquor evaporator can recycle the final-effect flash steam of the heat exchanger, and improves the energy utilization rate. However, this heat energy utilization device has a disadvantage in that it requires a large-scale facility such as a cooling tower, which results in a large investment cost.
Disclosure of Invention
The utility model provides the corrugated pipe falling film condensation cooler with low investment cost aiming at the defects.
The utility model is realized in the following way: the corrugated pipe falling film condensation cooler comprises a shell, a first tube plate and a second tube plate which are arranged on the left side and the right side of the shell, a first steam guide seal head and a second steam guide seal head, wherein the first tube plate and the second tube plate are fixedly connected with corrugated heat exchange tubes; the lower part of the inner cavity of the shell is provided with a filler; a water receiving basin is arranged below the shell, a liquid inlet is arranged on the water receiving basin, a water outlet at the bottom of the water receiving basin is connected with a circulating water pipe with a water pump, and the upper end of the circulating water pipe is connected with an inlet at the right end of the film distributor
By adopting the structure, during operation, the cooling liquid (material) enters the water receiving disc through the liquid inlet, the cooling liquid in the water receiving disc is conveyed into the film distributor through the water pump, the film distributor uniformly distributes the cooling liquid to the outer surface of the corrugated heat exchange tube bundle to form a liquid film, and the cooling liquid in the liquid film flows to the outer surface of the corrugated condenser tube bundle which is downwards discharged under the action of gravity; meanwhile, secondary steam finally effective from an evaporator (not shown in the figure) enters the first steam guide seal head through a secondary steam inlet, the secondary steam rapidly enters the tube side of the corrugated heat exchange tube in the first steam guide seal head, and the secondary steam entering the tube side exchanges heat with cooling liquid forming a liquid film outside the tube; condensing the secondary steam into condensate after heat release, and discharging the condensate from a condensate outlet; the cooling liquid phase absorbs the latent heat of the secondary steam and then starts to evaporate, the vapor evaporated by the cooling liquid phase is discharged into the atmosphere under the action of an exhaust fan, and meanwhile, the liquid material of the evaporated cooling liquid phase enters a filling area, and the liquid material entering the filling area is further supercooled when flowing downwards in a film shape. Because the corrugated heat exchange tube is arranged in the condensation cooler, the corrugated heat exchange tube replaces the prior straight heat exchange tube, so that the heat exchange efficiency is greatly improved, the condensation cooler is not required to be provided with equipment such as a cooling tower, and the investment cost is reduced.
Drawings

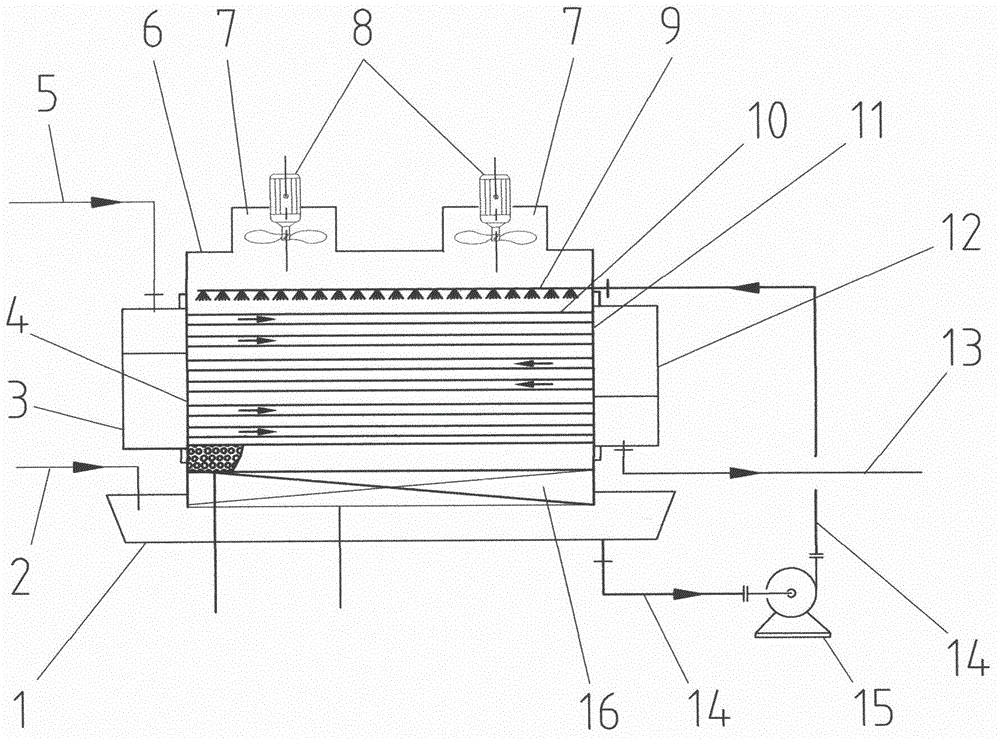

FIG. 1 is a schematic diagram of the structure of a bellows falling film condensation cooler of the present utility model.
Detailed Description
The utility model is described in further detail below with reference to the drawings and the examples.
The utility model provides a corrugated pipe falling film condensation cooler shown in figure 1, which comprises a shell 6, a first tube plate 4, a second tube plate 11 and corrugated heat exchange tubes 10, wherein the first tube plate 4 and the second tube plate 11 are arranged on the left side and the right side of the shell 6, the first tube plate 4 is externally provided with a steam guide seal head 3, the top of the first steam guide seal head 3 is provided with a secondary steam inlet 5, the right side of the second tube plate 11 is externally provided with a second steam guide seal head 12, the bottom of the second steam guide seal head 12 is provided with a condensate outlet 13, a film distributor 9 is arranged in a cavity above the corrugated heat exchange tubes, at least one exhaust port 7 is arranged on the top wall of the shell 6 above the film distributor 9, and an exhaust fan 8 is arranged in the exhaust port 7; the lower part of the inner cavity of the shell 6 is provided with a filler 16; a water receiving basin 1 is arranged below the shell 6, a liquid inlet 2 is arranged on the water receiving basin 1, a water outlet at the bottom of the water receiving basin 1 is connected with a circulating water pipe 14 with a water pump 15, and the upper end of the circulating water pipe 14 is connected with an inlet at the right end of the film distributor 9.
When the corrugated condenser works, a valve is opened to enable cooling liquid to enter the water receiving disc 1 through the liquid inlet 2, the cooling liquid in the water receiving disc is sent into the film distributor 9 through the water pump 15, the cooling liquid (materials) are uniformly distributed to the outer surfaces of the tube bundles of the corrugated heat exchange tubes 10 through the film distributor to form a liquid film, and the cooling liquid in the liquid film flows to the outer surfaces of the corrugated condenser tubes which are arranged downwards under the action of gravity; meanwhile, secondary steam coming out of the end effect enters the steam guide seal head I3 through the secondary steam inlet 5, the secondary steam rapidly enters the tube pass of the corrugated heat exchange tube 10 in the steam guide seal head I3, the secondary steam entering the tube pass exchanges heat with cooling liquid forming a liquid film outside the tube, the secondary steam condenses into condensate after heat release, and the condensate is discharged from the condensate outlet 13; the cooling liquid phase absorbs the latent heat of the secondary steam and begins to evaporate, noncondensable gas of the cooling liquid is discharged into the atmosphere under the action of the exhaust fan 8, and meanwhile, liquid materials of the evaporated cooling liquid phase enter a filler 16 area, and the liquid materials entering the filler 16 area are further supercooled when flowing downwards in a film shape.
Claims (1)
1. The utility model provides a bellows falling film condensation cooler, includes casing (6), sets up tube sheet one (4) and tube sheet two (11), steam direction head one (3), steam direction head two (12), characterized by in that on both sides about casing (6): the corrugated heat exchange tube is characterized in that corrugated heat exchange tubes (10) are fixedly connected to the first tube plate (4) and the second tube plate (11), the first steam guide seal head (3) is arranged outside the left side of the first tube plate (4), a secondary steam inlet (5) is formed in the top of the first steam guide seal head (3), the second steam guide seal head (12) is arranged outside the right side of the second tube plate (11), a condensate outlet (13) is formed in the bottom of the second steam guide seal head (12), a film distributor (9) is arranged in a cavity above the corrugated heat exchange tubes (10), at least one exhaust port (7) is formed in the top wall of a shell (6) above the film distributor (9), and an exhaust fan (8) is arranged in the exhaust port (7); the lower part of the inner cavity of the shell (6) is provided with a filler (16); a water receiving basin (1) is arranged below the shell (6), a liquid inlet (2) is arranged on the water receiving basin (1), a water outlet at the bottom of the water receiving basin (1) is connected with a circulating water pipe (14) with a water pump (15), and the upper end of the circulating water pipe (14) is connected with an inlet at the right end of the film distributor (9).
