Abstract
The utility model provides a high-efficiency mixing device for organic fertilizer for flower planting, and relates to the technical field of organic fertilizer soil mixing. This high-efficient mixing arrangement of flower planting organic fertilizer soil includes the support frame, the upper end fixed mounting of support frame has the blending tank, the upper end fixedly connected with top cap of blending tank, the inside fixed mounting of blending tank has rabbling mechanism, the upper surface left side fixed connection of top cap has the loading hopper, the upper surface right side fixed mounting of top cap has quantitative feeding mechanism, the lower extreme fixed connection of blending tank has the discharging pipe, the lower extreme fixed connection of discharging pipe has a material conveying section of thick bamboo, the inside fixed mounting of material conveying section of thick bamboo has conveying mechanism. This flower planting organic fertilizer soil high-efficient mixing arrangement is through setting up conveying mechanism, and helical blade rotation drives fertilizer to right movement and discharges from the row material pipe, avoids the conveying feed cylinder to appear blockking up and influences normal ejection of compact, improves unloading efficiency.
Description
Technical Field
The utility model relates to the technical field of organic fertilizer and soil mixing, in particular to a high-efficiency mixing device for organic fertilizer and soil for flower planting.
Background
Flowers, which are herbaceous plants having ornamental value, are a general term for depicting appreciative plants, and short branches having reproductive function are of many kinds.
In the cultivation process of gardens flowers, a large amount of fertilizers need to be used, but some organic fertilizer particles are larger, the absorption of plants is inconvenient, and in the fertilization process, a plurality of fertilizers need to be mixed together, so the mixing device is used for mixing a plurality of fertilizers together, for example, an organic fertilizer mixing device in the prior art, the patent number is CN2016210526889, the device indirectly drives the stirring shaft to rotate by utilizing the rotary motor, the stirring shaft rotates to drive the stirring rod to rotate, the stirring rod rotates in the process to enable microbial flora inside the stirring rod to be dispersed in all corners of animal manure, compared with the traditional situation that microbial flora is placed on the top surface and then stirred, the stirring time is greatly shortened under the condition that the stirring uniformity is improved, and the working efficiency is improved.
However, in the actual use process, the fertilizer cannot be crushed and then mixed, and the caking phenomenon is easy to occur because the organic fertilizer is stored for a long time, if the caking organic fertilizer is not treated, the mixing efficiency of the organic fertilizer is easy to be reduced by direct mixing, and the material clamping phenomenon is easy to occur during discharging, so that the practicability of the device is reduced.
Disclosure of Invention
(one) solving the technical problems
Aiming at the defects of the prior art, the utility model provides a high-efficiency mixing device for organic fertilizer soil for flower planting, which solves the problems in the background art.
(II) technical scheme
In order to achieve the above purpose, the utility model is realized by the following technical scheme: the utility model provides a high-efficient mixing arrangement of flower planting organic fertilizer soil, includes the support frame, the upper end fixed mounting of support frame has the blending tank, the upper end fixedly connected with top cap of blending tank, the inside fixed mounting of blending tank has rabbling mechanism, the upper surface left side fixed connection of top cap has the loading hopper, the upper surface right side fixed mounting of top cap has quantitative feeding mechanism, the lower extreme fixed connection of blending tank has the discharging pipe, the lower extreme fixed connection of discharging pipe has a delivery cylinder, the inside fixed mounting of delivery cylinder has conveying mechanism.
The stirring mechanism comprises a motor, a rotating rod, a crushing blade, a stirring rod and a scraping plate, wherein the upper surface of the top cover is fixedly provided with the motor, the lower end of an output shaft of the motor penetrates through the upper surface of the top cover, the lower end of the output shaft of the motor is fixedly connected with the rotating rod, the outer wall of the upper end of the rotating rod is uniformly provided with the crushing blade, the outer wall of the lower end of the rotating rod is uniformly provided with the stirring rod, and one ends, far away from each other, of the stirring rod are fixedly connected with the scraping plate.
The quantitative feeding mechanism comprises a feeding pipe, a metering cylinder and a control valve, wherein the feeding pipe is fixedly communicated with the right side of the upper surface of the top cover, the metering cylinder is fixedly communicated with the upper end of the feeding pipe, and the control valve is arranged at the upper end of the feeding pipe.
The conveying mechanism comprises a servo motor, a rotating shaft, a helical blade and a discharge pipe, wherein the servo motor is fixedly arranged on the left side of the conveying cylinder, the right end of an output shaft of the servo motor penetrates through the left side of the conveying cylinder, the right end of the output shaft of the servo motor is fixedly connected with the rotating shaft, the right end of the output shaft of the rotating shaft is rotatably connected to the right side of the conveying cylinder through a bearing, the helical blade is fixedly sleeved on the outer wall of the rotating shaft, and the right side of the conveying cylinder is fixedly communicated with the discharge pipe.
Preferably, the inner wall of the mixing tank is provided with fixed blades, and the fixed blades and the spiral blades are equidistantly and alternately distributed.
Preferably, one side of the scraping plate, which is close to the inner wall of the mixing tank, is provided with a rubber scraping blade.
Preferably, the top cover and the mixing tank are fixedly connected together through bolts.
Preferably, the front surfaces of the mixing tank and the material conveying cylinder are provided with observation windows.
Preferably, the lower end of the support frame is provided with an anti-slip pad.
(III) beneficial effects
The utility model provides a high-efficiency mixing device for organic fertilizer soil for flower planting. The beneficial effects are as follows:
1. this high-efficient mixing arrangement of flower planting organic fertilizer soil through setting up rabbling mechanism, starter motor drives the bull stick and rotates messenger's crushing blade and puddler and rotate, fertilizer is smashed through crushing the blade at first in-process that drops, and still be provided with fixed blade at the inner wall of blending tank, fixed blade is the equidistance crisscross distribution with crushing blade simultaneously, can improve the area of contact of blade and fertilizer, thereby with the kibbling more abundant even of caking fertilizer, be convenient for follow-up mixing, mixing efficiency has been improved, the fertilizer after smashing continues to drop in the bottom of blending tank, the puddler is rotatory to stir the fertilizer this moment, still be connected with the scraper blade on the puddler, can avoid the fertilizer adhesion on the inner wall of blending tank, the labor burden of washing blending tank has been alleviateed.
2. According to the flower planting organic fertilizer soil efficient mixing device, by arranging the quantitative feeding mechanism, when additives are required to be quantitatively added, the additives are poured into the metering cylinder, the quantity of the additives can be clearly seen through the scale marks on the front surface of the metering cylinder, and then the additives are discharged into the mixing tank by opening the control valve, so that the aim of accurate proportioning is fulfilled, and the quality of the organic fertilizer soil is improved; through setting up conveying mechanism, start servo motor drive pivot rotation makes helical blade rotate, and helical blade rotates and drives fertilizer to right movement and discharge from the row material pipe, avoids the conveying section of thick bamboo to appear blockking up and influences normal ejection of compact, improves unloading efficiency.
Drawings

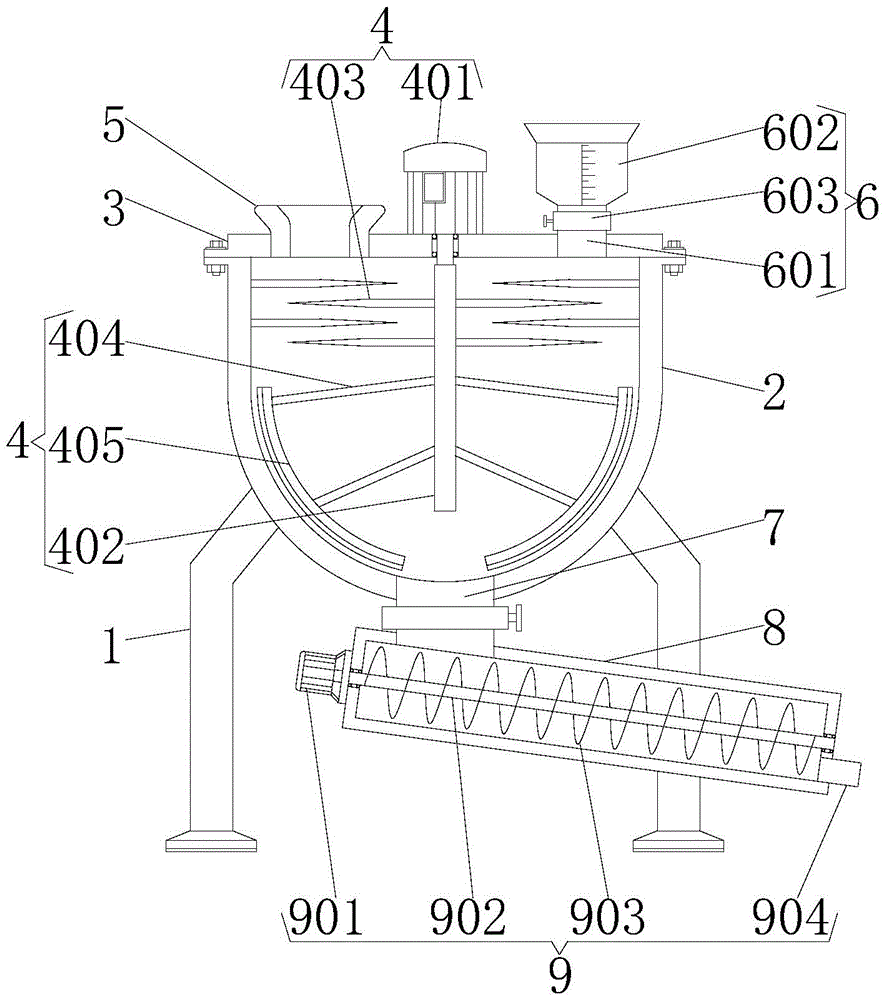

Fig. 1 is a schematic structural view of a high-efficiency mixing device for organic fertilizer soil for flower planting;
fig. 2 is a front view of the efficient mixing device for organic fertilizer soil for flower planting.
1, a supporting frame; 2. a mixing tank; 3. a top cover; 4. a stirring mechanism; 401. a motor; 402. a rotating rod; 403. a crushing blade; 404. a stirring rod; 405. a scraper; 5. a hopper; 6. a quantitative feeding mechanism; 601. a feeding tube; 602. a metering cylinder; 603. a control valve; 7. a discharge pipe; 8. a feed delivery cylinder; 9. a conveying mechanism; 901. a servo motor; 902. a rotating shaft; 903. a helical blade; 904. and a discharge pipe.
Detailed Description
The utility model is further described below with reference to the drawings and examples.
The embodiment of the utility model provides a high-efficiency mixing device for organic fertilizer soil for flower planting, which comprises a support frame 1, wherein an anti-slip pad is arranged at the lower end of the support frame 1, a mixing tank 2 is fixedly arranged at the upper end of the support frame 1, a top cover 3 is fixedly connected to the upper end of the mixing tank 2, the top cover 3 and the mixing tank 2 are fixedly connected together through bolts, the purpose of quickly disassembling the top cover 3 can be achieved, parts in the mixing tank 2 are convenient to maintain or overhaul, a stirring mechanism 4 is fixedly arranged in the mixing tank 2, a hopper 5 is fixedly communicated with the left side of the upper surface of the top cover 3, a quantitative feeding mechanism 6 is fixedly arranged on the right side of the upper surface of the top cover 3, a discharging pipe 7 is fixedly communicated with the lower end of the discharging pipe 7, a material conveying cylinder 8 is fixedly communicated with the lower end of the mixing tank 2 and the front surface of the material conveying cylinder 8, the working conditions inside the mixing tank 2 and the material conveying cylinder 8 are conveniently checked, and a conveying mechanism 9 is fixedly arranged inside the material conveying cylinder 8.
The rabbling mechanism 4 includes motor 401, the bull stick 402, crushing blade 403, puddler 404, scraper blade 405, the upper surface fixed mounting of top cap 3 has motor 401 and the output shaft lower extreme of motor 401 runs through the upper surface of top cap 3, the output shaft lower extreme fixedly connected with bull stick 402 of motor 401, the upper end outer wall of bull stick 402 evenly is provided with crushing blade 403, the lower extreme outer wall of bull stick 402 evenly is provided with puddler 404, the equal fixedly connected with scraper blade 405 of one end that puddler 404 kept away from each other, one side that scraper blade 405 is close to the inner wall of agitator tank 2 is provided with the rubber doctor blade, can make scraper blade 405 and the soft contact of the inner wall of agitator tank 2, avoid scraper blade 405 to scrape the inner wall of agitator tank 2, the life of agitator tank 2 is prolonged, starter motor 401 drives the rotation messenger crushing blade 403 and puddler 404 and rotates, fertilizer is smashed through crushing blade 403 at whereabouts in-process first, and still be provided with fixed blade 403 at the inner wall of agitator tank 2 simultaneously, fixed blade and crushing blade 403 are equidistance staggered distribution, contact with fertilizer can be improved, thereby with the contact of the crushed fertilizer, the follow-up more even of fertilizer, the scraper blade is convenient for carrying out, the follow-up mix tank 2 is convenient for carry out, the inner wall that the agitator tank 2 is washed down, the mixed tank 2 is washed down, the burden is still is avoided down to mix tank 2, the rotation is washed down, the upper end of agitator tank 2 is washed down, and the mixed tank 404 is rotated down.
The quantitative feeding mechanism 6 comprises a feeding tube 601, a metering cylinder 602 and a control valve 603, wherein the feeding tube 601 is fixedly communicated with the right side of the upper surface of the top cover 3, the metering cylinder 602 is fixedly communicated with the upper end of the feeding tube 601, the control valve 603 is arranged at the upper end of the feeding tube 601, when additives are required to be quantitatively added, the additives are poured into the metering cylinder 602, the quantity of the additives can be clearly seen through the scale marks on the front surface of the metering cylinder 602, then the control valve 603 is opened to discharge the additives into the mixing tank 2, and therefore the purpose of accurate proportioning is achieved, and the quality of organic fertilizer soil is improved.
The conveying mechanism 9 comprises a servo motor 901, a rotating shaft 902, helical blades 903 and a discharge pipe 904, wherein the servo motor 901 is fixedly arranged on the left side of a feed conveying barrel 8, the right end of an output shaft of the servo motor 901 penetrates through the left side of the feed conveying barrel 8, the rotating shaft 902 is fixedly connected to the right end of the output shaft of the servo motor 901, the right end of the output shaft of the rotating shaft 902 is rotatably connected to the right side of the feed conveying barrel 8 through a bearing, helical blades 903 are fixedly sleeved on the outer wall of the rotating shaft 902, fixed blades are arranged on the inner wall of a mixing tank 2 and are distributed in an equidistance and staggered mode, the discharge pipe 904 is fixedly communicated with the right side of the feed conveying barrel 8, after mixing, fertilizer is discharged from a discharge pipe 7 and transmitted into the feed conveying barrel 8, the servo motor 901 is started to drive the rotating shaft 902 to rotate, the helical blades 903 are driven to move to the right and are discharged from the discharge pipe 904, the phenomenon that the feed conveying barrel 8 is blocked is avoided, and the discharging efficiency is improved.
Further, the inner wall of the mixing tank 2 is provided with the fixed blades, and the fixed blades and the spiral blades 903 are equidistantly and alternately distributed, as shown in fig. 1, so that the contact area between the blades and the fertilizer can be increased, and the agglomerated fertilizer is crushed more fully and uniformly, so that the subsequent mixing is facilitated, and the mixing efficiency is improved.
Further, the scraper 405 is provided with a rubber scraper on one side close to the inner wall of the mixing tank 2, as shown in fig. 1, so that the scraper 405 can be in soft contact with the inner wall of the mixing tank 2, the scraper 405 is prevented from scraping the inner wall of the mixing tank 2, and the service life of the mixing tank 2 is prolonged.
Further, the top cover 3 is fixedly connected with the mixing tank 2 through bolts, as shown in fig. 1, the purpose of rapidly disassembling the top cover 3 can be achieved, and the maintenance or overhaul of parts in the mixing tank 2 is facilitated.
Further, the front surfaces of the mixing tank 2 and the material conveying cylinder 8 are provided with observation windows, as shown in fig. 2, so that the working conditions inside the mixing tank 2 and the material conveying cylinder 8 can be conveniently checked.
Working principle: when the organic fertilizer is used, firstly, raw materials to be mixed are poured into the mixing tank 2 from the charging hopper 5, when additives are required to be quantitatively added, the additives are poured into the metering cylinder 602, the amount of the additives can be clearly seen through the scale marks on the front surface of the metering cylinder 602, and then the control valve 603 is opened to discharge the additives into the mixing tank 2, so that the aim of accurate proportioning is fulfilled, and the quality of the organic fertilizer soil is improved; the motor 401 is started to drive the rotating rod 402 to rotate so that the crushing blade 403 and the stirring rod 404 rotate, the fertilizer is firstly crushed by the crushing blade 403 in the falling process, the fixed blades are also arranged on the inner wall of the mixing tank 2 and are distributed in an equidistance and staggered manner with the crushing blade 403, so that the contact area of the blades and the fertilizer can be increased, the agglomerated fertilizer is crushed more fully and uniformly, the subsequent mixing is convenient, the mixing efficiency is improved, the crushed fertilizer continuously falls down to the bottom of the mixing tank 2, the stirring rod 404 rotates to stir and mix the fertilizer at the moment, the stirring rod 404 is also connected with the scraping plate 405, the fertilizer can be prevented from being adhered to the inner wall of the mixing tank 2, and the labor burden of cleaning the mixing tank 2 is reduced; after mixing, the fertilizer is discharged from the discharge pipe 7 and is transmitted into the feed conveying cylinder 8, the servo motor 901 is started to drive the rotating shaft 902 to rotate so that the spiral blade 903 rotates, the spiral blade 903 rotates to drive the fertilizer to move to the right and is discharged from the discharge pipe 904, the phenomenon that the feed conveying cylinder 8 is blocked to affect normal discharge is avoided, and the discharging efficiency is improved.
It will be evident to those skilled in the art that the utility model is not limited to the details of the foregoing illustrative embodiments, and that the present utility model may be embodied in other specific forms without departing from the spirit or essential characteristics thereof. The present embodiments are, therefore, to be considered in all respects as illustrative and not restrictive, the scope of the utility model being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Claims (6)
1. The utility model provides a high-efficient mixing arrangement of flower planting organic fertilizer soil, includes support frame (1), its characterized in that: the mixing device is characterized in that a mixing tank (2) is fixedly arranged at the upper end of the supporting frame (1), a top cover (3) is fixedly connected to the upper end of the mixing tank (2), a stirring mechanism (4) is fixedly arranged in the mixing tank (2), a feeding hopper (5) is fixedly communicated with the left side of the upper surface of the top cover (3), a quantitative feeding mechanism (6) is fixedly arranged on the right side of the upper surface of the top cover (3), a discharging pipe (7) is fixedly communicated with the lower end of the mixing tank (2), a feeding barrel (8) is fixedly communicated with the lower end of the discharging pipe (7), and a conveying mechanism (9) is fixedly arranged in the feeding barrel (8);
the stirring mechanism (4) comprises a motor (401), a rotating rod (402), a crushing blade (403), a stirring rod (404) and a scraping plate (405), wherein the motor (401) is fixedly installed on the upper surface of the top cover (3), the lower end of an output shaft of the motor (401) penetrates through the upper surface of the top cover (3), the rotating rod (402) is fixedly connected with the lower end of the output shaft of the motor (401), the crushing blade (403) is uniformly arranged on the outer wall of the upper end of the rotating rod (402), the stirring rod (404) is uniformly arranged on the outer wall of the lower end of the rotating rod (402), and the scraping plate (405) is fixedly connected with one ends, far away from each other, of the stirring rod (404);
the quantitative feeding mechanism (6) comprises a feeding pipe (601), a metering cylinder (602) and a control valve (603), wherein the feeding pipe (601) is fixedly communicated with the right side of the upper surface of the top cover (3), the metering cylinder (602) is fixedly communicated with the upper end of the feeding pipe (601), and the control valve (603) is arranged at the upper end of the feeding pipe (601);
conveying mechanism (9) are including servo motor (901), pivot (902), helical blade (903), row material pipe (904), servo motor (901) and servo motor (901)'s output shaft right-hand member run through the left side of defeated feed cylinder (8) in the left side of defeated feed cylinder (8), servo motor (901) output shaft right-hand member fixedly connected with pivot (902) and pivot (902) output shaft right-hand member pass through the rotatable right side of connecting at defeated feed cylinder (8) of bearing, helical blade (903) have been cup jointed in the outer wall fixing of pivot (902), the right side fixedly connected with row material pipe (904) of defeated feed cylinder (8).
2. The efficient mixing device for organic fertilizer soil for flower planting according to claim 1, wherein: the inner wall of the mixing tank (2) is provided with fixed blades which are equidistantly and alternately distributed with the spiral blades (903).
3. The efficient mixing device for organic fertilizer soil for flower planting according to claim 1, wherein: a rubber scraping blade is arranged on one side, close to the inner wall of the mixing tank (2), of the scraping plate (405).
4. The efficient mixing device for organic fertilizer soil for flower planting according to claim 1, wherein: the top cover (3) is fixedly connected with the mixing tank (2) through bolts.
5. The efficient mixing device for organic fertilizer soil for flower planting according to claim 1, wherein: the front surfaces of the mixing tank (2) and the material conveying cylinder (8) are provided with observation windows.
6. The efficient mixing device for organic fertilizer soil for flower planting according to claim 1, wherein: the lower end of the supporting frame (1) is provided with an anti-slip pad.
