Abstract

The utility model relates to a feed mixing quantitative distribution device for pig farms, which belongs to the technical field of feed distribution. It mainly includes a homogenizing mechanism, a mixing cylinder, a mixing shaft, a support seat, an auger conveying mechanism, and a motor II. The said homogenizing mechanism is installed on the mixing cylinder, the mixing cylinder is installed on the support seat, and the Inside the cylinder, the auger conveying mechanism is installed at the bottom of the mixing cylinder, the motor II is installed at the bottom of the mixing cylinder, and the output shaft of the motor II is connected to the mixing shaft; It can effectively re-disperse the lumped feed, which is conducive to the full mixing of the two feeds in the next process. The feed after the quantitative ratio falls into the mixing cylinder for full mixing, and due to the setting of the auger conveying mechanism, It can easily drive the auger conveying blades through the motor to discharge the mixed feed in the mixing tank, which effectively saves manpower and improves the work progress.

Description

Feed mixing and quantitative distribution device for pig farms

technical field

The utility model belongs to the technical field of feed distribution, in particular to a feed mixing and quantitative distribution device for pig farms.

Background technique

In the process of pig breeding, the method of feeding concentrated feed is usually used. Before feeding the feed, it needs to be mixed with water by manpower, and then the mixed feed is poured into the feeding tank for pigs to eat. Manual mixing is labor-intensive and mixing The feed is not uniform, and it is easy to cause the feed to spill out when it is poured into the feeding trough, resulting in waste. The amount of feed added is manually controlled, and it is difficult to grasp the amount added, which is not conducive to large-scale breeding of pigs; the existing automatic feed quantitative distribution device cannot The feed is accurately quantitatively proportioned, and the proportioning and mixing effect is poor, which will easily lead to uneven feeding, and the amount of feed cannot be controlled. Moreover, the currently used distribution device does not have a device for filtering the feed, making the feed easily uneven in size and composition. pellets.

Contents of the invention

In order to overcome the fact that the existing feed quantitative automatic distribution device cannot accurately quantify the feed, the mixing effect of the ratio is poor, it is easy to cause uneven feeding, and it is impossible to control the amount of feed, and the currently used distribution device does not have the ability to filter the feed. The utility model provides a feed mixing and quantitative distribution device for pig farms, so that the feed tends to be aggregates with uneven size and composition. The utility model has a weight scale engraved on the feeding hopper, which is convenient for accommodating different proportions of feed , so as to realize the rapid quantitative ratio of feed, the stirring shaft in the homogenizing cylinder breaks up the pre-mixed lumps of feed, and then falls into the mixing cylinder through the filter screen, and the filter screen coarsely filters the feed. Larger, unable to pass through the filter screen, which greatly reduces the existence of aggregates in the mixed feed. The feed after the quantitative ratio falls into the mixing cylinder, and the motor drives the mixing shaft to rotate, and the feed is fully mixed with the mixing blade and the mixing paddle. mix.

In order to achieve the above purpose, the utility model is realized through the following technical scheme: a feed mixing and quantitative distribution device for pig farms mainly includes a homogenizing mechanism, a mixing cylinder, a mixing shaft, a support seat, an auger conveying mechanism, and a motor II , the homogenizing mechanism is installed on the mixing cylinder, the homogenizing mechanism includes a feeding hopper, a homogenizing cylinder, a stirring shaft, a motor I, and a filter screen, the feeding hopper is installed on the top of the homogenizing cylinder, and the interior of the homogenizing cylinder is installed There is a stirring shaft, the stirring shaft is connected with the motor I installed on the top of the homogenizing cylinder, the filter screen is installed at the bottom of the stirring shaft, the mixing cylinder is installed on the support seat, the mixing shaft is installed inside the mixing cylinder, and the auger conveying mechanism It is installed at the bottom of the mixing cylinder and extends out of the supporting seat, the motor II is installed at the bottom of the mixing cylinder, and the output shaft of the motor II is connected to the mixing shaft through transmission.

The auger conveying mechanism includes a feeding trough, a rotating shaft, an auger conveying blade, a motor III, and a feeding port. The feeding trough is installed at the bottom of the mixing cylinder, and a rotating shaft is installed inside the feeding trough, and the auger conveying blade is arranged on the rotating shaft. The motor III is installed at the bottom of the mixing cylinder, the rotating shaft extends out of the feeding trough and is connected with the motor III, and the bottom of the feeding trough is provided with a discharge port.

A stirring fan is installed at the bottom end of the stirring shaft, and a stirring paddle is arranged on the stirring shaft.

A column is installed inside the mixing barrel, a mixing paddle is respectively arranged on the column and the mixing shaft, and a mixing fan is installed at the bottom of the mixing shaft.

The feed hopper is a transparent device with weight scales on it.

Universal wheels are uniformly arranged on the bottom of the support seat.

The beneficial effects of the utility model:

The feeding hopper of the utility model is engraved with a weight scale, which is convenient for accommodating different proportions of feed. The stirring shaft in the uniform material cylinder breaks up the pre-mixed lumps of feed, and then falls into the mixing cylinder through the filter screen. Coarse filtration greatly reduces the existence of aggregates in the mixed feed, the feed after quantitative ratio falls into the mixing cylinder, the motor drives the mixing shaft to rotate, and the feed is fully mixed with the mixing fan and mixing paddle, and due to the twisting The setting of the dragon conveying mechanism can easily drive the auger conveying blades through the motor to discharge the mixed feed in the mixing tank, which effectively saves manpower and improves the work progress.

Description of drawings

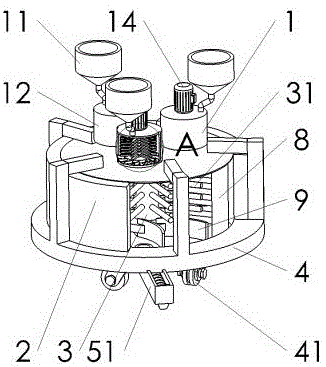

Fig. 1 is a partial sectional view of the utility model.

Fig. 2 is a partial schematic diagram of A in Fig. 1 of the present utility model.

Fig. 3 is a three-dimensional schematic diagram 1 of the utility model.

Fig. 4 is a three-dimensional schematic diagram 2 of the utility model.

Detailed ways

In order to make the purpose, technical solutions and beneficial effects of the present utility model clearer, the preferred embodiments of the present utility model will be described in detail below in conjunction with the accompanying drawings, so as to facilitate the understanding of technical personnel.

The utility model discloses a feed mixing and quantitative distribution device for pig farms. The feed mixing and quantitative distribution device for pig farms mainly includes a homogenizing mechanism 1, a mixing cylinder 2, a mixing shaft 3 and a support seat 4 , auger conveying mechanism 5, motor II 6, the homogenizing mechanism 1 is installed on the mixing cylinder 2, and the homogenizing mechanism 1 includes a feed hopper 11, a homogenizing cylinder 12, a stirring shaft 13, a motor I14, and a filter screen 15 , the feed hopper 11 is installed on the top of the homogenizing cylinder 12, the stirring shaft 13 is installed inside the homogenizing cylinder 12, the stirring shaft 13 is connected with the motor I14 installed on the top of the homogenizing cylinder 12, and the bottom of the stirring shaft 13 is installed with a filter screen The net 15, the mixing cylinder 2 is installed on the support seat 4, the mixing shaft 3 is installed inside the mixing cylinder 2, the auger conveying mechanism 5 is installed at the bottom of the mixing cylinder 2 and extends out of the support seat 4, and the motor Ⅱ6 is installed at the bottom of the mixing cylinder 2 At the end, the output shaft of the motor II6 is connected to the mixing shaft 3 through transmission.

When feeding the feed, put the feed to be mixed into the feed hopper 11, and the feed hopper 11 is engraved with a weight scale, which is convenient for accommodating different proportions of feed, so as to realize the rapid quantitative ratio of the feed, and start the feed after the mixing ratio is determined. The motor Ⅰ14, the motor Ⅰ14 drives the stirring shaft 13 to rotate, the feed enters the homogenizing cylinder 12, realizes the dispersing and filtering of the mixed feed, the feed enters the mixing cylinder 2 through the filter screen 15, and the filter screen 15 performs coarse filtration on the feed. Due to its large volume, the feed cannot pass through the filter screen, which greatly reduces the existence of aggregates in the mixed feed. The motor I14 drives the stirring shaft 13 and the stirring fan 7 to rotate, so that the feed is evenly mixed in the mixing cylinder 2. After stirring evenly, Open the auger conveying mechanism 5, due to the setting of the auger conveying mechanism 5, the auger conveying blade 53 can be easily driven by the motor III 54 to convey the mixed feed in the mixing bucket 2 to the feeding trough through the feeding port 55, effectively It saves manpower and improves work progress.

The auger conveying mechanism 5 includes a feeding trough 51, a rotating shaft 52, an auger conveying blade 53, a motor III 54, and a feeding port 55. The feeding trough 51 is installed at the bottom of the mixing cylinder 2, and a rotating shaft 52 is installed inside the feeding chute 51. The rotating shaft 52 is provided with an auger conveying blade 53, the motor III 54 is installed at the bottom of the mixing cylinder 2, the rotating shaft 52 extends out of the feeding chute 51 and is connected with the motor III 54, and the bottom of the feeding chute 51 is provided with a feeding port 55.

A stirring fan 7 is installed at the bottom end of the stirring shaft 14 , and a stirring paddle 131 is arranged on the stirring shaft 13 .

A column 8 is installed inside the mixing cylinder 2, and a mixing paddle 31 is respectively arranged on the column 8 and the mixing shaft 3, and a mixing fan 9 is installed at the bottom of the mixing shaft 3.

The feed hopper 11 is a transparent device with weight scales on it, which is convenient for accommodating different proportions of feed, so as to realize rapid quantitative ratio of feed.

Universal wheels 41 are uniformly arranged on the bottom of the support base 4 to facilitate the movement of the mixing device.

work process:

When feeding the feed, put the feed to be mixed into the feed hopper 11, and the feed hopper 11 is engraved with a weight scale, which is convenient for accommodating different proportions of feed, so as to realize the rapid quantitative ratio of the feed, and start the feed after the mixing ratio is determined. The motor Ⅰ14, the motor Ⅰ14 drives the stirring shaft 13 to rotate, the feed enters the homogenizing cylinder 12, realizes the dispersing and filtering of the mixed feed, the feed enters the mixing cylinder 2 through the filter screen 15, and the filter screen 15 performs coarse filtration on the feed. Due to its large volume, the feed cannot pass through the filter screen, which greatly reduces the existence of aggregates in the mixed feed. The motor I14 drives the stirring shaft 13 and the stirring fan 7 to rotate, so that the feed is evenly mixed in the mixing cylinder 2. After stirring evenly, Open the auger conveying mechanism 5, due to the setting of the auger conveying mechanism 5, the auger conveying blade 53 can be easily driven by the motor III 54 to convey the mixed feed in the mixing bucket 2 to the feeding trough through the feeding port 55, effectively It saves manpower and improves work progress.

Finally, it is noted that the above preferred embodiments are only used to illustrate the technical solutions of the present utility model without limitation. Although the utility model has been described in detail through the above preferred embodiments, those skilled in the art should understand that it can be described in the form Various changes can be made in the above and in the details without departing from the scope defined by the claims of the present invention.

Claims (6)

1. A feed mixing and quantitative distribution device for pig farms, characterized in that: the feed mixing and quantitative distribution device for pig farms includes a homogenizing mechanism (1), a mixing cylinder (2), a mixing shaft (3) , support seat (4), auger conveying mechanism (5), motor II (6), the above-mentioned uniform material mechanism (1) is installed on the mixing cylinder (2), and the material uniform mechanism (1) includes a feed hopper ( 11), homogenizing cylinder (12), stirring shaft (13), motor I (14), filter screen (15), feed hopper (11) installed on the top of homogenizing cylinder (12), and homogenizing cylinder (12 ) is equipped with a stirring shaft (13) inside, and the stirring shaft (13) is connected with the motor I (14) installed on the top of the homogenizing cylinder (12), and the bottom of the stirring shaft (13) is equipped with a filter screen (15), The mixing cylinder (2) is installed on the support base (4), the mixing shaft (3) is installed inside the mixing cylinder (2), and the auger conveying mechanism (5) is installed at the bottom of the mixing cylinder (2) to extend out of the support base ( 4), the motor II (6) is installed at the bottom of the mixing cylinder (2), and the output shaft of the motor II (6) is connected to the mixing shaft (3). 2. A feed mixing quantitative distribution device according to claim 1, characterized in that: the auger conveying mechanism (5) includes a feeding trough (51), a rotating shaft (52), and auger conveying blades (53) , motor III (54), feeding port (55), feeding trough (51) is installed at the bottom of the mixing cylinder (2), and a rotating shaft (52) is installed inside the feeding chute (51), and a twisted shaft (52) is arranged on the rotating shaft (52). The dragon conveying blade (53), the motor III (54) is installed at the bottom of the mixing cylinder (2), the rotating shaft (52) extends out of the feeding trough (51) and is connected to the motor III (54), and the bottom of the feeding chute (51) is opened There is feeding opening (55). 3. A feed mixing quantitative distribution device according to claim 1, characterized in that: a stirring fan (7) is installed at the bottom of the stirring shaft (13), and a stirring paddle is arranged on the stirring shaft (13) (131). 4. A feed mixing and quantitative distribution device according to claim 1 or 2, characterized in that: a column (8), a column (8) and a mixing shaft (3) are installed inside the mixing cylinder (2) Mixing paddles (31) are respectively arranged on the top, and a mixing fan (9) is installed at the bottom of the mixing shaft (3). 5. A feed mixing and quantitative distribution device according to claim 1 or 2, characterized in that: the feeding hopper (11) is a transparent device with a weight scale on it. 6. A feed mixing and quantitative distribution device according to claim 1 or 2, characterized in that universal wheels (41) are uniformly arranged on the bottom of the support base (4).
