Abstract
The utility model provides a macromolecule membrane-based modified asphalt waterproof coiled material and a waterproof engineering composite structure. The waterproof coiled material comprises an upper surface isolation layer, an upper surface modified asphalt coating layer, an upper surface bonding asphalt layer, a high polymer film base, a lower surface bonding asphalt layer, a lower surface modified asphalt coating layer and a lower surface isolation layer which are sequentially arranged from top to bottom. The waterproof coiled material is characterized in that the base of the waterproof coiled material adopts a polymer composite membrane, and the upper surface and the lower surface of the polymer membrane base are respectively coated with a bonding asphalt layer, so that the waterproof coiled material is well bonded with the polymer membrane base, and the bonding of the modified asphalt coating layer and the polymer membrane base is improved, thereby improving the bonding force of the modified asphalt coating layer and the polymer membrane base.
Description
Technical Field
The utility model relates to the technical field of waterproof engineering, in particular to a macromolecule membrane-based modified asphalt waterproof coiled material and a waterproof engineering composite structure.
Background
The waterproof coiled material is mainly used for building walls, roofs, tunnels, roads, landfill sites and the like, plays a role in resisting external rainwater and groundwater leakage, is a flexible coiled building material product, is used as a non-leakage connection between an engineering foundation and a building, is a first waterproof barrier of the whole engineering, and plays a vital role in the whole engineering.
The high-strength modified asphalt waterproof coiled materials in the prior art are polyester tire base or reinforced polyester tire base high polymer modified asphalt coiled materials, and the mechanical properties of the high-strength modified asphalt waterproof coiled materials are related to the thickness of the polyester tire. In the practical application process, the higher the strength requirement on the coiled material is, the thicker the thickness of the polyester tire is, so that the thickness of an asphalt effective layer is reduced, the waterproof effect is affected, the hardness of the coiled material is high, and the production process and the packaging and transportation are affected. For this problem, a polymeric film base may be used instead of a polyester base, which gives the web a higher strength at a lower thickness. However, the modified asphalt coating has poor adhesion, and has a lower wetting effect than the polymer film base, resulting in poor adhesion of the modified asphalt coating to the polymer film base. The existing modified asphalt coiled material construction method is open flame hot-melting construction, the polymer film base is easy to deform under hot-melting roasting, and the construction performance is inferior to that of the polyester tire base modified asphalt coiled material.
CN214111833U discloses an asphalt-based waterproof coiled material, which is characterized in that: the coiled material is divided into three layers from top to bottom, the first layer of the coiled material is a polymer film base carrier layer, the second layer of the coiled material is an asphalt glue layer, the third layer of the coiled material is an aqueous anti-adhesion layer, the two side edges of the first layer of the coiled material are provided with joint edges, and one side of the bottom of the third layer of the coiled material is provided with the joint edges. The aqueous anti-sticking layer adopts styrene-acrylic ester emulsion as a coating, and the thickness is 0.03-0.035mm. The utility model adopts the three-layer coiled material, has simple structure, enough strength and convenient lap joint and installation, wherein the bottom anti-sticking layer adopts the water-based coating, the problem of environmental pollution does not exist in the production process of the coiled material, the water-based coating is nontoxic and non-corrosive, and meanwhile, the water-based coating is directly pasted with cement during pasting without tearing off the isolating film, thereby being convenient to use. The coiled material in the patent is self-adhesive asphalt coiled material and is a non-tire coiled material, and the self-adhesive construction process is adopted, so that the self-adhesive asphalt coiled material is different from the structure and the coiled material in the patent in type.
Based on the above-mentioned prior art, how to combine between polymer membrane base and the modified asphalt more closely, firmly, do not influence the mechanical properties of coiled material again simultaneously, and avoid the deformation problem that the hot melt construction brought, be the technical problem who needs to solve.
Disclosure of Invention
The utility model provides a macromolecule membrane base modified asphalt waterproof coiled material and a waterproof engineering composite structure, which aims to solve the technical problems of the macromolecule membrane base coiled material in the prior art.
The waterproof coiled material comprises an upper surface isolation layer, an upper surface modified asphalt coating layer, an upper surface bonding asphalt layer, a high polymer film base, a lower surface bonding asphalt layer, a lower surface modified asphalt coating layer and a lower surface isolation layer which are sequentially arranged from top to bottom.
Further, the upper surface isolation layer is any one or more than two of a polyethylene layer, a fine sand layer, a mineral particle layer, polypropylene fiber cloth, polyester fiber cloth, hot-rolled cloth and grid cloth. Wherein the softening point of the polyethylene layer is 100-120 ℃. The grain diameter of the fine sand is less than or equal to 0.6mm. The mineral particles are inorganic mineral particles, preferably including but not limited to shale, basalt. The polypropylene fiber cloth, the polyester fiber cloth, the hot rolled cloth and the grid cloth have the functions of reinforcement and isolation.
Further, the lower surface isolation layer is any one or more than two of a fine sand layer, a polyethylene layer, a polypropylene fiber cloth, a polyester fiber cloth, a hot-rolled cloth and a grid cloth. Wherein the grain diameter of the fine sand is less than or equal to 0.6mm. The softening point of the polyethylene layer is 100-120 ℃. The gram weight of one of the polypropylene geotextile, the polyester fiber cloth, the hot rolled cloth and the grid cloth is 75-85 g/square meter. The polypropylene fiber cloth, the polyester fiber cloth, the hot rolled cloth and the grid cloth have the functions of reinforcement and isolation.
Further, the upper surface modified asphalt coating layer or the lower surface modified asphalt coating layer is a high polymer modified asphalt layer. Wherein the heat resistance of the high polymer modified asphalt layer can reach 90-115 ℃ and the low temperature performance can reach-40 to-25 ℃, and the high polymer modified asphalt layer is selected to purchase the high polymer modified asphalt which takes SBS as a main modifier and takes other auxiliary agents as auxiliary modifiers.
Further, the upper surface bonding asphalt layer or the lower surface bonding asphalt layer is an asphalt-based adhesive, can be self-adhesive modified asphalt and the like, is prepared by taking SBS and SBR as main modifiers, and tackifying resin and other auxiliary agents as auxiliary modifiers, and has excellent high-low temperature performance.
Further, the asphalt-based adhesive can be well bonded with the polymer film base, and the adhesion force of the asphalt-based adhesive with the polymer film base is at least 2.5N/mm.
Further, the polymer film base can be one of a polyester film, a high-strength polyethylene film and a polyester composite film.
Further, the tensile force of the polymer film base can reach more than 600N/50 mm.
Further, the thickness of the polymer film base is 0.1 to 0.7mm, preferably 0.2 to 0.5mm.
Because the middle of the polymer film base has no pore, the infiltration effect with the modified asphalt coating material is poor, so that the bonding performance is poor. Therefore, the upper and lower surfaces of the polymer film base are coated with the bonding asphalt layer, so that the asphalt layer can be well bonded with the polymer film base, and the waterproof effect of the asphalt layer is not affected.
Further, the composite technology of the modified asphalt coating on the upper and lower surfaces of the coiled material comprises the following steps: dip-coating the bonding asphalt layers on two sides of the polymer film base, carrying out surface roller coating to fix the thickness to be (0.1-0.2) mm after the dip-coating is finished, and then dip-coating the modified asphalt coating layer on the other side of the bonding asphalt layer far away from the polymer film base to fix the thickness so that the total thickness of the coiled material is 2-5mm. Wherein the dip-coating temperature of the polyester film is 160-180 ℃, and the dip-coating temperature of the high-strength polyethylene film is 140-160 ℃.
Further, the thickness of the waterproof coiled material is 2-5mm.
The utility model also provides a waterproof engineering composite structure which comprises the polymer film-based modified asphalt waterproof coiled material, a waterproof coating and a base layer, wherein the polymer film-based modified asphalt waterproof coiled material, the waterproof coating and the base layer are sequentially arranged from top to bottom.
Further, the base layer is preferably a concrete base layer.
The utility model has the beneficial effects that:
1. in the utility model, the base of the waterproof coiled material adopts a polymer composite film, and the upper surface and the lower surface of the polymer film base are respectively coated with a layer of bonding asphalt layer, so that the bonding asphalt layer is well bonded with the polymer film base, and the bonding of the modified asphalt coating layer and the polymer film base is improved, thereby improving the bonding force of the modified asphalt coating layer and the polymer film base.
2. The product has excellent mechanical properties, can replace polyester tire base modified asphalt coiled materials to be applied to roof engineering and underground engineering with important and general waterproof grades, and building engineering such as subways, highways, railways and the like in open cut construction, and has practicability.
3. The product can reach the application requirement of mechanical property under the condition that the thickness is lower than that of the polyester tire base modified asphalt coiled material, and the cost can be lower than that of the polyester tire base modified asphalt waterproof coiled material, so that the product has economy.
4. The product coiled material can be constructed by adopting a hot bonding method of a coil coating composite system, is baked without open fire, and accords with the concept of green low carbon, energy conservation and environmental protection.
Drawings
Fig. 1 is a schematic structural view of a waterproof roll of the present utility model.
1-an upper surface isolation layer;
2-upper surface modified asphalt coating;
3, bonding an asphalt layer on the upper surface;
4-polymer membrane base;
5-lower surface bonding asphalt layer;
6-lower surface modified asphalt coating;
7-lower surface isolation layer.
Fig. 2 is a schematic view of the waterproof engineering composite structure of the present utility model.
8-macromolecule membrane base modified asphalt waterproof coiled material;
9-waterproof paint;
10-a concrete base layer.
Detailed Description
The utility model is further illustrated in the following figures and examples, which should not be taken to limit the scope of the utility model.
Example 1
As shown in figure 1, the high polymer film base modified asphalt waterproof coiled material has the thickness of 2mm and comprises an upper surface isolation layer 1, an upper surface modified asphalt coating layer 2, an upper surface bonding asphalt layer 3, a high polymer film base 4, a lower surface bonding asphalt layer 5, a lower surface modified asphalt coating layer 6 and a lower surface isolation layer 7 which are sequentially arranged from top to bottom,
wherein, the upper surface isolation layer 1 is a polyethylene layer with the thickness of 0.01mm;
the lower surface isolation layer 7 is a polyethylene film with the thickness of 0.01mm;
the upper surface modified asphalt coating layer 2 and the lower surface modified asphalt coating layer 6 are high polymer modified asphalt, SBS is used as a main modifier, and other auxiliary agents are used as auxiliary modifiers;
the upper surface bonding asphalt layer 3 and the lower surface bonding asphalt layer 5 are high-quality self-adhesive modified asphalt, and are prepared by taking SBS and SBR as main modifiers and other auxiliary agents as auxiliary modifiers;
the polymer film base is a high-strength polyester film with the thickness of 0.2mm.
The mechanical properties of the waterproof roll of example 1 are shown in table 1.

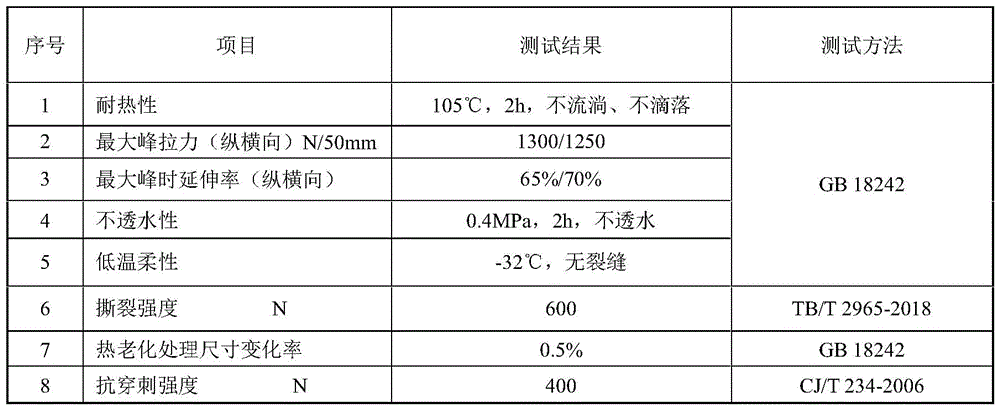

Table 1 mechanical properties test results of the waterproof roll of example 1
As shown in fig. 2, a waterproof engineering composite structure comprising the waterproof coiled material comprises the polymer film base modified asphalt waterproof coiled material 8, a waterproof coating 9 and a concrete base layer 10 which are sequentially arranged from top to bottom.
The construction method is that the composite construction is rolled, specifically, the waterproof coating is sprayed or scraped on the concrete base layer, then the waterproof coiled material is paved on the waterproof coating layer, compacted and compacted.
Example 2
A polymer film base modified asphalt waterproof coiled material with the thickness of 3mm comprises an upper surface isolation layer 1, an upper surface modified asphalt coating layer 2, an upper surface bonding asphalt layer 3, a polymer film base 4, a lower surface bonding asphalt layer 5, a lower surface modified asphalt coating layer 6 and a lower surface isolation layer 7 which are sequentially arranged from top to bottom,
wherein the upper surface isolation layer 1 is a fine sand layer;
the lower surface isolation layer 7 is a fine sand layer;
the upper surface modified asphalt coating layer 2 and the lower surface modified asphalt coating layer 6 are high polymer modified asphalt, SBS is used as a main modifier, and other auxiliary agents are used as auxiliary modifiers;
the upper surface bonding asphalt layer 3 and the lower surface bonding asphalt layer 5 are high-quality self-adhesive modified asphalt, and are prepared by taking SBS and SBR as main modifiers and other auxiliary agents as auxiliary modifiers;
the polymer film base is a high-strength polyester film with the thickness of 0.3mm.
The mechanical properties of the waterproof roll of example 2 are shown in table 2.

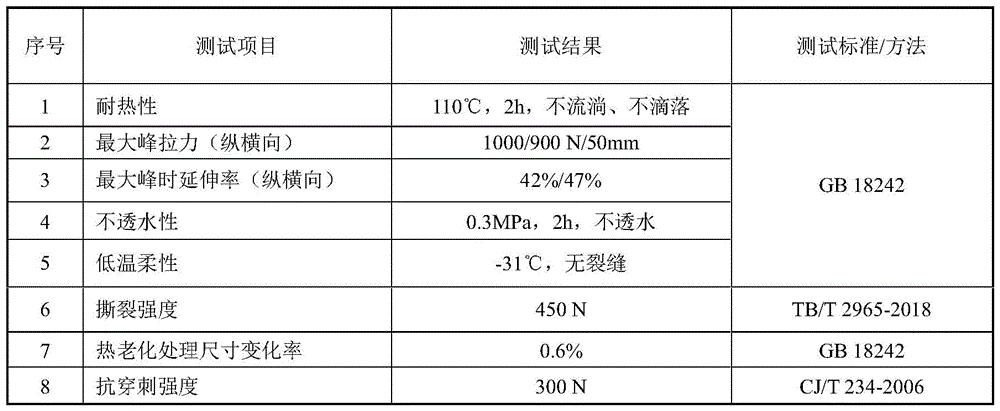

TABLE 2 mechanical wake test results of the waterproof roll of example 2
Example 3
A polymer film base modified asphalt waterproof coiled material with the thickness of 4mm comprises an upper surface isolation layer 1, an upper surface modified asphalt coating layer 2, an upper surface bonding asphalt layer 3, a polymer film base 4, a lower surface bonding asphalt layer 5, a lower surface modified asphalt coating layer 6 and a lower surface isolation layer 7 which are sequentially arranged from top to bottom,
wherein the upper surface isolation layer 1 is a shale sheet;
the lower surface isolation layer 7 is a polyethylene layer with the thickness of 0.01mm;
the upper surface modified asphalt coating layer 2 and the lower surface modified asphalt coating layer 6 are high polymer modified asphalt, SBS is used as a main modifier, and other auxiliary agents are used as auxiliary modifiers;
the upper surface bonding asphalt layer 3 and the lower surface bonding asphalt layer 5 are high-quality self-adhesive modified asphalt, and are prepared by taking SBS and SBR as main modifiers and other auxiliary agents as auxiliary modifiers;
the polymer film base is a high-strength polyester film with the thickness of 0.3mm.
The mechanical properties of the waterproof roll of example 3 are shown in table 3.

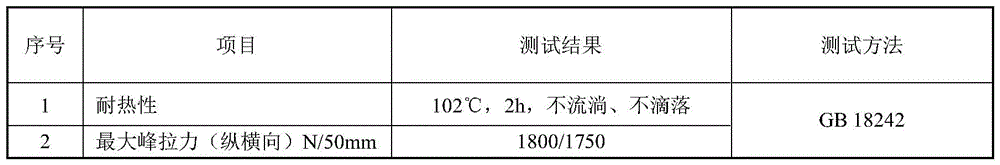

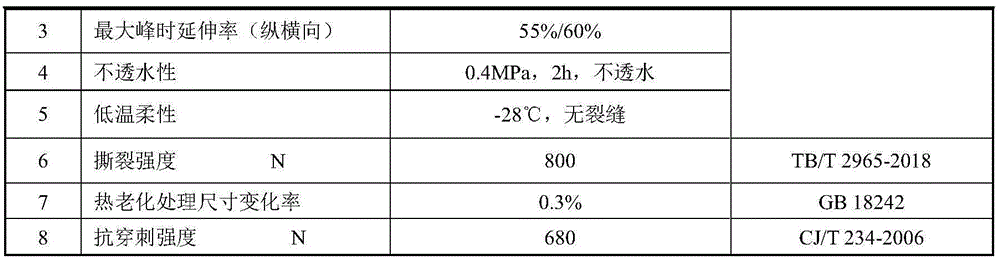

TABLE 3 mechanical test results of the waterproof roll of example 3
Example 4
A polymer film base modified asphalt waterproof coiled material with the thickness of 4mm comprises an upper surface isolation layer 1, an upper surface modified asphalt coating layer 2, an upper surface bonding asphalt layer 3, a polymer film base 4, a lower surface bonding asphalt layer 5, a lower surface modified asphalt coating layer 6 and a lower surface isolation layer 7 which are sequentially arranged from top to bottom,
wherein the upper surface isolation layer 1 is fine sand;
the lower surface isolation layer 7 is made of polypropylene non-woven fabric and has the thickness of 0.02mm;
the upper surface modified asphalt coating layer 2 and the lower surface modified asphalt coating layer 6 are high polymer modified asphalt, SBS is used as a main modifier, and other auxiliary agents are used as auxiliary modifiers;
the upper surface bonding asphalt layer 3 and the lower surface bonding asphalt layer 5 are high-quality self-adhesive modified asphalt, and are prepared by taking SBS and SBR as main modifiers and other auxiliary agents as auxiliary modifiers;
the polymer film base is a high-strength polyester film with the thickness of 0.3mm.
The mechanical properties of the waterproof roll of example 3 are shown in table 4.

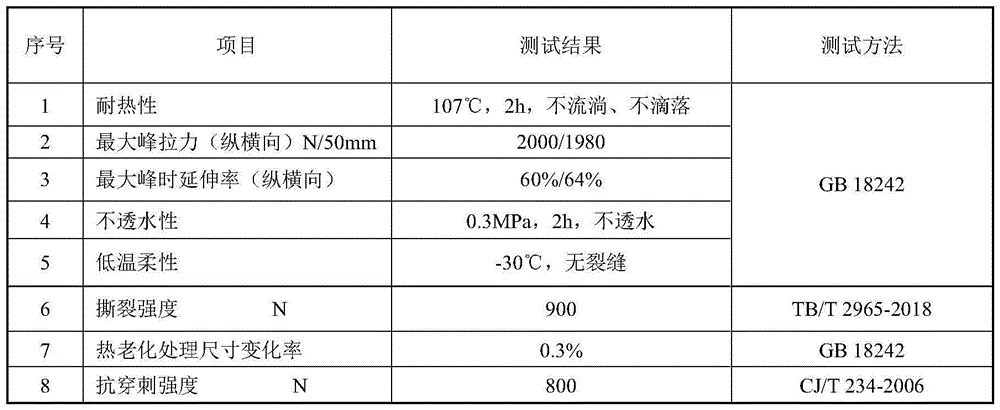

Table 4 mechanical properties test results of the waterproof roll of example 4
Comparative example 1
A waterproof coiled material has the following structural layers:
the upper surface isolation layer is a polyethylene film;
the isolating layer on the lower surface is a polyethylene film;
the upper surface modified asphalt coating layer and the lower surface modified asphalt coating layer are high polymer modified asphalt, SBS is used as a main modifier, and other auxiliary agents are used as auxiliary modifiers;
the coiled material base is a long fiber polyester base, and the gram weight is 250 g/square meter;
the thickness of the coiled material is 3mm;
the mechanical properties of the waterproof roll of comparative example 1 are shown in table 5.

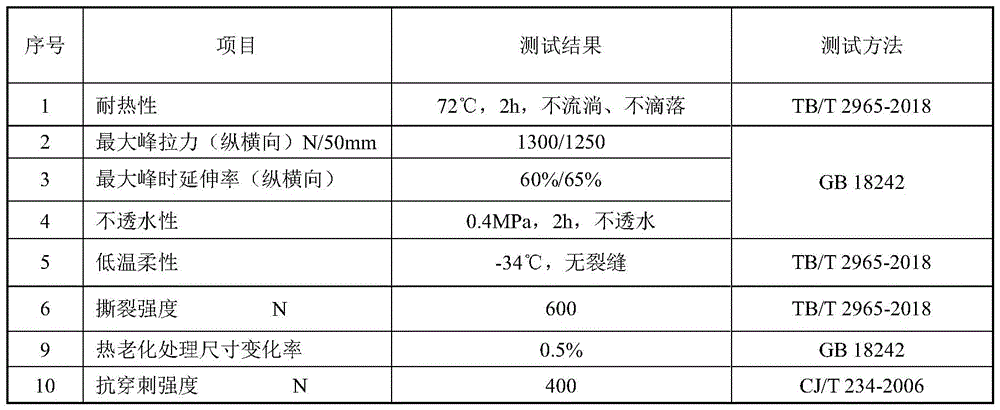

Table 5 mechanical properties test results of the waterproof roll of comparative example 1
Comparative example 2
A waterproof coiled material comprises the following structural layers from top to bottom:
the upper surface isolation layer is a polyester film;
the isolation layer on the lower surface is a polyester film;
the upper surface bonding asphalt layer and the lower surface bonding asphalt layer are made of high-quality self-adhesive modified asphalt, SBS and SBR are used as main modifiers, and other auxiliary agents are used as auxiliary modifiers, so that the high-low temperature performance is excellent;
the coiled material base is a high-strength polyester film with the thickness of 0.2mm;
the thickness of the coiled material is 2mm;
the mechanical properties of the waterproof roll of comparative example 2 are shown in table 6.
Table 6 mechanical properties test results of the waterproof roll of comparative example 2
As can be seen by comparison, the high polymer film base modified asphalt waterproof coiled material has excellent mechanical properties, and the mechanical properties of the coiled material with the thickness of 2mm can meet the mechanical property requirements of the coiled material with the thickness of 3mm with the traditional polyester tire base. Under the condition of the same thickness, the modified asphalt coating material is firmly bonded with the polymer film base, the high-temperature performance is superior to that of the self-adhesive modified asphalt waterproof coiled material, the mechanical performance is superior to that of the polyester tire base modified asphalt waterproof coiled material, and the modified asphalt waterproof coiled material can be applied to the fields with high requirements on mechanical performance, such as roads, railways and the like, and the application field of the modified asphalt waterproof coiled material is expanded.
The above description is only of the preferred embodiment of the present utility model, and is not intended to limit the present utility model in any other way, but is intended to cover any modifications or equivalent variations according to the technical spirit of the present utility model, which fall within the scope of the present utility model as defined by the appended claims.
Claims (12)
1. The high polymer film base modified asphalt waterproof coiled material is characterized by comprising an upper surface isolation layer (1), an upper surface modified asphalt coating layer (2), an upper surface bonding asphalt layer (3), a high polymer film base (4), a lower surface bonding asphalt layer (5), a lower surface modified asphalt coating layer (6) and a lower surface isolation layer (7) which are sequentially arranged from top to bottom.
2. The polymer film base modified asphalt waterproof coiled material according to claim 1, wherein the upper surface isolation layer (1) is any one or more than two of a polyethylene layer, a fine sand layer, a mineral particle layer, a polypropylene fiber cloth, a polyester fiber cloth, a hot-rolled cloth and a grid cloth.
3. The polymer film-based modified asphalt waterproof roll according to claim 1 or 2, wherein the lower surface isolation layer (7) is any one or more of a fine sand layer, a polyethylene layer, a polypropylene fiber cloth, a polyester fiber cloth, a hot rolled cloth, and a mesh cloth.
4. The polymer film-based modified asphalt waterproof roll according to claim 1 or 2, wherein the upper surface modified asphalt coating layer (2) or the lower surface modified asphalt coating layer (6) is a polymer modified asphalt layer.
5. The polymer film-based modified asphalt waterproof roll according to claim 1 or 2, wherein the upper surface-bonded asphalt layer (3) or the lower surface-bonded asphalt layer (5) is an asphalt-based adhesive.
6. The polymer film base modified asphalt waterproof coiled material according to claim 5, wherein the upper surface-bonded asphalt layer (3) or the lower surface-bonded asphalt layer (5) is self-adhesive modified asphalt.
7. The polymer film base modified asphalt waterproof coiled material according to claim 5, wherein the polymer film base (4) is one of a polyester film, a high-strength polyethylene film and a polyester composite film.
8. The polymer film base modified asphalt waterproof coiled material according to claim 7, wherein the tensile force of the polymer film base (4) is more than 600N/50 mm.
9. The polymer film base modified asphalt waterproof roll as claimed in claim 7, wherein the thickness of the polymer film base (4) is 0.1-0.7mm.
10. The polymer film base modified asphalt waterproof roll as claimed in claim 9, wherein the thickness of the polymer film base (4) is 0.2-0.5mm.
11. The polymer film base modified asphalt waterproof roll according to claim 1 or 2, wherein the thickness of the waterproof roll is 2-5mm.
12. A waterproof engineering composite structure, which is characterized by comprising the polymer film-based modified asphalt waterproof coiled material according to any one of claims 1 to 11, and comprises the polymer film-based modified asphalt waterproof coiled material (8), a waterproof coating (9) and a base layer (10) which are sequentially arranged from top to bottom.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202221956661.8U CN218906574U (en) | 2022-07-27 | 2022-07-27 | Polymer membrane base modified asphalt waterproof coiled material and waterproof engineering composite structure |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202221956661.8U CN218906574U (en) | 2022-07-27 | 2022-07-27 | Polymer membrane base modified asphalt waterproof coiled material and waterproof engineering composite structure |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| CN218906574U true CN218906574U (en) | 2023-04-25 |
Family
ID=86050476
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN202221956661.8U Active CN218906574U (en) | 2022-07-27 | 2022-07-27 | Polymer membrane base modified asphalt waterproof coiled material and waterproof engineering composite structure |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN218906574U (en) |
Cited By (1)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN116623811A (en) * | 2023-05-12 | 2023-08-22 | 山东清池防水材料股份有限公司 | Self-adhesive polymer modified asphalt waterproof coiled material and preparation method thereof |
-
2022
- 2022-07-27 CN CN202221956661.8U patent/CN218906574U/en active Active
Cited By (2)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN116623811A (en) * | 2023-05-12 | 2023-08-22 | 山东清池防水材料股份有限公司 | Self-adhesive polymer modified asphalt waterproof coiled material and preparation method thereof |
| CN116623811B (en) * | 2023-05-12 | 2025-08-05 | 山东清池防水材料股份有限公司 | Self-adhesive polymer modified asphalt waterproofing membrane and preparation method thereof |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN102031834B (en) | Compound waterproof system and construction technology thereof | |
| CN202913577U (en) | Integrated waterproof thermal insulation board for stable steel structure roof | |
| CN102031833B (en) | High-performance synthetic rubber asphalt waterproof coiled material | |
| CN201972172U (en) | Underground rigid composite waterproof construction structure | |
| CN218906574U (en) | Polymer membrane base modified asphalt waterproof coiled material and waterproof engineering composite structure | |
| CN206124364U (en) | Waterproof roll | |
| KR102280015B1 (en) | Eco-friendly hydration reaction-hardening inorganic binding concrete integrated organic and inorganic hybrid complex waterproofing sheet and the waterproofing method using the same | |
| CN201962810U (en) | Composite waterproof system | |
| CN211571801U (en) | Thermoplastic polyolefin pre-laid waterproof coiled material | |
| CN203594109U (en) | Self-adhesion macromolecule adhesive film waterproof roll material | |
| CN114525084A (en) | Double-base pre-paved enhanced waterproof roll and construction method thereof | |
| CN219096166U (en) | Polymer membrane base modified asphalt waterproof coiled material and waterproof engineering composite structure | |
| CN201065600Y (en) | Self-adhesive high polymer multifunctional composite water-proof coil material structure | |
| CN210369063U (en) | Pre-paved reverse-adhesion type TPO waterproof coiled material with mechanical meshing effect | |
| CN220639159U (en) | Polymer membrane base modified asphalt waterproof coiled material and waterproof engineering composite structure | |
| CN220283971U (en) | Double-base composite waterproof coiled material | |
| CN217027534U (en) | Novel pre-paved waterproof coiled material and waterproof heat-insulation integrated board | |
| CN201395767Y (en) | Chlorinated polyethylene waterproof coil material for roads and bridges | |
| CN216635723U (en) | Chlorinated polyethylene waterproof coiled material | |
| JP4188505B2 (en) | Asphalt sheet | |
| CN214522431U (en) | Double-base asphalt waterproof coiled material | |
| CN213233847U (en) | Asphalt-based polyester tire pre-paved waterproof roll and basement bottom plate waterproof structure | |
| CN219325600U (en) | Polymer membrane base modified asphalt waterproof coiled material and waterproof engineering composite structure | |
| CN211868829U (en) | Take child pitch waterproofing membrane of isolation layer | |
| CN211808297U (en) | Pre-paved modified asphalt waterproof coiled material using composite copper tire |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| GR01 | Patent grant | ||
| GR01 | Patent grant |
