A kind of posture traction fixation belt

technical field

The utility model belongs to the technical field of medical auxiliary products, in particular to a body position traction fixing belt.

Background technique

Surgery is the main means of treating surgical diseases. In order to meet the needs of surgery, the position of the patient is determined by the surgical site. The quality of the surgical position is not only related to the smooth operation of the surgeon, but also to the The safety and comfort of the patient during the operation and a reasonable surgical position are the main conditions to ensure the success of the operation. It must not only ensure sufficient exposure of the surgical field of view, facilitate the operation of the surgeon, but also enable the patient to maintain normal vital signs during the operation. It has good comfort and avoids easy damage to the patient's tissues and nerves. At present, although the traction and fixation belt can traction and fix the patient's position during the operation, most of the existing traction and fixation belts are thin and flat. When tractioning and fixing a certain part of the patient for a long time, it will not only easily squeeze the patient's skin, causing damage and pressure sores on the patient's skin, but also affect the blood circulation of the patient's traction part, causing discomfort to the patient .

Utility model content

In view of the above problems, the purpose of this utility model is to provide a body position traction fixation belt, which solves the problem that when the existing traction fixation belts are mostly thin and flat, it is not only easy to lose the Squeeze the patient's skin, causing damage and pressure sores on the patient's skin. At the same time, it is also likely to affect the blood circulation of the patient's traction site, causing discomfort to the patient.

In order to achieve the above purpose, the technical solution adopted by the utility model is: a body position traction fixing belt, including a fixing belt, a protective pad 1, a protective pad 2 and a fixing ring, and the Velcro A and the Velcro are fixedly installed on the fixing belt. B. The first protective pad is composed of a cover cloth and a sponge pad, and a zipper is fixedly installed on the cover cloth.

The beneficial effects of the utility model are as follows: both the first protective pad and the second protective pad are equipped with sponge pads, and the sponge pads are soft and elastic, which can facilitate the use of the first protective pad and the second protective pad, and can protect the patient Limbs and skin are protected, so that the patient is not easy to be stretched and fixed for a long time due to the thin and flat shape of the fixing belt, which will cause the patient's skin to be squeezed, resulting in damage and pressure sores on the patient's skin , and affect the blood circulation of the traction part of the patient, it can also enhance the safety and comfort of the patient's posture traction. The shape of the protective pad 2 is olive-shaped, which can facilitate the expansion of the traction area and enhance the traction for the patient's partial limbs. The stability and comfort of the traction fixation, the protective pad one and the cover cloth at the outer end of the protective pad one are all detachable, which can facilitate the disassembly and cleaning operation of the cover cloth, thereby enhancing the safety and sterility of repeated use.

For easy adjustment of the use position on the strap:

As a further improvement of the above technical solution: the second protection pad and the fixing ring are provided with perforations, and the second protection pad and the fixing ring are connected through the holes to the fixing belt through the holes.

The beneficial effects of this improvement are: the second protection pad and the fixing ring are provided with perforations, which can facilitate the movement of the use position on the fixing belt when the second protection pad and the fixing ring are worn on the outer end of the fixing belt through the perforations adjust.

For wrapping around the patient traction:

As a further improvement of the above technical solution: the middle part of the positive end and the left and right sides of the rear end of the fixing belt are fixedly equipped with Velcro A, while the middle part of the rear end of the fixing belt and the rear end of the protective pad 1 are fixedly installed There is Velcro B, and the Velcro A fixed on the positive end of the fixing belt and the Velcro B fixed on the rear end of the protective pad are adhesively connected, and the left and right sides of the rear end of the fixing belt are fixed The Velcro A is adhesively connected with the Velcro B fixed in the middle of the positive end.

The beneficial effect of this improvement is: the Velcro A fixed and installed by the positive end of the fixing belt and the Velcro B fixed and installed on the rear end of the protective pad are adhesively connected, so that it is convenient to simply attach the protective pad to the rear end. The fixedly installed Velcro B is bonded to the Velcro A fixedly installed on the positive end of the fixing belt, that is, the position of the protective pad can be fixed, so that when the protective pad is used in close contact with the patient, it can protect the patient's limbs. It protects the skin so that the patient is not easy to be stretched and fixed for a long time due to the thin and flat shape of the fixing belt, which may cause the patient's skin to be squeezed, causing damage and pressure sores to the patient's skin At the same time, it will also affect the blood circulation of the traction part of the patient. The Velcro A fixed on the left and right sides of the rear end of the fixing belt and the Velcro B fixed on the middle of the positive end are adhesively connected, which can be used as a fixed ring When putting on the fixing belt, you only need to wrap one end of the fixing belt to the other end of the fixing belt and pass it out from the fixing ring, then after folding the fixing belt, the rear end of the fixing belt can be fixed and installed The velcro A is glued on the velcro B fixedly installed in the middle part of the rear end of the fixing belt, thereby completing the operation of the fixing belt surrounding and fixing the traction part of the patient.

In order to increase the safety and comfort of patients during use:

As a further improvement of the above technical solution: the number of the sponge pads is two, and the two sponge pads are installed inside the protection pad 1 and the protection pad 2 respectively.

The beneficial effect of this improvement is: the interior of the protective pad 1 and the protective pad 2 are equipped with sponge pads, which can facilitate the protection pad 1 and the protective pad 2 to enhance the safety and comfort of the patient during use .

In order to expand the traction area and enhance the stability and comfort of traction and fixation for the patient's partial limbs:

As a further improvement of the above technical solution: the shape of the second protection pad is olive-shaped.

The beneficial effects of this improvement are: through the establishment of the second protection pad, and the shape of the second protection pad is olive-shaped, the traction area can be easily enlarged, and the stability and comfort of traction and fixation for the patient's partial limbs can be enhanced.

To facilitate removal and cleaning of the cover:

As a further improvement of the above technical solution: the zipper is arranged laterally in the middle of the rear end of the cover.

The beneficial effect of this improvement is that: through the establishment of the zipper, it is convenient to disassemble and clean the cover cloth only by unzipping the zipper, thereby enhancing the safety and sterility of repeated use.

Description of drawings

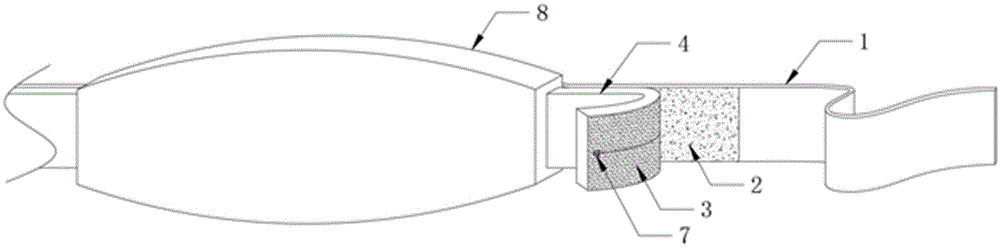

Fig. 1 is a schematic structural view of the use state of the protective pad of the present utility model with two sleeves;

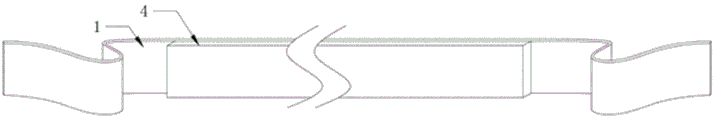

Fig. 2 is the positive end structure schematic diagram of the utility model;

Fig. 3 is a schematic diagram of the back-end structure of the utility model;

Fig. 4 is a side sectional view of the utility model;

In the figure: 1. Fixing belt; 2. Velcro A; 3. Velcro B; 4. Protective pad 1; 5. Cover cloth; 6. Sponge pad; 7. Zipper; 8. Protective pad 2; 9. Fixing ring .

Detailed ways

In order to enable those skilled in the art to better understand the technical solution of the utility model, the utility model will be described in detail below in conjunction with the accompanying drawings. The description of this part is only exemplary and explanatory, and should not have any influence on the protection scope of the utility model. restrictive effect.

Example 1:

As shown in Figures 1-4, a body position traction fixing belt includes a fixing belt 1, a protection pad 4, a protection pad 2 8 and a fixing ring 9, and the fixing belt 1 is fixed with Velcro A2 and Velcro B3, the protection pad one 4 is composed of a cover cloth 5 and a sponge pad 6, and a zipper 7 is fixedly installed on the cover cloth 5.

Example 2:

As shown in Figures 1 and 3, as a further optimization of the above-mentioned embodiment, a body position traction fixing belt includes a fixing belt 1, a protection pad 4, a protection pad 2 8 and a fixing ring 9, and the fixing belt 1 is fixed on the fixing belt. Velcro A2 and Velcro B3 are provided, and the protection pad 1 4 is composed of a cover cloth 5 and a sponge pad 6 , and a zipper 7 is fixedly installed on the cover cloth 5 . Both the second protection pad 8 and the fixing ring 9 are provided with perforations, and the second protection pad 8 and the fixing ring 9 are connected with the fixing belt 1 through the perforations.

Example 3:

As shown in Figures 1 and 3, as a further optimization of the above-mentioned embodiment, a body position traction fixing belt includes a fixing belt 1, a protection pad 4, a protection pad 2 8 and a fixing ring 9, and the fixing belt 1 is fixed on the fixing belt. Velcro A2 and Velcro B3 are provided, and the protection pad 1 4 is composed of a cover cloth 5 and a sponge pad 6 , and a zipper 7 is fixedly installed on the cover cloth 5 . The middle part of the positive end of the fixed belt 1 and the left and right sides of the rear end are all fixedly equipped with magic stickers A2, while the middle part of the rear end of the fixed belt 1 and the rear end of the protective pad-4 are all fixedly equipped with magic stickers B3. And the Velcro A2 fixedly installed on the positive end of the fixing belt 1 is adhesively connected with the Velcro B3 fixedly installed on the rear end of the protective pad-4, and the Velcro B3 fixedly installed on the left and right sides of the rear end of the fixing belt 1 A2 is adhesively connected with the Velcro B3 fixedly installed in the middle of the positive end.

Example 4:

As shown in Figure 4, as a further optimization of the above-mentioned embodiment, a body position traction fixing belt includes a fixing belt 1, a protection pad 4, a protection pad 2 8 and a fixing ring 9, and the fixing belt 1 is fixedly installed with The Velcro A2 and the Velcro B3, the protective pad one 4 is composed of a cover cloth 5 and a sponge pad 6, and a zipper 7 is fixedly installed on the cover cloth 5. The number of the sponge pads 6 is two, and the two sponge pads 6 are installed inside the first protection pad 4 and the second protection pad 8 .

Example 5:

As shown in Figure 1, as a further optimization of the above-mentioned embodiment, a body position traction fixing belt includes a fixing belt 1, a protection pad 4, a protection pad 2 8 and a fixing ring 9, and the fixing belt 1 is fixedly installed with The Velcro A2 and the Velcro B3, the protective pad one 4 is composed of a cover cloth 5 and a sponge pad 6, and a zipper 7 is fixedly installed on the cover cloth 5. The shape of the second protective pad 8 is olive.

Embodiment 6:

As shown in Figure 1, as a further optimization of the above-mentioned embodiment, a body position traction fixing belt includes a fixing belt 1, a protection pad 4, a protection pad 2 8 and a fixing ring 9, and the fixing belt 1 is fixedly installed with The Velcro A2 and the Velcro B3, the protective pad one 4 is composed of a cover cloth 5 and a sponge pad 6, and a zipper 7 is fixedly installed on the cover cloth 5. The zipper 7 is arranged laterally at the middle part of the rear end of the cover cloth 5 .

The working principle of the utility model is as follows: the protection pad 2 8 and the fixing ring 9 are provided with perforations, so that when the protection pad 2 8 and the fixing ring 9 are set on the outer end of the fixing belt 1 through the perforations, the 1 to adjust the position of use, and the Velcro A2 fixed on the positive end of the fixing belt 1 and the Velcro B3 fixed on the rear end of the protective pad 4 are bonded and connected, which can be convenient for simply attaching the protective pad The Velcro B3 fixedly installed at the rear end of -4 is bonded to the Velcro A2 fixedly installed at the positive end of the fixing belt 1, that is, the position of the protective pad-4 can be fixed, so that the protective pad-4 can be attached to the patient When used together, it can protect the patient's limbs and skin. The Velcro A2 fixed on the left and right sides of the rear end of the fixing belt 1 and the Velcro B3 fixed on the middle of the front end of the fixing belt 1 are adhesively connected, which can be convenient for when When the fixing ring 9 is put on the fixing belt 1, you only need to wrap one end of the fixing belt 1 to the other end of the fixing belt 1 and pass it out from the fixing ring 9, then after folding the fixing belt 1 back, the fixed The Velcro A2 fixed on the outer side of the rear end of the belt 1 is glued to the Velcro B3 fixed on the middle of the rear end of the fixing belt 1, thereby completing the operation of the fixing belt 1 surrounding and fixing the traction part of the patient. Both the protective pad 4 and the protective pad 2 8 are equipped with a sponge pad 6, which can facilitate the protection pad 4 and the protective pad 2 8 to enhance the safety and comfort of the patient during use. The establishment of pad two 8, and the shape of protection pad two 8 is olive-shaped, can be convenient to be able to expand traction area, enhance the stability and comfort degree that traction is fixed for patient's partial limb, set up by zipper 7, can be convenient to only need to pull By opening the zipper 7, the cover cloth 5 can be disassembled and cleaned, thereby enhancing the safety and sterility of repeated use.

It should be noted that, in this document, the terms "comprising", "comprising" or any other variation thereof are intended to cover a non-exclusive inclusion such that a process, method, article or apparatus comprising a set of elements includes not only those elements, It also includes other elements not expressly listed, or elements inherent in the process, method, article, or apparatus.

In this paper, specific examples are used to illustrate the principle and implementation of the present invention. The description of the above examples is only used to help understand the method and core idea of the present invention. The above are only preferred embodiments of the present utility model. It should be pointed out that due to the limitation of literal expression, objectively there are infinite specific structures. Under the premise, several improvements, modifications or changes can also be made, and the above-mentioned technical features can also be combined in an appropriate manner; these improvements, modifications or combinations, or the idea and technical solution of the utility model can be directly applied without improvement In other occasions, all should be regarded as the protection scope of the present utility model.

Claims (6)

1. The utility model provides a fixed band is pull to position which characterized in that: including fixed band (1), protection pad (4), protection pad two (8) and solid fixed ring (9), fixed magic subsides A (2) and magic subsides B (3) of having installed on fixed band (1), protection pad (4) comprise cover cloth (5) and foam-rubber cushion (6), fixed zip fastener (7) of having installed on cover cloth (5).

2. A body position traction fixing band according to claim 1, characterized in that: the protection pad II (8) and the fixing ring (9) are provided with through holes, and the protection pad II (8) and the fixing ring (9) are connected with the fixing band (1) through the through holes in a penetrating and sleeving manner.

3. A body position traction fixing band according to claim 1, characterized in that: the fixing belt is characterized in that magic tapes A (2) are fixedly arranged on the middle of the positive end of the fixing belt (1) and the left and right sides of the rear end, magic tapes B (3) are fixedly arranged on the middle of the rear end of the fixing belt (1) and the rear end of the protection pad (4), the magic tapes A (2) fixedly arranged on the positive end of the fixing belt (1) and the magic tapes B (3) fixedly arranged on the rear end of the protection pad (4) are in adhesive connection, and the magic tapes A (2) fixedly arranged on the left and right sides of the rear end of the fixing belt (1) are in adhesive connection with the magic tapes B (3) fixedly arranged on the middle of the positive end of the fixing belt.

4. A body position traction fixing band according to claim 1, characterized in that: the number of the spongy cushions (6) is two, and the two spongy cushions (6) are respectively arranged in the protection cushion I (4) and the protection cushion II (8).

5. A body position traction fixing band according to claim 1, characterized in that: the second protection pad (8) is olive-shaped.

6. A body position traction fixing band according to claim 1, characterized in that: the zipper (7) is transversely arranged at the middle position of the rear end of the cover cloth (5).
