CN218856525U

CN218856525U - Rust removal device

Info

Publication number: CN218856525U
Application number: CN202222682802.8U
Authority: CN
Inventors: 罗小珠
Original assignee: Fujian Sanming Switch Co ltd
Current assignee: Fujian Sanming Switch Co ltd
Priority date: 2022-10-12
Filing date: 2022-10-12
Publication date: 2023-04-14
Anticipated expiration: 2032-10-12

Abstract

The utility model discloses a rust cleaning device, comprises a workbench, the workstation upper end left and right sides all is equipped with the shifting chute, the workstation front portion is equipped with the useless groove of collection, the useless groove left and right sides of collection all is equipped with the mounting groove, the mount pad is all installed to the workstation upper end left and right sides, the mounting panel is installed to the mount pad upper end, it has the screw rod to run through in the mounting panel middle part, screw rod right-hand member fixedly connected with adjusts the carousel, screw rod left end fixedly connected with cone, install the mobile turntable on the wall of workstation right side, workstation upper end forward-mounted has first conveyer belt, the switch metalwork after will polishing through first conveyer belt bears, and convey it to the second conveyer belt forward, there is the second conveyer belt to convey it to placing the platform and deposit, need not artifical transport, energy-conserving artifical physical power, after placing the platform and keeping in a certain quantity, can bind it and transport, high speed and high efficiency.

Description

Rust removal device

Technical Field

The utility model relates to a rust cleaning device field especially relates to a rust cleaning device.

Background

High-voltage connection of the power plant of the transformer substation adopts a high-voltage isolating switch, when line load is large, the isolating switch generates heat, the inner wall of a contact of the isolating switch can rust, power failure treatment is needed at the moment, workload is increased, and power supply of a user is influenced.

Among the prior art, switch metalwork grinding device polishes the completion back with the switch metalwork, needs the manual work to carry the switch metalwork after polishing from the workstation and gets off, extravagant artifical physical power, and seriously reduces work efficiency to current switch metalwork grinding device does not have the waste residue to collect and discharges the function, polishes when a plurality of switch metalworks and finishes the back, can pile up a large amount of waste residues on the workstation, and is difficult for clearing up, and influences the workstation clean and tidy.

SUMMERY OF THE UTILITY MODEL

In order to overcome the not enough of prior art, the utility model provides a rust cleaning device, comprises a workbench, the workstation upper end left and right sides all is equipped with the shifting chute, the workstation front portion is equipped with the groove of wasting collection, the groove left and right sides of wasting collection all is equipped with the mounting groove, the mount pad is all installed to the workstation upper end left and right sides, the mounting panel is installed to the mount pad upper end, it has the screw rod to run through in the mounting panel middle part, screw rod right-hand member fixedly connected with adjusts the carousel, screw rod left end fixedly connected with conical head, install the shifting carousel on the wall of workstation right side, workstation upper end front-mounted has first conveyer belt, the grinding roller is installed to first conveyer belt rear side, the grinding roller left end rotates and is connected with the belt pulley, the grinding roller rear-side is installed first motor, the belt is installed to first motor left end, the belt forward-mounted has the layer board, be equipped with the spout on the layer board, the second motor is installed to the layer board upper end, the fixed plate is installed to second motor lower extreme machine left and right sides, the fixed plate inboard is installed the dead lever, the workstation forward-mounted has the second conveyer belt lower part to install a plurality of support frame, be equipped with the seat, the seat of placing the placing of placing the cartridge seat is all loosened.

As a further aspect of the present invention: conical heads are installed on the left side and the right side of the workbench, the right conical head can move back and forth through the matching of the installation seat, the moving groove and the moving turntable, and the left conical head can move left and right through the action of the sliding groove.

As a further aspect of the present invention: two the cooperation of conical head can be fixed the switch metalwork on the workstation, at first will switch metalwork one end on the conical head of right side, then adjust left side conical head position with switch metalwork other end cover on the conical head of left side, then manual regulation carousel moves the conical head of right side forward, presss from both sides the switch metalwork tightly, the follow-up polishing of being convenient for.

As the utility model discloses further scheme again: the movable rotary table penetrates through the right side wall of the workbench and is connected with the lower end of the mounting seat in a meshed mode through a gear, the conical heads of the two clamping switch metal pieces can be synchronously moved by manually moving the rotary table until the switch metal pieces contact with the polishing roller, and then the mounting seat is limited at the current position through the buckle on the right side wall of the workbench.

As the utility model discloses further scheme again: first motor passes through the belt and is connected with the belt pulley rotation, and the belt pulley rotates through the pivot and is connected with the roller of polishing, during the use, starts first motor, polishes the high-speed rotation of roller through belt and belt pulley linkage, polishes switch metal spare.

As the utility model discloses further scheme again: the useless groove of collection runs through workstation to bottom, and during the use, the useless groove of collection is used for collecting the waste residue that produces when the switch metalwork is polished to discharge it to the workstation lower part and collect, the follow-up processing of being convenient for avoids the waste residue to pile up on the workstation in a large number.

As a further aspect of the present invention: the switch metal piece polishing device is characterized in that limiting blocks are mounted on the left side and the right side of the upper end surface of the first conveying belt, the width of the first conveying belt is matched with the length of the switch metal piece, after the switch metal piece is polished, the switch metal piece is firstly placed on the first conveying belt, the limiting blocks temporarily limit the switch metal piece, then the first conveying belt is opened to convey the polished switch metal piece to the second conveying belt, and the second conveying belt conveys the switch metal piece to the placing seat for temporary storage.

Compared with the prior art, the beneficial effects of the utility model are that:

in the device, the polished switch metal piece is borne by the first conveying belt and is conveyed forwards to the second conveying belt, the switch metal piece is conveyed to the placing table by the second conveying belt for storage, manual carrying is not needed, manual physical power is saved, the switch metal piece can be bound and transported after a certain number of switch metal pieces are temporarily stored in the placing table, convenience and rapidness are realized, and the efficiency is improved; when the switch metalwork is being polished, the waste residue of production is collected it by the groove of gathering useless to discharge to the workstation bottom and concentrate, the follow-up processing of being convenient for is favorable to keeping the workstation clean and tidy, and convenient and practical.

Drawings

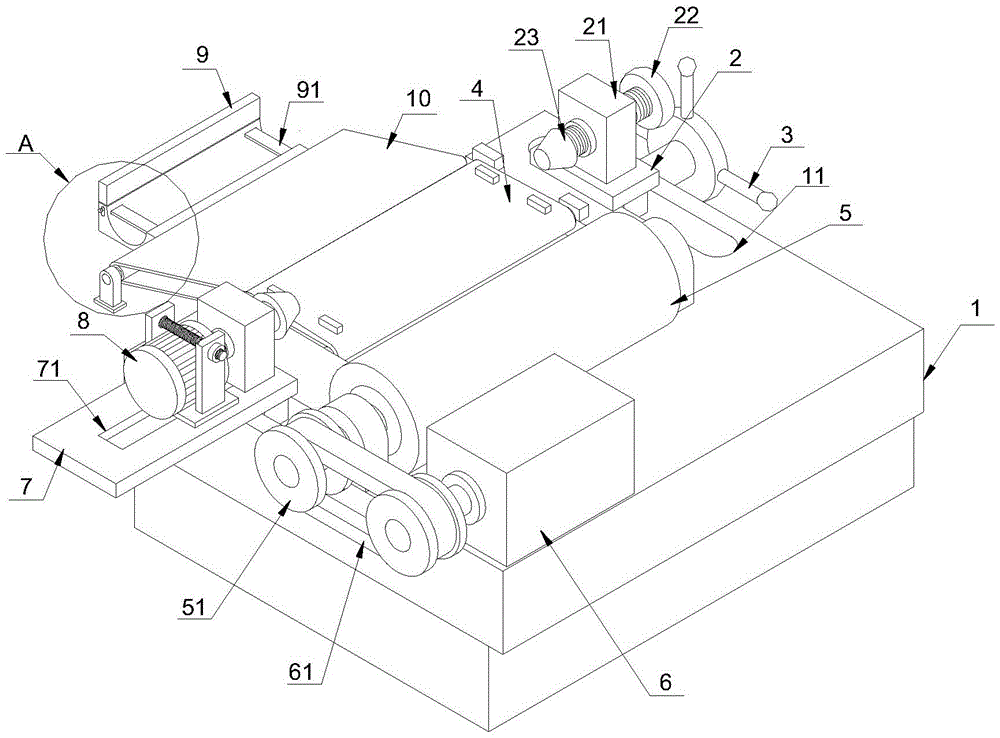

Fig. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic structural view of a worktable according to the present invention;

FIG. 3 is an enlarged view of A of FIG. 1 according to the present invention;

fig. 4 is an enlarged view of the point B in fig. 2 according to the present invention.

In the figure: 1. a work table; 11. a moving groove; 12. a waste collection tank; 13. mounting grooves; 2. a mounting base; 21. mounting a plate; 22. adjusting the turntable; 23. a conical head; 24. a screw; 3. moving the turntable; 4. a first conveyor belt; 5. grinding a roller; 51. a belt pulley; 6. a first motor; 61. a belt; 7. a pallet; 71. a chute; 8. a second motor; 81. a fixing plate; 82. a fixing rod; 9. a placing seat; 91. b, cloth bouncing; 92. a release member; 10. a second conveyor belt; 101. a support frame.

Detailed Description

In order to make the technical means, creation features, achievement objects and functions of the present invention easy to understand, the present invention will be further explained with reference to the following embodiments, however, the following embodiments are only preferred embodiments of the present invention, and not all embodiments are included. Based on the embodiments in the embodiment, those skilled in the art can obtain other embodiments without making creative efforts, and all of them belong to the protection scope of the present invention. The experimental methods in the following examples are conventional methods unless otherwise specified, and materials, reagents and the like used in the following examples are commercially available unless otherwise specified.

Example (b):

please refer to fig. 1-4, in the embodiment of the utility model, a rust cleaning device, including workstation 1, the 1 upper end left and right sides of workstation all is equipped with shifting

chute

11, 1 front portion of workstation is equipped with collection useless groove 12, the collection useless groove 12 left and right sides all is equipped with mounting groove 13, mount pad 2 is all installed to the 1 upper end left and right sides of workstation, mounting panel 21 is installed to the 2 upper ends of mount pad, mounting panel 21 has run through screw rod 24 in the middle part, screw rod 24 right-hand member fixedly connected with adjusts carousel 22, screw rod 24 left end fixedly connected with

conical head

23, 1 right side wall of workstation is installed with

removal carousel

3, 1 upper end front portion of workstation installs first conveyer belt 4, first conveyer belt 4 rear side-mounting has

polishing roller

5, 5 left end rotation of polishing roller is connected with belt pulley 51, polishing roller 5 rear side-mounting has first motor 6, belt 61 is installed to the first motor 6 left end, belt 51 forward-mounted has layer board 7, be equipped with spout 71 on the layer board 7, layer board 7 upper end installs second motor 8, the lower extreme left and right sides of second motor 8 lower extreme machine installs fixed plate 81, fixed plate 81 inboard is installed to the inboard, be equipped with dead lever 82, the second conveyer belt 10 in the 1 front portion, the second conveyer belt 10 is installed to the second conveyer belt 9 lower part, the support frame 10 is installed, the seat 10 front portion installs the seat 10 front portion 9, the seat of the support frame 10 all loosens the seat placement seat 101.

Wherein, the left and right sides of the worktable 1 are both provided with conical heads 23, the right conical head 23 can move back and forth through the matching of the mounting seat 2, the moving groove 11 and the moving turntable 3, and the left conical head 23 can move left and right through the function of the sliding groove 71, the two conical heads 23 can be matched to fix the switch metal piece on the worktable 1, firstly, one end of the switch metal piece is arranged on the right conical head 23, then the left conical head 23 is adjusted to sleeve the other end of the switch metal piece on the left conical head 23, then the right conical head 23 is moved forward through the manual adjusting turntable 22 to clamp the switch metal piece for subsequent polishing, the moving turntable 3 penetrates through the right side wall of the worktable 1 to be meshed with the lower end of the mounting seat 2 through a gear, the conical heads 23 of the two clamping switch metal pieces can be synchronously moved with the switch metal piece through the manual moving turntable 3, until the switch metal piece contacts the polishing roller 5, the mounting seat 2 is limited at the current position through a buckle on the right side wall of the workbench 1, the first motor 6 is rotatably connected with the belt pulley 51 through a belt 61, and the belt pulley 51 is rotatably connected with the polishing roller 5 through a rotating shaft, when the switch metal piece polishing device is used, the first motor 6 is started, the belt 61 and the belt pulley 51 are linked to drive the polishing roller 5 to rotate at a high speed to polish the switch metal piece, the waste collecting groove 12 penetrates through the workbench 1 to the bottom, when the switch metal piece polishing device is used, the waste collecting groove 12 is used for collecting waste residues generated during polishing the switch metal piece and discharging the waste residues to the lower part of the workbench 1 for convenient subsequent treatment, so that the waste residues are prevented from being accumulated on the workbench 1 in a large amount, the left side and the right side of the upper end surface of the first conveying belt 4 are provided with limiting blocks, the width of the first conveying belt 4 is matched with the length of the switch metal piece, after polishing of the switch metal piece is finished, firstly, the switch metal piece is placed on the first conveyor belt 4, the limit block temporarily limits the switch metal piece, then the first conveyor belt 4 is started to convey the polished switch metal piece to the second conveyor belt 10, and the second conveyor belt 10 conveys the polished switch metal piece to the placing seat 9 for temporary storage.

The utility model discloses a theory of operation is: the left side and the right side of the workbench 1 are respectively provided with a conical head 23, the right conical head 23 can move back and forth through the matching of the mounting base 2, the moving groove 11 and the moving turntable 3, the left conical head 23 can move left and right through the function of the sliding groove 71, the two conical heads 23 can be matched to fix a switch metal piece on the workbench 1, one end of the switch metal piece is arranged on the right conical head 23 at first, then the left conical head 23 is adjusted to sleeve the other end of the switch metal piece on the left conical head 23, then the right conical head 23 is moved forwards through the manual adjusting turntable 22 to clamp the switch metal piece for subsequent polishing, the moving turntable 3 penetrates through the right side wall of the workbench 1 to be meshed and connected with the lower end of the mounting base 2 through a gear, and the conical heads 23 of the two clamping switch metal pieces can be synchronously moved with the switch metal piece through the manual moving turntable 3, until the switch metal piece contacts the polishing roller 5, the mounting seat 2 is limited at the current position through a buckle on the right side wall of the workbench 1, the first motor 6 is rotatably connected with the belt pulley 51 through a belt 61, and the belt pulley 51 is rotatably connected with the polishing roller 5 through a rotating shaft, when the switch metal piece polishing device is used, the first motor 6 is started, the belt 61 and the belt pulley 51 are linked to drive the polishing roller 5 to rotate at a high speed to polish the switch metal piece, the waste collecting groove 12 penetrates through the workbench 1 to the bottom, when the switch metal piece polishing device is used, the waste collecting groove 12 is used for collecting waste residues generated during polishing the switch metal piece and discharging the waste residues to the lower part of the workbench 1 for convenient subsequent treatment, so that the waste residues are prevented from being accumulated on the workbench 1 in a large amount, the left side and the right side of the upper end surface of the first conveying belt 4 are provided with limiting blocks, the width of the first conveying belt 4 is matched with the length of the switch metal piece, after polishing of the switch metal piece is finished, firstly, the switch metal piece is placed on the first conveyor belt 4, the limit block temporarily limits the switch metal piece, then the first conveyor belt 4 is started to convey the polished switch metal piece to the second conveyor belt 10, and the second conveyor belt 10 conveys the polished switch metal piece to the placing seat 9 for temporary storage.

In the present application, unless expressly stated or limited otherwise, the recitation of a first feature "on" or "under" a second feature may include the recitation of the first and second features being in direct contact, and may also include the recitation of the first and second features not being in direct contact, but being in contact with another feature between them. Also, the first feature "on," "above" and "over" the second feature may include the first feature being directly above and obliquely above the second feature, or simply indicating that the first feature is at a higher level than the second feature. A first feature being "under," "below," and "beneath" a second feature includes the first feature being directly under and obliquely below the second feature, or simply meaning that the first feature is at a lesser elevation than the second feature.

The foregoing shows and describes the general principles, essential features, and advantages of the invention. It should be understood by those skilled in the art that the present invention is not limited by the above embodiments, and the description in the above embodiments and the description is only preferred examples of the present invention, and is not intended to limit the present invention, and that the present invention can have various changes and modifications without departing from the spirit and scope of the present invention, and these changes and modifications all fall into the scope of the claimed invention. The scope of the invention is defined by the appended claims and equivalents thereof.

Claims

1. A rust cleaning device, includes workstation (1), its characterized in that: the automatic polishing machine is characterized in that moving grooves (11) are arranged on the left side and the right side of the upper end of the workbench (1), a waste collecting groove (12) is arranged on the front portion of the workbench (1), mounting grooves (13) are arranged on the left side and the right side of the waste collecting groove (12), mounting seats (2) are arranged on the left side and the right side of the upper end of the workbench (1), mounting plates (21) are mounted on the upper ends of the mounting seats (2), screw rods (24) penetrate through the middle portions of the mounting plates (21), adjusting turntables (22) are fixedly connected with the right ends of the screw rods (24), conical heads (23) are fixedly connected with the left ends of the screw rods (24), a moving turntables (3) are mounted on the right side wall of the workbench (1), a first conveying belt (4) is mounted on the front portion of the upper end of the workbench (1), a polishing roller (5) is mounted on the rear side of the first conveying belt (4), a belt pulley (7) is rotatably connected with a belt pulley (51), a first motor (6) is mounted on the rear side of the polishing roller (5), a second motor (7) is mounted on the left side, and a second motor fixing plate (81) is mounted on the left side and a second fixing plate (8), dead lever (82) are installed to fixed plate (81) inboard, workstation (1) forward-mounted has second conveyer belt (10), a plurality of support frames (101) are installed to second conveyer belt (10) lower part, second conveyer belt (10) forward-mounted has places seat (9), it is equipped with bullet cloth (91) in seat (9) to place, place all install on seat (9) left and right sides wall and loosen piece (92).

2. A rust removing device according to claim 1, characterized in that: conical heads (23) are installed on the left side and the right side of the workbench (1), the right conical head (23) can move back and forth through the matching of the installation seat (2), the moving groove (11) and the moving turntable (3), and the left conical head (23) can move left and right through the action of the sliding groove (71).

3. A rust removing device according to claim 1, characterized in that: the two conical heads (23) are matched to fix the switch metal piece on the workbench (1).

4. A rust removing device according to claim 1, characterized in that: the movable turntable (3) penetrates through the right side wall of the workbench (1) and is connected with the lower end of the mounting seat (2) in a meshing manner through a gear.

5. A rust removing apparatus as claimed in claim 1, characterized in that: first motor (6) are connected with belt pulley (51) through belt (61) rotation, and belt pulley (51) are connected with grinding roller (5) rotation through the pivot.

6. A rust removing device according to claim 1, characterized in that: the waste collecting groove (12) penetrates through the workbench (1) to the bottom.

7. A rust removing apparatus as claimed in claim 1, characterized in that: the limiting blocks are installed on the left side and the right side of the surface of the upper end of the first conveying belt (4), and the width of the first conveying belt (4) is matched with the length of the switch metal piece.
