CN218796061U

CN218796061U - Assembled test tube rack

Info

Publication number: CN218796061U
Application number: CN202223313361.0U
Authority: CN
Inventors: 王子怡; 陶莉莉; 赵丽
Original assignee: First Hospital of Lanzhou University
Current assignee: First Hospital of Lanzhou University
Priority date: 2022-12-11
Filing date: 2022-12-11
Publication date: 2023-04-07
Anticipated expiration: 2032-12-11

Abstract

The utility model discloses a splicing test tube rack, which comprises an upper test tube rack plate and a lower test tube rack plate, wherein the inner part of the lower test tube rack plate is rotationally connected with two dwang, the two dwang are symmetrically distributed, both ends of the dwang are fixedly connected with a support plate, and one side of the inner part of the upper test tube rack plate and the side of the support plate are provided with a chute; the utility model discloses the beneficial effect who reaches is: can fold the laminating between last test-tube rack board and the lower test-tube rack board through the backup pad at dwang both ends under the effect of spout and slider to can drive the inserted bar under the spring action and combine with the inserted bar, reach and carry out the purpose of fixing last test-tube rack board after expanding and lower test-tube rack board, greatly reduced occupation space, conveniently deposit, can make under the torsion effect of torsional spring to drive the backup pad and turn back to initial position automatically through the dwang when folding accomodating to last test-tube rack board and lower test-tube rack board.

Description

Assembled test tube rack

Technical Field

The utility model relates to the technical field of medical equipment, specifically be pin-connected panel test-tube rack.

Background

Medical equipment refers to instruments, devices, appliances, materials or other items used alone or in combination in the human body, and also includes required software. The therapeutic effect on the body surface and the body is not obtained by means of pharmacology, immunology or metabolism, but the medical appliance product plays a certain auxiliary role. The basic condition of medical equipment for continuously improving the technical level of medical science is also an important mark of the degree of modernization, and the medical equipment becomes an important field of modern medical treatment. The development of medical treatment is largely dependent on the development of instruments, and even in the development of the medical industry, the breakthrough of bottlenecks plays a decisive role. In the medical treatment inspection process, need to gather the thing to various and carry out the chemical examination, and in the process of testing the thing to gathering, need use a large amount of test tubes, set up the test tube hole of fixed quantity because of current test tube holder surface, therefore when fixing the test tube, need more test tube holder, but current test tube holder mostly can not splice, lead to test tube holder to place at the checkout stand, not only occupy usable floor area, and when too much, influence inspection personnel's operation easily, influence inspection efficiency.

The chinese patent discloses that patent number is "but pin-connected panel test-tube rack for blood internal medicine" of CN202220651753.9, has recorded "in this scheme the utility model relates to a medical equipment technical field, concretely relates to but pin-connected panel test-tube rack for blood internal medicine, including test tube holder, two sets of mounting grooves have been seted up to test tube holder's inside, and the mounting groove is linked together with the outside to test tube holder's inside has seted up the cavity, the inside of mounting groove is provided with fixed establishment, test tube holder's lower fixed surface installs the fixed column, the inside of cavity is provided with sealing mechanism, fixed establishment is including setting up at the inside two sets of slides of mounting groove, and is two sets of through first spring fixed connection between the slide, a side fixed mounting of slide has the fixture block. The utility model discloses a, the utility model discloses a cooperation between each part is used, make test tube holder when too much, can splice the use, increase the usable floor area of checkout stand, seal the test tube of bottom simultaneously, reduce and volatilize, provide more operating space for the inspection personnel, ensure the efficiency of inspection, but certain problem still exists, two direct splices of test-tube rack structure about can going on whole, but test-tube rack self can't fold, lead to the test-tube rack still can occupy bigger space when not using, thereby convenience when influence the test-tube rack and deposit.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide but pin-connected panel test-tube rack to solve the problem of proposing in the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme:

can pin-connected panel test-tube rack, including test-tube rack plate and test-tube rack plate down, the inside of test-tube rack plate rotates down and is connected with the dwang, the dwang is total two, two the dwang is the symmetric distribution, the equal fixedly connected with backup pad in both ends of dwang, the inside of going up the test-tube rack plate just is located one side of backup pad and has seted up the spout, the inside sliding connection of spout has the slider, the slider rotates with the backup pad to be connected, the recess has been seted up to the inside of slider, the inside sliding connection of recess has the inserted bar, fixedly connected with spring between inserted bar and the recess, go up the inside of test-tube rack plate and seted up the jack that uses with the inserted bar cooperation.

Preferably, the inside of the jack and the position above the inserted bar are connected with pressure bars in a sliding manner, and a pressure plate is fixedly connected between every two adjacent pressure bars.

Preferably, the inside of going up the test tube rack plate and being located one side of depression bar and having seted up the spacing groove, the inside sliding connection in spacing groove has the stopper, stopper and depression bar fixed connection.

Preferably, the dead slot has been seted up to the inside of test tube rack plate down, the outside cover of dwang is equipped with the carousel, carousel and dwang fixed connection, the outside of dwang just is located the cover and is equipped with the torsional spring between carousel and the dead slot, the one end and the carousel fixed connection of torsional spring, the other end and the dead slot fixed connection of torsional spring.

Preferably, the cross sections of the sliding groove and the sliding block are both square structures.

Preferably, the bottom of the lower test tube rack plate is provided with a containing groove matched with the pressing plate for use.

The utility model discloses the beneficial effect who reaches is: through the dwang that sets up, a supporting plate, the spout, the slider, the recess, the inserted bar, a spring, the jack, depression bar and clamp plate, can fold the laminating between last test-tube rack board and the lower test-tube rack board through the backup pad at dwang both ends under the effect of spout and slider, and can drive the inserted bar under the spring action of spring and combine with the inserted bar, reach and carry out the purpose of fixing to last test-tube rack board after expanding and lower test-tube rack board, occupation space has greatly been reduced, conveniently deposit, dead slot through setting up, carousel and torsional spring, can make under the torsional action of torsional spring to drive the backup pad to turn to initial position automatically through the dwang when folding the accomodating to last test-tube rack board and lower test-tube rack board.

Drawings

The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention. In the drawings:

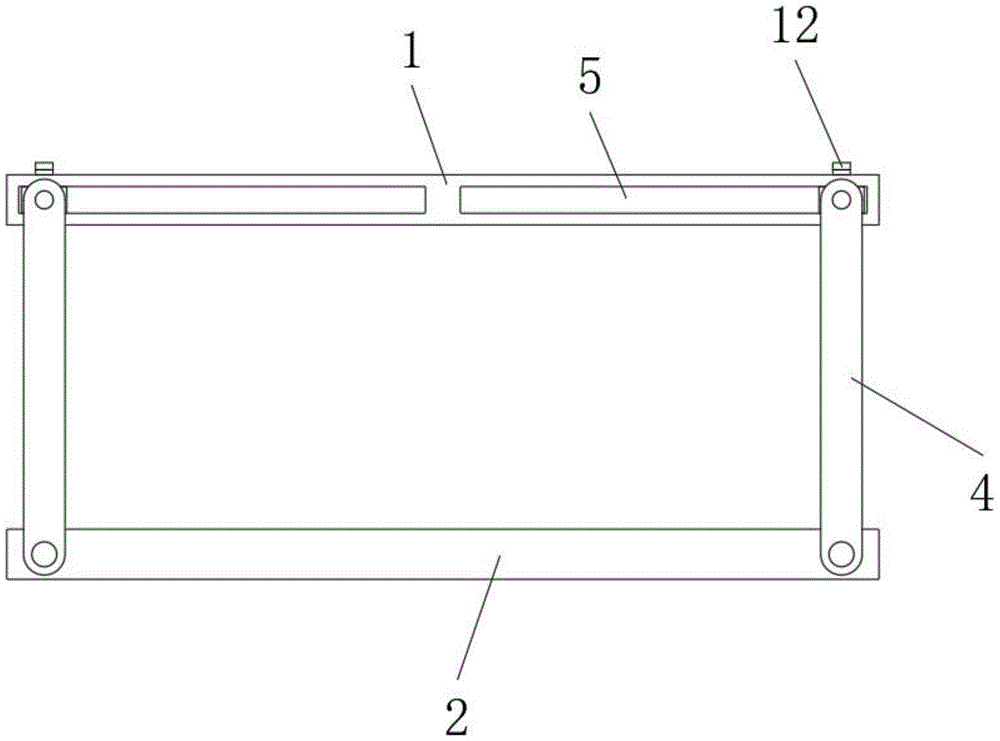

fig. 1 is a schematic structural view of the present invention before folding;

fig. 2 is a schematic view of the folded structure of the present invention;

fig. 3 is a schematic cross-sectional view of the present invention;

fig. 4 is an enlarged view of the position a of the present invention.

In the figure: 1. mounting a test tube rack plate; 2. mounting a test tube rack plate; 3. rotating the rod; 4. a support plate; 5. a chute; 6. a slider; 7. a groove; 8. inserting a rod; 9. a spring; 10. a jack; 11. a pressure lever; 12. pressing a plate; 13. a limiting groove; 14. a limiting block; 15. an empty groove; 16. a turntable; 17. a torsion spring; 18. a receiving groove.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1 to 4, the present invention provides a technical solution:

the assembled test tube rack can be used for blood medicine; including test-tube rack board 1 and test-tube rack board 2 down, the inside of test-tube rack board 2 is rotated and is connected with dwang 3 down, dwang 3 is total two, two dwang 3 are the symmetric distribution, the equal fixedly connected with backup pad 4 in both ends of dwang 3, go up the inside of test-tube rack board 1 and be located one side of backup pad 4 and seted up spout 5, the inside sliding connection of spout 5 has slider 6, slider 6 rotates with backup pad 4 to be connected, recess 7 has been seted up to slider 6's inside, the inside sliding connection of recess 7 has inserted bar 8, fixedly connected with spring 9 between inserted bar 8 and the recess 7, the jack 10 that uses with the cooperation of inserted bar 8 is seted up to the inside of going up test-tube rack board 1, it combines with jack 10 to drive inserted bar 8 through spring 9 elasticity, thereby fix between the last test-tube rack board 1 after expanding and the test-tube rack board 2 down.

The pressure rods 11 are slidably connected inside the insertion holes 10 and above the insertion rods 8, a pressure plate 12 is fixedly connected between every two adjacent pressure rods 11, and the pressure plate 12 is convenient for pressing the two adjacent pressure rods 11 at the same time; a limiting groove 13 is formed in the upper test tube frame plate 1 and located on one side of the compression rod 11, a limiting block 14 is connected to the inside of the limiting groove 13 in a sliding mode, and the limiting block 14 is fixedly connected with the compression rod 11 and used for limiting the position of the compression rod 11; an empty groove 15 is formed in the lower test tube frame plate 2, a rotary disc 16 is sleeved outside the rotary rod 3, the rotary disc 16 is fixedly connected with the rotary rod 3, a torsion spring 17 is sleeved outside the rotary rod 3 and between the rotary disc 16 and the empty groove 15, one end of the torsion spring 17 is fixedly connected with the rotary disc 16, the other end of the torsion spring 17 is fixedly connected with the empty groove 15, and the torsion force of the torsion spring 17 is used for driving the support plate 4 to rotate back to the initial position through the rotary rod 3; the cross sections of the sliding chute 5 and the sliding block 6 are both square structures, so that the limiting effect is achieved; the bottom of lower test-tube rack board 2 is seted up and is received groove 18 with clamp plate 12 cooperation use, conveniently piles up and accomodate.

Specifically, use the utility model discloses the time, at first, test tube rack plate 2 under the press, and go up test tube rack plate 1 to the lifting, make and go up test tube rack plate 1 and drive backup pad 4 upwards rotation of test tube rack plate 2 both sides down, slider 6 in the spout 5 of going up test tube rack plate 1 both sides simultaneously can slide to the direction that is close to clamp plate 12 under backup pad 4's effect, reach the position that is in same straight line with jack 10 until inserted bar 8 on slider 6 removes, can drive inserted bar 8 and jack 10 combination under spring 9's spring action this moment, make backup pad 4 can't continue to rotate, thereby accomplish and expand, only need press two clamp plates 12 on test tube rack plate 1 simultaneously when needing to accomodate, make clamp plate 12 drive depression bar 11 extrude inserted bar 8 in jack 10, separate until inserted bar 8 and jack 10, backup pad 4 can be toward the gyration under torsional spring 17's torsion effect this moment and laminate with lower test tube rack plate 1's bottom and lower test tube rack plate 2, thereby accomplish and fold.

In the description of the present invention, it is to be understood that the terms "coaxial", "bottom", "one end", "top", "middle", "other end", "upper", "one side", "top", "inner", "front", "center", "both ends", and the like, indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.

Furthermore, the terms "first", "second", "third", "fourth" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or as implying any number of indicated technical features, whereby the features defined as "first", "second", "third", "fourth" may explicitly or implicitly include at least one such feature.

In the present invention, unless otherwise expressly stated or limited, the terms "mounted," "disposed," "connected," "fixed," "screwed" and the like are to be construed broadly, e.g., as meaning fixedly connected, detachably connected, or integrally formed; can be mechanically or electrically connected; they may be directly connected or indirectly connected through an intermediate medium, and may be connected through the inside of two elements or in an interaction relationship between two elements, unless otherwise specifically defined, and the specific meaning of the above terms in the present invention will be understood by those skilled in the art according to specific situations.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that various changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. But pin-connected panel test-tube rack, including last test-tube rack board (1) and lower test-tube rack board (2), its characterized in that: the inside of test-tube rack board (2) is rotated and is connected with dwang (3) down, dwang (3) are total two, two dwang (3) are the symmetric distribution, the equal fixedly connected with backup pad (4) in both ends of dwang (3), go up the inside of test-tube rack board (1) and be located one side of backup pad (4) and seted up spout (5), the inside sliding connection of spout (5) has slider (6), slider (6) rotate with backup pad (4) and be connected, recess (7) have been seted up to the inside of slider (6), the inside sliding connection of recess (7) has inserted bar (8), fixedly connected with spring (9) between inserted bar (8) and recess (7), jack (10) that use with inserted bar (8) cooperation are seted up to the inside of going up test-tube rack board (1).

2. The erectable test tube rack of claim 1, wherein: the inside of jack (10) just is located the top sliding connection of inserted bar (8) and has depression bar (11), adjacent two fixedly connected with clamp plate (12) between depression bar (11).

3. The erectable test tube rack of claim 1, wherein: go up the inside of test-tube rack board (1) and be located one side of depression bar (11) and seted up spacing groove (13), the inside sliding connection of spacing groove (13) has stopper (14), stopper (14) and depression bar (11) fixed connection.

4. The erectable test tube rack of claim 1, wherein: dead slot (15) have been seted up to the inside of test-tube rack board (2) down, the outside cover of dwang (3) is equipped with carousel (16), carousel (16) and dwang (3) fixed connection, the outside of dwang (3) just is located and is equipped with torsional spring (17) between carousel (16) and dead slot (15), the one end and carousel (16) fixed connection of torsional spring (17), the other end and dead slot (15) fixed connection of torsional spring (17).

5. The erectable test tube rack of claim 1, wherein: the cross sections of the sliding groove (5) and the sliding block (6) are both square structures.

6. The erectable test tube rack of claim 1, wherein: the bottom of the lower test tube rack plate (2) is provided with a containing groove (18) matched with the pressing plate (12).
