The utility model discloses a household electrical appliances pencil connecting device, which comprises a connector, the connector outer wall is seted up with the pencil groove, and four rotation grooves, four have been seted up to the connector outer wall rotate the inslot rotation and be connected with first bull stick, the first connecting rod of first bull stick outer wall fixedly connected with, first connecting rod is connected with the stabilizer through coupling mechanism, the spread groove has been seted up to the stabilizer outer wall, the centre gripping groove is located same water flat line with the pencil trench, coupling mechanism is including rotating the second bull stick of connection in the spread groove, second bull stick fixedly connected with second connecting rod, the device chamber has been seted up in the second connecting rod. The utility model discloses a set up parts such as spring, sliding block, first connecting rod, stabilizer, in daily use, under the effect of spring, the spring passes through the stabilizer and drives the pencil and inwards press from both sides tightly, has improved the stability when pencil is connected with the connector greatly.
Description
Technical Field
The utility model relates to a pencil technical field especially relates to a household electrical appliances pencil connecting device.
Background
The wiring harness provides a totality of service equipment, such as trunk lines, switching devices, control systems, and the like, for a certain set of load sources. The basic research content of the traffic theory is to research the relationship among traffic volume, call loss and harness capacity, so that the harness is an important basic concept in the traffic theory.
In the use pencil in-process, domestic appliance generally uses the multicore copper line, peels off insulating skin during the wiring and spills the copper line, is connected with the connector, however when daily life uses, if the foot drives the pencil carelessly, inevitably takes place to outwards drive the pencil always, leads to the copper line loose, when dragging the electric wire moreover, causes the junction of electric wire not hard up very easily, causes contact failure, greatly reduced the stability when pencil is connected.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the defects existing in the prior art and providing a household appliance wiring harness connecting device.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides a household electrical appliances pencil connecting device, includes the connector, the wire harness groove is seted up to the connector outer wall, four rotation grooves, four have been seted up to the connector outer wall the rotation inslot rotation is connected with first bull stick, the first connecting rod of first bull stick outer wall fixedly connected with, first connecting rod is connected with the stabilizer through coupling mechanism, the spread groove has been seted up to the stabilizer outer wall, the centre gripping groove is located same water flat line with the wire harness groove.
Preferably, the connecting mechanism comprises a second rotating rod which is rotatably connected in the connecting groove, the second rotating rod is fixedly connected with a second connecting rod, and a device cavity is formed in the second connecting rod.
Preferably, the device intracavity sliding connection has the sliding block, first connecting rod and sliding block fixed connection.
Preferably, the sliding block side wall is fixedly connected with a spring, and the spring is fixedly connected to the inner wall of the device cavity.
Preferably, the clamping groove is connected with a clamping block in a sliding mode, and the outer wall of the stabilizer is provided with a thread groove.
Preferably, the thread groove is connected with a threaded rod in an internal thread mode, the threaded rod is connected with the clamping block in a rotating mode, and a rotating handle is fixedly connected to the lower end of the threaded rod.
The utility model discloses following beneficial effect has:
1. through setting up parts such as spring, sliding block, first connecting rod, stabilizer, in daily use, under the effect of spring, the spring passes through the stabilizer and drives the pencil and inwards press from both sides tightly, has improved the stability when pencil is connected with the connector greatly.
2. Through setting up parts such as grip block, threaded rod, through rotating the handle, can drive threaded rod 15 and rotate and upwards slide, drive grip block upwards slide then, so can fix the pencil.
Drawings

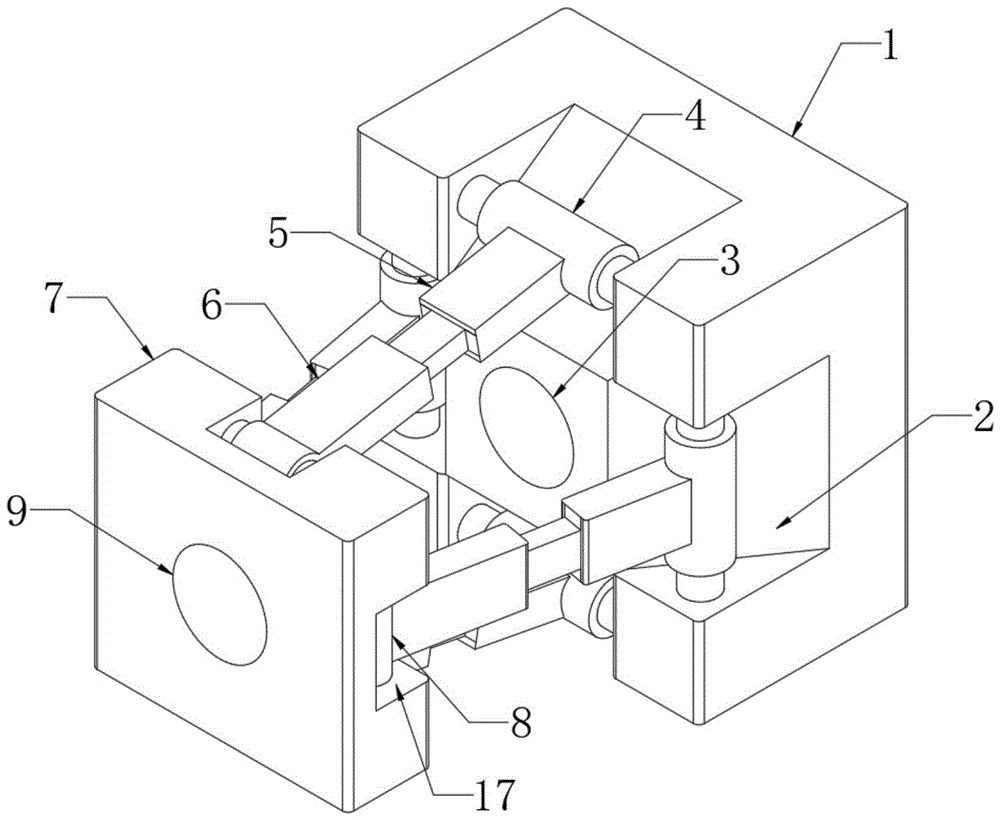

Fig. 1 is a schematic structural view of a household electrical appliance wiring harness connection device provided by the present invention;
fig. 2 is a sectional view of the first link and the second link in fig. 1.
Fig. 3 is a cross-sectional view of the stabilizer of fig. 1.
In the figure: the device comprises a connector 1, a rotating groove 2, a wiring harness groove 3, a first rotating rod 4, a first connecting rod 5, a second connecting rod 6, a stabilizer 7, a second rotating rod 8, a clamping groove 9, a device cavity 10, a sliding block 11, a spring 12, a clamping block 13, a threaded groove 14, a threaded rod 15, a rotating handle 16 and a connecting groove 17.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1-3, a household electrical appliances pencil connecting device, including connector 1, connector 1 outer wall is seted up with pencil groove 3, connector 1 outer wall is seted up four and is rotated groove 2, four are rotated 2 internal rotation in the groove and are connected with first pivot 4, first pivot 4 outer wall fixedly connected with first connecting rod 5, first connecting rod 5 is connected with stabilizer 7 through coupling mechanism, stabilizer 7 outer wall has seted up spread groove 17, stabilizer 7 outer wall has seted up centre gripping groove 9, centre gripping groove 9 is located the same water flat line with pencil groove 3, it should be noted that connector 1 its connected mode and mounting means, and technical function are mature technology, are irrelevant with this scheme design purpose, so no longer describe in detail.
Coupling mechanism is including rotating the second bull stick 8 of connection in spread groove 17, 8 fixedly connected with second connecting rod 6 of second bull stick, device chamber 10 has been seted up in the second connecting rod 6, sliding connection has sliding block 11 in the device chamber 10, first connecting rod 5 and sliding block 11 fixed connection, 11 lateral wall fixedly connected with springs 12 of sliding block, springs 12 fixed connection is at the device intracavity 10 inner wall, sliding connection has grip block 13 in the grip block 9, thread groove 14 has been seted up to 7 outer walls of stabilizer, 14 threaded connection in thread groove has threaded rod 15, threaded rod 15 rotates with grip block 13 to be connected, 15 lower extreme fixedly connected with of threaded rod changes 16, what need explain, rotate with grip block 13 through setting up threaded rod 15 and be connected, when threaded rod 15 rotates, can not drive grip block 13 and rotate.
The utility model discloses in, when using the device, in putting into pencil groove 3 in passing through centre gripping groove 9 with the pencil, rotate to 16 with the hand, change 16 and drive threaded rod 15 and rotate, threaded rod 15 rotates on one side in thread groove 14, upwards slides on one side, drives grip block 13 and upwards slides then, so can fix the pencil of placing in centre gripping groove 9.
Simultaneously under the effect of spring 12, spring 12 drives second connecting rod 6 and slides to the left side, then can make stabilizer 7 be in the tight state of clamp inwards all the time, so stability when having improved pencil and connector 1 greatly and being connected.
