Abstract
The utility model relates to a concrete mixing technical field especially relates to a microcapsule prevention of seepage self-healing agent agitated vessel, including a jar body, base, landing leg, fixed connection landing leg on the base, the jar body is on through landing leg fixed connection base, jar body fixedly connected with feed inlet and batching mouth, jar body bottom is equipped with the discharge gate, fixedly connected with backup pad on the base, be equipped with fixed connection driving motor in the backup pad, driving motor's output shaft and jar body activity run through and extend to jar internal, jar internal be equipped with the first pivot of output shaft symmetry, jar internal rabbling mechanism that is equipped with, rabbling mechanism with output shaft, first pivot connection, it is internal that the jar body still is equipped with the second pivot that the activity runs through and extends to the jar, a plurality of arcs of second pivot one end fixedly connected with, the second pivot other end is equipped with reciprocating mechanism, the backup pad is connected with drive mechanism, drive mechanism cooperates with reciprocating mechanism.
Description
Technical Field
The utility model relates to a concrete mixing technical field especially relates to a microcapsule prevention of seepage self-healing agent agitated vessel.
Background
With the acceleration of the urbanization process in China, urban land is increasingly tense, underground space development projects are more and more, and the scale is larger and larger. Along with the gradual increase of underground buildings, the underground buildings are difficult to collect light, poor in ventilation and increasingly paid more attention by people. In recent years, underground buildings such as underground garages, underground commercial districts and underground rail transit have gradually been exposed due to the defects of poor waterproof effect and the like. In order to meet the increasing social demands, a large amount of infrastructure needs to be built in China at present, and the problem of concrete cracks and the traditional repairing method are accompanied with the building and maintenance process.
In recent years, new technologies and new materials for repairing concrete cracks are emerging continuously, and the search for a concrete crack repairing method which is more environment-friendly and has better durability becomes a research focus of technicians. The technology of microbial induced deposition of calcium carbonate (MICP) has the advantages of environmental protection, real-time repair, no need of manual intervention and the like, so that the technology attracts the attention of many scholars at home and abroad. In the underground rail transit field, the building is long and narrow, and tiny crack is difficult to be perceived by the manual work, if utilize MICP technique, along with the fracture is repaired, reduces the influence that the crack probably caused in time.
A concrete mixer is a device for mixing cement, gravel aggregate and water and stirring the mixture to prepare a concrete mixture, the traditional concrete mixer mainly rotates a shaft with blades in a cylinder or a tank to stir and mix various raw materials to form a mixture or a machine with proper viscosity, however, the traditional mixer has the defects of slow stirring speed, slow mixing speed, low uniformity and the like, so that the product after the raw materials are mixed cannot meet the production requirement and the production efficiency is low. More importantly, because the inner stirring blades of the traditional stirrer can not fully fuse the microcapsules with the concrete, the concrete at the bottommost part can not be stirred.
Disclosure of Invention
An object of the utility model is to provide a microcapsule prevention of seepage self-healing agent agitated vessel carries out unordered stirring through first stirring subassembly and second stirring subassembly, solves the unable problem that fully fuses with the concrete of microcapsule.
The utility model discloses a following technical scheme realizes:
the utility model provides a microcapsule prevention of seepage self-healing agent agitated vessel, includes a jar body, base, landing leg, fixed connection landing leg on the base, the jar body is through on the landing leg fixed connection base, jar body fixedly connected with feed inlet and batching mouth, jar body bottom is equipped with the discharge gate, fixedly connected with backup pad on the base, be equipped with fixed connection driving motor in the backup pad, driving motor's output shaft runs through with jar body activity and extends to jar internal, jar internal be equipped with the first pivot of output shaft symmetry, jar internal rabbling mechanism that is equipped with, rabbling mechanism with output shaft, first pivot are connected, it is internal that jar still is equipped with the second pivot that the activity runs through and extends to jar, a plurality of arcs of second pivot one end fixedly connected with, the second pivot other end is equipped with reciprocating mechanism, the backup pad is connected with drive mechanism, drive mechanism and reciprocating mechanism cooperation, drive mechanism is connected with the transmission shaft, the transmission shaft is equipped with the second bevel gear, output shaft fixedly connected with first bevel gear, the second bevel gear with first bevel gear meshing.
Preferably, the first rotating shaft is fixedly connected with the first bevel gear, the first bevel gear is meshed with the second bevel gear to change the transverse output force of the driving motor into vertical output force, two ends of the stirring mechanism are respectively connected with the output shaft and the first rotating shaft, the output shaft drives the first stirring assembly to rotate to stir the stirred material, and the plurality of arc-shaped plates are driven by the reciprocating mechanism to rotate in the reciprocating direction to circumferentially rotate the stirred material and stir the materials at the edge and the bottom to the center.
The stirring mechanism comprises a first stirring assembly and a second stirring assembly, the first stirring assembly comprises a plurality of arc-shaped rods, the two ends of the arc-shaped rods are fixedly connected with the output shaft and the first rotating shaft respectively, the second stirring assembly comprises a first ring, the first ring is fixedly connected with the output shaft and the first rotating shaft, the first ring is concentrically provided with a second ring and a third ring in sequence, and the second ring is movably connected with the first ring and the third ring respectively.
Preferably, the two ends of the arc-shaped rods are respectively provided with an output shaft and a third rotating shaft, the arc-shaped rods are uniformly arranged on the shaft walls of the output shaft and the first rotating shaft, the output shaft rotates to drive the first stirring assembly to rotate, the first ring, the second ring and the third ring are concentrically arranged, the first ring is fixedly connected with the output shaft and the first rotating shaft, the first ring is rotatably connected with the second ring, and the second ring is rotatably connected with the third ring, so that the first stirring assembly and the second stirring assembly can be used for stirring a stirred material in an unordered manner.
Reciprocating mechanism includes gear, rack, connecting rod, second pivot fixed connection the gear, the gear with rack toothing, connecting rod fixed connection has the bolt, the bolt with rack swing joint. Preferably, the reciprocating mechanism drives the plurality of arc-shaped plates to rotate so as to stir the stirred materials in a reciprocating mode, the gear is meshed with the rack, and reciprocating motion of the rack is converted into rotary motion of the gear.
The transmission mechanism comprises a first belt wheel, a second belt wheel and a transmission belt, the first belt wheel and the second belt wheel are movably connected with the support plate, the transmission shaft is fixedly connected with the first belt wheel, the second belt wheel is fixedly connected with the connecting rod, and the first belt wheel and the second belt wheel are connected through the transmission belt. Preferably, the transmission shaft transmits the force output by the driving motor to the first belt wheel, and the force of the first belt wheel is transmitted to the second belt wheel through the transmission belt, so that the transmission process is stable in operation, low in noise and low in vibration; the belt pulley transmission is simple in structure and convenient to adjust, the supporting plate is used for providing mounting positions for the first belt pulley and the second belt pulley, and meanwhile, the supporting plate also has the bearing effect.
The batching mouth is equipped with adjusting part, adjusting part includes the baffle, baffle one end with it is articulated to join in marriage the mouth, the baffle terminal surface is equipped with fixed connection the screw rod, the spacing groove has been seted up on the batching mouthful lateral wall, the spacing groove with the screw rod cooperation, adjusting part still is equipped with the nut, the nut with the screw rod cooperation, and the butt is in it is in to join in marriage a mouthful outer wall. Preferably, the discharge amount of the ingredients is adjusted by adjusting the position of the screw rod so as to change the size of the outlet of the ingredient opening.
The arc plates are uniformly fixed on the shaft wall of the second rotating shaft. Preferably, the arc-shaped plate stirs the edge stirring object which cannot be stirred by the stirring mechanism in the rotating process, and stirs the edge stirring object to the center so that the stirring mechanism stirs the edge stirring object fully.
Compared with the prior art, the invention has the following advantages and beneficial effects:
1. the utility model is annularly arranged through the plurality of arc-shaped rods of the first stirring component, the first stirring component can stir the stirred materials in an annular manner when stirring, and the stirred materials around are stirred inwards, so that the inner parts of the first stirring component are dispersed around;
2. the utility model fully stirs the stirred material in the first stirring component again and the setting structure of the second stirring component stirs the stirred material out of order because the second stirring component is arranged in the first stirring component;
3. the utility model discloses a plurality of arcs stir the stirring thing of jar body edge and bottom, stir the stirring thing of edge and bottom to the center simultaneously, make rabbling mechanism stir once more.
Drawings
The accompanying drawings, which are included to provide a further understanding of the embodiments of the invention and are incorporated in and constitute a part of this application, illustrate embodiment(s) of the invention and together with the description serve to explain the principles of the invention. In the drawings:

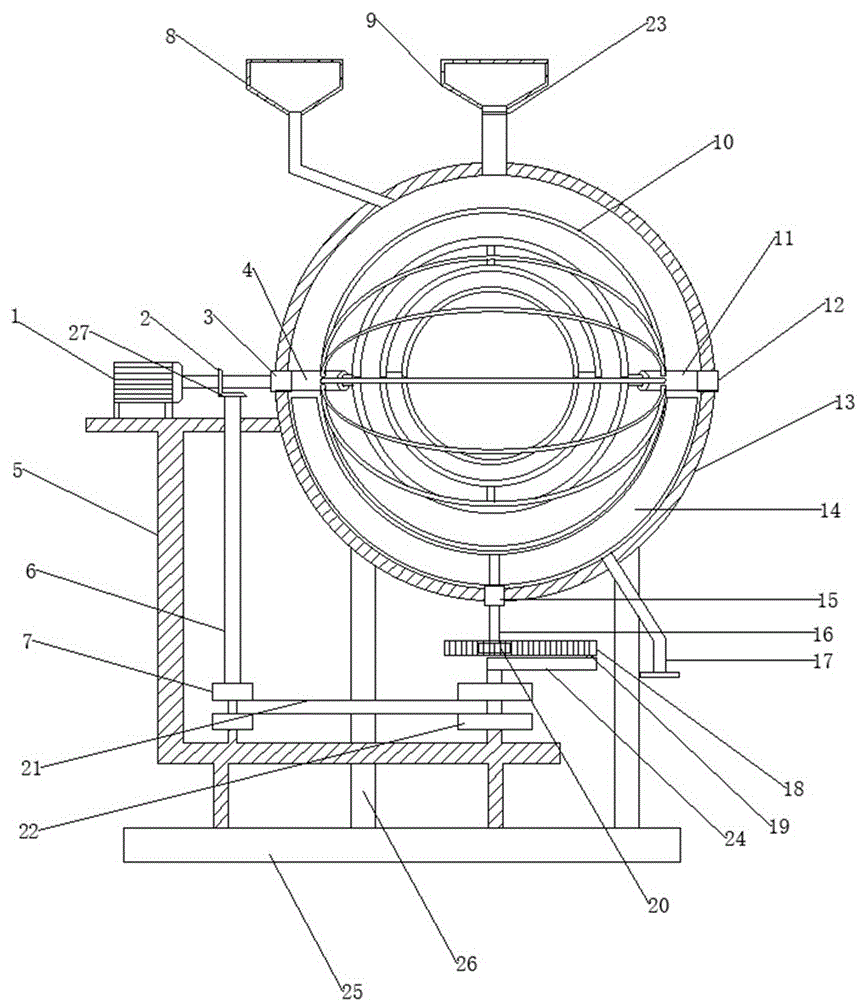

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic structural view of a first stirring assembly of the present invention;
FIG. 3 is a schematic view of a second stirring assembly of the present invention;
FIG. 4 is a schematic structural view of a plurality of curved plates of the present invention;
fig. 5 is a schematic structural diagram of the adjusting assembly of the present invention.
The reference numbers denote: 1-drive motor, 2-first bevel gear, 3-first sleeve, 4-output shaft, 5-support plate, 6-drive shaft, 7-first belt wheel, 8-feed inlet, 9-proportioning port, 10-stirring mechanism, 101-second stirring component, 1011-first ring, 1012-second ring, 1013-third ring, 102-first stirring component, 1021-multiple arc-shaped rods, 11-first rotating shaft, 12-second sleeve, 13-tank body, 14-multiple arc-shaped plates, 15-third sleeve, 16-second rotating shaft, 17-discharge port, 18-rack, 19-bolt, 20-gear, 21-transmission belt, 22-second belt wheel, 23-adjusting component, 2301-partition plate, 2301-screw rod, 2303-nut, 24-connecting rod, 25-base, 26-support leg, 27-second bevel gear.
Detailed Description
To make the objects, technical solutions and advantages of the present invention more apparent, the present invention is further described in detail below with reference to the following examples and drawings, and the exemplary embodiments and descriptions thereof of the present invention are only used for explaining the present invention, and are not intended as limitations of the present invention. It should be noted that the present invention is already in practical development and use stage.
Example 1
Referring to fig. 1 to 5 together, this embodiment includes a tank 13, a base 25, and support legs 26, the tank 13 is fixedly connected with a feed inlet 8 and a dispensing port 9, a discharge outlet 17 is disposed at the bottom of the tank 13, the support legs 26 are fixedly connected to the base 25, the tank 13 is fixedly connected to the base 25 through the support legs 26, a support plate 5 is fixedly connected to the base 25, a driving motor 1 is fixedly connected to the support plate 5, an output shaft 4 of the driving motor 1 movably penetrates through the tank 13 and extends into the tank 13, a first rotating shaft 11 symmetrical to the output shaft 4 is disposed in the tank 13, a stirring mechanism 10 is disposed in the tank 13, the stirring mechanism 10 is connected to the output shaft 4 and the first rotating shaft 11, the tank 13 is further provided with a second rotating shaft 16 movably penetrating through and extends into the tank 13, one end of the second rotating shaft 16 is fixedly connected to a plurality of arc plates 14, the other end of the second rotating shaft 16 is provided with a reciprocating mechanism, the support plate 5 is connected to a transmission mechanism, the transmission mechanism is matched with the reciprocating mechanism, the transmission mechanism is connected to the transmission shaft 6, the transmission shaft 6 is provided with a gear 27, the output shaft 4 is fixedly connected to the first bevel gear 27, and the second bevel gear is engaged with the first bevel gear 2.
The specific operation process is as follows: the material passes through feed inlet 8 gets into, and the batching passes through batching mouth 9 gets into, first pivot 11 is in drive under driving motor 1's the effect stirring mechanism 10 rotates, simultaneously driving motor 1 passes through first bevel gear 2 with the meshing of second bevel gear 27 is with power transmission to drive mechanism, drive mechanism adopts the mode transmission of belt pulley, through drive mechanism with reciprocating mechanism cooperation makes the third stirring subassembly carry out reciprocal stirring to marginal material.
It should be noted that the output shaft 4 is movably inserted through the tank 13 through the first sleeve 3, the first rotating shaft 11 is movably connected to the second sleeve 12 on the tank 13, the second rotating shaft 16 is movably connected to the tank 13 through the third sleeve 15, one end of a plurality of arc rods 1021 in the first stirring assembly 102 is fixedly connected to the output shaft 4, the other end of each arc rod is fixedly connected to the first rotating shaft 11, the arc rods are uniformly arranged on the shaft walls of the output shaft 4 and the first rotating shaft 11, the second stirring assembly 101 is arranged in the first stirring assembly 102, the second stirring assembly 101 includes a first ring 1011, a second ring 1012 and a third ring 1013, the first ring 1011, the second ring 1012 and the third ring 1013 are concentrically arranged, the first ring 1011 and the second ring 1012 are both fixedly connected to each other, the connecting shaft on the first ring 1011 is rotatably connected to the third ring 1013, the connecting shaft on the first ring 1011 is vertically arranged to the second ring 1012, and the second ring 1011 and the third ring 1013 are more uniformly stirred.
The transmission mechanism is driven by a belt pulley, the transmission operation is stable, the noise and the vibration are low, the torque can be stably transmitted to the reciprocating mechanism, the reciprocating mechanism adopts a gear 20 and a rack 18 for meshing transmission, the rack 18 is movably connected with a connecting rod 24 through a bolt 19, the connecting rod 24 is fixedly connected with a second belt pulley 22, the rack 18 is driven by the rotation of the second belt pulley 22 to do reciprocating linear motion, so that the gear 20 does rotary motion, the arc-shaped plates 14 are fixedly connected with a second rotating shaft 16 and are radial, and the arc-shaped rods 1021 are annularly arranged; preferably, the first sleeve 3, the second sleeve 12 and the third sleeve 15 are all in dynamic seal, and the discharge port 17 is also in movable seal; preferably, the driving motor 1 is connected through bolts, so that the bolts are convenient to connect, the self-locking performance is good, and the strength is high.
The above-mentioned embodiments, further detailed description of the objects, technical solutions and advantages of the present invention, it should be understood that the above description is only the embodiments of the present invention, and is not intended to limit the scope of the present invention, and any modifications, equivalent substitutions, improvements, etc. made within the spirit and principle of the present invention should be included in the scope of the present invention.
Claims (6)
1. The utility model provides a microcapsule prevention of seepage self-healing agent agitated vessel, includes jar body (13), base (25), landing leg (26), fixed connection landing leg (26) on base (25), jar body (13) is through on landing leg (26) fixed connection base (25), its characterized in that: the tank body (13) is fixedly connected with a feed inlet (8) and a mixing port (9), a discharge hole (17) is arranged at the bottom of the tank body (13), a supporting plate (5) is fixedly connected to the base (25), the supporting plate (5) is fixedly connected with a driving motor (1), an output shaft (4) of the driving motor (1) movably penetrates through the tank body (13) and extends into the tank body (13), a first rotating shaft (11) which is symmetrical with the output shaft (4) is arranged in the tank body (13), a stirring mechanism (10) is arranged in the tank body (13), the stirring mechanism (10) is connected with the output shaft (4) and the first rotating shaft (11), the tank body (13) is also provided with a second rotating shaft (16) which movably penetrates through the tank body and extends into the tank body (13), one end of the second rotating shaft (16) is fixedly connected with a plurality of arc-shaped plates (14), the other end of the second rotating shaft (16) is provided with a reciprocating mechanism, the supporting plate (5) is connected with a transmission mechanism, the transmission mechanism is matched with the reciprocating mechanism, the transmission mechanism is connected with a transmission shaft (6), the transmission shaft (6) is provided with a second bevel gear (27), the output shaft (4) is fixedly connected with a first bevel gear (2), the second bevel gear (27) meshes with the first bevel gear (2).
2. The microcapsule anti-seepage self-healing agent stirring device according to claim 1, characterized in that: stirring mechanism (10) includes first stirring subassembly (102), second stirring subassembly (101), first stirring subassembly (102) includes a plurality of arc poles (1021), a plurality of arc poles (1021) both ends are fixed connection respectively output shaft (4), first pivot (11), second stirring subassembly (101) includes first ring (1011), first ring (1011) fixed connection output shaft (4), first pivot (11), first ring (1011) are equipped with second ring (1012), third ring (1013) in proper order with one heart, second ring (1012) respectively first ring (1011), third ring (1013) swing joint.
3. The microcapsule impermeable self-healing agent stirring device according to claim 1, characterized in that: reciprocating mechanism includes gear (20), rack (18), connecting rod (24), second pivot (16) fixed connection gear (20), gear (20) with rack (18) meshing, connecting rod (24) fixed connection has bolt (19), bolt (19) with rack (18) swing joint.
4. The microcapsule anti-seepage self-healing agent stirring device according to claim 3, characterized in that: the transmission mechanism comprises a first belt wheel (7), a second belt wheel (22) and a transmission belt (21), the first belt wheel (7) and the second belt wheel (22) are movably connected with the support plate (5), the transmission shaft (6) is fixedly connected with the first belt wheel (7), the second belt wheel (22) is fixedly connected with the connecting rod (24), and the first belt wheel (7) and the second belt wheel (22) are connected through the transmission belt (21).
5. The microcapsule anti-seepage self-healing agent stirring device according to claim 1, characterized in that: batching mouth (9) is equipped with adjusting part (23), adjusting part (23) include baffle (2301), baffle (2301) one end with batching mouth (9) are articulated, baffle (2301) terminal surface is equipped with fixed connection's screw rod (2302), the spacing groove has been seted up on batching mouth (9) lateral wall, the spacing groove with screw rod (2302) cooperation, adjusting part (23) still is equipped with the nut, the nut with screw rod (2302) cooperation, and the butt is in batching mouth (9) outer wall.
6. The microcapsule impermeable self-healing agent stirring device according to claim 1 or 3, characterized in that: the arc-shaped plates (14) are uniformly fixed on the shaft wall of the second rotating shaft (16).
