The invention relates to the technical field of construction machinery, in particular to a multi-cavity horizontal stirrer for buildings, which comprises a base platform, wherein a left supporting block and a right supporting block are respectively arranged on the left side and the right side of the base platform; a bearing seat is arranged on the left supporting block, and a first bearing is arranged on the bearing seat; a second bearing is arranged on the right supporting block; a transmission shaft is arranged between the first bearing and the second bearing, the end of the transmission shaft extending out of the second bearing is provided with a motor, and the motor is arranged on the top surface of the right support block; supporting frames are arranged on the outer side surfaces of the left supporting block and the right supporting block; the stirring cylinder is combined by adopting a plurality of stirring cylinders, so that the stirring of a plurality of concrete materials with different formulas can be processed and stirred at the same time conveniently, the use is convenient, the operation is convenient, and the processing speed and the working efficiency are greatly improved.
Description
Technical Field
The invention relates to the technical field of construction machinery, in particular to a multi-cavity horizontal stirrer for buildings.
Background
The stirrer is a building engineering machine, and is mainly used for stirring building materials such as cement, sand and stone, various dry-mixed mortar and the like. Is a machine which stirs and mixes a plurality of raw materials to form a mixture or proper consistency. The stirring machines are divided into various types, such as a forced stirring machine, a single horizontal shaft stirring machine, a double horizontal shaft stirring machine and the like. The traditional blender has the following problems: when concrete materials with different formula proportions are needed, the concrete materials need to be processed in a plurality of batches, which wastes time and causes low working efficiency.
Disclosure of Invention
The invention aims to overcome the defects and shortcomings of the prior art, and provides a multi-cavity horizontal mixer for buildings, which is combined by adopting a plurality of mixing sub-cylinders, is convenient for mixing concrete materials with different formulas at the same time, is convenient to use and operate, and greatly improves the processing speed and the working efficiency.
In order to achieve the purpose, the invention adopts the technical scheme that:
the invention relates to a multi-cavity horizontal stirrer for buildings, which comprises a base platform, wherein a left supporting block and a right supporting block are respectively arranged on the left side and the right side of the base platform; a bearing seat is arranged on the left supporting block, and a first bearing is arranged on the bearing seat; a second bearing is arranged on the right supporting block; a transmission shaft is arranged between the first bearing and the second bearing, the end of the transmission shaft extending out of the second bearing is provided with a motor, and the motor is arranged on the top surface of the right support block; supporting frames are arranged on the outer side surfaces of the left supporting block and the right supporting block; the inner walls of the left side and the right side of the supporting frame are provided with a first rotating disc and a second rotating disc; a stirring cylinder assembly is arranged between the first rotating disc and the second rotating disc;
the mixing drum component consists of a first mixing sub-drum, a second mixing sub-drum and a third mixing sub-drum; a third bearing is arranged at the center of the right side surface of the first stirring cylinder; the bearing IV is arranged at the center of the left side surface of the stirring cylinder II; a first connecting shaft rod is arranged between the third bearing and the fourth bearing; a fifth bearing is arranged in the center of the right side surface of the second stirring cylinder; a bearing six is arranged at the center of the left side surface of the stirring cylinder III; a second connecting shaft rod is arranged between the fifth bearing and the sixth bearing; a plurality of first horizontal rods are uniformly arranged on the left side surface of the first stirring cylinder, and the first horizontal rods are connected with the right side surface of the first rotating disc; a plurality of second horizontal rods are uniformly arranged on the right side surface of the third stirring cylinder, and the second horizontal rods are connected with the left side surface of the second rotary table;
a first material inlet and outlet is formed in the middle of the left side face of the first stirring sub-cylinder, and a first ring gear is sleeved in the middle of the upper part of the first stirring sub-cylinder; four feeding and discharging ports II are uniformly arranged on the surface of the cylinder body of the stirring cylinder II, and ring gears II are correspondingly sleeved on the stirring cylinder II and the two sides of the cylinder body; the surface of the cylinder body of the stirring cylinder III is sleeved with a ring gear III; the first ring gear, the second ring gear and the third ring gear are respectively meshed with a first driving wheel, a second driving wheel and a third driving wheel which are arranged on a transmission shaft; and a third material inlet and outlet is formed in the middle of the right side surface of the third stirring cylinder.
Further, a solar panel is mounted on the top surface of the support frame.
Furthermore, a plurality of convex blocks are installed on the inner side of the bottom surface of the supporting frame, grooves are formed in the bottom surfaces of the convex blocks, U-shaped frames are arranged on the bottom surfaces of the convex blocks, and rotating rollers are arranged on the U-shaped frames.
Furthermore, LED lamps are correspondingly arranged on the left side and the right side of the inner wall of the top surface of the supporting frame.
After adopting the structure, the invention has the beneficial effects that: the multi-cavity horizontal mixer for the building is combined by adopting the plurality of mixing sub-barrels, so that the mixing of a plurality of concrete materials with different formulas can be conveniently processed and mixed at the same time, the use is convenient, the operation is convenient, and the processing speed and the working efficiency are greatly improved.
Drawings

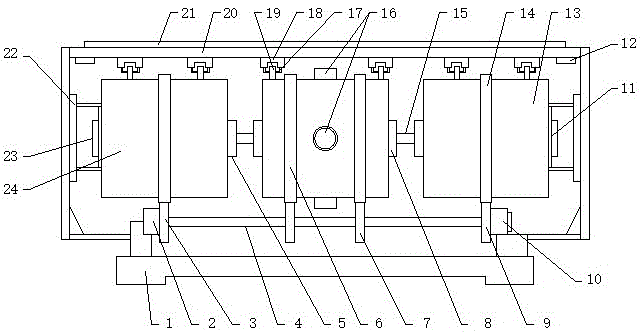

FIG. 1 is a schematic structural view of the present invention;
description of reference numerals:
1. a base table; 2. a bearing seat; 3. a first transmission wheel; 4. a drive shaft; 5. a third bearing; 6. a second ring gear; 7. a second driving wheel; 8. a fifth bearing; 9. a third driving wheel; 10. a motor; 11. feeding and discharging a third material port; 12. an LED lamp; 13. stirring and separating the third cylinder; 14. a third ring gear; 15. connecting a second shaft lever; 16. a feeding and discharging port II; 17. a U-shaped frame; 18. a bump; 19. rotating the roller; 20. a support frame; 21. a solar panel; 22. a first rotating disc; 23. a first feeding and discharging port; 24. and stirring and separating the cylinder I.
Detailed Description
The invention will be further described with reference to the accompanying drawings.
As shown in figure 1, the multi-cavity horizontal mixer for buildings comprises a base platform 1, wherein a left supporting block and a right supporting block are respectively arranged on the left side and the right side of the base platform 1; the left support block is provided with a bearing seat 2, and a bearing I is arranged on the bearing seat; a second bearing is arranged on the right supporting block; a transmission shaft 4 is arranged between the first bearing and the second bearing, a motor 10 is arranged at the end of the transmission shaft 4, which extends out of the second bearing, and the motor 10 is arranged on the top surface of the right supporting block; the outer side surfaces of the left supporting block and the right supporting block are provided with a supporting frame 20; the inner walls of the left side and the right side of the supporting frame 20 are provided with a first rotating disc 22 and a second rotating disc; a stirring cylinder assembly is arranged between the first rotating disc 22 and the second rotating disc;
the stirring cylinder component consists of a first stirring cylinder 24, a second stirring cylinder and a third stirring cylinder 13; a third bearing 5 is arranged at the center of the right side surface of the first stirring cylinder 24; the bearing IV is arranged at the center of the left side surface of the stirring cylinder II; a first connecting shaft rod is arranged between the third bearing and the fourth bearing; a fifth bearing 8 is arranged in the center of the right side surface of the second stirring cylinder; a bearing six is arranged at the center of the left side surface of the stirring cylinder III 13; a second connecting shaft rod 15 is arranged between the fifth bearing and the sixth bearing; a plurality of first horizontal rods are uniformly arranged on the left side surface of the first stirring cylinder 24 and are connected with the right side surface of the first rotating disc 22; a plurality of second horizontal rods are uniformly arranged on the right side surface of the third stirring cylinder 13 and are connected with the left side surface of the second rotary table;
a first feeding and discharging port 23 is formed in the middle of the left side face of the first stirring sub-cylinder 24, and a first ring gear is sleeved in the middle of the first stirring sub-cylinder 24; four material inlet and outlet ports II 16 are uniformly arranged on the surface of the cylinder body of the stirring cylinder II, and a ring gear II 6 is correspondingly sleeved on the two sides of the stirring cylinder II and the cylinder body; the surface of the cylinder body of the stirring cylinder III 13 is sleeved with a ring gear III 14; the first ring gear, the second ring gear 6 and the third ring gear 14 are respectively meshed with a first driving wheel 3, two second driving wheels 7 and a third driving wheel 9 which are arranged on the transmission shaft 4; and a material inlet and outlet third 11 is arranged in the middle of the right side surface of the stirring cylinder third 13.
As a preferred aspect of the present invention, a solar panel 21 is mounted on the top surface of the support frame 20.
Preferably, a plurality of bumps 18 are mounted on the inner side of the bottom surface of the supporting frame 20, grooves are formed in the bottom surfaces of the bumps, a U-shaped frame 17 is arranged on the bottom surface of the bump, and a rotating roller 19 is arranged on the U-shaped frame 17.
In a preferred embodiment of the present invention, the LED lamps 12 are mounted on the left and right sides of the inner wall of the top surface of the supporting frame 20.
The working principle of the invention is as follows:
in the design, the stirring cylinder component consists of a first stirring cylinder 24, a second stirring cylinder and a third stirring cylinder 13; a feeding and discharging port I23 is arranged on the left side surface of the stirring cylinder I24; four material inlet and outlet ports II 16 are uniformly arranged on the cylinder body of the stirring cylinder II; a material inlet and outlet third 11 is arranged in the middle of the right side surface of the stirring cylinder third 13; thereby facilitating feeding and discharging. When in use, the motor 10 drives the transmission shaft 4 to rotate; driving a first driving wheel 3, two second driving wheels 7 and a third driving wheel 9 which are arranged on a transmission shaft 4 to rotate; the first driving wheel 3, the second driving wheel 7 and the third driving wheel 9 are driving wheels with the same size; the first transmission wheel 3, the second transmission wheels 7 and the third transmission wheel 9 respectively drive the first ring gear, the second ring gear 6 and the third ring gear 14 which are meshed with the first transmission wheel, the second transmission wheels and the third transmission wheels to rotate; thereby driving the first stirring cylinder 24, the second stirring cylinder and the third stirring cylinder 13 to rotate and stirring the concrete materials in the first stirring cylinder 24, the second stirring cylinder and the third stirring cylinder 13. During stirring, in order to further stabilize stirring, the cylinder bodies of the first stirring cylinder 24, the second stirring cylinder and the third stirring cylinder 13 are in contact with the plurality of rollers 19 on the inner wall of the top surface of the supporting frame 20 to form rolling friction, so that the balance of the stirring cylinder assembly can be ensured.
In this design, the stirring divides a section of thick bamboo 24, the stirring divides a section of thick bamboo two and the stirring to divide and adopt connecting axostylus axostyle one to link to each other with connecting axostylus axostyle two 15 between the section of thick bamboo three 13, connecting axostylus axostyle one and connecting axostylus axostyle two 15 to install respectively in the bearing, therefore the stirring divides a section of thick bamboo 24, the stirring divides a section of thick bamboo two and the stirring to divide a section of thick bamboo three 13 if needs different speeds to stir, as long as single motor that is equipped with different speeds just can realize the.
In this design, solar energy electroplax 21 is installed to braced frame 20's top surface, and solar energy electroplax 21 is as the power supply source, both can be for the motor power supply, also can be for installing the LED lamp 12 power supply of braced frame 20's top surface inner wall left and right sides, and LED lamp 12 plays the illumination effect.
The multi-cavity horizontal mixer for the building is combined by adopting the plurality of mixing sub-barrels, so that the mixing of a plurality of concrete materials with different formulas can be conveniently processed and mixed at the same time, the use is convenient, the operation is convenient, and the processing speed and the working efficiency are greatly improved.
The above description is only a preferred embodiment of the present invention, and all equivalent changes or modifications of the structure, characteristics and principles described in the present invention are included in the scope of the present invention.
