CN218686879U - Stem cell is with filtering separation equipment - Google Patents
Stem cell is with filtering separation equipment Download PDFInfo
- Publication number
- CN218686879U CN218686879U CN202222893645.5U CN202222893645U CN218686879U CN 218686879 U CN218686879 U CN 218686879U CN 202222893645 U CN202222893645 U CN 202222893645U CN 218686879 U CN218686879 U CN 218686879U
- Authority
- CN
- China
- Prior art keywords
- stem cell
- filtering
- fixedly installed
- pipe
- fixed mounting
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Abstract
The utility model discloses a filtration and separation equipment for stem cell relates to stem cell filtration technical field, has solved current technique and has had the technical problem that can not the whirl rush to drench the stem cell, can not make things convenient for operating personnel to get and put the stem cell tissue, including the main barrel body, wall fixed mounting has an upper cover section of thick bamboo on the main barrel body, fixed mounting has the crane in the main barrel body, slidable mounting has the U-shaped frame in the crane, rotate on the U-shaped frame and install the drainage case, wall fixed mounting has the filtrate fill on the drainage case, install filter paper in the filtrate fill, the utility model discloses a whirl is filtered for stem cell on the test paper erodees evenly slowly, is of value to the protection stem cell tissue, filters through filter paper, guarantees cleanly, through rose box elevation structure and slope structure, and the operating personnel of being convenient for change and stem cell tissue, carries out automatic rush to the stem cell tissue through whirl water storage box structure, improves the stability that filter paper drenches.
Description
Technical Field
The utility model relates to a stem cell filters technical field, specifically is a stem cell is with filtering separation equipment.
Background
The utility model relates to a stem cell filtration technology, stem cell are a type of multipotential cell that has self-replicating ability, under certain condition, it can differentiate into multiple function cell, divide into embryonic stem cell and adult stem cell according to the developmental stage that stem cell is located, and stem cell is an abundant differentiation, and immature cell has the function of regenerating various tissue organs and human body, and the medical field is called "general purpose cell". At present, a filtration method is often adopted to remove redundant tissues and obtain pure stem cells. However, the existing filtering device can not be convenient for operators to sample and filter and can not carry out stable rotational flow to flush stem cells.
For example, a utility model with a name of a placenta tissue stem cell filtering device and a publication number of CN209226978U has the technical problems that stem cells cannot be flushed by rotational flow and the stem cell tissue cannot be taken and put conveniently by an operator.
SUMMERY OF THE UTILITY MODEL
Not enough to prior art, the utility model provides a filtration and separation equipment for stem cell has solved current technique and has existed the technical problem that can not the whirl rush to drench stem cell, can not make things convenient for operating personnel to get and put stem cell tissue.
In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: the utility model provides a filtration and separation equipment for stem cells, includes the main barrel, its characterized in that, wall fixed mounting has an upper cover section of thick bamboo on the main barrel, fixed mounting has the crane in the main barrel, slidable mounting has the U-shaped frame in the crane, the drainage case is installed in the rotation on the U-shaped frame, wall fixed mounting has the filtrating fill on the drainage case, install filter paper in the filtrating fill, install filtration elevation structure in the main barrel, install the filter slope structure in the main barrel, install the filtrating in the upper cover section of thick bamboo and spray the structure.
Preferably, the filtering lifting structure comprises a first motor, the first motor is fixedly mounted on the side wall surface of the main cylinder body, a driving gear is fixedly mounted at the fixed end of the first motor, shaft brackets are fixedly mounted at two ends of the lifting frame, a threaded shaft is rotatably mounted in the shaft brackets, a threaded hole is formed in the U-shaped bracket, the threaded shaft is in threaded connection with the U-shaped bracket, a driven gear is fixedly mounted at one end of the threaded shaft, and the driving gear is in meshed connection with the driven gear.
Preferably, the filtering inclined structure comprises an electric push rod, the electric push rod is rotatably installed on the upper wall surface of the U-shaped frame, and the telescopic end of the electric push rod is rotatably installed on the side wall surface of the filtrate hopper.
Preferably, the filtrating sprays the structure and includes the shower, fixed mounting has the water storage box in the upper cover section of thick bamboo, shower fixed mounting is wall under the water storage box, fixed mounting has the immersible pump in the water storage box, immersible pump output end fixed mounting has the liquid feeding pipe, the liquid feeding union coupling in on the shower.
Preferably, the spray pipe is an annular pipe body, and six spray heads are arranged in the annular pipe body.
Preferably, a swirl pool is fixedly arranged on the lower wall surface of the spray pipe.
Preferably, the side wall surface of the water storage tank is connected with a water adding pipe, a filter tank is fixedly installed in the water storage tank, a liquid discharge pipe is fixedly installed at the lower end of the liquid discharge tank, and the liquid discharge pipe is a hose.
Advantageous effects
The utility model provides a filtration and separation equipment for stem cell, the utility model discloses a whirl filters for stem cell on the test paper erodees evenly slowly, is of value to the protection stem cell tissue, filters through filter paper, guarantees cleanly, through rose box elevation structure and slope structure, and the operating personnel of being convenient for changes filter paper and stem cell tissue, carries out the automation through whirl water storage box structure and drenches the stem cell tissue, improves the stability that the whirl drenches.
Drawings

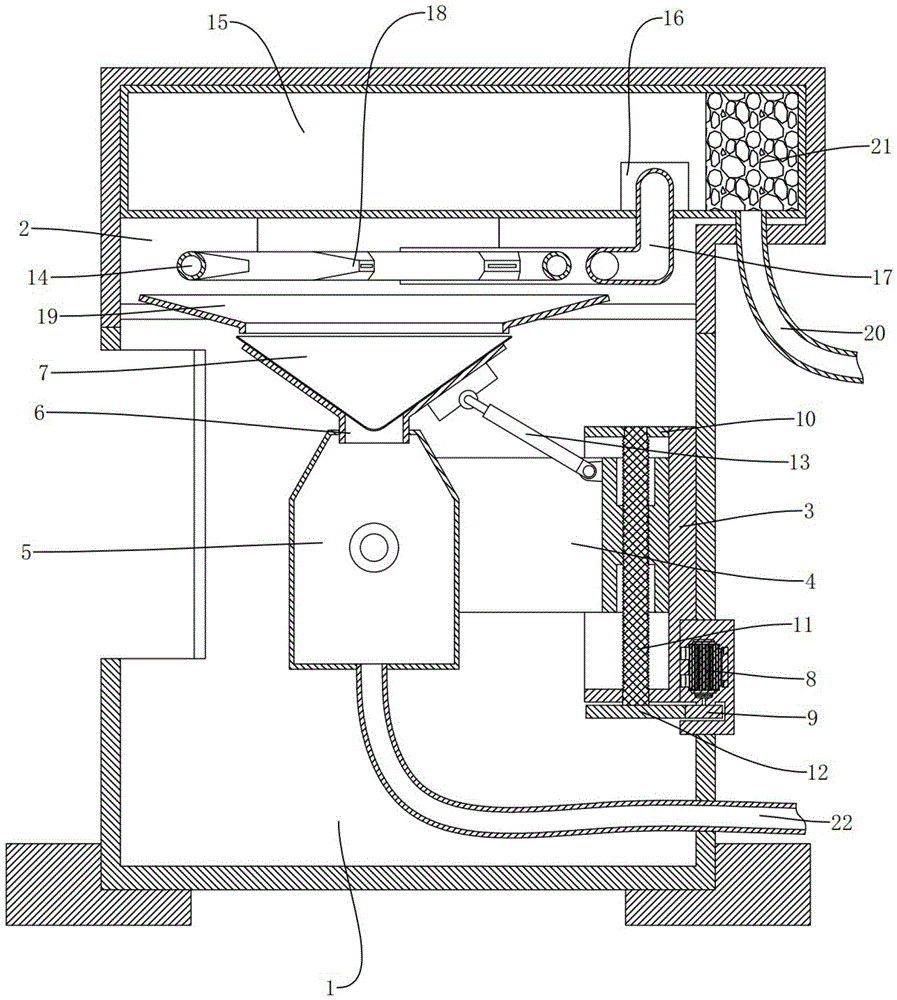

Fig. 1 is a schematic view of a main sectional structure of the filtration and separation apparatus for stem cells of the present invention.
Fig. 2 is a schematic top view of the cross-sectional structure of the filtration and separation apparatus for stem cells according to the present invention.
In the figure: 1. a main cylinder; 2. an upper cover cylinder; 3. a lifting frame; 4. a U-shaped frame; 5. a liquid discharge tank; 6. a filtrate hopper; 7. filtering paper; 8. a first motor; 9. a driving gear; 10. a shaft support; 11. a threaded shaft; 12. a driven gear; 13. an electric push rod; 14. a shower pipe; 15. a water storage tank; 16. a submersible pump; 17. a liquid feeding pipe; 18. a shower head; 19. a cyclone tank; 20. a water feeding pipe; 21. a filter box; 22. a liquid discharge pipe;
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-2, the present invention provides a technical solution: the utility model provides a stem cell is with filtering and separating equipment, includes the main barrel 1, its characterized in that, wall fixed mounting has upper cover section of thick bamboo 2 on the main barrel 1, fixed mounting has crane 3 in the main barrel 1, slidable mounting has U-shaped frame 4 in the crane 3, rotate on the U-shaped frame 4 and install drainage box 5, wall fixed mounting has filtrate fill 6 on drainage box 5, install filter paper 7 in the filtrate fill 6, install the filtration elevation structure in the main barrel 1, install the filtration slope structure in the main barrel 1, install filtrating spray structure in upper cover section of thick bamboo 2, it includes first motor 8 to filter the elevation structure, first motor 8 fixed mounting is in main barrel 1 lateral wall face, first motor 8 fixed mounting has driving gear 9, crane 3 both ends fixed mounting has axle frame 10, threaded shaft 11 is installed to the rotation in the main barrel 10, the threaded shaft 4 is seted up with the screw hole, threaded shaft 11 and U-shaped frame 4 threaded connection, threaded shaft 11 one end fixed mounting has driven gear 12, driving gear 9 meshes with driven gear 12 to be connected, filtration gear 12 meshes the filtration wall fixed mounting is in the water storage tube 13, the water storage tube fixed mounting is in the water storage tube 13 the water storage box 15, the submersible pump is installed on the water storage tube fixed mounting is 16, the liquid feeding tube is installed on the water storage box, the water storage tube fixed mounting 15 the side wall face, the submersible pump 13, the submersible pump is installed on the pump 13, the water storage tube is installed on the water storage tube fixed mounting is 16, the liquid discharge tube 14 the pump 13, the liquid discharge tube fixed mounting is installed, the liquid discharge tube 14 the pump 13, the liquid discharge tube is installed, the pump is installed on the liquid discharge tube fixed mounting is 16, the liquid discharge tube is 16, the submersible pump 13, the pump is installed on the liquid discharge tube fixed mounting is installed, the pump 14, six shower heads 18 have been seted up in the annular tube body, the terminal surface fixed mounting has whirl pond 19 under the shower 14, water storage box 15 side wall face is connected with filler pipe 20, fixed mounting has rose box 21 in the water storage box 15, 5 lower extremes fixed mounting of drainage box has fluid-discharge tube 22, fluid-discharge tube 22 is the hose.
The detailed connection means is a technique known in the art, and the following mainly describes the working principle and process, and the specific operation is as follows.
Example (b): as shown in fig. 1-2, the first motor 8, the submersible pump 16, and the electric push rod 13 are connected to an external controller and a power supply through wires, first, the first motor 8 drives the driving gear 9 to rotate, the driving gear 9 drives the driven gear 12 engaged therewith to rotate, the driven gear 12 drives the threaded shaft 11 to rotate, the threaded shaft 11 drives the U-shaped frame 4 to move up and down, so that the U-shaped frame 4 descends, then the electric push rod 13 extends to extend the telescopic end, so that the drainage box 5 tilts, so that the filtrate bucket 6 tilts towards the opening of the main cylinder 1, an operator replaces the filter paper 7 and the stem cell tissue, after installation, the device is reset, the submersible pump 16 is started, the submersible pump 16 allows the filtrate to enter the liquid feeding pipe 17 from the water storage box 15, and then the filtrate is ejected out through the spray head 18 on the spray pipe 14 to flush the filtered stem cell tissue liquid, the filtered liquid enters the drainage box 5 and is discharged through the drainage pipe 22, and the newly added filtrate enters the water feeding pipe 20 and is filtered and then enters the water storage box 15 to filter and separate the stem cell tissue.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions.
Claims (7)
1. The utility model provides a filtering separation equipment for stem cell, includes main barrel (1), its characterized in that, wall fixed mounting has upper cover section of thick bamboo (2) on main barrel (1), fixed mounting has crane (3) in main barrel (1), slidable mounting has U-shaped frame (4) in crane (3), rotate on U-shaped frame (4) and install drainage box (5), wall fixed mounting has filtrate to fight (6) on drainage box (5), install filter paper (7) in filtrate is fought (6), install filtration elevation structure in main barrel (1), install the filtration slope structure in main barrel (1), it sprays the structure to install filtrating in upper cover section of thick bamboo (2).
2. The filtering and separating device for the stem cells, according to claim 1, characterized in that the filtering and lifting structure comprises a first motor (8), the first motor (8) is fixedly installed on the side wall surface of the main cylinder body (1), a driving gear (9) is fixedly installed at the fixed end of the first motor (8), shaft brackets (10) are fixedly installed at two ends of the lifting bracket (3), a threaded shaft (11) is rotatably installed in the shaft brackets (10), a threaded hole is formed in the U-shaped bracket (4), the threaded shaft (11) is in threaded connection with the U-shaped bracket (4), a driven gear (12) is fixedly installed at one end of the threaded shaft (11), and the driving gear (9) is in meshed connection with the driven gear (12).
3. The filtering and separating device for the stem cells as claimed in claim 2, wherein the filtering and inclining structure comprises an electric push rod (13), the electric push rod (13) is rotatably installed on the upper wall surface of the U-shaped frame (4), and the telescopic end of the electric push rod (13) is rotatably installed on the side wall surface of the filtrate hopper (6).
4. The filtering and separating device for the stem cells according to claim 3, wherein the filtrate spraying structure comprises a spraying pipe (14), a water storage tank (15) is fixedly installed in the upper cover cylinder (2), the spraying pipe (14) is fixedly installed on the lower wall surface of the water storage tank (15), a submersible pump (16) is fixedly installed in the water storage tank (15), a liquid adding pipe (17) is fixedly installed at the output end of the submersible pump (16), and the liquid adding pipe (17) is connected to the spraying pipe (14).
5. The filtering and separating device for the stem cells as claimed in claim 4, wherein the spraying pipe (14) is an annular pipe body, and six spraying heads (18) are arranged in the annular pipe body.
6. The filtering and separating equipment for the stem cells as claimed in claim 4, wherein the cyclone pool (19) is fixedly arranged on the lower wall surface of the spray pipe (14).
7. The filtering and separating device for the stem cells as claimed in claim 4, wherein a water feeding pipe (20) is connected to the side wall surface of the water storage tank (15), a filtering tank (21) is fixedly installed in the water storage tank (15), a liquid discharging pipe (22) is fixedly installed at the lower end of the liquid discharging tank (5), and the liquid discharging pipe (22) is a hose.
