The utility model discloses a multi-functional mapping appearance for engineering relates to mapping appearance technical field, include: a base; a mounting base; a surveying instrument; the supporting component is rotatably connected to the bottom of the base; an adjustment mechanism; and a connecting mechanism. The utility model discloses a set up adjustment mechanism, can judge the perpendicular angle of mount pad through observing the inside liquid of air level, drive the worm wheel through rotating the worm and rotate, the worm wheel rotates under the worm drives and drives the threaded rod and rotate, the threaded rod rotates under the drive of worm wheel and drives square piece upward movement, square piece upward movement drives the mount pad and uses the supporting shoe to rotate as the centre of a circle under the drive of threaded rod, realize the horizontal perpendicular angle modulation to the mount pad promptly, accomplish the horizontal perpendicular angle modulation to the surveying instrument promptly, thereby avoid the surveying instrument to lead to the surveying instrument to place inequality because factors such as topography, the mapping data that causes is not accurate.
Description
Technical Field
The utility model relates to a surveying instrument technical field specifically is a multi-functional surveying instrument for engineering.
Background
Mapping is measurement and mapping. Based on computer technology, photoelectric technology, network communication technology, space science and information science, a global navigation positioning system, a shaking sense and a geographic information system are taken as technical cores, and the existing characteristic points and boundary lines of the ground are measured to obtain the graph and position information reflecting the current situation of the ground, so that the graph and position information is used for planning design and administrative management of engineering construction, measurement work carried out by planning design, construction and management of urban construction and the like, including control and measurement of dusty cities, mapping of urban topographic maps, compiling of various special maps, construction lofting during building of municipal engineering, deformation observation of important buildings and the like.
When using, the multifunctional surveying instrument for engineering can not be adjusted due to the installation angle of the surveying instrument, and the multifunctional surveying instrument can be inclined when placed on different terrains, so that the surveying data obtained by the multifunctional surveying instrument is inaccurate, and the working efficiency is influenced.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a multi-functional surveying instrument for engineering to solve the problem that proposes in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme:
a multi-functional mapper for engineering, comprising:
a base;
the mounting seat is arranged above the base;
the surveying instrument is arranged at the top of the mounting seat;
the supporting component is rotatably connected to the bottom of the base;
the adjusting mechanisms are distributed in the base, extend through the base to the inside of the mounting seat and are used for adjusting the horizontal angle of the mounting seat;
and the connecting mechanisms are distributed at the bottom of the surveying instrument and extend to the top of the mounting seat, and are used for rapidly mounting and operating the surveying instrument.
As a further aspect of the present invention: adjustment mechanism is including threaded rod, worm, supporting shoe, air level, worm wheel and square piece, the worm rotates to be connected the inside of base, and extend to run through to outer wall one side of base, the worm wheel rotates to be connected the inside bottom of base, just the worm wheel with worm intermeshing, the threaded rod sets up the inside of mount pad, and extend and run through the mount pad extremely the base inside with worm wheel fixed connection, supporting shoe fixed connection is in the top of base, square piece cup joints the outer wall of threaded rod, the air level is seted up the mount pad top.
As a further aspect of the present invention: the connecting mechanism comprises a connecting rod, a movable clamping block, a connecting block and a limiting clamping block, the movable clamping block is symmetrically arranged at the bottom of the surveying instrument and fixedly connected with the surveying instrument, the connecting rod is arranged inside the movable clamping block and extends through the movable clamping block to one end of the outer wall, the connecting block is arranged inside the movable clamping block and fixedly connected with the bottom of the connecting rod, and the limiting clamping block is arranged at the top of the mounting seat and extends through the mounting seat to the inside.
As a further aspect of the present invention: the movable sliding block is fixedly connected to two sides of the outer wall of the square block, a square groove is formed in the bottom of the mounting seat, and second movable sliding grooves are symmetrically formed in two sides of the square groove, and the width of each second movable sliding groove is matched with the diameter of the outer wall of the corresponding movable sliding block.
As a further aspect of the present invention: the movable clamping block is H-shaped, a first movable sliding groove matched with the movable clamping block is formed in the top of the mounting seat, a mounting groove is formed in the bottom of the first movable sliding groove, an expansion spring is fixedly connected inside the mounting groove, and the other end of the expansion spring is fixedly connected with the limiting clamping block.
As the utility model discloses further scheme again: the bottom of the mounting seat is provided with an arc-shaped connecting block, a bearing sleeve is arranged inside the arc-shaped connecting block, the supporting block is rotatably connected with the arc-shaped connecting block through the bearing sleeve, and a small amount of liquid is arranged inside the level bubble.
As a further aspect of the present invention: a third moving sliding groove with the width matched with the connecting block is formed in the moving clamping block, a fourth moving sliding groove with the width matched with the connecting rod is further formed in the moving clamping block, and the third moving sliding groove is connected with the fourth moving sliding groove.
Compared with the prior art, the beneficial effects of the utility model are that:
1. by arranging the adjusting mechanism, the vertical angle of the mounting seat can be judged by observing liquid in the air level, the worm is rotated to drive the worm wheel to rotate, the worm wheel is rotated to drive the threaded rod to rotate under the drive of the worm, the threaded rod is rotated to drive the square block to move upwards under the drive of the worm wheel, the square block moves upwards under the drive of the threaded rod to drive the mounting seat to rotate by taking the supporting block as a circle center, namely, the horizontal vertical angle adjustment of the mounting seat is realized, namely, the horizontal vertical angle adjustment of the surveying instrument is completed, so that the condition that the surveying instrument is placed unevenly due to factors such as terrain and the like and the surveying data is not accurate is avoided;
2. through setting up coupling mechanism, through removing the removal fixture block that the mapping appearance made the mapping appearance bottom and align with the first spout that removes on the mount pad, then remove the mapping appearance and drive the removal fixture block and remove, after removing fixture block and the first spout that removes and laminate completely, spacing fixture block rebound and the laminating of the inside third removal spout of spacing fixture block, realize the locking operation of being connected of removal fixture block and mount pad promptly, accomplish the locking operation of being connected of mapping appearance and mount pad promptly, after accomplishing the use to the mapping appearance, it causes the extrusion to spacing fixture block to drive the connecting block through the removal connecting rod, make spacing fixture block and removal fixture block separation, remove the connection locking to removing the fixture block, the locking operation of being connected of removal fixture block and mount pad has promptly been removed, thereby be convenient for earlier and accomodate the transportation to the mapping appearance, avoid the mapping appearance to damage in the transportation.
Drawings

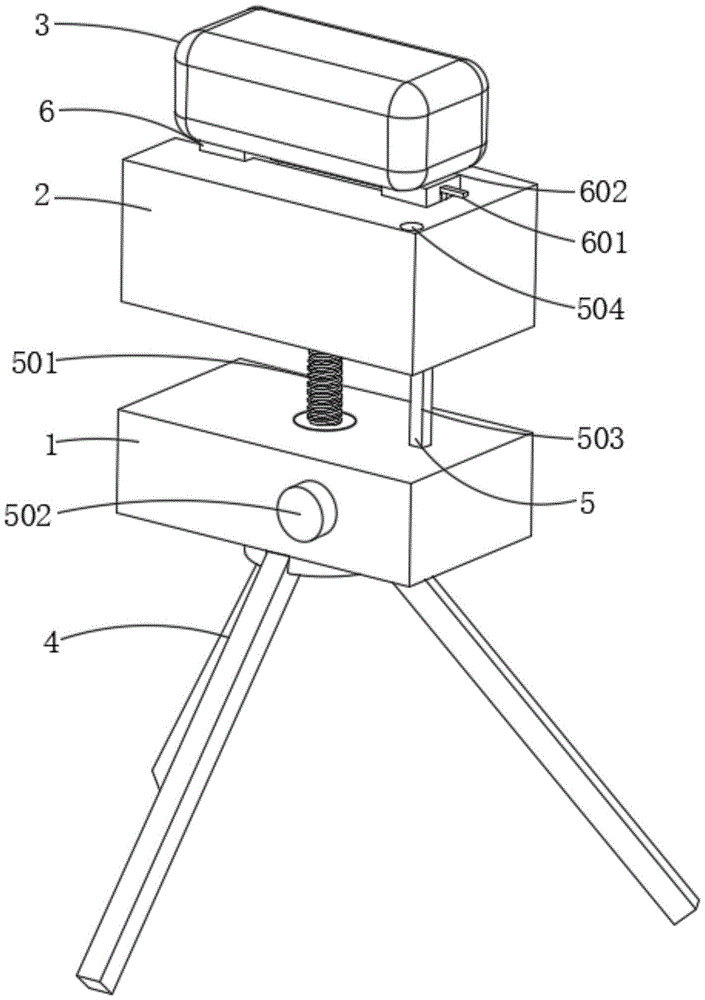

FIG. 1 is a schematic diagram of a multi-functional mapper for engineering;
FIG. 2 is a transverse cross-sectional view of a base and mount of a multi-purpose mapper for engineering;
FIG. 3 is a schematic view of a coupling mechanism of a multi-purpose mapper for engineering;
fig. 4 is a transverse cross-sectional view of a mounting for a multifunction mapper for engineering.
In the figure: 1. a base; 2. a mounting base; 3. a surveying instrument; 4. a support rod assembly; 5. an adjustment mechanism; 501. a threaded rod; 502. a worm; 503. a support block; 504. a level bubble; 505. a worm gear; 506. a square block; 6. a connecting mechanism; 601. a connecting rod; 602. moving the fixture block; 603. connecting blocks; 604. and a limiting clamping block.
Detailed Description
Referring to fig. 1 to 4, in an embodiment of the present invention, a multifunctional surveying instrument for engineering includes:
a base 1;
the mounting seat 2 is arranged above the base 1;
the surveying instrument 3 is arranged at the top of the mounting seat 2;
the supporting component 4 is rotatably connected to the bottom of the base 1;
the adjusting mechanisms 5 are distributed inside the base 1, extend through the base 1 to the inside of the mounting base 2 and are used for adjusting the horizontal angle of the mounting base 2;
and the connecting mechanisms 6 are distributed at the bottom of the surveying instrument 3 and extend to the top of the mounting seat 2, so that the surveying instrument 3 can be quickly mounted.
This kind of a multi-functional surveying instrument for engineering can be to the operation of being connected between surveying instrument 3 and mount pad 2 through coupling mechanism 6, realizes dismantling the operation to the installation between surveying instrument 3 and the base 1 promptly, can carry out angle modulation to mount pad 2 through adjustment mechanism 5, realizes promptly keeping the regulation operation of horizontal vertical state to surveying instrument 3, can expand the support operation to base 1 through opening supporting component 4.
In fig. 1, 2, 4: adjustment mechanism 5 is including threaded rod 501, the worm 502, supporting shoe 503, air level 504, worm wheel 505 and square piece 506, worm 502 rotates the inside of connecting at base 1, and extend and run through to base 1's outer wall one side, worm wheel 505 rotates the inside bottom of connecting at base 1, and worm wheel 505 and worm 502 intermeshing, threaded rod 501 sets up the inside at mount pad 2, and extend and run through mount pad 2 to base 1 inside and worm wheel 505 fixed connection, supporting shoe 503 fixed connection is at the top of base 1, square piece 506 cup joints the outer wall at threaded rod 501, air level 504 is seted up at mount pad 2 top.
This kind of a multi-functional surveying instrument for engineering, can judge the vertical angle of mount pad 2 through observing the inside liquid of air level 504, drive worm wheel 505 through rotating worm 502 and rotate, worm wheel 505 rotates under worm 502 drives and drives threaded rod 501 and rotate, threaded rod 501 rotates under worm wheel 505's drive and drives square 506 rebound, square 506 rebound drives mount pad 2 and uses supporting shoe 503 to rotate as the centre of a circle under threaded rod 501's drive, realize the horizontal vertical angle regulation to mount pad 2 promptly, accomplish the horizontal vertical angle regulation to surveying instrument 3 promptly, thereby avoid surveying instrument 3 to lead to surveying instrument 3 to place unevenly because factors such as topography, the surveying instrument data that cause is inaccurate.
In FIGS. 1 to 4: connecting mechanism 6 is including connecting rod 601, remove fixture block 602, connecting block 603 and spacing fixture block 604, remove fixture block 602 symmetry and set up in 3 bottoms of surveying instrument, and with 3 fixed connection of surveying instrument, connecting rod 601 sets up inside removing fixture block 602, and extend and run through and remove fixture block 602 to outer wall one end, connecting block 603 sets up inside removing fixture block 602, and connecting block 603 fixed connection is in the bottom of connecting rod 601, spacing fixture block 604 sets up at the top of mount pad 2, and extend and run through mount pad 2 to inside.
The utility model provides a multi-functional surveying instrument for engineering, when needs use surveying instrument 3, can remove surveying instrument 3 earlier and make the removal fixture block 602 of surveying instrument 3 bottom align with the first removal spout on the mount pad 2, then remove surveying instrument 3 and drive removal fixture block 602 and remove, after removal fixture block 602 and the first removal spout are laminated completely, spacing fixture block 604 rebound and the laminating of the inside third removal spout of spacing fixture block 604, remove fixture block 602 can not remove this moment, realize the connection locking operation of removal fixture block 602 and mount pad 2 promptly, accomplish the connection locking operation of surveying instrument 3 and mount pad 2 promptly, after accomplishing the use to surveying instrument 3, move down connecting rod 601 and drive connecting block 603 and move down, connecting block 603 moves down under the drive of connecting rod 601 and causes the extrusion fixture block 604 to spacing fixture block, make spacing fixture block 604 separate with removal fixture block 602, remove this moment, remove the connection locking to removal fixture block 602 promptly, the connection locking operation of removal fixture block 602 and mount pad 2 has promptly, thereby be convenient for earlier accomodating surveying instrument 3, avoid surveying instrument 3 to transport damage in transit.
In fig. 2, 4: square piece 506 outer wall both sides fixedly connected with removes the slider, and square groove has been seted up to mount pad 2 bottom, and square groove bilateral symmetry has seted up width and has removed slider outer wall diameter assorted second and remove the spout.
This kind of a multi-functional surveying instrument for engineering sets up through this structure and can makes square piece 506 drive mount pad 2 and use supporting shoe 503 to rotate as the centre of a circle when the rebound under the drive of threaded rod 501, realizes the horizontal vertical angle regulation to mount pad 2 promptly, accomplishes the horizontal vertical angle regulation to surveying instrument 3 promptly to avoid surveying instrument 3 to lead to surveying instrument 3 to place not smoothly because factors such as topography, the mapping data that causes is not accurate.
In fig. 1 to 4: remove fixture block 602 and be the H shape, the first spout that removes of 2 tops of mount pad and removal fixture block 602 assorted has been seted up, and the mounting groove has been seted up to first spout bottom of removing, the inside fixedly connected with expanding spring of mounting groove, and the expanding spring other end and spacing fixture block 604 fixed connection.
This kind of a multi-functional mapping appearance for engineering can drive through removing mapping appearance 3 and remove fixture block 602 and remove, removes fixture block 602 and first removal spout laminating back completely, and spacing fixture block 604 is in the reset action of expanding spring down the rebound with the laminating of the inside third removal spout of spacing fixture block 604, removes fixture block 602 this moment and can not remove, realizes removing the locking operation of being connected of fixture block 602 and mount pad 2 promptly, accomplishes mapping appearance 3 and mount pad 2 promptly and is connected the locking operation.
In fig. 1, 2, 4: the bottom of the mounting seat 2 is provided with an arc-shaped connecting block, a bearing sleeve is arranged in the arc-shaped connecting block, the supporting block 503 is rotatably connected with the arc-shaped connecting block through the bearing sleeve, and a small amount of liquid is arranged in the air level 504.
This kind of a multi-functional surveying instrument for engineering can judge the vertical angle of mount pad 2 through observing the inside liquid of air level 504, and then carries out angle modulation to mount pad 2 to avoid surveying instrument 3 to lead to surveying instrument 3 to place not smooth because factors such as topography, the mapping data that causes is not accurate.
In fig. 1, 3: a third moving chute with the width matched with the connecting block 603 is formed in the moving fixture block 602, a fourth moving chute with the width matched with the connecting rod 601 is further formed in the moving fixture block 602, and the third moving chute is connected with the fourth moving chute.
This kind of a multi-functional surveying instrument for engineering, set up through this structure and accomplish behind surveying instrument 3's use, move down connecting rod 601 and drive connecting block 603 downstream, connecting block 603 causes the extrusion to spacing fixture block 604 under connecting rod 601's drive, make spacing fixture block 604 and remove fixture block 602 separation, it can remove to remove fixture block 602 this moment, the connection locking to removing fixture block 602 has been relieved promptly, the connection locking operation of removing fixture block 602 and mount pad 2 has been relieved promptly, thereby be convenient for earlier accomodate the transportation to surveying instrument 3, avoid surveying instrument 3 to damage in the transportation.
The utility model discloses a theory of operation is: the vertical angle of the mounting seat 2 can be judged by observing the liquid in the level bubble 504, the worm 502 is rotated to drive the worm wheel 505 to rotate, the worm wheel 505 is rotated under the drive of the worm 502 to drive the threaded rod 501 to rotate, the threaded rod 501 is rotated under the drive of the worm wheel 505 to drive the square block 506 to move upwards, the square block 506 is moved upwards under the drive of the threaded rod 501 to drive the mounting seat 2 to rotate by taking the supporting block 503 as the center of a circle, so that the horizontal and vertical angle adjustment of the mounting seat 2 is realized, namely the horizontal and vertical angle adjustment of the surveying instrument 3 is completed, thereby the inaccurate surveying data caused by the uneven placement of the surveying instrument 3 due to factors such as terrain and the like of the surveying instrument 3 is avoided, then the surveying instrument 3 can be mounted, the movable clamping block 602 at the bottom of the surveying instrument 3 is aligned with the first movable chute on the mounting seat 2 by moving the surveying instrument 3, then the movable surveying instrument 3 drives the movable clamping block 602 to move, after the movable clamping block 602 is completely attached to the first movable sliding groove, the limit clamping block 604 moves upwards to be attached to a third movable sliding groove in the limit clamping block 604, at the moment, the movable clamping block 602 cannot move, namely, the connection locking operation of the movable clamping block 602 and the mounting seat 2 is realized, namely, the connection locking operation of the surveying instrument 3 and the mounting seat 2 is completed, after the surveying instrument 3 is used, the connecting rod 601 is moved downwards to drive the connecting block 603 to move downwards, the connecting block 603 is driven by the connecting rod 601 to move downwards to extrude the limit clamping block 604, so that the limit clamping block 604 is separated from the movable clamping block 602, at the moment, the movable clamping block 602 can move, namely, the connection locking operation of the movable clamping block 602 and the mounting seat 2 is released, thereby facilitating the storage and transportation of the surveying instrument 3, avoiding damage to the surveying instrument 3 during transport.
The above-mentioned, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (7)
1. A multi-functional surveying instrument for engineering, comprising:
a base (1);
the mounting seat (2) is arranged above the base (1);
the surveying instrument (3) is arranged at the top of the mounting seat (2);
the supporting component (4), the supporting component (4) is rotatably connected to the bottom of the base (1);
the adjusting mechanisms (5) are distributed inside the base (1), extend through the base (1) to the inside of the mounting seat (2), and are used for adjusting the horizontal angle of the mounting seat (2);
the connecting mechanisms (6) are distributed at the bottom of the surveying instrument (3) and extend to the top of the mounting seat (2) for carrying out quick mounting operation on the surveying instrument (3).
2. The multifunctional mapper for engineering according to claim 1, wherein the adjusting mechanism (5) comprises a threaded rod (501), a worm (502), a support block (503), a level bubble (504), a worm wheel (505), and a square block (506), the worm (502) is rotatably connected inside the base (1) and extends through one side of the outer wall of the base (1), the worm wheel (505) is rotatably connected at the bottom end of the inner portion of the base (1), the worm wheel (505) and the worm (502) are meshed with each other, the threaded rod (501) is arranged inside the mount (2) and extends through the mount (2) to the inner portion of the base (1) and is fixedly connected with the worm wheel (505), the support block (503) is fixedly connected at the top of the base (1), the square block (506) is sleeved on the outer wall of the threaded rod (501), and the level bubble (504) is opened at the top of the mount (2).
3. The multifunctional mapping instrument for engineering according to claim 1, wherein the connecting mechanism (6) comprises a connecting rod (601), a moving fixture block (602), a connecting block (603) and a limiting fixture block (604), the moving fixture block (602) is symmetrically arranged at the bottom of the mapping instrument (3) and is fixedly connected with the mapping instrument (3), the connecting rod (601) is arranged inside the moving fixture block (602) and extends through the moving fixture block (602) to one end of the outer wall, the connecting block (603) is arranged inside the moving fixture block (602), and the connecting block (603) is fixedly connected at the bottom of the connecting rod (601), and the limiting fixture block (604) is arranged at the top of the mounting seat (2) and extends through the mounting seat (2) to the inside.
4. The multifunctional surveying instrument for engineering according to claim 2, characterized in that the square block (506) is fixedly connected with a movable sliding block on both sides of the outer wall, the bottom of the mounting seat (2) is provided with a square groove, and the square groove is symmetrically provided with second movable sliding grooves with widths matched with the diameters of the outer walls of the movable sliding blocks on both sides.
5. The multifunctional mapper for engineering according to claim 3, wherein the movable fixture block (602) is H-shaped, a first movable sliding slot matching with the movable fixture block (602) is formed at a top of the mounting base (2), a mounting slot is formed at a bottom of the first movable sliding slot, a telescopic spring is fixedly connected inside the mounting slot, and another end of the telescopic spring is fixedly connected with the limiting fixture block (604).
6. The multifunctional mapper for engineering according to claim 2, wherein an arc-shaped connecting block is arranged at the bottom of the mounting seat (2), a bearing sleeve is arranged inside the arc-shaped connecting block, the supporting block (503) is rotatably connected with the arc-shaped connecting block through the bearing sleeve, and a small amount of liquid is arranged inside the level bubble (504).
7. The multifunctional mapping instrument for engineering according to claim 3, wherein the movable fixture block (602) has a third movable sliding slot with a width matching with the connecting block (603), the movable fixture block (602) has a fourth movable sliding slot with a width matching with the connecting rod (601), and the third movable sliding slot is connected with the fourth movable sliding slot.
