The utility model discloses a bedside bookshelf capable of being obliquely placed. The utility model provides a but bedside bookshelf of putting to one side, includes roof, right side curb plate one, left side curb plate two, foraminiferous backplate and bottom plate, its characterized in that: the top plate is positioned at the uppermost end and is encircled into a rectangular box body together with the right side plate I and the left side plate II, the bottom plate and the backboard with holes, all structural components are connected in a mortise-tenon manner, and the left upper corner of the backboard is provided with a hole for hanging; the book cover is obliquely hung on a wall through the hole on the back plate, the cover of the book is obliquely placed close to the right side plate, and the inclination angle can be changed along with the change of the weight of the book. Compared with the prior art, the beneficial effects of the utility model are that: the utility model discloses molding structure is simple, and mortise-tenon joint is easily installed, utilizes space on the wall, and area is little, and the weight difference of book can lead to bookshelf inclination different, and is lively interesting.
Description
Technical Field
The utility model relates to a furniture, in particular to a bedside bookshelf capable of being obliquely placed.
Background
In modern fast-paced life, more and more people choose to read the novel cartoon with hands before sleeping to help sleep, but the conventional novel cartoon is portable in framing, occupies large space when being laid flat, and is easily curled and folded when being placed on a bookshelf. Therefore, a bookshelf which can stand up when being placed conveniently, does not fold, does not curl edges and does not occupy too much space is needed.
Disclosure of Invention
In order to solve the above problems, the present invention provides a bedside bookshelf capable of being placed obliquely.
In order to achieve the purpose, the utility model provides a bedside bookshelf capable of being obliquely placed, which comprises a top plate, a right side plate I, a left side plate II, a backboard with holes and a bottom plate.
The top plate is located at the uppermost end, and is surrounded with the right side plate I and the left side plate II, the bottom plate and the backboard with holes to form a rectangular box body, each structural part is connected in a mortise and tenon mode, and holes which can be used for hanging are formed in the left upper corner of the backboard.
The bedside bookshelf capable of being obliquely placed can be obliquely hung on a wall through the holes in the back plate for use, the cover of a book is obliquely placed close to the right side plate, and the inclination angle can be changed along with the change of the number and the weight of the book.
Compared with the prior art, the beneficial effects of the utility model are that: the utility model discloses molding structure is simple, and mortise-tenon joint is easily installed, utilizes space on the wall, and area is little, and the weight difference of book can lead to bookshelf inclination different, and is lively interesting.
Drawings

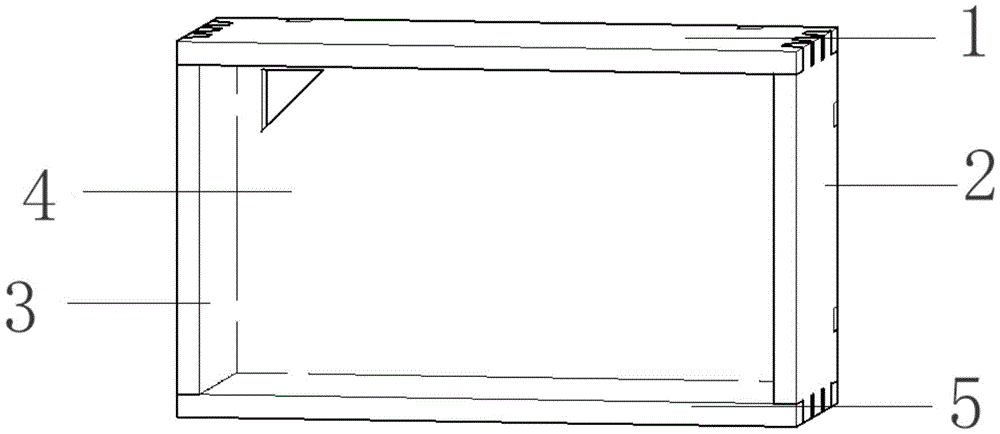

Fig. 1 is a schematic structural diagram of the present invention.
Fig. 2 is a schematic view of the components of the present invention.
The reference numbers indicate that 1 a top plate, 2 a right side plate I, 3 a left side plate II, 4 a back plate with holes and 5 a bottom plate.
Detailed Description
In order to make the utility model have more clear scheme and advantages, the utility model is concretely explained by combining the attached drawings.
As shown in fig. 1 and 2, the utility model provides a bedside bookshelf that can put to one side, including roof 1, right side curb plate one 2, left side curb plate two 3, foraminiferous backplate 4 and bottom plate 5, its characterized in that: the top plate 1 is positioned at the uppermost end, and is enclosed with the right side plate I2, the left side plate II 3, the bottom plate 5 and the backboard 4 with holes to form a rectangular box body, all structural components are connected in a mortise and tenon manner, and the upper left corner of the backboard is provided with holes for hanging; the book cover is obliquely hung on a wall through the hole in the back plate, the cover of the book is tightly attached to the right side plate I2 and is obliquely placed, and the inclination angle can be changed along with the change of the weight of the book.
Claims (2)
1. The utility model provides a but bedside bookshelf of putting to one side, includes roof (1), right side curb plate (2), left side curb plate two (3), foraminiferous backplate (4) and bottom plate (5), its characterized in that: the top plate (1) is located at the uppermost end, and encloses a rectangular box body together with the right side plate I (2) and the left side plate II (3), the bottom plate (5) and the backboard (4) with holes, all structural members are connected in a mortise and tenon manner, and holes which can be used for hanging are formed in the left upper corner of the backboard.
2. The bedside bookshelf capable of being placed obliquely according to claim 1, wherein: the book cover is obliquely hung on a wall through the hole in the back plate, the cover of the book is tightly attached to the first side plate (2) of the right side and obliquely placed, and the inclination angle can be changed along with the change of the weight of the book.
