Abstract
The utility model relates to a storage chip assembles technical field, specifically is a storage chip assembly quality who mutually supports with transfer chain, including the mounting bracket, the internally mounted of mounting bracket has the conveyer belt, and the last surface mounting of mounting bracket has fixed crossbearer, and one side of fixed crossbearer is provided with the walking piece, and the lower fixed surface of walking piece has and drives actuating cylinder, and the output that drives actuating cylinder is connected with the installation shell, and the below of installation shell is provided with the holder, and the internally mounted of holder has the biax motor, and the output shaft of biax motor has the lead screw, and the surface connection of lead screw has the fly leaf. The utility model discloses a what set up on the walking piece drives actuating cylinder, can drive the installation shell and carry out vertical motion to carry out the centre gripping operation to the chip, and the chip base of centre gripping are connected to the convenience, thereby conveniently assemble, and this assembly quality can mutually support with the transfer chain, improves the practicality.
Description
Technical Field
The utility model relates to a storage chip assembles technical field, specifically is a storage chip assembly quality who mutually supports with transfer chain.
Background
The semiconductor device is widely applied to the fields of rail transit, household appliances, new energy, power supplies, computers, peripherals, network communication and the like. The semiconductor device is composed of a chip, a welding material, a lead frame and a packaging material, and the memory chip is a specific application of the concept of an embedded system chip in the memory industry. Therefore, both the system chip and the memory chip can realize multifunction and high performance by embedding software in a single chip, and support various protocols, various hardware and different applications, and an assembling device is required for processing the memory chip.
If a chip assembly equipment that publication number is CN209503186U, this utility model discloses a chip assembly equipment, relate to semiconductor device production technical field, the power distribution box comprises a box body, the box includes table surface, table surface is last to be provided with the frock locating hole, the tin cream pond, the chip screen tray, graphite box location frock, tin sticky motion device, tin sticky device and two supporting seats, tin sticky motion device passes through supporting seat and table surface fixed connection, tin sticky motion device includes X axle motion structure, Y axle motion structure, Z axle motion structure, mounting panel and tin sticky motion main part, Y axle motion structure sets up on the supporting seat that table surface left side set up, the fixed mounting panel that is provided with between two supporting seats, X axle motion structure and tin sticky motion main part set up on the mounting panel, Z axle motion structure sets up in the tin sticky motion main part, tin sticky device sets up at Z axle motion structure lower extreme, still be provided with the PLC controller in the box. The method has the advantages of high efficiency, accurate chip positioning, low breakage rate and the like.
In summary, the following technical problems are known in the prior art: the existing conveying line is inconvenient to assemble chips when the chips are conveyed, the chips need to be assembled manually, and the use of people is inconvenient.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a storage chip assembly quality with transfer chain mutually supported to solve the problem that proposes among the above-mentioned background art.
In order to solve the technical problem, the utility model adopts the following technical scheme:
the utility model provides a memory chip assembly quality with transfer chain mutually support, includes the mounting bracket, the internally mounted of mounting bracket has the conveyer belt, the last surface mounting of mounting bracket has fixed crossbearer, one side of fixed crossbearer is provided with the walking piece, the lower fixed surface of walking piece drives actuating cylinder, the output that drives actuating cylinder is connected with the installation shell, the below of installation shell is provided with the holder, the internally mounted of holder has the biax motor, the output shaft of biax motor has the lead screw, the surface connection of lead screw has the fly leaf, one side of fly leaf is connected with the guide bar, the lower fixed surface of fly leaf has the grip block.
Preferably, be the screw connection between actuating cylinder and the running member, and constitute extending structure between installation shell and the actuating cylinder, be fixed connection between biax motor and the holder.
Preferably, a rotating structure is formed between the screw rod and the double-shaft motor, the screw rod penetrates into the movable plate, and the clamping plate and the walking member form a sliding structure through the movable plate and the guide rod.
Preferably, the mounting case is further provided with:
an adjustment motor mounted inside the mounting case.
Preferably, the adjusting motor is connected with the mounting shell through a screw, and a rotating structure is formed between the clamping piece and the adjusting motor.
Preferably, the walking member is further provided with:
the walking motor is installed in the walking part, an output shaft of the walking motor is connected with a gear, the upper surface of the gear is connected with a rack, a guide block is arranged on the inner wall of the walking part, and a guide groove is connected to one side of the guide block.
Preferably, the walking motor is fixedly connected with the walking part, a rotating structure is formed between the gear and the walking motor, the rack is in meshed connection with the gear, and the walking part forms a sliding structure with the fixed transverse frame through the guide block and the guide groove.
The above description shows that, with the above technical solutions of the present application, the technical problems to be solved by the present application can be solved.
Simultaneously, through above technical scheme, the utility model discloses possess following beneficial effect at least:
the utility model discloses a drive actuating cylinder that sets up on the walking piece can drive the installation shell and carry out vertical motion to carry out the centre gripping operation to the chip, and conveniently connect the chip of centre gripping and chip base, thereby conveniently assemble, this assembly quality can mutually support with the transfer chain, improves the practicality; the screw rod can be driven to rotate by the aid of the arranged double-shaft motor, the movable plate can horizontally move under the cooperation of the guide rod, and the two clamping plates are close to each other, so that a chip is clamped, and the chip clamp is convenient to use;
the utility model can drive the clamping piece to rotate through the adjusting motor arranged in the mounting shell, thereby adjusting the angle of the clamping piece, conveniently adjusting the angle of the clamped chip and conveniently carrying out subsequent assembly; through the walking motor that sets up in the walking piece, can drive the rotatory meshing rack of gear for the walking piece can carry out the horizontal motion on fixed crossbearer under the cooperation of guide block and guide way, thereby adjusts convenient to use to the position of holder.
Drawings

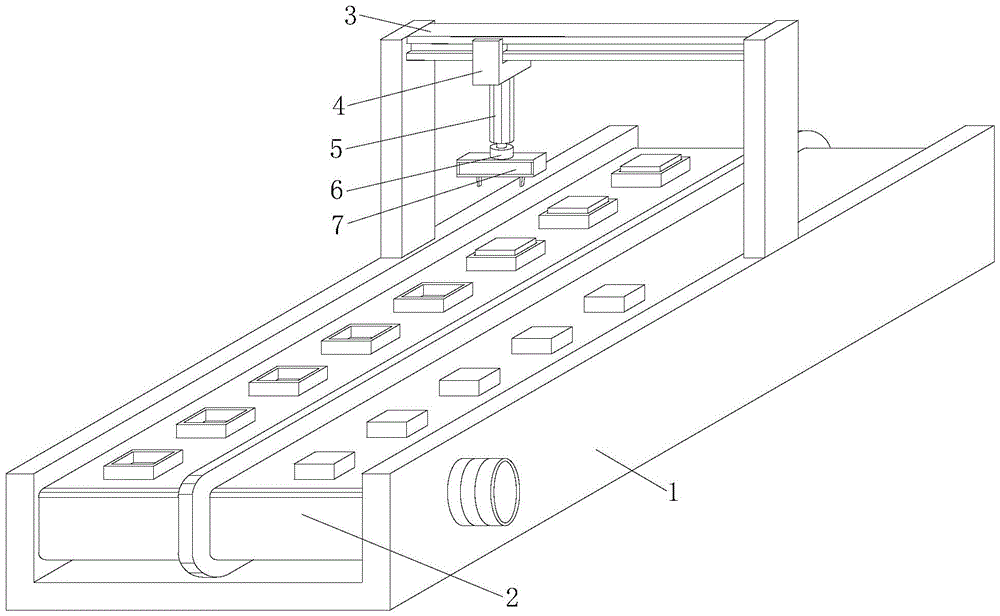

FIG. 1 is a schematic perspective view of the present invention;
FIG. 2 is a schematic cross-sectional view of the clamping member of the present invention;
FIG. 3 is a schematic cross-sectional view of the walking member of the present invention;
fig. 4 is a schematic view of the sectional structure of the mounting case of the present invention.
In the figure: 1. a mounting frame; 2. a conveyor belt; 3. fixing the transverse frame; 4. a walking member; 5. a driving cylinder; 6. mounting a shell; 7. a clamping member; 8. a dual-axis motor; 9. a screw rod; 10. a movable plate; 11. a guide bar; 12. a clamping plate; 13. an adjustment motor; 14. a guide groove; 15. a guide block; 16. a travel motor; 17. a gear; 18. a rack.
Detailed Description
In order to make the objects, technical solutions and advantages of the present invention more clearly understood, the present invention will be further described in detail with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are merely illustrative of the invention and are not intended to limit the invention.
Embodiment 1
As shown in fig. 1 and fig. 2, the present invention provides a technical solution: the utility model provides a storage chip assembly quality with transfer chain mutually supported, including mounting bracket 1, the internally mounted of mounting bracket 1 has conveyer belt 2, the last surface mounting of mounting bracket 1 has fixed crossbearer 3, one side of fixed crossbearer 3 is provided with walking piece 4, the lower fixed surface of walking piece 4 drives actuating cylinder 5, the output that drives actuating cylinder 5 is connected with installation shell 6, the below of installation shell 6 is provided with holder 7, the internally mounted of holder 7 has biax motor 8, the output shaft of biax motor 8 has lead screw 9, the surface connection of lead screw 9 has fly leaf 10, one side of fly leaf 10 is connected with guide bar 11, the lower fixed surface of fly leaf 10 has grip block 12, conveyer belt 2 through setting up, can carry chip and chip base, conveniently carry on subsequent assembly.
Example two
The scheme in the first embodiment is further described in the following with reference to specific working modes, which are described in detail in the following:
as shown in fig. 1, 2 and 3, as a preferred embodiment, on the basis of the above manner, further, a driving cylinder 5 is connected with a traveling member 4 by a screw, a telescopic structure is formed between a mounting shell 6 and the driving cylinder 5, a double-shaft motor 8 is fixedly connected with a clamping member 7, the driving cylinder 5 arranged on the traveling member 4 can drive the mounting shell 6 to move vertically, so as to clamp a chip, and the clamped chip and a chip base can be conveniently connected, so as to facilitate assembly, and the assembly device can be matched with a conveying line, so as to improve practicability; constitute revolution mechanic between lead screw 9 and the biax motor 8, and lead screw 9 runs through to the inside of fly leaf 10 to grip block 12 passes through and constitutes sliding construction between fly leaf 10 and guide bar 11 and the walking 4, through the biax motor 8 that sets up, can drive lead screw 9 and rotate, under the cooperation of guide bar 11, makes fly leaf 10 can carry out horizontal motion, makes two grip blocks 12 be close to each other, thereby carries out the centre gripping to the chip, facilitates the use.
As shown in fig. 1, 3 and 4, as a preferred embodiment, in addition to the above-mentioned manner, further, an adjusting motor 13 is installed inside the installation shell 6, the adjusting motor 13 is connected with the installation shell 6 by a screw, and a rotating structure is formed between the clamping piece 7 and the adjusting motor 13, and the adjusting motor 13 arranged in the installation shell 6 can drive the clamping piece 7 to rotate, so as to adjust the angle of the clamping piece 7, facilitate the adjustment of the angle of the clamped chip, and facilitate subsequent assembly; the walking motor 16 is installed inside the walking part 4, the walking motor 16 is fixedly connected with the walking part 4, an output shaft of the walking motor 16 is connected with a gear 17, a rotating structure is formed between the gear 17 and the walking motor 16, a rack 18 is connected to the upper surface of the gear 17, the rack 18 is connected with the gear 17 in a meshed mode, a guide block 15 is arranged on the inner wall of the walking part 4, one side of the guide block 15 is connected with a guide groove 14, the walking part 4 forms a sliding structure with the fixed transverse frame 3 through the guide block 15 and the guide groove 14, the gear 17 can be driven to rotate to be meshed with the rack 18 through the walking motor 16 arranged in the walking part 4, and the walking part 4 can horizontally move on the fixed transverse frame 3 under the matching of the guide block 15 and the guide groove 14, so that the position of the clamping part 7 can be adjusted and is convenient to use.
In summary, the following can be found:
the utility model discloses to technical problem: when the existing conveying line conveys the chips, the chips are inconvenient to assemble, the chips need to be assembled manually, and the existing conveying line is inconvenient for people to use; the technical scheme of each embodiment is adopted. Meanwhile, the implementation process of the technical scheme is as follows:
before the storage chip assembling device matched with a conveying line is used, the mounting frame 1 is firstly placed at a proper position, a separation strip is arranged on the arranged conveying belt 2, the conveying belt 2 is divided into two sections, then a chip and a chip base to be processed are placed on the conveying belt 2, the conveying belt 2 is driven by a driving motor to operate, the chip and the chip base are conveyed to the lower part of the clamping piece 7, the gear 17 can be driven to rotate by a walking motor 16 arranged in the walking piece 4, the gear 17 is meshed with the rack 18 to rotate, the walking piece 4 is horizontally moved on the fixed transverse frame 3 under the matching of the guide groove 14 and the guide block 15, the clamping piece 7 is moved to the upper part of the chip, the mounting shell 6 is driven to move by the arranged driving cylinder 5, and the clamping piece 7 is lowered to the upper part of the chip, and the provided double-shaft motor 8 can drive the screw rod 9 to rotate, under the coordination of the guide rod 11, the movable plate 10 can move horizontally, so that the two clamping plates 12 are close to each other to clamp the chip, then the clamping piece 7 is driven to reset through the provided driving air cylinder 5, then the gear 17 is driven to be meshed with the rack 18 to rotate again through the walking motor 16 arranged in the walking piece 4, so that the walking piece 4 drives the clamping piece 7 to move, the clamping piece 7 is moved to the upper part of the chip base, then the clamping piece 7 is driven to descend, the chip is assembled in the chip base, so that the chip is assembled, the clamping piece 7 can be driven to rotate through the adjusting motor 13 arranged in the mounting shell 6, the angle of the clamped chip can be conveniently adjusted, the assembling device can be matched with a conveying line, and the chip can be conveniently assembled, the practicability is strong.
Through above-mentioned setting, above-mentioned technical problem can be solved certainly to this application, simultaneously, realizes following technological effect:
the utility model discloses a drive actuating cylinder 5 that sets up on walking piece 4 can drive installation shell 6 and carry out vertical motion to carry out the centre gripping operation to the chip, and conveniently connect the chip of centre gripping and chip base, thereby conveniently assemble, this assembly quality can mutually support with the transfer chain, improves the practicality; the screw rod 9 can be driven to rotate by the aid of the double-shaft motor 8, the movable plate 10 can horizontally move under the cooperation of the guide rod 11, and the two clamping plates 12 are close to each other, so that a chip is clamped and the chip is convenient to use;
the utility model can drive the clamping piece 7 to rotate through the adjusting motor 13 arranged in the mounting shell 6, thereby adjusting the angle of the clamping piece 7, conveniently adjusting the angle of the clamped chip and conveniently carrying out subsequent assembly; through the walking motor 16 that sets up in the walking 4, can drive gear 17 rotatory meshing rack 18 for walking 4 can carry out horizontal motion on fixed crossbearer 3 under the cooperation of guide block 15 and guide way 14, thereby adjusts convenient to use to the position of holder 7.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (7)
1. A memory chip mounting apparatus for interacting with a conveyor line, comprising:
mounting bracket (1), the internally mounted of mounting bracket (1) has conveyer belt (2), the last surface mounting of mounting bracket (1) has fixed crossbearer (3), one side of fixed crossbearer (3) is provided with walking piece (4), the lower fixed surface of walking piece (4) drives actuating cylinder (5), the output that drives actuating cylinder (5) is connected with installation shell (6), the below of installation shell (6) is provided with holder (7), the internally mounted of holder (7) has double-shaft motor (8), the output shaft of double-shaft motor (8) has lead screw (9), the surface of lead screw (9) is connected with fly leaf (10), one side of fly leaf (10) is connected with guide bar (11), the lower fixed surface of fly leaf (10) has grip block (12).
2. The memory chip assembling device matched with the conveying line is characterized in that the driving air cylinder (5) is connected with the walking piece (4) through screws, a telescopic structure is formed between the mounting shell (6) and the driving air cylinder (5), and the double-shaft motor (8) is fixedly connected with the clamping piece (7).
3. The memory chip assembling apparatus cooperated with the conveying line according to claim 1, wherein a rotary structure is formed between the screw rod (9) and the biaxial motor (8), the screw rod (9) penetrates to the inside of the movable plate (10), and the clamping plate (12) forms a sliding structure with the traveling member (4) through the movable plate (10) and the guide bar (11).
4. A memory chip mounting arrangement for co-operation with a conveyor line as claimed in claim 1, characterized in that the mounting housing (6) is further provided with:
an adjustment motor (13) mounted inside the mounting housing (6).
5. A memory chip mounting device for co-operation with a conveyor line as claimed in claim 4, characterized in that the adjustment motor (13) is screwed to the mounting housing (6) and the clamping member (7) is rotatably connected to the adjustment motor (13).
6. A storage chip assembling apparatus for interworking with a conveyor line according to claim 1, wherein said traveling member (4) is further provided with:
the walking mechanism comprises a walking motor (16) which is installed inside a walking part (4), an output shaft of the walking motor (16) is connected with a gear (17), the upper surface of the gear (17) is connected with a rack (18), a guide block (15) is arranged on the inner wall of the walking part (4), and one side of the guide block (15) is connected with a guide groove (14).
7. The memory chip assembling device matched with the conveying line is characterized in that the walking motor (16) is fixedly connected with the walking piece (4), the gear (17) and the walking motor (16) form a rotating structure, the rack (18) and the gear (17) are in meshed connection, and the walking piece (4) forms a sliding structure with the fixed cross frame (3) through the guide block (15) and the guide groove (14).
