Abstract
The utility model relates to a photovoltaic power supply unit for ammeter, it includes photovoltaic equipment and ammeter case, it is fixed with the bottom surface through the location axle with photovoltaic equipment, according to different seasons, can adjust photovoltaic board inclination, the screw rod rotates, and then drive the connecting rod through the dead lever and remove, the connecting rod removes and can drive the support frame and rotate around the kicking block, and then change the inclination of photovoltaic board, according to the difference of every day constantly, the controller can control the motor to drive the layer board and rotate, and then change the photovoltaic board orientation, make it keep just facing the sun, the motor starts, the action wheel drives driven wheel rotation through the drive belt, and then drive the pivot rotation, and then can drive the layer board rotation through the toothed disc, carry out angle modulation to the photovoltaic board, the electric energy that photovoltaic equipment produced, the battery, after the dc-to-ac converter etc. be connected with ammeter inside the ammeter case, and convenient for use; the utility model has the characteristics of be convenient for remove, it is convenient to adjust, and work efficiency is high.
Description
Technical Field
The utility model belongs to the technical field of the photovoltaic power supply, concretely relates to photovoltaic power supply unit for ammeter.
Background
Along with the rapid development of the society, the demand of human life on energy is increasing, but the traditional energy is exhausted and exhausted at all times, solar energy is widely used as inexhaustible clean energy, photovoltaic module equipment is favored by people by virtue of excellent performance, the mode of generating electric energy by utilizing sunlight through photovoltaic equipment is gradually popularized, the photovoltaic equipment is connected with an electric meter box, the electric energy generated by the photovoltaic equipment can be transmitted to a distribution network and can be directly used, but in consideration of safety, the photovoltaic equipment is usually fixedly installed on the bottom surface, the fixed orientation and the inclination angle are kept, but due to the influence of revolution and rotation of the earth, the sun height is different in each season of the year, the sun rises to west and is different from the relative position of the photovoltaic equipment, the position of a photovoltaic panel cannot be adjusted, the power generation efficiency of the photovoltaic equipment is influenced, and the existing photovoltaic equipment is not easy to move and transport.
Disclosure of Invention
An object of the utility model is to provide a photovoltaic power supply unit for ammeter for solve the slope of photovoltaic board and move towards the not good problem of angle effect.
The purpose of the utility model is realized like this: the utility model provides a photovoltaic power supply unit for ammeter, it includes photovoltaic equipment and ammeter case, photovoltaic equipment bottom be provided with the bottom plate, the bottom plate upside be provided with the bearing frame, bearing frame top be provided with the layer board, the layer board downside be provided with the toothed disc, toothed disc left side be provided with the supporting seat, the inside pivot that is provided with of supporting seat, pivot middle part be provided with oblique tooth piece, pivot tip be provided with from the driving wheel, supporting seat left side be provided with the motor board, motor board top be provided with the motor, the motor output be provided with the action wheel, action wheel and be provided with the drive belt from the driving wheel between, bottom plate left side be provided with the controller, the layer board upside be provided with the kicking block, kicking block left side be provided with the riser, the inside spout that is provided with of riser, kicking block top be provided with the support frame, the support frame upside be provided with the photovoltaic board, the support frame downside be provided with even piece, even piece inside be provided with the connecting rod, the connecting rod between the connecting rod, positioning rod middle part be provided with the screw rod, the bottom plate run through the fixing base plate, the inside transmission device of ammeter case and the right side be provided with the transmission device.
The helical gear block is meshed with the gear disc.
The supporting seat and the motor plate are fixedly connected with the bottom plate.
The supporting frame is hinged with the top block, and the connecting rod is hinged with the connecting block.
The left end of the screw rod is provided with a rotating handle, and the surface of the rotating handle is provided with anti-skid grains.
The fixed seat is connected with the screw rod through threads.
The inner side of the positioning shaft is provided with a vertical cylinder, and a movable wheel carrier is arranged in the vertical cylinder.
The outer side of the vertical cylinder is provided with a through hole, the upper end of the movable wheel carrier is provided with a plug, an elastic sheet is arranged inside the plug, and a clamping pin is arranged on the outer side of the elastic sheet.
The utility model has the advantages that: this device is when using, it is fixed with the bottom surface that pass through the location axle with photovoltaic equipment, according to the difference in season, can adjust photovoltaic board inclination, the rotation screw rod, the screw rod removes about the fixing base is inside, and then it removes to drive the connecting rod through the dead man, the connecting rod removes and can drive the support frame and rotate around the kicking block, and then change the inclination of photovoltaic board, it is different constantly every day, controller accessible control motor drives the layer board and rotates, and then it changes the photovoltaic board orientation, make it keep just to the sun, the motor starts, the action wheel passes through the drive belt and drives from the driving wheel rotatory, and then it is rotatory to drive the pivot, oblique tooth piece meshes with the toothed disc, and then accessible toothed disc drives the layer board and rotates, carry out angle modulation to the photovoltaic board, the produced electric energy of photovoltaic equipment, be connected with the inside ammeter of ammeter case after transmission equipment, the battery, the dc-to-ac converter etc., convenient for use, the utility model has the characteristics of being convenient for moving, it is convenient for adjusting, work efficiency is high.
Drawings

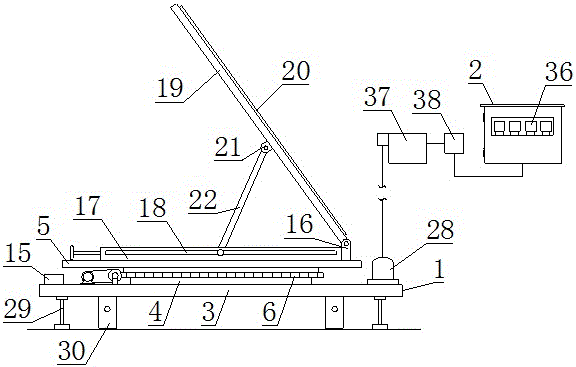

Fig. 1 is an overall structure diagram of the photovoltaic power supply device for the electric meter of the present invention.
Fig. 2 is the utility model relates to a photovoltaic power supply unit's for ammeter toothed disc top view.
Fig. 3 is a top view of the vertical plate internal structure of the photovoltaic power supply device for the electric meter of the present invention.
Fig. 4 is a front view of a movable wheel frame of a photovoltaic power supply device for an electricity meter.
Fig. 5 is a side sectional view of a vertical tube of a photovoltaic power supply device for an electricity meter.
Fig. 6 is a cross-sectional view of a plug of the photovoltaic power supply device for an electricity meter of the present invention.
In the figure: 1. photovoltaic equipment 2, an ammeter box 3, a bottom plate 4, a bearing seat 5, a supporting plate 6, a gear disc 7, a supporting seat 8, a rotating shaft 9, an inclined tooth block 10, a driven wheel 11, a motor plate 12, a motor 13, a driving wheel 14, a driving belt 15, a controller 16, a top block 17, a vertical plate 18, a sliding groove 19, a supporting frame 20, a photovoltaic plate 21, a connecting block 22, a connecting rod 23, a positioning rod 24, a screw rod 25, a rotating handle 26, a fastening rod 27, a fixing seat 28, transmission equipment 29, a positioning shaft 30, a vertical cylinder 31, a perforation 32, a movable wheel carrier 33, a plug 34, an elastic sheet 35, a bayonet 36, an ammeter 37, a storage battery 38 and an inverter.
Detailed Description
The present invention will be further described with reference to the accompanying drawings.
Example 1
As shown in fig. 1 to 6, a photovoltaic power supply apparatus for an electricity meter, which includes a photovoltaic device 1 and an electricity meter box 2, the bottom of the photovoltaic device 1 is provided with a bottom plate 3, the upper side of the bottom plate 3 is provided with a bearing seat 4, a supporting plate 5 is arranged above the bearing seat 4, a gear disc 6 is arranged at the lower side of the supporting plate 5, a supporting seat 7 is arranged at the left side of the gear disc 6, a rotating shaft 8 is arranged inside the supporting seat 7, the middle part of the rotating shaft 8 is provided with an inclined tooth block 9, the end part of the rotating shaft 8 is provided with a driven wheel 10, a motor plate 11 is arranged at the left side of the supporting seat 7, a motor 12 is arranged above the motor plate 11, the output end of the motor 12 is provided with a driving wheel 13, a transmission belt 14 is arranged between the driving wheel 13 and the driven wheel 10, a controller 15 is arranged at the left side of the bottom plate 3, a top block 16 is arranged at the upper side of the supporting plate 5, a vertical plate 17 is arranged at the left side of the top block 16, a sliding groove 18 is arranged in the vertical plate 17, a supporting frame 19 is arranged above the top block 16, a photovoltaic panel 20 is arranged on the upper side of the supporting frame 19, a connecting block 21 is arranged at the lower side of the supporting frame 19, a connecting rod 22 is arranged in the connecting block 21, a position adjusting rod 23 is arranged between the connecting rods 22, a screw rod 24 is arranged in the middle of the position adjusting rod 23, a fastening rod 26 is arranged between the vertical plates 17, a fixed seat 27 is arranged in the middle of the fastening rod 26, the screw rod 24 penetrates through the fixed seat 27, a positioning shaft 29 is arranged below the bottom plate 3, the right side of the bottom plate 3 is provided with a transmission device 28, the electric meter box 2 is internally provided with an electric meter 36, a storage battery 37 and an inverter 38 are sequentially arranged between the transmission equipment 28 and the electric meter box 2.
The utility model discloses when using, it is fixed with the bottom surface through location axle 29 with photovoltaic equipment 1, according to season difference, can adjust photovoltaic board 20 inclination, rotate screw rod 24, screw rod 24 removes about fixing base 27 is inside, and then it removes to drive connecting rod 22 through adjusting rod 23, connecting rod 22 removes and can drive support frame 19 and rotate around kicking block 16, and then change photovoltaic board 20's inclination, it is different according to every day constantly, controller 15 accessible control motor 12 drives layer board 5 rotatory, and then change photovoltaic board 20 orientation, make it keep just to the sun, motor 12 starts, action wheel 13 drives from driving wheel 10 rotation through drive belt 14, and then it is rotatory to drive pivot 8, skewed tooth piece 9 and toothed disc 6 meshing, and then accessible toothed disc 6 drives layer board 5 and rotates, carry out angle modulation to photovoltaic board 20, photovoltaic equipment 1 produced electric energy, be connected with ammeter inside ammeter of ammeter table case 2 behind transmission equipment 28, battery 37, inverter 38 etc., convenient to use, the utility model has the characteristics of being convenient for moving, it is convenient to adjust, work efficiency is high.
Example 2
As shown in fig. 1 to 6, a photovoltaic power supply apparatus for an electricity meter, which includes a photovoltaic device 1 and an electricity meter box 2, the bottom of the photovoltaic device 1 is provided with a bottom plate 3, the upper side of the bottom plate 3 is provided with a bearing seat 4, a supporting plate 5 is arranged above the bearing seat 4, a gear plate 6 is arranged on the lower side of the supporting plate 5, a supporting seat 7 is arranged at the left side of the gear wheel 6, a rotating shaft 8 is arranged inside the supporting seat 7, the middle part of the rotating shaft 8 is provided with an oblique tooth block 9, the end part of the rotating shaft 8 is provided with a driven wheel 10, a motor plate 11 is arranged at the left side of the supporting seat 7, a motor 12 is arranged above the motor plate 11, the output end of the motor 12 is provided with a driving wheel 13, a transmission belt 14 is arranged between the driving wheel 13 and the driven wheel 10, a controller 15 is arranged at the left side of the bottom plate 3, a top block 16 is arranged at the upper side of the supporting plate 5, a vertical plate 17 is arranged on the left side of the top block 16, a sliding groove 18 is arranged in the vertical plate 17, a supporting frame 19 is arranged above the top block 16, a photovoltaic panel 20 is arranged on the upper side of the supporting frame 19, a connecting block 21 is arranged at the lower side of the supporting frame 19, a connecting rod 22 is arranged in the connecting block 21, a position adjusting rod 23 is arranged between the connecting rods 22, a screw rod 24 is arranged in the middle of the position adjusting rod 23, a fastening rod 26 is arranged between the vertical plates 17, a fixed seat 27 is arranged in the middle of the fastening rod 26, the screw rod 24 penetrates through the fixed seat 27, a positioning shaft 29 is arranged below the bottom plate 3, the right side of the bottom plate 3 is provided with a transmission device 28, the electric meter box 2 is internally provided with an electric meter 36, a storage battery 37 and an inverter 38 are sequentially arranged between the transmission equipment 28 and the electric meter box 2.
For better results, the helical toothed block 9 is engaged with the toothed disc 6.
For better effect, the supporting seat 7 and the motor plate 11 are both fixedly connected with the bottom plate 3, and the displacement phenomenon can not occur.
For better effect, the supporting frame 19 is hinged with the top block 16, and the connecting rod 22 is hinged with the connecting block 21.
For better effect, the left end of the screw 24 is provided with a rotating handle 25, the surface of the rotating handle 25 is provided with anti-slip grains, and the rotating handle 25 is convenient for rotating the screw 24.
For better effect, the fixing seat 27 is connected with the screw 24 through threads.
For better effect, a vertical cylinder 30 is arranged inside the positioning shaft 29, and a movable wheel carrier 32 is arranged inside the vertical cylinder 30.
In order to achieve better effect, a through hole 31 is formed in the outer side of the vertical cylinder 30, a plug 33 is arranged at the upper end of the movable wheel carrier 32, an elastic sheet 34 is arranged inside the plug 33, a bayonet 35 is arranged on the outer side of the elastic sheet 34, and the bayonet 35 can prevent the plug 33 from being separated from the vertical cylinder 30.
The utility model discloses when using, it is fixed with bottom surface through location axle 29 with photovoltaic equipment 1, it is different according to the season, can adjust photovoltaic board 20 inclination, rotate screw rod 24, screw rod 24 removes about fixing base 27 is inside, and then it removes to drive connecting rod 22 through positioning rod 23, positioning rod 23 tip and 18 joints of spout, and can remove along spout 18, increase positioning rod 23 stability, connecting rod 22 removes and can drive support frame 19 and rotate around kicking block 16, and then change photovoltaic board 20's inclination, it is different according to every day moment, controller 15 accessible control motor 12 drives layer board 5 rotation, and then change photovoltaic board 20 orientation, make it keep just to the sun, motor 12 starts, action wheel 13 drives from driving wheel 10 rotation through drive belt 14, and then it is rotatory to drive pivot 8, skewed tooth piece 9 meshes with toothed disc 6, and then accessible toothed disc 6 drives layer board 5 and rotates, carry out the angle modulation to photovoltaic board 20, can be according to the particular case, it once to set up each hour or other time intervals to position adjustment, photovoltaic equipment 1 produced electric energy, through transmission equipment 28, battery 37, the back and electric meter box 38, it can be convenient for photovoltaic equipment 2 rotate to connect photovoltaic rack removal, the photovoltaic equipment removal, the utility model photovoltaic board 20 removal efficiency of photovoltaic equipment is high in the vertical removal, it can utilize the characteristics of photovoltaic equipment as far as possible to move as the utility model as the convenience of photovoltaic equipment as the utility model has.
Claims (8)
1. The utility model provides a photovoltaic power supply unit for ammeter, it includes photovoltaic equipment and ammeter case, its characterized in that: photovoltaic equipment bottom be provided with the bottom plate, the bottom plate upside be provided with the bearing frame, bearing frame top be provided with the layer board, the layer board downside be provided with the toothed disc, toothed disc left side be provided with the supporting seat, the inside pivot that is provided with of supporting seat, pivot middle part be provided with oblique tooth piece, the pivot tip be provided with from the driving wheel, supporting seat left side be provided with the motor board, motor board top be provided with the motor, the motor output be provided with the action wheel, action wheel and from being provided with the drive belt between the driving wheel, the bottom plate left side be provided with the controller, the layer board upside be provided with the kicking block, kicking block left side be provided with the riser, the inside spout that is provided with of riser, kicking block top be provided with the support frame, support frame upside be provided with the photovoltaic board, the support frame downside be provided with even piece, even piece inside be provided with the connecting rod, the connecting rod between be provided with the positioning rod, positioning rod middle part be provided with the fixing base, the screw rod run through the fixing base, bottom plate below be provided with the transmission equipment, the inside ammeter of ammeter case and the ammeter be provided with the dc-to be provided with in proper order between the table case.
2. A photovoltaic power supply device for electricity meters, according to claim 1, characterized in that: the helical tooth block is meshed with the gear disc.
3. A photovoltaic power supply device for electricity meters, according to claim 1, characterized in that: the supporting seat and the motor plate are fixedly connected with the bottom plate.
4. The photovoltaic power supply device for the electricity meter according to claim 1, characterized in that: the supporting frame is hinged with the top block, and the connecting rod is hinged with the connecting block.
5. The photovoltaic power supply device for the electricity meter according to claim 1, characterized in that: the left end of the screw rod is provided with a rotating handle, and the surface of the rotating handle is provided with anti-skid grains.
6. The photovoltaic power supply device for the electricity meter according to claim 1, characterized in that: the fixed seat is connected with the screw rod through threads.
7. The photovoltaic power supply device for the electricity meter according to claim 1, characterized in that: the inner side of the positioning shaft is provided with a vertical cylinder, and a movable wheel carrier is arranged in the vertical cylinder.
8. The photovoltaic power supply device for the electricity meter according to claim 7, wherein: the outer side of the vertical cylinder is provided with a through hole, the upper end of the movable wheel carrier is provided with a plug, an elastic sheet is arranged in the plug, and a clamping pin is arranged on the outer side of the elastic sheet.
