Abstract

The utility model discloses a solar energy high-efficiency utilization system, which comprises a box body, a solar panel, a turntable and a rotating assembly, wherein four corners of the bottom end surface of the box body are vertically provided with telescopic rods, the bottoms of the telescopic rods are provided with foot pads, the turntable is horizontally and movably embedded in the top end surface of the box body, the solar panel is arranged above the turntable, a ball body is arranged between the solar panel and the turntable in the middle, and a ball support which is in sliding butt joint with the ball body is arranged on one end surface of the solar panel opposite to the turntable; the supporting column is vertically fixed on the bottom end wall in the box body in the middle, the supporting plate is horizontally fixed on the top end face of the supporting column, a rotating assembly matched with the rotary table for use is arranged on the top end face of the supporting plate, and the rotating assembly is composed of a first bevel gear, a second bevel gear and a first motor. This solar energy high efficiency utilizes system, it is rational in infrastructure, solved the problem that exists among the prior art, be worth promoting.

Description

Solar energy efficient utilization system
Technical Field
The utility model belongs to the technical field of solar energy is used, concretely relates to high-efficient system that utilizes of solar energy.
Background
With the increasing awareness of environmental protection and concern about energy crisis, various researches on solar energy application are receiving attention from various circles in recent years, and the utilization rate of solar energy in the solar power generation technology is relevant to the output power of solar power generation.
At present, a solar panel for collecting solar energy is generally fixedly installed, but due to the fact that the solar panel is in a backlight with sunlight within a period of time due to the rotation and revolution of the earth, resource waste is caused, and although a solar energy azimuth tracking technology appears on the market at present, the solar panel is low in adjusting performance and not stable enough in an adjusting process, and therefore further improvement is needed.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a system is utilized to solar energy high efficiency to solve the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: the solar energy efficient utilization system comprises a box body, a solar panel, a rotary table and a rotating assembly, wherein four corners of the bottom end face of the box body are vertically provided with telescopic rods with foot pads at the bottom ends, the rotary table is horizontally and movably embedded in the top end face of the box body, the solar panel is arranged above the rotary table, a ball body is arranged between the solar panel and the rotary table in the middle, and ball supports in sliding butt joint with the ball body are arranged on opposite end faces of the solar panel and the rotary table;
the supporting column is vertically fixed on the bottom wall inside the box body in the middle, the supporting plate is horizontally fixed on the top end face of the supporting column, a rotating assembly used with the rotary table in a matched mode is arranged on the top end face of the supporting plate, the rotating assembly comprises a first bevel gear, a second bevel gear and a first motor, the first bevel gear is horizontally fixed on the bottom end face of the rotary table in the middle, the bottom end of the first bevel gear is rotatably connected with the supporting plate through a rotating shaft, the second bevel gear is vertically meshed with one side of the first bevel gear, and one end, far away from the first bevel gear, of the second bevel gear is connected with a first motor fixed on the supporting plate in a driving mode.
Preferably, be located sliding through is equipped with the screw rod on the carousel of ball support one side, the top of screw rod is rotated and is connected with the slide with solar panel sliding connection.
Preferably, a third bevel gear is sleeved on a screw rod below the rotary table in a threaded manner, the third bevel gear is rotatably connected with the rotary table through a bearing, a fourth bevel gear is vertically meshed with one side of the third bevel gear, and one end, far away from the third bevel gear, of the fourth bevel gear is in driving connection with a second motor fixed on the bottom end face of the rotary table.
Preferably, be located the vertical slip wears to be equipped with the guide bar on the carousel of ball support one side of keeping away from the screw rod, the top of guide bar is rotated equally and is connected with the slide with solar panel sliding connection, just set up on solar panel's the bottom face with two gliding spouts of slide cooperation.
Preferably, the support column top both sides are provided with the fixed plate with backup pad fixed connection, the battery of installing on the box bottom wall is put to support column outside horizontal cover, battery and solar panel electric connection.
The utility model discloses a technological effect and advantage: this system is utilized to solar energy high efficiency, through first conical gear among the rotating assembly, the cooperation of second conical gear and first motor, can realize the rotation regulation to solar panel, through the screw rod, the slide, the guide bar, the ball support, the screw rod, third conical gear, the cooperation of fourth conical gear and second motor, can realize the angle modulation to solar panel horizontal direction, and more stable, through the rotation regulation and the angle modulation on the horizontal direction to solar panel, can make solar panel face the sun all the time, effectively improve the utilization ratio to solar energy, thereby avoid leading to solar panel and the waste that the sunlight caused the resource because of earth rotation and revolution. This solar energy high efficiency utilizes system, it is rational in infrastructure, solved the problem that exists among the prior art, be worth promoting.
Drawings

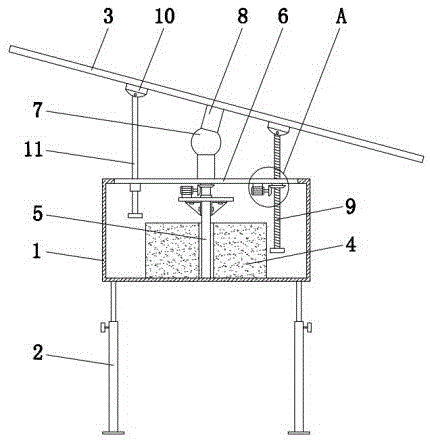

Fig. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic structural view of the rotating assembly of the present invention;
fig. 3 is an enlarged view of a portion a in fig. 1 according to the present invention.
In the figure: the solar energy power generation device comprises a box body 1, a telescopic rod 2, a solar panel 3, a storage battery 4, a support column 5, a rotary table 6, a sphere 7, a sphere 8, a screw rod 9, a sliding seat 10, a guide rod 11, a support plate 12, a fixing plate 13, a first bevel gear 14, a second bevel gear 15, a first motor 16, a third bevel gear 17, a fourth bevel gear 18 and a second motor 19.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
The utility model provides a solar energy high efficiency utilization system as shown in figures 1-3, including box 1, solar panel 3, carousel 6 and rotating assembly, box 1 bottom face four corners all installs the telescopic link 2 that the bottom was provided with the callus on the sole perpendicularly, is provided with the locking bolt that controls telescopic link 2 to stretch out and draw back on the lateral wall of telescopic link 2 for adjust the height of device, box 1 top end face horizontal activity inlays has carousel 6, the top of carousel 6 is provided with solar panel 3, be provided with spheroid 7 between solar panel 3 and the carousel 6 between two parties, and all be provided with the ball support 8 with spheroid 7 slip butt on the terminal surface that solar panel 3 and carousel 6 are opposite, the wire casing has all been seted up to spheroid 7, ball support 8 and support column 5 inside to be convenient for solar panel 3 and battery 4 electric connection;
the middle vertical fixing has support column 5 on the inside bottom end wall of box 1, the level is fixed with backup pad 12 on the 5 top end face of support column, backup pad 12 top end face is provided with the rotating assembly who uses with carousel 6 cooperation, rotating assembly comprises first conical gear 14, second conical gear 15 and first motor 16, first conical gear 14 level is fixed on the 6 bottom end face of carousel in the middle, just first conical gear 14's bottom is rotated through pivot and backup pad 12 and is connected, the vertical meshing in one side of first conical gear 14 has second conical gear 15, second conical gear 15 keeps away from the one end drive connection of first conical gear 14 and has first motor 16 fixed on backup pad 12.
Specifically, be located slide on the carousel 6 of 8 one sides of ball support and wear to be equipped with screw rod 9, the top of screw rod 9 is rotated and is connected with slide 10 with solar panel 3 sliding connection for support solar panel 3 rotates the regulation.
Specifically, a third bevel gear 17 is sleeved on a screw 9 below the turntable 6 in a threaded manner, the third bevel gear 17 is rotatably connected with the turntable 6 through a bearing, a fourth bevel gear 18 is vertically meshed with one side of the third bevel gear 17, and one end, far away from the third bevel gear 17, of the fourth bevel gear 18 is in driving connection with a second motor 19 fixed on the bottom end face of the turntable 6, so that the effect of driving the screw 9 to lift is achieved.
Specifically, be located the vertical slip wears to be equipped with guide bar 11 on the carousel 6 of screw rod 9 one side is kept away from to ball support 8, the top of guide bar 11 is rotated equally and is connected with slide 10 with solar panel 3 sliding connection, just set up on solar panel 3's the bottom face with two slide 10 gliding spouts of cooperation, through the cooperation of slide 10 with the spout, drive screw 9 goes up and down, alright realization is to solar panel 3's angle modulation.
Specifically, 5 top both sides of support column are provided with fixed plate 13 with backup pad 12 fixed connection, 5 outside horizontal sleeves of support column have installed battery 4 on 1 bottom wall of box, battery 4 and 3 electric connection of solar panel for collect the solar energy that solar panel 3 collected temporarily.
The working principle is as follows: when the solar energy efficient utilization system is used, the first motor 16 is started to drive the second bevel gear 15 and the first bevel gear 14 to rotate so as to drive the turntable 6, the ball body 7, the ball support 8 and the solar panel 3 to rotate, so that the solar panel 3 is rotatably adjusted, the second motor 19 is started to drive the fourth bevel gear 18 and the third bevel gear 17 to rotate so as to drive the screw 9 to vertically lift, the sliding seat 10 is pushed to slide on the bottom end face of the solar panel 3 through the vertical lifting of the screw 9, meanwhile, the solar panel 3 rotates in the horizontal direction by taking the ball body 7 as an axis under the matching of the guide rod 11 and is more stable, so that the angle adjustment of the solar panel 3 in the horizontal direction is realized, the rotation adjustment and the angle adjustment of the solar panel 3 in the mode are realized, so that the solar panel 3 always faces the sun, thereby effectively improved the utilization ratio to solar energy, thereby avoided leading to solar panel 3 and sunlight to be shaded because of earth rotation and revolution and cause the waste of resource, further, can adjust solar panel 3's height through telescopic link 2, can store to battery 4 after the solar energy of being absorbed by solar panel 3 turns into the electric energy temporarily. This solar energy high efficiency utilizes system, it is rational in infrastructure, solved the problem that exists among the prior art, be worth promoting.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications and variations can be made in the embodiments or in part of the technical features of the embodiments without departing from the spirit and the scope of the invention.

Claims (5)

1. Solar energy high efficiency utilizes system, including box (1), solar panel (3), carousel (6) and rotating assembly, its characterized in that: the four corners of the bottom end face of the box body (1) are vertically provided with telescopic rods (2) with foot pads arranged at the bottom ends, a turntable (6) is horizontally and movably embedded in the top end face of the box body (1), a solar panel (3) is arranged above the turntable (6), a ball body (7) is arranged between the solar panel (3) and the turntable (6) in the middle, and a ball support (8) in sliding butt joint with the ball body (7) is arranged on one end face of the solar panel (3) opposite to the turntable (6);
the improved structure of the motor vehicle is characterized in that a supporting column (5) is vertically fixed on the inner bottom end wall of the box body (1) in the middle, a supporting plate (12) is horizontally fixed on the top end face of the supporting column (5), a rotating assembly matched with the rotary table (6) in use is arranged on the top end face of the supporting plate (12), the rotating assembly consists of a first bevel gear (14), a second bevel gear (15) and a first motor (16), the first bevel gear (14) is horizontally fixed on the bottom end face of the rotary table (6) in the middle, the bottom end of the first bevel gear (14) is rotatably connected with the supporting plate (12) through a rotating shaft, the second bevel gear (15) is vertically meshed on one side of the first bevel gear (14), and one end, far away from the first bevel gear (14), of the second bevel gear (15) is in driving connection with the first motor (16).
2. The solar energy efficient utilization system of claim 1, wherein: lie in slide on the carousel (6) of ball support (8) one side and wear to be equipped with screw rod (9), the top of screw rod (9) is rotated and is connected with slide (10) with solar panel (3) sliding connection.
3. The solar energy efficient utilization system of claim 1, wherein: and a third bevel gear (17) is sleeved on a screw rod (9) below the rotary table (6) in a threaded manner, the third bevel gear (17) is rotatably connected with the rotary table (6) through a bearing, a fourth bevel gear (18) is vertically meshed with one side of the third bevel gear (17), and one end, far away from the third bevel gear (17), of the fourth bevel gear (18) is in driving connection with a second motor (19) fixed on the bottom end face of the rotary table (6).
4. The solar energy efficient utilization system of claim 1, wherein: be located vertical slip wears to be equipped with guide bar (11) on ball support (8) keep away from carousel (6) of screw rod (9) one side, the top of guide bar (11) is rotated equally and is connected with slide (10) with solar panel (3) sliding connection, just set up on the bottom face of solar panel (3) with two slide (10) cooperation gliding spouts.
5. The solar energy efficient utilization system of claim 1, wherein: support column (5) top both sides are provided with fixed plate (13) with backup pad (12) fixed connection, support column (5) outside level cover is put and is installed battery (4) on box (1) bottom wall, battery (4) and solar panel (3) electric connection.
