Abstract

The utility model provides a belt cleaning device is soaked in tympanic bulla, including the tympanic bulla machine body, the tympanic bulla machine body includes the washing tank, the discharge port has been seted up at the top of washing tank side, the washing tank is equipped with the circulation groove that corresponds with the discharge port outward, demountable installation has filter equipment in the circulation groove, be equipped with first delivery port on the circulation groove, first delivery port sets up the below at filter equipment, first delivery port department intercommunication has first drain pipe, install first water pump on the first drain pipe, the outlet end intercommunication of first water pump has first conveyer pipe, the opposite side and the intercommunication that first conveyer pipe extends to the washing tank have the horizontal pipe, the intercommunication has a plurality of spaced flushing pipe on the horizontal pipe, the flushing pipe extends to in the washing tank and sets up relatively with the discharge port. The utility model discloses be convenient for in time discharge and float the debris in the washing tank, improve the cleaning performance.

Description

Bubbling soaking and cleaning device

Technical Field

The utility model relates to a cleaning equipment's technical field, concretely relates to belt cleaning device is soaked in tympanic bulla.

Background

When food such as processing dumpling, pie, often use the leek, the leek has abundant nutritive value and strong adaptability, cold-resistant heat-resisting, be convenient for cultivate, when clearing up the leek, adopt leek descaling machine to wash, time saving and labor saving, but conventional leek descaling machine often adopts and sprays the washing, be about to leek tiling on carrying the net area, top on carrying the net sets up spray set, spray the clearance to the leek, this kind of cleaning method can clear up most debris on the leek, the foreign matter that mix with in the middle of the leek is difficult for clearing up out, so introduce the tympanic bulla cleaning machine, carry out tympanic bulla soaking washing to the leek, be convenient for clear up the foreign matter that mixes in the middle of the leek, but in the use, the washing tank top easily floats there is the film, debris such as hair, debris are difficult for discharging, influence the cleaning performance, so need design a tympanic bulla soaking cleaning device, be convenient for in time discharge the debris that floats in the washing tank, improve the cleaning performance.

SUMMERY OF THE UTILITY MODEL

The utility model aims to provide a: the bubbling soaking cleaning device is convenient for timely discharging sundries floating in the cleaning tank and improves the cleaning effect.

The utility model adopts the technical proposal that:

the utility model provides a belt cleaning device is soaked in tympanic bulla, including the tympanic bulla machine body, the tympanic bulla machine body includes the washing tank, the discharge port has been seted up at the top of washing tank side, the washing tank is equipped with the circulation groove that corresponds with the discharge port outward, demountable installation has filter equipment in the circulation groove, be equipped with first delivery port on the circulation groove, first delivery port sets up the below at filter equipment, first delivery port department intercommunication has first calandria, install first water pump on the first calandria, the delivery port intercommunication of first water pump has first conveyer pipe, first conveyer pipe extends to the opposite side and the intercommunication in washing groove has the horizontal pipe, the intercommunication has the flushing pipe of a plurality of spaced on the horizontal pipe, the flushing pipe extends to in the washing groove and sets up relatively with the discharge port.

One end of the cleaning tank is provided with a feeding hole, and the other end of the cleaning tank is provided with a discharging hole; the circulating tank is also provided with a second water outlet which is arranged below the filtering device, the second water outlet is communicated with a second water discharge pipe, a second water pump is arranged on the second water discharge pipe, the water outlet end of the second water pump is communicated with a second conveying pipe, the second conveying pipe extends to one side of the discharge port and is communicated with a plurality of spaced spray pipes, and the bottoms of the spray pipes are provided with a plurality of spaced spray heads; the second delivery pipe is provided with a filter.

At least two door-shaped support frames are arranged outside the cleaning tank and arranged along the length direction of the cleaning tank; an upper assembling frame and a lower assembling frame are sequentially arranged in the cleaning tank from top to bottom, the upper assembling frame and the lower assembling frame are respectively detachably and fixedly connected with the supporting frame, an upper conveying mesh belt is installed on the upper assembling frame, a lower conveying mesh belt matched with the upper conveying mesh belt is installed on the lower assembling frame, and two ends of the lower conveying mesh belt extend out of the upper conveying mesh belt.

A horizontal sliding plate is connected in the support frame in a sliding manner, the upper assembly frame is detachably fixed at the bottom of the sliding plate, two connecting plates which are vertically spaced are detachably fixed on the sliding plate, and two sides of the lower assembly frame are detachably fixed on the corresponding connecting plates; the support frame includes two vertical supporting legs, is fixed with the roof between two supporting legs, and the both ends of sliding plate respectively with the supporting leg sliding connection who corresponds, install the hoisting device who is used for the lift sliding plate on the support frame.

Symmetrical hanging rods are fixed at the top of the sliding plate, hanging rings are fixed at the top of the hanging rods, a lifting motor is detachably fixed on the supporting frame, the output end of the lifting motor is rotatably connected with a horizontal rotating shaft, the rotating shaft is arranged above the sliding plate, pulleys which correspond to the hanging rods one by one are installed on the rotating shaft, steel wire ropes are wound on the pulleys, and the free ends of the steel wire ropes are fixed on the hanging rings; the end part of the sliding plate is rotationally connected with symmetrical sliding wheels, the inner side of each supporting leg is provided with a sliding groove, two sides of each sliding groove are provided with vertical sliding rails matched with the sliding wheels, and the outer side of each supporting leg is provided with an access hole communicated with the sliding groove.

The upper assembly frame and the lower assembly frame are respectively provided with a driving motor and a conveying roller, and the driving motors are in transmission connection with the corresponding conveying rollers; the upper conveying mesh belt and the lower conveying mesh belt are respectively matched with corresponding conveying rollers.

The upper assembly frame comprises two spaced upper assembly plates, conveying rollers matched with the upper conveying mesh belt are rotatably connected between the two upper assembly plates, a first limiting strip and a second limiting strip which are respectively matched with the upper conveying mesh belt are sequentially arranged on the inner sides of the upper assembly plates from top to bottom, and the first limiting strip and the second limiting strip are arranged along the length direction of the upper assembly plates; the both ends of the spacing strip of second are equipped with the slope strip, are connected with the horizontal bar between two slope strips, and the one end that the slope strip is close to the horizontal bar is less than its one end that deviates from the horizontal bar, and the top of slope strip is equipped with rather than complex arc strip.

The lower assembly frame comprises two spaced lower assembly plates, a conveying roller matched with the lower conveying net belt is rotatably connected between the two lower assembly plates, each lower assembly plate comprises a first horizontal plate, two ends of each first horizontal plate are respectively and fixedly provided with an inclined plate, one end of each inclined plate, which is far away from the corresponding first horizontal plate, is fixedly provided with a second horizontal plate, and one end, which is close to the corresponding first horizontal plate, of each inclined plate is lower than one end, which is close to the corresponding second horizontal plate, of each inclined plate; the inner side of the lower assembly plate is sequentially provided with a third limiting strip and a fourth limiting strip which are respectively matched with the lower conveying net belt from top to bottom, and the shapes of the third limiting strip and the fourth limiting strip are matched with the shape of the lower assembly plate.

The discharge port is fixed with an inclined discharge plate corresponding to the circulation groove, both sides of the discharge plate are fixed with guard plates, and the outer end of the discharge plate is arranged above the circulation groove.

A limiting frame is fixed on the side surface of the cleaning tank, and a limiting column matched with the lower assembly plate can be installed on the limiting frame in a pulling mode.

The cleaning tank is externally provided with an air blower, the air outlet end of the air blower is communicated with an air delivery pipe, the air delivery pipe is communicated with a plurality of bubbling pipes which are horizontally arranged in the cleaning tank at intervals, one end of each bubbling pipe is communicated with the air delivery pipe, the other end of each bubbling pipe is sealed, and the bubbling pipe is provided with a plurality of spaced air exhaust holes.

The utility model discloses be convenient for in time discharge the debris that float in the washing tank, improve the cleaning performance, the bubbling machine body has the abluent effect of tympanic bulla, the bubbling machine body includes the washing tank, be used for soaking and treat the clearance material and carry out the tympanic bulla washing to it, the discharge port has been seted up at the top of washing tank side, be convenient for float the debris at clearance groove top along with the log raft play at clearance groove top, the washing tank is equipped with the circulation groove that corresponds with the discharge port outward, be used for collecting from discharge port exhaust water and the showy debris of aquatic, be equipped with first delivery port on the circulation groove, first delivery port department intercommunication has first drain pipe, install first water pump on the first drain pipe, first water pump is arranged in taking out the water in the circulation groove to first delivery pipe, first delivery port sets up in filter equipment's below, the water of being convenient for taking out is the dry water purification after filtering, first delivery pipe extends to the opposite side intercommunication in clearance groove has the horizontal pipe, the intercommunication has a plurality of spaced flushing pipe, the water pipe of first water pump of being convenient for taking out is along first drain pipe in proper order, the horizontal pipe, the high water pipe that the washing tank extends to carry out, the high water utilization ratio that the washing tank, the washing tank that the washing tank is convenient for carry out, the relative water that the washing tank, the high water that the washing tank is convenient for carry out, the washing tank, the high water utilization ratio that promotes the washing tank, the relative water that promotes the washing tank, the high water that is set up.

Drawings

Fig. 1 is a schematic perspective view of the present invention;

fig. 2 is a schematic top view of the present invention;

FIG. 3 is a schematic view of a partial structure of the present invention;

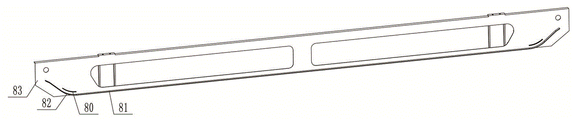

FIG. 4 is a schematic view of the upper mounting plate;

fig. 5 is a schematic structural view of the lower mounting plate.

Detailed Description

As shown in fig. 1-5, a bubbling soaking cleaning device comprises a bubbling machine body, the bubbling machine body has a bubbling cleaning function, the bubbling machine body comprises a cleaning tank 41, the cleaning tank 41 is used for soaking a material to be cleaned and bubbling cleaning the material, the cleaning tank 41 is approximately ship-shaped, a discharge port 51 is arranged at the top of one side surface of the cleaning tank 41, so that impurities floating at the top of the cleaning tank can be discharged along with water at the top of the cleaning tank, a circulating tank 48 corresponding to the discharge port 51 is arranged outside the cleaning tank 41 and used for collecting water discharged from the discharge port 51 and impurities floating in the water, a filtering device 49 is detachably arranged in the circulating tank 48, the filtering device 49 adopts a conventional filtering screen plate and is used for filtering the water entering the circulating tank 48, a first water outlet is arranged on the circulating tank 48, the first water outlet is arranged below the filtering device 49, the first water outlet is communicated with a first water discharge pipe 47, a first water pump 46 is installed on the first water discharge pipe 47, the water outlet end of the first water pump 46 is communicated with a first delivery pipe 45, the first delivery pipe 45 extends to the other side of the cleaning tank 41 and is communicated with a horizontal pipe 69, the horizontal pipe 69 is communicated with a plurality of flushing pipes 70 at intervals, so that water pumped out by the first water pump 46 sequentially flows into the cleaning tank 41 along the first water discharge pipe 47, the first delivery pipe 45, the horizontal pipe 69 and the flushing pipes 70, the cleaning is continuously carried out, the utilization rate of the water is improved, the flushing pipes 70 extend into the cleaning tank 41 and are arranged opposite to the discharge port 51, and sundries floating on the top of the cleaning tank 41 are pushed towards the discharge port 51.

A feed inlet is formed at one end of the cleaning tank 41, and a discharge outlet is formed at the other end of the cleaning tank 41; the circulating tank 48 is also provided with a second water outlet which is arranged below the filtering device 49, the second water outlet is communicated with a second water drainage pipe 55, a second water pump 56 is installed on the second water drainage pipe 55, the water outlet end of the second water pump 56 is communicated with a second conveying pipe 58, the second conveying pipe 58 extends to one side of the water outlet and is communicated with a plurality of spaced spraying pipes 61, the bottom of each spraying pipe 61 is provided with a plurality of spaced nozzles, and the second water pump 56 is used for pumping water in the circulating tank 48 out, sequentially passes through the second water drainage pipe 55, the second conveying pipe 58 and the spraying pipes 61, and then is sprayed out from the nozzles to clean materials; a filter 57, preferably a turtle-back filter 57, is mounted on the second delivery pipe 58 to filter the water entering the second drain pipe 55, thereby further improving the cleaning effect.

At least two door-shaped support frames are arranged outside the cleaning tank 41, the support frames are arranged along the length direction of the cleaning tank 41, and the cleaning tank 41 sequentially penetrates through the support frames; an upper assembly frame 62 and a lower assembly frame 42 are sequentially arranged in the cleaning tank 41 from top to bottom, the upper assembly frame 62 and the lower assembly frame 42 are respectively detachably and fixedly connected with a support frame, the support frame is used for supporting the upper assembly frame 62 and the lower assembly frame 42, an upper conveying mesh belt 79 is arranged on the upper assembly frame 62, a lower conveying mesh belt 78 matched with the upper conveying mesh belt 79 is arranged on the lower assembly frame 42, two ends of the lower conveying mesh belt 78 extend out of the upper conveying mesh belt 79, so that materials can conveniently enter the lower conveying mesh belt 78 and can be conveniently discharged from the lower conveying mesh belt 78, when the cleaning tank is used, the materials to be cleaned are flatly laid on the lower conveying mesh belt 78, the upper conveying mesh belt 79 not only plays a role in matched conveying, but also plays a role in limiting, and the materials are prevented from being separated from the lower conveying mesh belt 78.

A horizontal sliding plate 63 is connected in the supporting frame in a sliding manner, the sliding plate 63 can slide up and down, the upper assembling frame 62 is detachably fixed at the bottom of the sliding plate 63, two connecting plates 420 which are vertically spaced are detachably fixed on the sliding plate 63, the lower assembling frame 42 is arranged between the two connecting plates 420, the bottom of the connecting plate 420 extends to the lower part of the sliding plate 63, two sides of the lower assembling frame 42 are detachably fixed on the corresponding connecting plates 420, and the position of the lower assembling frame 42 relative to the upper assembling frame 62 can be adjusted up and down according to requirements; the support frame includes two vertical supporting legs 54, is fixed with roof 75 between two supporting legs 54, and the both ends of sliding plate 63 respectively with the supporting leg 54 sliding connection who corresponds, install the hoisting device who is used for going up and down sliding plate 63 on the support frame, hoisting device is used for driving sliding plate 63 and goes up and down, and then drives upper assembly frame 62 and lower assembly frame 42 and go up and down, is convenient for clear up and maintain.

Symmetrical hanging rods 64 are fixed at the top of the sliding plate 63, hanging rings 66 are fixed at the top of the hanging rods 64, a lifting motor 67 is detachably fixed on the supporting frame, the output end of the lifting motor 67 is rotatably connected with a horizontal rotating shaft, the rotating shaft is arranged above the sliding plate 63, pulleys 68 which correspond to the hanging rods 64 one by one are installed on the rotating shaft, steel wire ropes are wound on the pulleys 68, and the free ends of the steel wire ropes are fixed on the hanging rings 66; the end part of the sliding plate 63 is rotatably connected with symmetrical sliding wheels 65, the inner sides of the supporting legs 54 are provided with sliding grooves 65a, two sides of each sliding groove 65a are provided with vertical sliding rails matched with the sliding wheels 65, the outer sides of the supporting legs 54 are provided with access holes 53 communicated with the sliding grooves 65a, the maintenance is convenient, when the cleaning or the maintenance is needed, the lifting motor 67 is electrified to work, the lifting motor 67 drives the rotating shaft to rotate, the rotating shaft drives the pulleys 68 to rotate, the steel wire rope is wound or discharged along the pulleys 68, the sliding plate 63 slides up and down, the sliding plate 63 drives the upper assembly frame 62 and the lower assembly frame 42 to move up and down, and in the up-and-down sliding process of the sliding plate 63, the sliding wheels 65 run along the corresponding sliding rails.

The upper assembling frame 62 and the lower assembling frame 42 are respectively provided with a driving motor 60 and a conveying roller 59, and the driving motor 60 is in transmission connection with the corresponding conveying roller 59; the upper conveying mesh belt 79 and the lower conveying mesh belt 78 are respectively matched with the corresponding conveying rollers 59, and the driving motor 60 drives the corresponding conveying rollers 59 to rotate, so that the upper conveying mesh belt 79 or the lower conveying mesh belt 78 is driven to operate.

The upper assembly frame 62 comprises two spaced upper assembly plates 83, the conveying roller 59 matched with the upper conveying mesh belt 79 is rotatably connected between the two upper assembly plates 83, the inner side of the upper assembly plate 83 is sequentially provided with a first limiting strip 72 and a second limiting strip 71 which are respectively matched with the upper conveying mesh belt 79 from top to bottom, the first limiting strip 72 and the second limiting strip 71 are both arranged along the length direction of the upper assembly plate 83, in the operation process of the upper conveying mesh belt 79, the upper conveying mesh belt 79 positioned on the upper part of the conveying roller 59 runs along the top of the first limiting strip 72, and the upper conveying mesh belt 79 positioned on the lower part of the conveying roller 59 runs along the top of the second limiting strip 71; the both ends of second spacing 71 are equipped with slope strip 82, be connected with horizontal bar 81 between two slope strips 82, the one end that slope strip 82 is close to horizontal bar 81 is less than its one end that deviates from horizontal bar 81, the setting of slope strip 82, the interval that makes between the tip of last conveying mesh belt 79 and the tip of lower conveying mesh belt 78 is the big shape of outer end opening, be convenient for feeding and ejection of compact, the top of slope strip 82 is equipped with rather than complex arc strip 80, play limiting displacement, be convenient for lie in the operation of the top of second spacing 71 of last conveying mesh belt 79 of conveying roller 59 lower part.

The lower assembly frame 42 comprises two spaced lower assembly plates 84, the conveying roller 59 matched with the lower conveying net belt 78 is rotatably connected between the two lower assembly plates 84, each lower assembly plate 84 comprises a first horizontal plate 87, two ends of each first horizontal plate 87 are respectively fixed with an inclined plate 86, one end of each inclined plate 86, which is far away from the first horizontal plate 87, is fixed with a second horizontal plate 85, and one end, which is close to the first horizontal plate 87, of each inclined plate 86 is lower than one end, which is close to the second horizontal plate 85, of each inclined plate 86; the inner side of the lower assembly plate 84 is sequentially provided with a third limiting strip 76 and a fourth limiting strip 77 which are respectively matched with the lower conveying mesh belt 78 from top to bottom, in the running process of the lower conveying mesh belt 78, the lower conveying mesh belt 78 positioned on the upper part of the conveying roller 59 runs along the top of the third limiting strip 76, the lower conveying mesh belt 78 positioned on the lower part of the conveying roller 59 runs along the top of the fourth limiting strip 77, and the shapes of the third limiting strip 76 and the fourth limiting strip 77 are matched with the shape of the lower assembly plate 84, so that feeding and discharging are facilitated.

Both sides of the upper conveying mesh belt 79 and the lower conveying mesh belt 78 are provided with a plurality of rollers, which are the prior art and are not described herein again, the rollers of the upper conveying mesh belt 79 respectively run along the corresponding first limiting strips 72 and the second limiting strips 71, and the rollers of the lower conveying mesh belt 78 respectively run along the corresponding third limiting strips 76 and the fourth limiting strips 77.

The discharge port 51 is fixed with an inclined discharge plate 50 corresponding to the circulation groove 48, two sides of the discharge plate 50 are fixed with guard plates 52 for protection, and the outer end of the discharge plate 50 is arranged above the circulation groove 48, so that water and sundries can be conveniently discharged into the circulation groove 48 along the discharge plate 50.

A limiting frame 44 is fixed on the side surface of the cleaning tank 41, a limiting column 43 matched with the lower assembly plate 84 is installed on the limiting frame 44 in a pulling mode, when the upper assembly frame 62 and the lower assembly frame 42 need to be lifted for cleaning or maintenance, after the upper assembly frame 62 and the lower assembly frame 42 are raised to exceed the height of the limiting column 43, the limiting column 43 is pushed inwards, the limiting column 43 is located below the lower assembly frame 42, the protection limiting effect is achieved, and the upper assembly frame 62 and the lower assembly frame 42 are prevented from falling off due to the fact that a steel wire rope is broken and the like.

The cleaning tank 41 is externally provided with an air blower 74, the air outlet end of the air blower 74 is communicated with an air conveying pipe, the air conveying pipe is communicated with a plurality of horizontally spaced bubbling pipes 71 arranged in the cleaning tank 41, one end of each bubbling pipe 71 is communicated with the air conveying pipe, the other end of each bubbling pipe 71 is sealed, a plurality of spaced air exhaust holes are formed in each bubbling pipe 71, the air inlet end of the air blower 74 can be directly communicated with air, the air blower 74 is electrified to work, air is pumped into the air conveying pipe and then is introduced into the bubbling pipes 71, finally, the air is exhausted from the air exhaust holes, and bubbles are generated in the cleaning tank 41.

The utility model discloses be convenient for in time discharge the debris that float in washing tank 41, improve the cleaning performance, at the during operation, add clean water in washing tank 41, will treat abluent material from the feed inlet of washing tank 41, place on conveyer belt 78 down, conveyer belt 78 moves under the driving motor 60 drive, treat that the washing material moves along with conveyer belt 78 down and enter into between last conveyer belt 79 and the conveyer belt 78 down, go up conveyer belt 79 and the cooperation of conveyer belt 78 down and carry forward and treat the washing material, treat the aquatic of washing material soaking in washing tank 41, treat that the debris between the washing material deviate from and float at the top of washing tank 41, debris follow water and discharge from discharge port 51, flow out through discharge plate 50, filter 49, enter into circulation tank 48, first water pump 46 circular slot electricity work, first water pump 46 takes out the water in circulation tank 48 and follow first drain pipe 47 in proper order, first conveyer pipe 45, horizontal pipe 69, flushing pipe 70 refluxes in washing tank 41, continue to wash, improve the utilization ratio of water, be convenient for the water pump 56 that floats in the top of washing tank 41 promotes second water pump 56 and handle the shower nozzle through second water recirculation pipe 61 in proper order, the blowout of second water recirculation pipe, the second water recirculation pipe 55, the second water recirculation pipe is located the blowout.

In this embodiment, the device is used for clearing up leek, and the device also can be used for clearing up other materials.

The above-mentioned embodiment is right the utility model discloses an explanation, it is not right the utility model discloses a limited, any right the scheme after the simple transform of the utility model all belongs to the protection scope of the utility model.

Claims (10)

1. The utility model provides a belt cleaning device is soaked in tympanic bulla, includes the bubbler body, and the bubbler body includes washing tank, its characterized in that: the discharge port has been seted up at the top of washing tank a side, the washing tank is equipped with the circulation groove that corresponds with the discharge port outward, demountable installation has filter equipment in the circulation groove, be equipped with first delivery port on the circulation groove, first delivery port sets up the below at filter equipment, first delivery port department intercommunication has first calandria, install first water pump on the first calandria, the play water end intercommunication of first water pump has first conveyer pipe, first conveyer pipe extends to the opposite side in washing groove and communicates there is the horizontal pipe, the intercommunication has a plurality of spaced flushing pipe on the horizontal pipe, the flushing pipe extends to in the washing groove and sets up with the discharge port is relative.

2. The bubble soak cleaning apparatus of claim 1 wherein: one end of the cleaning tank is provided with a feeding hole, and the other end of the cleaning tank is provided with a discharging hole; the circulating tank is also provided with a second water outlet which is arranged below the filtering device, the second water outlet is communicated with a second water discharge pipe, a second water pump is arranged on the second water discharge pipe, the water outlet end of the second water pump is communicated with a second conveying pipe, the second conveying pipe extends to one side of the discharge port and is communicated with a plurality of spaced spray pipes, and the bottoms of the spray pipes are provided with a plurality of spaced spray heads; the second delivery pipe is provided with a filter.

3. The bubble immersion cleaning apparatus according to claim 1, wherein: at least two supporting frames in a shape of a Chinese character 'men' are arranged outside the cleaning tank and arranged along the length direction of the cleaning tank; an upper assembling frame and a lower assembling frame are sequentially arranged in the cleaning tank from top to bottom, the upper assembling frame and the lower assembling frame are respectively detachably and fixedly connected with the supporting frame, an upper conveying mesh belt is installed on the upper assembling frame, a lower conveying mesh belt matched with the upper conveying mesh belt is installed on the lower assembling frame, and two ends of the lower conveying mesh belt extend out of the upper conveying mesh belt.

4. The bubble soak cleaning apparatus of claim 3 wherein: a horizontal sliding plate is connected in the supporting frame in a sliding manner, the upper assembling frame is detachably fixed at the bottom of the sliding plate, two connecting plates which are vertically spaced are detachably fixed on the sliding plate, and two sides of the lower assembling frame are detachably fixed on the corresponding connecting plates; the support frame includes two vertical supporting legs, is fixed with the roof between two supporting legs, the both ends of sliding plate respectively with the supporting leg sliding connection who corresponds, install the hoisting device who is used for the lift sliding plate on the support frame.

5. The bubble soak cleaning apparatus of claim 4 wherein: symmetrical hanging rods are fixed at the top of the sliding plate, hanging rings are fixed at the top of the hanging rods, a lifting motor is detachably fixed on the supporting frame, the output end of the lifting motor is rotatably connected with a horizontal rotating shaft, the rotating shaft is arranged above the sliding plate, pulleys in one-to-one correspondence with the hanging rods are installed on the rotating shaft, steel wire ropes are wound on the pulleys, and the free ends of the steel wire ropes are fixed on the hanging rings; the end part of the sliding plate is rotatably connected with symmetrical sliding wheels, the inner side of each supporting leg is provided with a sliding groove, two sides of each sliding groove are provided with vertical sliding rails matched with the sliding wheels, and the outer side of each supporting leg is provided with an access hole communicated with the sliding groove.

6. The bubble immersion cleaning apparatus according to claim 3, wherein: the upper assembly frame and the lower assembly frame are respectively provided with a driving motor and a conveying roller, and the driving motors are in transmission connection with the corresponding conveying rollers; the upper conveying mesh belt and the lower conveying mesh belt are respectively matched with corresponding conveying rollers.

7. The bubble soak cleaning apparatus of claim 6 wherein: the upper assembly frame comprises two spaced upper assembly plates, the conveying roller matched with the upper conveying mesh belt is rotatably connected between the two upper assembly plates, the inner side of each upper assembly plate is sequentially provided with a first limiting strip and a second limiting strip which are respectively matched with the upper conveying mesh belt from top to bottom, and the first limiting strip and the second limiting strip are arranged along the length direction of the upper assembly plates; two ends of the second limiting strip are provided with inclined strips, a horizontal strip is connected between the two inclined strips, one end of each inclined strip, which is close to the horizontal strip, is lower than one end of each inclined strip, which is far away from the horizontal strip, and an arc strip matched with the inclined strip is arranged above the inclined strip;

the lower assembly frame comprises two spaced lower assembly plates, a conveying roller matched with the lower conveying net belt is rotatably connected between the two lower assembly plates, each lower assembly plate comprises a first horizontal plate, two ends of each first horizontal plate are respectively and fixedly provided with an inclined plate, one end of each inclined plate, which is far away from the corresponding first horizontal plate, is fixedly provided with a second horizontal plate, and one end, which is close to the corresponding first horizontal plate, of each inclined plate is lower than one end, which is close to the corresponding second horizontal plate, of each inclined plate; the inner side of the lower assembly plate is sequentially provided with a third limiting strip and a fourth limiting strip which are respectively matched with the lower conveying net belt from top to bottom, and the shapes of the third limiting strip and the fourth limiting strip are matched with the shape of the lower assembly plate.

8. The bubble immersion cleaning apparatus according to claim 1, wherein: the discharge port is fixed with an inclined discharge plate corresponding to the circulation groove, both sides of the discharge plate are fixed with guard plates, and the outer end of the discharge plate is arranged above the circulation groove.

9. The bubble soak cleaning apparatus of claim 1 wherein: a limiting frame is fixed on the side face of the cleaning tank, and a limiting column matched with the lower assembling plate is installed on the limiting frame in a pulling mode.

10. The bubble soak cleaning apparatus of claim 1 wherein: the cleaning tank is externally provided with an air blower, the air outlet end of the air blower is communicated with an air delivery pipe, the air delivery pipe is communicated with a plurality of bubbling pipes which are horizontally arranged in the cleaning tank at intervals, one end of each bubbling pipe is communicated with the air delivery pipe, the other end of each bubbling pipe is sealed, and the bubbling pipe is provided with a plurality of spaced air exhaust holes.
