CN218508774U

CN218508774U - Indoor building is decorated and is used portable furred ceiling support

Info

Publication number: CN218508774U
Application number: CN202222197486.5U
Authority: CN
Inventors: 陈威
Original assignee: Hubei Xinweijie Construction Co ltd
Current assignee: Hubei Xinweijie Construction Co ltd
Priority date: 2022-08-18
Filing date: 2022-08-18
Publication date: 2023-02-21
Anticipated expiration: 2032-08-18

Abstract

The utility model discloses an indoor building is decorated and is used portable furred ceiling support, including fixed plate and charger, servo motor is installed in the lower extreme left side of fixed plate, the left and right sides of groove pole all is provided with spout one, the screw cap is installed to the one end that the groove pole axis was kept away from to the slip screw. This portable furred ceiling support for interior decoration, compare with current ordinary furred ceiling support, be provided with the spout between each part of the device, the user can contract folding the device, be favorable to the convenient carrying the device of user, also be favorable to the user according to demand adjusting device's height, the device is equipped with the module of rotation regulation simultaneously, be favorable to the show interior architectural decoration of multi-angle, the device still is furnished with shot-light subassembly and emergency lighting subassembly, can provide the light when night or having a power failure, be favorable to showing the ornament night, can prevent that the user from colliding the device in the dark environment simultaneously, be favorable to improving the device's security.

Description

Indoor building is decorated and is used portable furred ceiling support

Technical Field

The utility model relates to an interior architectural decoration technical field specifically is an indoor building is decorated and is used portable furred ceiling support.

Background

The building decoration is mainly used for protecting the main body structure of a building, improving the physical performance and the use function of the building, beautifying the building and the building space and the like, is a short name of building decoration engineering, certainly meets basic indoor and outdoor environments and various living conditions, has good effects on the aspect of spirit and taste, can promote physical and mental health of residents and show different emotional connotations, and sometimes people can use a ceiling bracket to install electrical appliances or ornaments in the indoor building decoration so as to improve the functionality and the design feeling of the indoor decoration.

The patent of current notice number CN208331702U, entitled "ceiling bracket", the device riser subassembly is flexible to be installed through single equipment perforation, avoids violently inserting the bolt in the riser subassembly, makes things convenient for the cable to hold and pass in the riser subassembly, avoids taking place bolt and cable interference, card and puts.

Although above-mentioned device can also shrink in the use, when the user contracts the device, because the device lacks the setting of spout, the user need demolish the equipment screw earlier, with the riser shrink back again from equipment hole installation equipment screw, this process is wasted time and energy, leads to the unable convenient this equipment of carrying and transportation of people, to above-mentioned condition, carries out technical innovation on current ceiling support basis.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide an indoor building is decorated and is used portable furred ceiling support to solve the problem that proposes among the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides an indoor building is decorated and is used portable furred ceiling support, includes fixed plate and charger, servo motor is installed in the lower extreme left side of fixed plate, and servo motor's lower extreme installs the groove pole, the left and right sides of groove pole all is provided with spout one, and the lower extreme of spout one installs the slip screw, the one end that the groove pole axis was kept away from to the slip screw is installed the nut, and the outside of slip screw is provided with the regulation pole, the lower extreme of adjusting the pole is provided with the rotation and connects, the charger is located the lower extreme middle part of fixed plate.

Furthermore, the front end of the rotary connection is provided with a set screw, and the lower end of the rotary connection is provided with a rotating arm.

Furthermore, one section of the rotating arm, which is far away from the central axis of the groove rod, is provided with an adjusting ball head, and one end of the adjusting ball head, which is far away from the central axis of the groove rod, is provided with a rotating rod.

Further, the inboard of dwang is provided with spout two, and the inside of spout two is provided with the extension spring.

Furthermore, the upper end of extension spring is connected with the slider, and the one end that the slotted bar axis was kept away from to the slider is installed the fixation clamp.

Further, the lower extreme of dwang is provided with the layer board, and the upper end of dwang is provided with the shot-light subassembly, the shot-light subassembly includes lamp pole, lamp stand, bulb connection and lamp holder, one section that the grooved bar axis was kept away from to the lamp pole is installed the lamp stand, and the lower extreme of lamp stand installs the bulb and connects, the lower extreme that the bulb is connected is provided with the lamp holder.

Further, the right-hand member of charger is provided with emergency lighting assembly, and emergency lighting assembly includes battery and light, the light is installed to the lower extreme of battery.

Compared with the prior art, the beneficial effects of the utility model are that: the device is provided with a rotary adjusting module, so that the device is convenient to carry and can be conveniently adjusted by a user according to the requirement;

1. the utility model discloses a setting of grooved bar, spout one, the slip screw, the nut and regulation pole, when the user need carry or transport the device, the user can loosen the nut rotation, the user can slide the regulation pole upwards along spout one this moment, the user can tighten the nut after sliding to the top of spout one, make the regulation pole fix in corresponding position, when arriving appointed place and needing to install, the user can loosen the nut, slide the regulation pole to appointed height and tighten the nut as required and fix, through the above-mentioned operation, the user can fold shrink the device, the volume of the device is reduced, be favorable to the convenient device of carrying of user, also be favorable to the user according to the height of demand adjusting device;

2. the utility model discloses a rotate the connection, the rotor arm, adjust the bulb, the dwang, spout two, the extension spring, the setting of fixation clamp and holding screw, when the user needs to adjust the show angle of the device, can loosen the holding screw that rotates the connection front end, the user can rotate at this moment and connect to the rotatory rotor arm of axle, the user can fix the holding screw after rotating to the appointed angle, and stimulate the fixation clamp upwards, put ornaments such as the photo frame or the frame that need show above the layer board, loosen the fixation clamp again, the fixation clamp is blocked downwards under the pulling of extension spring at this moment, fix the ornament that shows, the user can adjust the orientation of ornament through adjusting the bulb, the user can also adjust the whole angle of the device through servo motor, through the aforesaid operation, the user can adjust the orientation of the device as required in a flexible way, be favorable to the show interior architecture ornament of multi-angle;

3. the utility model discloses a shot-light subassembly, the lamp pole, the lamp stand, the bulb is connected, the lamp holder, the charger, emergency lighting subassembly, the setting of battery and light, when the environment is dim, the lamp holder can be opened to the user, and connect the direction of adjusting the lamp holder through the bulb, make it shine the ornament with suitable angle, when the electricity, the charger can charge for the battery, when having a power failure, emergency lighting subassembly can be opened to the user, the light passes through the electric power illumination of storing in the battery this moment, through the aforesaid operation, the device can provide brightly when night or having a power failure, be favorable to show the ornament night, can prevent simultaneously that the user from colliding the device in the dark environment, be favorable to improving the device's security.

Drawings

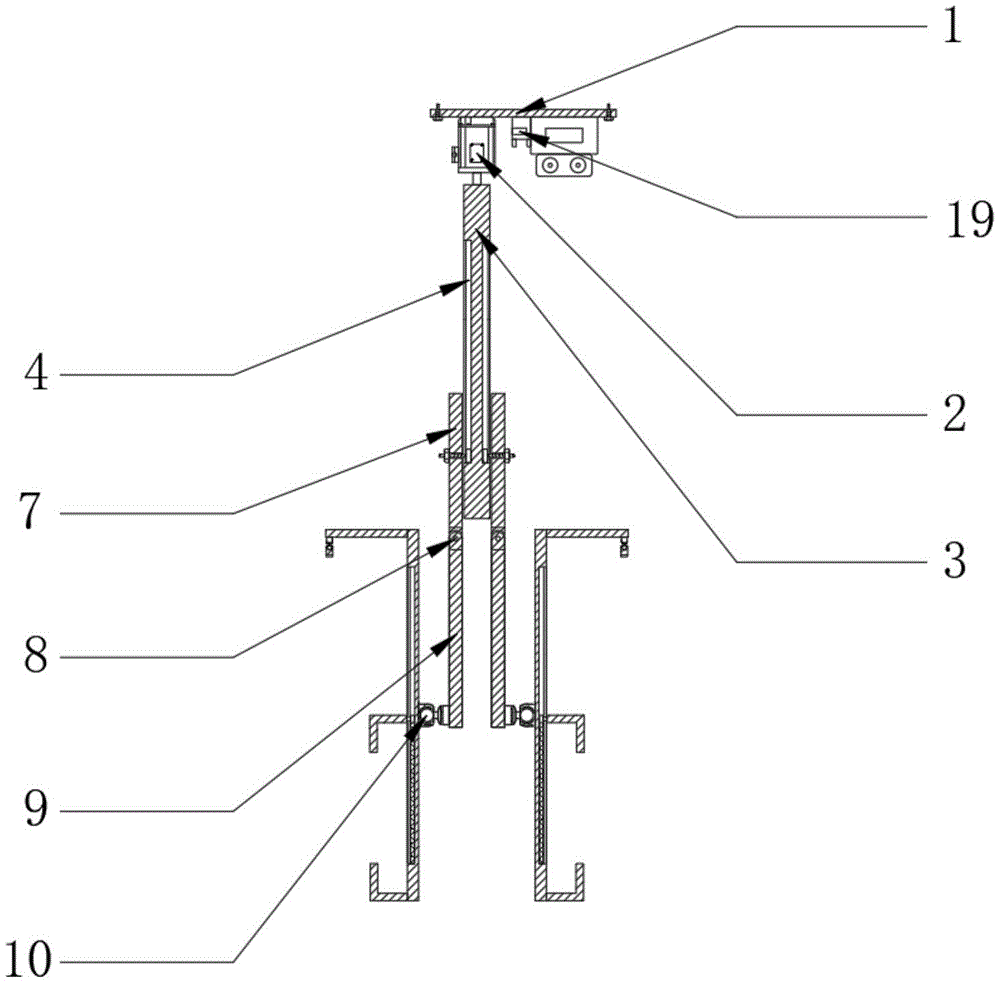

Fig. 1 is a schematic front sectional view of the portable ceiling bracket for indoor architectural decoration according to the present invention;

fig. 2 is a schematic view of a partial front sectional view of a groove rod and an adjusting rod of the portable ceiling bracket for indoor architectural decoration according to the present invention;

FIG. 3 is a schematic view of the three-dimensional structure of the rotating connection and the fastening screw of the portable ceiling bracket for indoor architectural decoration of the present invention;

fig. 4 is the utility model relates to an indoor building is decorated and is done local front elevation sectional structure schematic diagram with rotation rotor arm and the rotation of portable furred ceiling support.

In the figure: 1. a fixing plate; 2. a servo motor; 3. a slot bar; 4. a first sliding chute; 5. a sliding screw; 6. a nut; 7. adjusting a rod; 8. the rotary connection is realized; 9. a rotating arm; 10. adjusting the ball head; 11. rotating the rod; 12. a second chute; 13. a slider; 14. a tension spring; 15. a fixing clip; 16. a support plate; 17. a spotlight assembly; 1701. a lamp post; 1702. a lamp socket; 1703. connecting with a ball head; 1704. a lamp cap; 18. tightening the screw; 19. a charger; 20. an emergency lighting assembly; 2001. a storage battery; 2002. provided is a lighting lamp.

Detailed Description

As shown in fig. 1-4, a portable ceiling bracket for indoor building decoration comprises a fixing plate 1 and a charger 19, wherein a servo motor 2 is installed on the left side of the lower end of the fixing plate 1, a slot rod 3 is installed on the lower end of the servo motor 2, a first sliding slot 4 is formed on each of the left side and the right side of the slot rod 3, a sliding screw 5 is installed on the lower end of the first sliding slot 4, a nut 6 is installed on one end, away from the central axis of the slot rod 3, of the sliding screw 5, an adjusting rod 7 is installed on the outer portion of the sliding screw 5, a rotating connection 8 is arranged on the lower end of the adjusting rod 7, the charger 19 is located in the middle of the lower end of the fixing plate 1, when a user needs to carry or transport the device, the user can rotate and loosen the nut 6, the user can slide the adjusting rod 7 upwards along the first sliding slot 4, and can tighten the nut 6 after sliding to the top end of the first sliding slot 4, so that the adjusting rod 7 is fixed at a corresponding position, when the device is required to be installed in a specified place, a user can loosen the nut 6, the adjusting rod 7 slides to a specified height according to requirements and screws up the nut 6 for fixing, through the operation, the user can fold and contract the device, the size of the device is reduced, the device is convenient to carry by the user conveniently, the height of the device is also convenient to adjust by the user according to the requirements, the front end of the rotary connection 8 is provided with a fastening screw 18, the lower end of the rotary connection 8 is provided with a rotary arm 9, one section of the rotary arm 9, which is far away from the central axis of the grooved rod 3, is provided with an adjusting ball 10, one end of the adjusting ball 10, which is far away from the central axis of the grooved rod 3, is provided with a rotary rod 11, the inner side of the rotary rod 11 is provided with a second sliding groove 12, a tension spring 14 is arranged inside the second sliding groove 12, the upper end of the tension spring 14 is connected with a sliding block 13, and one end of the sliding block 13, which is far away from the central axis of the grooved rod 3, is provided with a fixing clamp 15, when the user need adjust the device's show angle, can loosen the holding screw 18 that rotates 8 front ends of connection, the user can rotate this moment and connect 8 and be axle rotation rotor arms 9, the user can fix holding screw 18 after rotatory appointed angle, and upwards stimulate fixation clamp 15, put ornaments such as the photo holder frame that will demonstrate or picture frame in the layer board 16 top, loosen fixation clamp 15 again, fixation clamp 15 blocks downwards under the pulling of extension spring 14 this moment, the ornament of fixed show, the orientation of ornament is adjusted to user's accessible regulation bulb 10, the user still can adjust the device's whole angle through servo motor 2, through the aforesaid operation, the user can adjust the device's orientation in a flexible way as required, be favorable to the show room building ornament of multi-angle.

As shown in fig. 1, 2 and 4, a support plate 16 is provided at a lower end of a rotation rod 11, a spotlight assembly 17 is provided at an upper end of the rotation rod 11, the spotlight assembly 17 includes a lamp post 1701, a lamp holder 1702, a bulb connection 1703 and a lamp holder 1704, the lamp post 1701 has the lamp holder 1702 installed at a section of the lamp post 1701 distant from a central axis of the slot rod 3, the bulb connection 1703 is installed at a lower end of the lamp holder 1702, the lamp holder 1704 is installed at a lower end of the bulb connection 1703, an emergency lighting assembly 20 is provided at a right end of a charger 19, the emergency lighting assembly 20 includes a storage battery 2001 and a lighting lamp 2002, the lighting lamp 2002 is installed at a lower end of the storage battery 2001, when the environment is dim, the user can turn on the lamp holder 1704 and adjust the direction of the lamp holder 1704 through the bulb connection 1703 so that the lamp holder illuminates at an appropriate angle, when electricity is available, the charger 19 charges the storage battery 2001, when electricity is available, the user can turn on the emergency lighting assembly 20 when the electricity is unavailable, the electricity is available, the lighting device 2002 is illuminated through electricity stored in the storage battery 2001, and the operation, the device can provide light at night or at night, thereby facilitating display of electricity in the black environment, preventing the user from colliding with the safety of the decoration in the night, and facilitating the paint.

The working principle is as follows: when the portable ceiling bracket for indoor architectural decoration is used, firstly, when a user needs to adjust the display angle of the device, the fastening screw 18 at the front end of the rotary connection 8 can be loosened, at the moment, the user can rotate the rotary arm 9 with the rotary connection 8 as an axis, the user can fix the fastening screw 18 after rotating to a specified angle, the fixing clamp 15 is pulled upwards, ornaments such as a photo frame or a picture frame to be displayed are placed above the supporting plate 16, then the fixing clamp 15 is loosened, at the moment, the fixing clamp 15 is clamped downwards under the pulling of the tension spring 14 to fix the displayed ornaments, the orientation of the ornaments can be adjusted by the user through adjusting the ball head 10, the overall angle of the device can be adjusted by the user through the servo motor 2, through the operation, the orientation of the device can be flexibly adjusted by the user according to the needs, when the environment is dim, the lamp holder 1704 can be opened, the direction of the lamp holder 1704 is adjusted through the ball head connection 1703 to enable the lamp holder to irradiate the ornament at a proper angle, when power is on, the charger 19 charges the storage battery 2001, when power is off, a user can open the emergency lighting assembly 20, at the moment, the lighting lamp 2002 illuminates through the power stored in the storage battery 2001, through the operation, the device can provide light at night or when power is off, when the device needs to be carried or transported, the user can rotate and loosen the screw cap 6, at the moment, the user can slide the adjusting rod 7 upwards along the first sliding groove 4, after the adjusting rod slides to the top end of the first sliding groove 4, the user can tighten the screw cap 6 to enable the adjusting rod 7 to be fixed at a corresponding position, when the device needs to be installed at a specified place, the user can loosen the screw cap 6, slide the adjusting rod 7 to a specified height according to requirements and tighten the screw cap 6 to be fixed, through the operation, the user can fold and collapse the device.

Claims

1. The utility model provides an indoor building is decorated and is used portable furred ceiling support, includes fixed plate (1) and charger (19), its characterized in that, servo motor (2) are installed in the lower extreme left side of fixed plate (1), and servo motor (2)'s lower extreme installs groove pole (3), the left and right sides of groove pole (3) all is provided with spout (4), and the lower extreme of spout (4) installs slip screw (5), the one end of keeping away from groove pole (3) axis in slip screw (5) is installed nut (6), and the outside of slip screw (5) is provided with adjusts pole (7), the lower extreme of adjusting pole (7) is provided with rotates and connects (8), charger (19) are located the lower extreme middle part of fixed plate (1).

2. The portable ceiling bracket for indoor building decoration according to claim 1, wherein a set screw (18) is arranged at the front end of the rotary connection (8), and a rotary arm (9) is arranged at the lower end of the rotary connection (8).

3. The portable ceiling support for indoor building decoration according to claim 2, wherein an adjusting ball head (10) is installed at a section of the rotating arm (9) far away from the central axis of the groove rod (3), and a rotating rod (11) is installed at one end of the adjusting ball head (10) far away from the central axis of the groove rod (3).

4. The portable ceiling support for indoor building decoration according to claim 3, wherein a second sliding groove (12) is arranged on the inner side of the rotating rod (11), and a tension spring (14) is arranged inside the second sliding groove (12).

5. The portable ceiling support for indoor building decoration according to claim 4, wherein the upper end of the tension spring (14) is connected with a sliding block (13), and a fixing clamp (15) is installed at one end of the sliding block (13) far away from the central axis of the grooved rod (3).

6. The portable ceiling support for indoor building decoration according to claim 3, wherein a support plate (16) is arranged at the lower end of the rotating rod (11), a spotlight assembly (17) is arranged at the upper end of the rotating rod (11), the spotlight assembly (17) comprises a lamp post (1701), a lamp holder (1702), a bulb connection (1703) and a lamp holder (1704), the lamp holder (1702) is installed on a section of the lamp post (1701) far away from the central axis of the grooved rod (3), the bulb connection (1703) is installed at the lower end of the lamp holder (1702), and the lamp holder (1704) is arranged at the lower end of the bulb connection (1703).

7. The portable ceiling bracket for indoor architectural decoration according to claim 1, wherein the right end of the charger (19) is provided with an emergency lighting assembly (20), the emergency lighting assembly (20) comprises a storage battery (2001) and a lighting lamp (2002), and the lighting lamp (2002) is installed at the lower end of the storage battery (2001).
