CN218406297U

CN218406297U - Adjustable interior decoration is with floating device of coating

Info

Publication number: CN218406297U
Application number: CN202222648753.6U
Authority: CN
Inventors: 王小龙; 王跃华; 胡凯; 周杨; 宋泽镡
Original assignee: China Construction Eighth Engineering Division Decoration Engineering Co Ltd
Current assignee: China Construction Eighth Engineering Division Decoration Engineering Co Ltd
Priority date: 2022-10-08
Filing date: 2022-10-08
Publication date: 2023-01-31
Anticipated expiration: 2032-10-08

Abstract

The utility model discloses a floating device of coating for adjustable interior decoration, comprising a base plate, the up end of bottom plate is equipped with braced frame, be equipped with the connecting box in the braced frame, be equipped with elevating system between connecting box and the braced frame, be equipped with the mounting box in the connecting box, be equipped with two adjustment mechanism between mounting box and the connecting box, the inner wall of mounting box rotates and is connected with the rotary rod, be equipped with the third motor in the mounting box, the power end fixedly connected with third gear of third motor, the lateral wall cover of rotary rod is equipped with rather than fixed connection's fourth gear, intermeshing between third gear and the fourth gear, the one end of rotary rod is equipped with floating mechanism. The utility model has reasonable structural design, can not only adjust the height and the front-back distance of the troweling plate, but also has better adaptability; the angle of the trowelling plate can be adjusted, so that trowelling at different angles is facilitated.

Description

Adjustable interior decoration is with floating device of coating

Technical Field

The utility model relates to an interior decoration technical field especially relates to an adjustable interior decoration is with floating device of coating.

Background

The interior decoration is the theory including room design, fitment, furniture layout and various small decoration points, and its emphasis is to the decoration construction in the building, not only during the decoration design construction period, but also includes the long-term continuous decoration after entering, and fitment and decoration are inseparable. In the interior decoration process, the wall surface is often required to be coated with paint, and thus, the paint is required to be smoothed by using a smoothing device.

But present floating device rotates through motor drive screw rod, and the screw rod drives the slider and removes, and the slider drives the floating roller through the connecting block and removes the floating wall, but because the spacing processing of screw rod, leads to floating roller to carry out directional removal, can't carry out the position and adjust, and then influences the use of device. An object of the utility model is to provide an adjustable interior decoration is with floating device of coating to solve the problem that proposes among the above-mentioned background art.

SUMMERY OF THE UTILITY MODEL

The utility model aims at solving the problems existing in the prior art and providing an adjustable indoor decoration coating trowelling device.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

the utility model provides an adjustable interior decoration is with floating device of coating, includes the bottom plate, the up end of bottom plate is equipped with braced frame, be equipped with the connecting box in the braced frame, be equipped with elevating system between connecting box and the braced frame, be equipped with the mounting box in the connecting box, be equipped with two adjustment mechanism between mounting box and the connecting box, the inner wall of mounting box rotates and is connected with the rotary rod, be equipped with the third motor in the mounting box, the power end fixedly connected with third gear of third motor, the lateral wall cover of rotary rod is equipped with the fourth gear rather than fixed connection, intermeshing between third gear and the fourth gear, the one end of rotary rod is equipped with floating mechanism.

Preferably, the lifting mechanism comprises a first motor arranged at the bottom in the supporting frame, a first gear is fixedly connected to a power end of the first motor, a moving block is slidably connected to the inner wall of the supporting frame, a threaded rod in threaded connection with the moving block is arranged on the moving block in a penetrating manner and fixedly connected between the moving block and the connecting box, a second gear in fixed connection with the threaded rod is sleeved on the outer side wall of the threaded rod, and the first gear and the second gear are meshed with each other.

Preferably, adjustment mechanism is including setting up the second motor in the connecting box, the inner wall of connecting box rotates and is connected with the pivot, the one end fixedly connected with drive gear of pivot, be connected through the belt between drive gear and the second motor, the lateral wall fixedly connected with rack plate of mounting box, intermeshing between drive gear and the rack plate.

Preferably, floating mechanism includes the connecting frame of fixed connection in rotary rod one end, run through on the connecting frame be equipped with two with sliding connection's connecting rod, two the same floating board of one end fixedly connected with of connecting rod, two the lateral wall of connecting rod all overlaps and is equipped with the spring.

Preferably, four travelling wheels are arranged on the lower end face of the bottom plate.

Compared with the prior art, the utility model, its beneficial effect does:

1. through the combined action of the lifting mechanism and the adjusting mechanism, the trowelling plate can be adjusted in height and front-back distance, and the adaptability is good.

2. Through the combined action of third motor, third gear, fourth gear and rotary rod, can adjust the angle of trowelling plate, the trowelling work of the different angles of being convenient for.

In conclusion, the height and the front-back distance of the troweling plate can be adjusted, and the adaptability is good; the angle of the troweling plate can be adjusted, so that troweling at different angles is facilitated.

Drawings

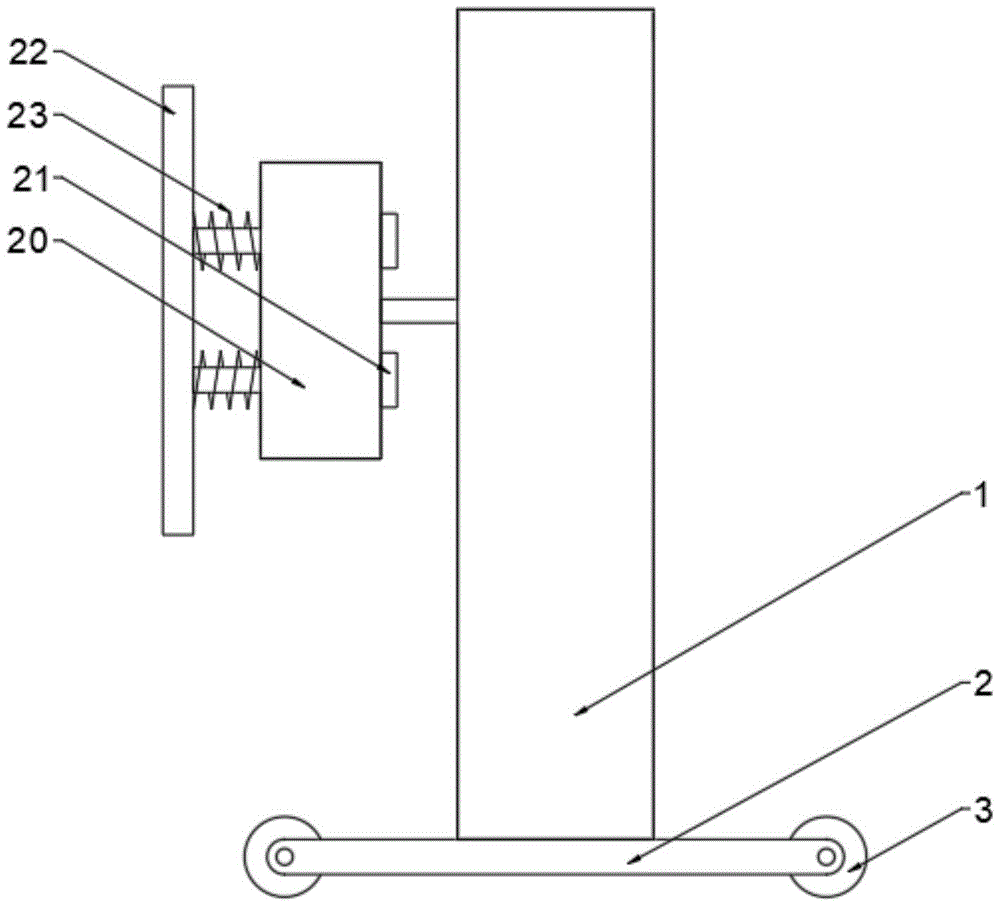

Fig. 1 is a schematic structural view of an adjustable interior finishing coating troweling device provided by the utility model;

fig. 2 is a side sectional view of an adjustable interior finishing coating troweling apparatus provided by the present invention;

FIG. 3 is an enlarged view of FIG. 1 at A;

fig. 4 is a schematic front view of an adjustable indoor-finishing coating trowelling device provided by the present invention;

fig. 5 is a schematic connection diagram of the rotating rod and the connection frame.

In the figure: the device comprises a supporting frame 1, a bottom plate 2, a connecting box 3, a connecting box 4, a moving block 5, a threaded rod 6, a first motor 7, a first gear 8, a second gear 9, a mounting box 10, a rack plate 11, a rotating shaft 12, a driving gear 13, a belt 14, a second motor 15, a rotating rod 16, a third motor 17, a third gear 18, a fourth gear 19, a connecting frame 20, a connecting rod 21, a troweling plate 22 and a spring 23.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.

Referring to fig. 1-5, an adjustable interior decoration is with floating device of coating, including bottom plate 2, the up end of bottom plate 2 is equipped with braced frame 1, the lower terminal surface of bottom plate 2 is equipped with four walking wheels 3, be equipped with connecting box 4 in braced frame 1, be equipped with elevating system between connecting box 4 and braced frame 1, elevating system is including setting up the first motor 7 of bottom in braced frame 1, the power end fixedly connected with first gear 8 of first motor 7, braced frame 1's inner wall sliding connection has movable block 5, run through on the fixed connection movable block 5 between movable block 5 and the connecting box 4 and be equipped with threaded rod 6 rather than threaded connection, threaded rod 6's lateral wall cover is equipped with rather than fixed connection's second gear 9, intermeshing between first gear 8 and the second gear 9, start first motor 7, first motor 7 drives first gear 8 and second gear 9 and rotates, and then can drive threaded rod 6 and rotate, threaded rod 6 rotates and drives movable block 5 and connecting box 4 and goes up and down to move, so can carry out the regulation of floating device height.

Be equipped with mounting box 10 in the connecting box 4, be equipped with two adjustment mechanism between mounting box 10 and the connecting box 4, adjustment mechanism is including setting up second motor 15 in connecting box 4, the inner wall of connecting box 4 rotates and is connected with pivot 12, the one end fixedly connected with drive gear 13 of pivot 12, be connected through belt 14 between drive gear 13 and the second motor 15, the lateral wall fixedly connected with rack plate 11 of mounting box 10, intermeshing between drive gear 13 and the rack plate 11, start second motor 15, second motor 15 drives belt 14 and drive gear 13 and rotates, and then can drive rack plate 11 and the removal of mounting box 10, so can carry out the front and back regulation to floating mechanism.

The inner wall of mounting box 10 rotates and is connected with rotary rod 16, be equipped with third motor 17 in the mounting box 10, the power end fixedly connected with third gear 18 of third motor 17, rotary rod 16's lateral wall cover is equipped with rather than fixed connection's fourth gear 19, intermeshing between third gear 18 and the fourth gear 19, rotary rod 16's one end is equipped with floating mechanism, floating mechanism includes fixed connection at the carriage 20 of rotary rod 16 one end, run through on the carriage 20 be equipped with two with sliding connection's connecting rod 21, the same floating plate 22 of the one end fixedly connected with of two connecting rod 21, the lateral wall of two connecting rod 21 all overlaps and is equipped with spring 23, cooperation third motor 17, third gear 18, the combined action of fourth gear 19 and rotary rod 16, floating plate 22 can float the wall, cooperation elevating system and adjustment mechanism, can be to floating plate 22's angle, distance and height are adjusted, adaptability is better, and is comparatively practical.

The utility model discloses its functional principle is explained to the following mode of operation of accessible:

in the utility model, the combined action of the third motor 17, the third gear 18, the fourth gear 19 and the rotary rod 16 is matched, the troweling plate 22 can trowel the wall surface, and the angle, the distance and the height of the troweling plate 22 can be adjusted by matching with the lifting mechanism and the adjusting mechanism, so that the adaptability is better and the machine is more practical; the first motor 7 is started, the first motor 7 drives the first gear 8 and the second gear 9 to rotate, the threaded rod 6 can be driven to rotate, the threaded rod 6 rotates to drive the moving block 5 and the connecting box 4 to move up and down, and therefore the leveling device can be adjusted in height; the second motor 15 is started, the second motor 15 drives the belt 14 and the driving gear 13 to rotate, and then the rack plate 11 and the mounting box 10 can be driven to move, so that the floating mechanism can be adjusted front and back.

The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims

1. The utility model provides an adjustable floating device of coating for interior decoration, includes bottom plate (2), its characterized in that, the up end of bottom plate (2) is equipped with braced frame (1), be equipped with connecting box (4) in braced frame (1), be equipped with elevating system between connecting box (4) and braced frame (1), be equipped with mounting box (10) in connecting box (4), be equipped with two adjustment mechanism between mounting box (10) and connecting box (4), the inner wall of mounting box (10) rotates and is connected with rotary rod (16), be equipped with third motor (17) in mounting box (10), the power end fixedly connected with third gear (18) of third motor (17), the lateral wall cover of rotary rod (16) is equipped with fourth gear (19) rather than fixed connection, intermeshing between third gear (18) and fourth gear (19), the one end of rotary rod (16) is equipped with floating mechanism.

2. The adjustable indoor paint leveling device according to claim 1, wherein the lifting mechanism comprises a first motor (7) arranged at the inner bottom of the supporting frame (1), a first gear (8) is fixedly connected to a power end of the first motor (7), a moving block (5) is slidably connected to the inner wall of the supporting frame (1), a threaded rod (6) in threaded connection with the moving block (5) penetrates through the moving block (5) and is fixedly connected with the connecting box (4), a second gear (9) in fixed connection with the threaded rod (6) is sleeved on the outer side wall of the threaded rod (6), and the first gear (8) and the second gear (9) are meshed with each other.

3. The coating material floating device for the adjustable interior decoration according to claim 1, wherein the adjusting mechanism comprises a second motor (15) arranged in the connecting box (4), the inner wall of the connecting box (4) is rotatably connected with a rotating shaft (12), one end of the rotating shaft (12) is fixedly connected with a driving gear (13), the driving gear (13) is connected with the second motor (15) through a belt (14), the outer side wall of the mounting box (10) is fixedly connected with a rack plate (11), and the driving gear (13) is meshed with the rack plate (11).

4. The coating material floating device for adjustable interior decoration according to claim 1, wherein the floating mechanism comprises a connecting frame (20) fixedly connected to one end of a rotating rod (16), two connecting rods (21) connected with a sliding manner penetrate through the connecting frame (20), one end of each connecting rod (21) is fixedly connected with a same floating plate (22), and the outer side walls of the two connecting rods (21) are sleeved with springs (23).

5. An adjustable indoor paint leveling device as claimed in claim 1, wherein the lower end surface of the bottom plate (2) is provided with four road wheels (3).
