The utility model belongs to the technical field of strutting arrangement, especially, a machine tooling location strutting arrangement, to current strutting arrangement fixed inconvenient to the work piece, perhaps there is not protector, damage the work piece easily when fixed, great reduction the problem of availability factor, the scheme is as follows now proposed, it includes the bottom plate, the bottom symmetry fixed mounting of bottom plate has two mounting panels, has all seted up the mounting hole on two mounting panels, and the top symmetry fixed mounting of bottom plate has four supports, and fixed mounting has same board of placing on four supports, and the top symmetry slidable mounting of bottom plate has two slides, and equal fixed mounting has clamping device on two slides, and one side fixed mounting of bottom plate has driving motor, and fixed mounting has the screw rod on driving motor's the output shaft, screw rod and two slide threaded connection, the utility model discloses it is more convenient to the fixed of work piece during the use, and the work piece is not fragile, great improvement the availability factor.
Description
Technical Field
The utility model relates to a strutting arrangement technical field especially relates to a machining positioning support device.
Background
In the development process of the manufacturing industry, the positioning and supporting device is an important component of a machine tool, the quality of the structure of the positioning and supporting device has a crucial influence on the machining precision and the machining efficiency, when the positioning and supporting device is not used for machining a workpiece, the workpiece needs to be measured firstly, the working efficiency is low, the positioning precision is not high, and time and labor are consumed, so that the machining positioning and supporting device is needed.
The patent document with the application number of 201520567185.4 includes a machining auxiliary positioning support device body.
The workpiece can be fixed inconveniently by the conventional supporting device, or the workpiece is easy to damage during fixing due to the fact that the conventional supporting device is not provided with a protection device, and the use efficiency is greatly reduced.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the fixed inconvenient to the work piece that has current strutting arrangement among the prior art, perhaps not having protector, damage the work piece easily when fixed, great reduction the shortcoming of availability factor, and a machining positioning support device who provides.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides a machine tooling location strutting arrangement, comprising a base plate, the bottom symmetry fixed mounting of bottom plate has two mounting panels, has all seted up the mounting hole on two mounting panels, and the top symmetry fixed mounting of bottom plate has four supports, and fixed mounting has same board of placing on four supports, and the top symmetry slidable mounting of bottom plate has two slides, and equal fixed mounting has clamping device on two slides, and one side fixed mounting of bottom plate has driving motor, and fixed mounting has the screw rod on driving motor's the output shaft, and the screw rod is connected with two slide screw threads, places the top of board and has seted up a plurality of locating hole.
Preferably, the clamping device comprises two fixing plates and two clamping plates, the two fixing plates are respectively and fixedly installed on the two sliding plates, and the two clamping plates are respectively and slidably installed on the two fixing plates.
Preferably, two the spout has all been seted up on the fixed plate, equal slidable mounting has the slider in two spouts, and equal fixed mounting has the bracing piece on two sliders, and two splint are fixed mounting respectively on two bracing pieces, and equal fixed mounting has the pressure spring in two spouts, two pressure springs respectively with two slider fixed connection.
Preferably, a side plate is fixedly mounted on one side of the bottom plate, a mounting box is fixedly mounted on the side plate, and the driving motor is fixedly mounted in the mounting box.
The utility model discloses in, a machining location strutting arrangement's beneficial effect:
(1) The device can be installed at a proper position for use due to the arrangement of the bottom plate, the mounting hole, the bracket, the placing plate and the positioning, and can be positioned through the positioning hole during processing;
(2) This scheme is owing to set up slide, fixed plate, spout, slider, bracing piece, splint, pressure spring, curb plate, mounting box, driving motor, screw rod, and driving motor drives the screw rod and rotates, and the screw rod drives two slides and removes, and two slides drive two splint removals, and the setting of pressure spring can reduce the risk of pressing from both sides bad work piece.
The utility model discloses it is more convenient to the fixed of work piece during the use, and not fragile work piece, great improvement the availability factor.
Drawings

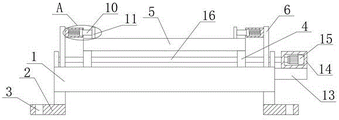

Fig. 1 is a schematic structural view of a machining positioning and supporting device provided by the present invention;
fig. 2 is a schematic view of a three-dimensional structure of a placing plate and a positioning hole of the positioning and supporting device for machining provided by the present invention;
fig. 3 is a schematic structural view of a portion a of the machining positioning and supporting device shown in fig. 1 according to the present invention.
In the figure: 1. a base plate; 2. mounting a plate; 3. mounting holes; 4. a support; 5. placing the plate; 6. a slide plate; 7. a fixing plate; 8. a chute; 9. a slider; 10. a support bar; 11. a splint; 12. a pressure spring; 13. a side plate; 14. mounting a box; 15. a drive motor; 16. a screw; 17. and (7) positioning the holes.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Example one
Referring to fig. 1, a machine tooling location strutting arrangement, comprising a base plate 1, the bottom symmetry fixed mounting of bottom plate 1 has two mounting panels 2, mounting hole 3 has all been seted up on two mounting panels 2, the top symmetry fixed mounting of bottom plate 1 has four supports 4, fixed mounting has same board 5 of placing on four supports 4, the top symmetry slidable mounting of bottom plate 1 has two slides 6, equal fixed mounting has clamping device on two slides 6, one side fixed mounting of bottom plate 1 has driving motor 15, fixed mounting has screw rod 16 on driving motor 15's the output shaft, screw rod 16 and two 6 threaded connection of slide, place the top of board 5 and seted up a plurality of locating hole 17, can fix a position man-hour through locating hole 17.
Referring to fig. 2, the positional relationship and the shape characteristics of the placement plate 5 and the positioning hole 17 are shown by a perspective view.
Referring to fig. 3, all seted up spout 8 on two fixed plates 7, equal slidable mounting has slider 9 in two spout 8, equal fixed mounting has bracing piece 10 on two slider 9, two splint 11 respectively fixed mounting are on two bracing pieces 10, equal fixed mounting has pressure spring 12 in two spout 8, two pressure spring 12 respectively with two slider 9 fixed connection for can play certain cushioning effect when two splint 11 centre gripping fixed work pieces, avoid damaging the work piece.
In this embodiment, install bottom plate 1 in suitable service position through a plurality of mounting hole 3 on the mounting panel 2, after installing, place the work piece on placing board 5, start driving motor 15, driving motor 15 drives screw rod 16 and rotates, screw rod 16 drives two slides 6 and removes, two slides 6 drive two fixed plates 7 and remove, two fixed plates 7 drive two splint 11 and remove, two splint 11 can fix the work piece centre gripping, because the setting of two pressure springs 12, can reduce the probability that the work piece damaged, great improvement the availability factor.
Example two
The difference between this embodiment and the first embodiment is: when processing, the processing equipment is provided with the positioning rod in an auxiliary mode, the positioning rod can be positioned through the matching of the positioning rod and the positioning hole 17, and deviation during processing is avoided.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (5)
1. The utility model provides a machine tooling location strutting arrangement, including bottom plate (1), a serial communication port, the bottom symmetry fixed mounting of bottom plate (1) has two mounting panels (2), mounting hole (3) have all been seted up on two mounting panels (2), the top symmetry fixed mounting of bottom plate (1) has four supports (4), fixed mounting has same board (5) of placing on four supports (4), the top symmetry slidable mounting of bottom plate (1) has two slides (6), equal fixed mounting has clamping device on two slides (6), one side fixed mounting of bottom plate (1) has driving motor (15), fixed mounting has screw rod (16) on the output shaft of driving motor (15), screw rod (16) and two slides (6) threaded connection, place the top of board (5) and seted up a plurality of locating hole (17).
2. A machine positioning and supporting device according to claim 1, wherein the clamping device comprises two fixed plates (7) and two clamping plates (11), the two fixed plates (7) are respectively fixedly mounted on the two sliding plates (6), and the two clamping plates (11) are respectively slidably mounted on the two fixed plates (7).
3. The machining positioning and supporting device according to claim 2, wherein sliding grooves (8) are formed in the two fixing plates (7), sliding blocks (9) are slidably mounted in the two sliding grooves (8), supporting rods (10) are fixedly mounted on the two sliding blocks (9), and two clamping plates (11) are fixedly mounted on the two supporting rods (10) respectively.
4. A machining positioning and supporting device according to claim 3, characterized in that a pressure spring (12) is fixedly installed in each of the two sliding grooves (8), and the two pressure springs (12) are respectively and fixedly connected with the two sliding blocks (9).
5. The machining positioning and supporting device is characterized in that a side plate (13) is fixedly mounted on one side of the bottom plate (1), a mounting box (14) is fixedly mounted on the side plate (13), and a driving motor (15) is fixedly mounted in the mounting box (14).
