Abstract

The utility model discloses a take notched applying ointment or plaster relates to medical treatment auxiliary articles for use technical field, and its technical essential is: including hydrocolloid dressing, a bar mouth has been seted up at hydrocolloid dressing middle part, and the outer cladding of hydrocolloid dressing has the sweat-proof application ointment or plaster, and the sweat-proof area of applying ointment or plaster is greater than hydrocolloid and applies ointment or plaster, the utility model discloses can adsorb the transudate of puncture point and avoid puncture point to infect.

Description

An applicator with an incision

technical field

The utility model relates to the technical field of medical auxiliary products, more specifically, it relates to an applicator with an incision.

Background technique

At present, picc is mainly covered on the puncture site through application. Since the application sticks to the patient's skin for a long time, the patient's puncture site will produce exudate due to long-term non-healing, and the existing application cannot absorb the exudate. fluid may cause infection at the puncture site.

Utility model content

The purpose of the present invention is to provide an applicator with an incision, which has a simple structure and low cost and can absorb the exudate at the puncture point to avoid infection at the puncture point.

The above-mentioned technical purpose of the utility model is achieved through the following technical solutions: a kind of application with incisions, including a hydrocolloid dressing, a strip-shaped opening is opened in the middle of the hydrocolloid dressing, and a transparent anti-corrosion layer is pasted on the outer side of the hydrocolloid dressing. Sweat dressing, release paper is adhered between the transparent anti-sweat dressing and the hydrocolloid dressing, and the area of the transparent sweat-proof dressing is larger than the hydrocolloid dressing.

The principle and effect of the technical solution, when people use the applicator with an incision, first align the strip-shaped opening with the puncture point, then attach the hydrocolloid dressing to the human skin so that the picc is in the strip-shaped opening, and then place the picc On the side of the hydrocolloid dressing away from the human skin, the release paper is torn off, and the transparent anti-sweat dressing is covered on the hydrocolloid dressing, so that the picc is fixed between the transparent anti-sweat dressing and the hydrocolloid dressing. By isolating the picc from the skin, the picc is prevented from oppressing the blood vessels to reduce the pain of the patient. By aligning the strip opening with the puncture point, the exudate at the puncture point is absorbed by the hydrocolloid dressing to prevent the exudate from infecting the puncture point.

The utility model is further set as: the length and the width of the hydrocolloid dressing are both 5 centimeters, and the length and width of the transparent anti-perspiration application are both 10 centimeters.

Through the above settings, because the length of the picc is generally 3 to 5 cm, and the length of the picc after being inserted into the human blood vessel is generally 2 to 3 cm, and the side of the hydrocolloid dressing away from the human skin should be fixed to the picc, so the length of the hydrocolloid dressing and The width is greater than the length of the picc after it is inserted into the blood vessel, and the area of the transparent anti-perspirant dressing is larger than that of the hydrocolloid dressing to fix the hydrocolloid dressing on the skin. Through the above settings, the area of the hydrocolloid dressing can conform to the length of the picc, saving material costs .

The utility model is further configured as follows: a plurality of ventilation holes are arranged on both sides of the transparent anti-perspiration application.

Through the above-mentioned arrangement and the plurality of ventilation holes provided, the air permeability of the transparent anti-sweat application is better, which brings better comfort to the patient.

The utility model is further configured as follows: a plurality of pasting points are arranged around the transparent anti-perspiration applicator.

Through the above settings, any corner around the transparent anti-sweat dressing can be opened, and then the picc and puncture point can be adjusted without causing the transparent anti-sweat dressing to fall off, which brings convenience to medical staff.

The utility model is further configured as follows: the bottom surface of the hydrocolloid dressing is provided with two adhesive tapes, and the two adhesive tapes are respectively located on both sides of the strip opening.

Through the above arrangement, the fixed needle-holding handle on the picc can be pasted and fixed by two sticking tapes, which improves the stability of the picc.

In summary, the utility model has the following beneficial effects:

1. For this kind of application with incision, because the picc is pasted and pressed on the patient's skin for a long time, the patient's picc will oppress the blood vessels and make the blood flow not smooth, so the picc is fixed between the hydrocolloid dressing and the transparent anti-sweat application. Avoid direct compression of the picc on the skin, resulting in compression of blood vessels and poor blood circulation.

2. The application with incisions can prevent the patient from sweating and reduce the stickiness of the application by setting a transparent anti-sweat application, which affects the fixation effect.

Description of drawings

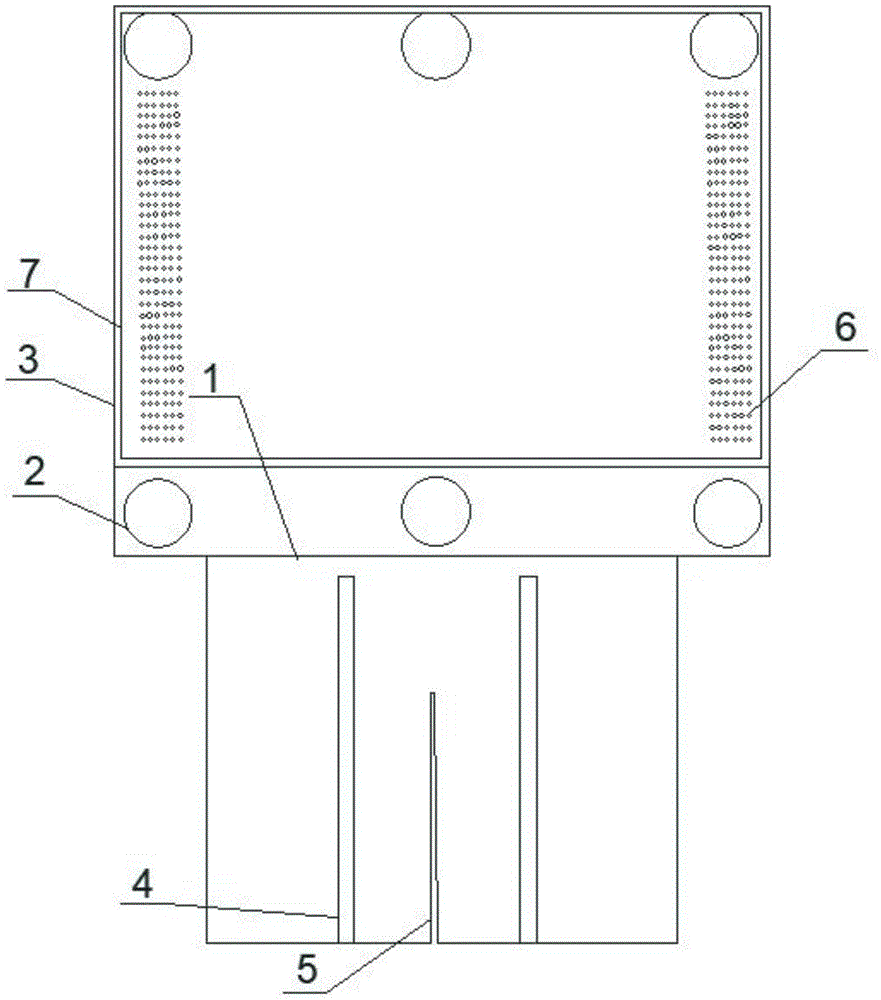

Fig. 1 is the front view of the utility model embodiment;

In the figure: hydrocolloid dressing 1, sticking point 2, transparent anti-perspiration sticking 3, sticking tape 4, strip opening 5, vent hole 6, release paper 7.

Detailed ways

Below in conjunction with accompanying drawing 1 the utility model is described in further detail.

Embodiment: An applicator with an incision, including a hydrocolloid dressing 1, a strip-shaped opening 5 is opened in the middle of the hydrocolloid dressing 1, and the length of the strip-shaped opening 5 is 3 cm. The bottom surface of the hydrocolloid dressing 1 is provided with two adhesive tapes 4 , and the two adhesive tapes 4 are respectively located on both sides of the strip-shaped opening 5 . The length of sticking tape 4 is 4 centimetres. The outer side of the hydrocolloid dressing 1 is pasted with a transparent anti-sweat patch 3, and a plurality of ventilation holes 6 are arranged on both sides of the transparent anti-sweat patch 3. There are 6 sticking points 2 around the transparent antiperspirant applicator 3 . A release paper 7 is adhered between the transparent anti-perspiration application 3 and the hydrocolloid dressing 1 , and the area of the transparent anti-perspiration application 3 is larger than that of the hydrocolloid dressing 1 . The length and width of the hydrocolloid dressing 1 are both 5 cm, and the length and width of the transparent anti-sweat dressing 3 are both 10 cm. The hydrocolloid dressing 1 and the transparent anti-sweat dressing 3 are overlapped before use, and they are opened during use Transparent anti-perspiration compress 3 sticks and tear off the release paper 7.

The working process of this technical solution: when people use the applicator with an incision, first align the strip-shaped opening 5 with the puncture point, then attach the hydrocolloid dressing 1 to the human skin so that the picc is in the strip-shaped opening 5, Place the picc on the side of the hydrocolloid dressing 1 away from the human skin, then tear off the release paper 7, and cover the transparent anti-sweat dressing 3 on the hydrocolloid dressing 1, thereby fixing the picc on the transparent anti-sweat dressing Between the paste 3 and the hydrocolloid dressing 1, by isolating the picc from the skin, avoiding the oppression of the picc to relieve the pain of the patient, and aligning the strip opening 5 with the puncture point so that the exudate at the puncture point is absorbed by the hydrocolloid dressing 1 , to avoid exudate from infecting the puncture site.

This specific embodiment is only an explanation of the utility model, and it is not a limitation of the utility model. After reading this description, those skilled in the art can make modifications to the embodiment without creative contribution according to needs, but as long as it is within the utility model All new claims are protected by patent law.

Claims (5)

1. An incised application, comprising: including hydrocolloid dressing (1), a bar mouth (5) has been seted up at hydrocolloid dressing (1) middle part, transparent sweat-proof application ointment or plaster (3) have been pasted to hydrocolloid dressing (1) outer one side, it is from type paper (7) to adhere to between transparent sweat-proof application ointment or plaster (3) and hydrocolloid dressing (1), the area of transparent sweat-proof application ointment or plaster (3) is greater than hydrocolloid dressing (1).

2. The notched applicator of claim 1, wherein: the length and the width of the hydrocolloid dressing (1) are both 5 cm, and the length and the width of the transparent sweat-proof application patch (3) are both 10 cm.

3. A notched applicator as claimed in claim 1, wherein: a plurality of air holes (6) are arranged on two sides of the transparent sweat-proof plaster (3).

4. A notched applicator as claimed in claim 2, wherein: a plurality of sticking points (2) are arranged around the transparent sweat-proof plaster (3).

5. A notched applicator as claimed in claim 1, wherein: two adhesive tapes (4) are arranged on the bottom surface of the hydrocolloid dressing (1), and the two adhesive tapes (4) are respectively positioned on two sides of the strip-shaped opening (5).
