CN218265295U - Gem-shaped star viewing tent - Google Patents

Abstract

The utility model discloses a precious stone shape star viewing tent, include: the tent comprises a lower-layer base fabric and a tent main body, wherein the bottom of the tent main body is movably spliced with the lower-layer base fabric, the tent main body comprises a transparent star-viewing skylight, a tent wall with windows, a tent wall with doors and a support, the four sides of the transparent star-viewing skylight are spliced with three tent walls with windows and one tent wall with doors, the tent walls with windows and the tent walls with doors are also spliced, and the spliced parts are connected by zippers; the awning wall with the door is spliced with the awning wall with the window by adopting a zipper and a splicing magic tape, and the bottom of the awning wall with the door and the bottom of the awning wall with the window are spliced with the lower-layer base fabric by adopting the connecting magic tape of the awning wall with the door. The utility model not only realizes the functions of water resistance, wind resistance and insect prevention, but also has flexibility, can be combined according to actual needs, and can be assembled by a plurality of tents or connected with a carriage; take a door tarpaulin wall to compromise simultaneously prevent wind protection and protection against insects and business turn over convenient function, the tent main part contains transparent sight star skylight, can see through the skylight when the camping and watch the sky, improves the experience of camping and feels.

Description

Gem-shaped star-viewing tent

Technical Field

The utility model relates to a tent technical field specifically is a precious stone shape sight star tent.

Background

With the increasing improvement of living standard and the increasing convenience of traffic, driving on a vehicle for traveling on holidays becomes a fashionable entertainment mode at night in camping in the field. The tent can be supported on the ground to form a residence which can shield wind, rain and sunlight and can temporarily live, and a temporary home is provided for people to go out for travel.

The tent generally comprises an inner tent, an outer tent, tent struts and ground nails, wherein the inner tent is supported by the tent struts, the ground nails are installed at each corner of the bottom end of the inner tent and then obliquely inserted into the ground, and then the outer tent is covered, so that the construction of the tent is completed.

In order to prevent wind and prevent insects between current ground cloth and the tent of large-scale square tent, generally all be integrative preparation, can not seamless concatenation, it is not enough to lead to the flexibility ratio, can't make up according to actual need, need purchase the tent of different grade type, cause certain inconvenience, and most of square tents do not have panoramic sunroof, camping experience feels not comfortable enough, secondly, the door and the integrative design of tent main part of current tent, the door body adopts the zip fastener, button or magic subsides are connected and are used for opening and shutting, the insect is advanced easily in the design of door bottom opening can leaking out, the closed design of door bottom, it is not convenient enough to lead to the business turn over, be difficult to compromise in the function.

Therefore, we propose a gem-shaped star viewing tent in order to solve the problems set forth above.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a precious stone shape sight star tent to solve the problem that proposes among the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme: a gem-shaped star viewing tent comprising: the tent comprises a lower-layer base fabric and a tent main body, wherein the bottom of the tent main body is movably spliced with the lower-layer base fabric, the tent main body comprises a transparent star-viewing skylight, a tent wall with windows, a tent wall with doors and a support, the four sides of the transparent star-viewing skylight are spliced with three tent walls with windows and one tent wall with doors, the tent walls with windows and the tent walls with doors are also spliced, and the spliced parts are connected by zippers;

the awning wall with the door is spliced with the awning wall with the window by adopting a zipper and a splicing magic tape, and the bottom of the awning wall with the door and the bottom of the awning wall with the window are spliced with the lower-layer base fabric by adopting the connecting magic tape of the awning wall with the door.

Preferably, the tent wall body with the door is formed by arranging a detachable door body in the middle of tent cloth.

Preferably, the transparent star-viewing skylight main body is made of a soft transparent plastic sheet arranged in the middle of a tarpaulin sheet, and supporting rods are arranged around and in the middle of the tarpaulin sheet.

Preferably, the awning wall body with the window is formed by arranging a detachable transparent window in the middle of an awning cloth sheet, and the transparent window can also be made of a soft transparent plastic sheet.

Preferably, the upper surface of the lower base fabric is also provided with a circle of base fabric magic tape, the upper base fabric is connected through the base fabric magic tape, and a ground mat is arranged between the upper base fabric and the lower base fabric.

Preferably, the wall of the awning with the window is provided with a ventilating fan, the zippers are all waterproof zippers, and the zippers are covered with waterproof awning cloth strips.

Compared with the prior art, the beneficial effects of the utility model are that:

1. the bottom of the awning wall with the window and the bottom of the awning wall with the door are movably spliced with the lower-layer base fabric through the waterproof zipper and the magic tape, so that the effects of water prevention, wind prevention and insect prevention are realized, the flexibility is considered, the awning wall can be combined according to actual needs, and a plurality of tents can be assembled or connected with a carriage;

2. the awning wall with the door is spliced with the awning wall with the window by adopting the zipper and the splicing magic tape, so that small insects are prevented from entering the awning, and the windproof function is also realized;

3. the tent main part contains transparent sight star skylight, can see through the skylight when the camp and watch the sky, improves the experience of camping and feels.

Drawings

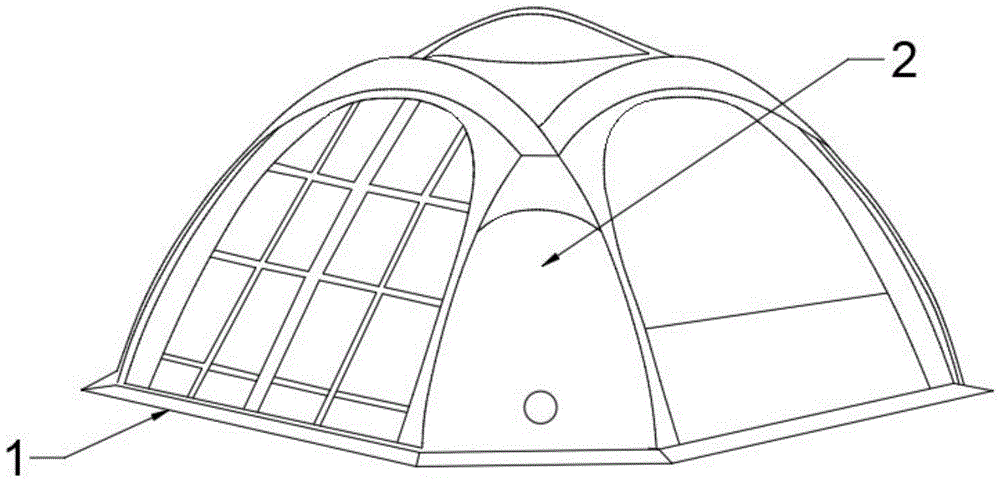

Fig. 1 is a schematic structural view of the present invention;

FIG. 2 is a top view of the middle and lower layer base fabric of the present invention;

fig. 3 is a top view of the present invention;

fig. 4 is a schematic structural view of the zipper and tarpaulin hook and loop fastener of the present invention;

figure 5 is a cross-sectional view of the middle and lower layer base cloths and the upper layer base cloth of the present invention.

In the figure: 1. a lower base fabric; 11. base fabric magic tape; 12. the tent wall is connected with a magic tape; 13. a ground mat; 14. an upper base fabric; 2. a tent main body; 21. a transparent star-viewing skylight; 22. a tent wall with a window; 23. a tent wall with a door; 3. a zipper; 4. splicing the magic tapes; 5. tarpaulin sheet.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-5, the present invention provides a technical solution: a gem-shaped star viewing tent comprising: the tent comprises a lower-layer base fabric 1 and a tent main body 2, wherein the bottom of the tent main body 2 is movably spliced with the lower-layer base fabric 1, the tent main body 2 comprises a transparent star-viewing skylight 21, a window tent wall 22 and a door tent wall 23, the four sides of the transparent star-viewing skylight 21 are spliced with three window tent walls 22 and one door tent wall 23, and the spliced parts are connected by a zipper 3 to form a gem shape;

the curtain wall 22 with the window and the curtain wall 23 with the door are connected in a splicing way, and the splicing part is connected by a zipper 3;

the transparent star-viewing skylight 21 is characterized in that a soft transparent plastic sheet is arranged in the middle of an awning cloth sheet 5, and supporting rods are arranged around and in the middle of the awning cloth sheet 5;

the main body of the awning wall 22 with the window is formed by arranging a detachable transparent window in the middle of an awning cloth sheet 5, and the transparent window can also be made of a soft transparent plastic sheet;

the main body of the tent wall 23 with the door is formed by arranging a detachable door body in the middle of tent cloth;

the awning wall 23 with the door is spliced with the awning wall 22 with the window by the zipper 3 and the splicing magic tape 4, so that small insects are prevented from entering the awning, and the windproof function is also realized;

the bottoms of the tent wall 23 with the door and the tent wall 22 with the window are spliced with the lower-layer base fabric 1 through the tent wall connecting magic tapes 12;

the upper surface of the lower base fabric 1 is also provided with a circle of base fabric magic tape 11, the upper base fabric 14 is connected through the base fabric magic tape 11, and a ground mat 13 is arranged between the upper base fabric 14 and the lower base fabric 1, so that the comfort of the outdoor environment is improved, and the infiltration of ground moisture is reduced;

the whole tent is assembled in a splicing mode through the zipper 3, so that the flexibility is higher, a plurality of tents can be assembled or connected with a carriage, and the splicing magic tape 4 can be arranged on the outer side of the zipper 3, so that the splicing part can be reinforced, small insects can be prevented from entering the splicing part, and the exposure experience is improved;

the wall 22 with the window awning is provided with a ventilation fan for air replacement inside and outside the awning, all the zippers 3 adopt waterproof zippers, and the zippers 3 are covered with waterproof awning cloth strips.

Those not described in detail in this specification are within the skill of the art.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims (6)

1. A gemstone-shaped star viewing tent, comprising: the tent comprises a lower-layer base fabric (1) and a tent main body (2), wherein the bottom of the tent main body (2) is movably spliced with the lower-layer base fabric (1), the tent main body (2) comprises a transparent star-viewing skylight (21), a windowed awning wall (22), a windowed awning wall (23) and a support, three windowed awning walls (22) and one windowed awning wall (23) are spliced on four sides of the transparent star-viewing skylight (21), the windowed awning walls (22) and the windowed awning walls (23) are also spliced and connected, and the spliced parts are connected by zippers (3);

the method is characterized in that: the tent wall (23) with the door is spliced with the tent wall (22) with the window by adopting the zipper (3) and the splicing magic tape (4), and the bottoms of the tent wall (23) with the door and the tent wall (22) with the window are spliced with the lower-layer base fabric (1) by the tent wall connecting magic tape (12).

2. The gem-shaped star viewing tent as claimed in claim 1, characterized in that the main body of the tent wall (23) with the door is formed by arranging a detachable door body in the middle of the tent cloth.

3. The gem-shaped star-viewing tent as claimed in claim 1, characterized in that the transparent star-viewing skylight (21) is made of soft transparent plastic sheets arranged in the middle of the awning cloth (5), and supporting rods are arranged around and in the middle of the awning cloth (5).

4. The gem-shaped star viewing tent as claimed in claim 1, characterized in that the main body of the tent wall (22) with the window is made of a tarpaulin sheet (5) and a detachable transparent window is arranged in the middle of the tarpaulin sheet, and the transparent window can also be made of a soft transparent plastic sheet.

5. The gem-shaped star-viewing tent as claimed in claim 1, characterized in that the upper surface of the lower base fabric (1) is further provided with a circle of base fabric magic tape (11), the upper base fabric (14) is connected through the base fabric magic tape (11), and a ground mat (13) is arranged between the upper base fabric (14) and the lower base fabric (1).

6. The gem-shaped star viewing tent as claimed in claim 1, characterized in that the window tent wall (22) is provided with a ventilating fan, the zippers (3) are all waterproof zippers, and the zippers (3) are covered with waterproof tent cloth strips.
