Abstract
The utility model discloses an outdoor cabinet, which comprises a cabinet body, an auxiliary mounting part and an air conditioner, wherein the auxiliary mounting part is fixed on the inner side surface of a preset side wall in the cabinet body and forms an air conditioner mounting space with the preset side wall; the inner side surface of the preset side wall is a surface facing the inside of the cabinet body in the preset side wall; the air conditioner is arranged in the air conditioner installation space and is positioned in the cabinet body; deviating from the one end opening of predetermineeing the lateral wall in the auxiliary mounting spare, the internal circulation air intake of air conditioner, internal circulation air outlet show inside the cabinet body through above-mentioned opening respectively. Among the above-mentioned outdoor cabinet, the medial surface of predetermineeing the lateral wall in the cabinet body is installed to the auxiliary assembly spare to enclose into air conditioner installation space with predetermineeing the lateral wall, can enough assemble the air conditioner, avoid air conditioner protrusion in the surface of predetermineeing the lateral wall again, ensure that whole outdoor cabinet's outward appearance structure is regular, satisfy the outward appearance requirement of customer to outdoor cabinet. The utility model discloses still disclose the photovoltaic power plant of using above-mentioned outdoor cabinet, ensure outdoor cabinet outward appearance regularity and meet the demands.
Description
Technical Field
The utility model relates to an air conditioner installation technical field of outdoor cabinet, more specifically say, relate to an outdoor cabinet, still relate to a photovoltaic power plant.
Background
Outdoor cabinets are of various types, and air conditioners are required to be installed in outdoor cabinets such as energy storage outdoor cabinets and the like, which are internally provided with heating elements. Referring to fig. 1-3, the conventional outdoor cabinet includes opposite front and rear door panels 11 and 13; the air conditioner 12 is generally installed on the back door panel 13 of the outdoor cabinet and protrudes out of the back door panel 13, which affects the regularity of the appearance of the outdoor cabinet and is difficult to satisfy the regularity requirement of customers on the appearance of the outdoor cabinet.
In addition, the air conditioner 12 protrudes out of the back door plate 13 in the outdoor cabinet, so that the air conditioner is easy to collide in the transportation and installation processes, and the safety is poor.
To sum up, how to avoid the air conditioner to protrude from the back door panel of the outdoor cabinet, ensure the regular appearance structure of the outdoor cabinet, and satisfy the requirements of customers on the appearance of the outdoor cabinet is a problem to be solved urgently by the technical personnel in the field.
SUMMERY OF THE UTILITY MODEL
In view of this, the utility model provides an outdoor cabinet, its air conditioner pass through the auxiliary mounting spare to be fixed in the cabinet body in the medial surface of predetermineeing the lateral wall, make the air conditioner be in the internal portion of cabinet, but not protrusion in the surface of predetermineeing the lateral wall, ensure that whole outdoor cabinet's outward appearance structure is regular, satisfy the outward appearance requirement of customer to outdoor cabinet. The utility model also provides an use the photovoltaic power plant of above-mentioned outdoor cabinet, ensure outdoor cabinet outward appearance regularity and meet the demands.
In order to achieve the above object, the utility model provides a following technical scheme:
an outdoor cabinet comprising:
a cabinet body;
the auxiliary mounting piece is fixed on the inner side surface of a preset side wall in the cabinet body and forms an air conditioner mounting space with the preset side wall in an enclosing mode; (ii) a
The air conditioner is arranged in the air conditioner installation space and is positioned inside the cabinet body;
the auxiliary mounting piece is internally provided with an opening which deviates from one end of the preset side wall, and an internal circulation air inlet and an internal circulation air outlet of the air conditioner are respectively exposed in the cabinet body through the openings.
Preferably, in the outdoor cabinet, a first ventilation hole is formed in the preset side wall at a position corresponding to the external circulation air inlet of the air conditioner, and a second ventilation hole is formed in the preset side wall at a position corresponding to the external circulation air outlet of the air conditioner.
Preferably, in the outdoor cabinet, the first ventilation holes are multiple and are arranged in a centralized manner; the second ventilation holes are multiple and are arranged in a concentrated mode.
Preferably, in the outdoor cabinet, the auxiliary mounting member has a cylindrical structure with two open ends; an opening at one end of the auxiliary mounting piece facing the preset side wall is buckled on the inner side face of the preset side wall.
Preferably, in the above-mentioned outdoor cabinet, deviate from in the auxiliary mounting spare the one end opening part of predetermineeing the lateral wall is equipped with the ladder face, the ladder face with the border laminating of air conditioner.
Preferably, in the outdoor cabinet, a bottom wall of the auxiliary mounting member is inclined, and a height of the bottom wall is gradually reduced along a direction close to the preset side wall;
and a drain hole is formed in the preset side wall at a position corresponding to the bottom wall of the auxiliary mounting piece.
Preferably, in the outdoor cabinet, a skirt is fastened at an opening of the preset side wall in the auxiliary mounting member, and the skirt is used for being close to an inner side surface of the preset side wall and is fixedly connected with the preset side wall.
Preferably, in the outdoor cabinet, a sealing member is disposed between the skirt and the predetermined sidewall.
Preferably, in the outdoor cabinet, the sealing member is a sealing rubber strip, and the sealing rubber strip is adhered to the surface of the skirt edge facing the preset side wall.
Preferably, in the outdoor cabinet, a water leakage hole is formed in the bottom of the air conditioner.
A photovoltaic power station comprises an outdoor cabinet, wherein the outdoor cabinet is the outdoor cabinet in any one of the technical schemes.
The utility model provides an outdoor cabinet, which comprises a cabinet body, an auxiliary mounting part and an air conditioner, wherein the auxiliary mounting part is fixed on the inner side surface of a preset side wall in the cabinet body and forms an air conditioner mounting space with the preset side wall; the inner side surface of the preset side wall is a surface of the preset side wall facing the inside of the cabinet body; the air conditioner is arranged in the air conditioner installation space and is positioned in the cabinet body; deviating from the one end opening of predetermineeing the lateral wall in the auxiliary mounting spare, the internal circulation air intake of air conditioner, internal circulation air outlet show inside the cabinet body through above-mentioned opening respectively.
Among the above-mentioned outdoor cabinet, the medial surface of predetermineeing the lateral wall in the cabinet body is installed to the auxiliary assembly spare to enclose into air conditioner installation space with predetermineeing the lateral wall, can enough assemble the air conditioner, avoid air conditioner protrusion in the surface of predetermineeing the lateral wall again, ensure that whole outdoor cabinet's outward appearance structure is regular, satisfy the outward appearance requirement of customer to outdoor cabinet.
Additionally, the utility model provides an outdoor cabinet outward appearance structure is regular, compares the outdoor cabinet that the air conditioner is the bulge state among the prior art, can reduce the risk of colliding with in transportation, installation, improves the security of whole outdoor cabinet in transportation and installation.
The utility model also provides an use the photovoltaic power plant of above-mentioned outdoor cabinet, ensure outdoor cabinet outward appearance regularity and meet the demands.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without creative efforts.
Fig. 1 is a schematic front view of a conventional outdoor cabinet;
FIG. 2 is a side view of the outdoor cabinet of FIG. 1;
FIG. 3 is a rear view of the outdoor cabinet of FIG. 1;
fig. 4 is an assembly view of an auxiliary installation member, a preset side wall and an air conditioner in an outdoor cabinet according to an embodiment of the present invention;

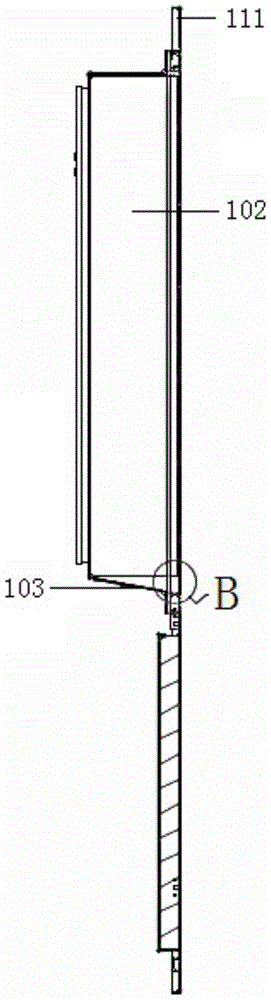

FIG. 5 isbase:Sub>A cross-sectional view A-A of FIG. 4;
FIG. 6 is an enlarged view of portion B of FIG. 5;
FIG. 7 is a rear view of the structure shown in FIG. 4;
fig. 8 is a schematic front structural view of an outdoor cabinet according to an embodiment of the present invention;
fig. 9 is a schematic side view of an outdoor cabinet according to an embodiment of the present invention;
fig. 10 is a schematic back structural view of an outdoor cabinet according to an embodiment of the present invention;
fig. 11 is a schematic structural view of an auxiliary mounting member according to an embodiment of the present invention;
FIG. 12 is a cross-sectional view C-C of FIG. 11;
FIG. 13 is a rear view of the auxiliary mount of FIG. 11;
FIG. 14 is a side view of the auxiliary mount of FIG. 11;
fig. 15 is a schematic structural diagram of an air conditioner according to an embodiment of the present invention;
FIG. 16 is a bottom view of the air conditioner of FIG. 15;
FIG. 17 is a top plan view of the air conditioner of FIG. 15;
fig. 18 is a side view of the air conditioner shown in fig. 15;
wherein, in fig. 4-18:
a cabinet 101; a predetermined sidewall 111; a first ventilation hole 1111; a second ventilation hole 1112; an air conditioner 102; an external circulation air inlet 121 and an external circulation air outlet 122; a water leakage hole 123; an auxiliary mount 103; a bottom wall 131; a skirt 132.
Detailed Description
The embodiment of the utility model discloses outdoor cabinet, its air conditioner is fixed in the cabinet body through auxiliary mounting spare and predetermines the medial surface of lateral wall, makes the air conditioner be in the internal portion of cabinet, and non-protrusion in the surface of predetermineeing the lateral wall, ensures that whole outdoor cabinet's appearance structure is regular, satisfies the outward appearance requirement of customer to outdoor cabinet. The embodiment of the utility model provides a still disclose the photovoltaic power plant of an applied above-mentioned outdoor cabinet, ensure that outdoor cabinet outward appearance regularity meets the requirements.
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 4 to 18, an embodiment of the present invention provides an outdoor cabinet, including a cabinet body 101, an auxiliary mounting member 103 and an air conditioner 102, wherein the auxiliary mounting member 103 is fixed on an inner side surface of a preset side wall 111 in the cabinet body 101, and forms an air conditioner mounting space with the preset side wall 111; the inner side surface of the preset side wall 111 is a surface of the preset side wall 111 facing the inside of the cabinet 101; the air conditioner 102 is installed in the air conditioner installation space, and the air conditioner 102 is located inside the cabinet body 101; an end of the auxiliary mounting member 103 facing away from the predetermined sidewall 111 is opened, and an internal circulation air inlet and an internal circulation air outlet of the air conditioner 102 are exposed to the inside of the cabinet 101 through the openings.
Among the above-mentioned outdoor cabinet, auxiliary mounting spare 103 installs the medial surface of predetermineeing lateral wall 111 in cabinet body 101 to enclose the air conditioner installation space with predetermineeing lateral wall 111, can enough assemble the air conditioner, avoid air conditioner 102 protrusion in the surface of predetermineeing lateral wall 111 again, ensure that the outward appearance structure of whole outdoor cabinet is regular, satisfy the outward appearance requirement of customer to outdoor cabinet.
In addition, above-mentioned outdoor cabinet appearance structure is regular, compares the outdoor cabinet that the air conditioner is the bulge state among prior art, can reduce the risk of colliding with in transportation, installation, improves the security of whole outdoor cabinet in transportation and installation.
The cabinet 101 includes a plurality of side walls sequentially connected to form a ring structure, and a top plate and a base respectively sealed at two ends of the ring structure. The preset side wall 111 is preferably set as a back side cabinet wall of the cabinet body 101, and a front side cabinet wall of the cabinet body 101 can be set as a cabinet door capable of being opened and closed, so that a customer can conveniently maintain equipment in the cabinet body through the cabinet door. The predetermined sidewall 111 has a flat structure.
A first ventilation hole 1111 is formed in the predetermined sidewall 111 at a position corresponding to the external circulation inlet 121 of the air conditioner 102, and a second ventilation hole 1112 is formed in the predetermined sidewall at a position corresponding to the external circulation outlet 122 of the air conditioner 102.
The first ventilation holes 1111 are plural and arranged in a concentrated manner, and the second ventilation holes 1112 are plural and arranged in a concentrated manner, as shown in fig. 4 and 10.
The first ventilation hole 1111 and the second ventilation hole 1112 can be designed as energy magic square holes respectively, so that the problem of air resistance of the air conditioner 102 in and out circulation is solved, and the overall appearance of the outdoor cabinet is more scientific and technological.
Preferably, in the outdoor cabinet, the auxiliary attachment 103 has a cylindrical structure with both ends open, as shown in fig. 12 and 14; an opening of the auxiliary mounting member 103 facing the predetermined sidewall 111 is fastened to an inner side of the predetermined sidewall 111.
An opening of one end of the auxiliary mounting part 103, which deviates from the preset side wall 111, is provided with a step surface, and the step surface is attached to the edge of the air conditioner 102.
In the outdoor cabinet provided by this embodiment, although the two ends of the auxiliary mounting device 103 are open, one end of the auxiliary mounting device is fastened to the inner side surface of the preset side wall 111, and the other end of the auxiliary mounting device is open and provided with a stepped surface attached to the edge of the air conditioner 102, so that the external circulation of the air conditioner 102 is isolated from the inside of the cabinet body 101, and the protection effect of the cabinet body 101 on the internal electrical equipment is ensured.
The auxiliary mounting 103 comprises a cylinder side wall enclosing an annular shape, which consists of a bottom wall 131, two vertical side walls and a top wall.
Further, in the outdoor cabinet, the bottom wall 131 of the auxiliary mounting member 103 is inclined, and the height of the bottom wall 131 is gradually reduced along a direction approaching the preset side wall 111, as shown in fig. 14; the preset side wall 111 is provided with a drain hole at a position corresponding to the bottom wall 131 of the auxiliary attachment 103. The bottom wall 131 of the auxiliary mounting member 103 is a side wall of the auxiliary mounting member 103 located at the lowermost end when the outdoor unit is in a normal use state, that is, one side wall of the annular barrel side wall located at the lowermost end.
In the outdoor cabinet that this embodiment provided, diapire 131 is the slope design, and the position that corresponds with diapire 131 in the predetermined lateral wall 111 sets up the wash port, outside the comdenstion water that can make the external rainwater that gets into in the air conditioner installation space, air conditioner 102 discharge discharged the cabinet body 101, effectively solves air conditioner 102 drainage and cabinet body 101 self waterproof problem.
The drainage hole may be a hole separately formed on the preset side wall 111, and may also be a first ventilation hole 1111 of the preset side wall 111, which is not limited in this embodiment.
Specifically, in the outdoor cabinet, a skirt 132 is disposed at an opening of the auxiliary mounting member 103, where the opening is fastened to the preset side wall 111, the skirt 132 is used to be close to an inner side surface of the preset side wall 111, and the skirt 132 is fixedly connected to the preset side wall 111.
A seal is provided between the skirt 132 and the predetermined side wall 111. The sealing member is preferably a sealing strip adhered to the surface of the skirt 132 facing the predetermined sidewall 111.
Specifically, the air conditioner 102 has a water drain hole at the bottom thereof for draining the condensed water.
When the outdoor cabinet provided by the embodiment is assembled, the air conditioner 102 is firstly installed on the auxiliary installation part 103, and then the auxiliary installation part 103 is installed on the preset side wall 111.
In the outdoor cabinet provided by this embodiment, the air conditioner 102 is installed inside the cabinet body 101, and a hidden design is adopted, so that the overall appearance of the outdoor cabinet is more delicate.
The embodiment of the utility model provides a still provide a photovoltaic power plant, including outdoor cabinet, outdoor cabinet is the outdoor cabinet that above-mentioned embodiment provided.
The outdoor cabinet can be set as an energy storage outdoor cabinet.
The photovoltaic power plant that this embodiment provided uses the outdoor cabinet that above-mentioned embodiment provided, ensures that outdoor cabinet outward appearance regularity meets the demands. Of course, the photovoltaic power station provided by the embodiment also has other effects related to the outdoor cabinet provided by the above embodiment, which are not described again here.
In the present specification, the embodiments are described in a progressive manner, each embodiment focuses on differences from other embodiments, and the same and similar parts among the embodiments are referred to each other.
The previous description of the disclosed embodiments is provided to enable any person skilled in the art to make or use the present invention. Various modifications to these embodiments will be readily apparent to those skilled in the art, and the generic principles defined herein may be applied to other embodiments without departing from the spirit or scope of the invention. Thus, the present invention is not intended to be limited to the embodiments shown herein but is to be accorded the widest scope consistent with the principles and novel features disclosed herein.
Claims (11)
1. An outdoor cabinet, comprising:
a cabinet body;
the auxiliary mounting piece is fixed on the inner side surface of a preset side wall in the cabinet body and forms an air conditioner mounting space with the preset side wall in an enclosing mode;
the air conditioner is arranged in the air conditioner installation space and is positioned inside the cabinet body;
one end of the auxiliary mounting piece, which deviates from the preset side wall, is opened, and an internal circulation air inlet and an internal circulation air outlet of the air conditioner are respectively exposed in the cabinet body through the openings.
2. The outdoor cabinet according to claim 1, wherein a first ventilation hole is formed in the predetermined sidewall at a position corresponding to the external circulation air inlet of the air conditioner, and a second ventilation hole is formed in the predetermined sidewall at a position corresponding to the external circulation air outlet of the air conditioner.
3. The outdoor cabinet according to claim 2, wherein the first ventilation holes are plural and arranged in a concentrated manner; the second ventilation holes are multiple and are arranged in a concentrated mode.
4. The outdoor cabinet according to claim 1, wherein the auxiliary mounting member is a cylindrical structure opened at both ends; an opening at one end of the auxiliary mounting piece facing the preset side wall is buckled on the inner side face of the preset side wall.
5. The outdoor cabinet according to claim 4, wherein a stepped surface is provided at an opening of one end of the auxiliary mounting member facing away from the predetermined side wall, and the stepped surface is attached to an edge of the air conditioner.
6. Outdoor cabinet according to claim 1, characterized in that the bottom wall of the auxiliary mounting is inclined and the height of the bottom wall decreases gradually in a direction approaching the predetermined side wall;
and a drain hole is formed in the preset side wall at a position corresponding to the bottom wall of the auxiliary installation piece.
7. The outdoor cabinet according to claim 4, wherein a skirt is provided at an opening of the auxiliary mounting member fastened to the predetermined sidewall, the skirt being adapted to be close to an inner side surface of the predetermined sidewall and being fixedly connected to the predetermined sidewall.
8. An outdoor cabinet according to claim 7, wherein a seal is provided between the skirt and the predetermined side wall.
9. An outdoor cabinet according to claim 8, wherein the sealing member is a sealing strip adhered to a surface of the skirt facing the predetermined side wall.
10. The outdoor cabinet according to claim 1, wherein the air conditioner is provided with a water leakage hole at the bottom thereof.
11. A photovoltaic power plant comprising an outdoor cabinet, characterized in that the outdoor cabinet is according to any one of claims 1-10.
