Abstract
The utility model relates to a bearing processing technology field, concretely relates to automatic change bilateral chamfer equipment of bearing, including base and backup pad, still include the controller, feed mechanism and chamfer mechanism, feed mechanism includes electric putter, slip subassembly and centre gripping subassembly, chamfer mechanism establishes at the top of base in order to be used for chamfering the bearing, chamfer mechanism includes double-shaft motor, two lathe tools and two rotating assembly, double-shaft motor fixes the top of establishing in the backup pad, two rotating assembly are the symmetry and set up between the top of base and two outputs of double-shaft motor, every lathe tool is all fixed to be established on a rotating assembly, electric putter and double-shaft motor are electric connection with the controller, the utility model relates to an automatic bilateral chamfer equipment of bearing can accomplish the work of automatic bilateral chamfer of bearing, compare in prior art, need not to chamfer one by one to the both ends of bearing, has promoted chamfer efficiency.
Description
Technical Field
The utility model relates to a bearing processing technology field, concretely relates to automatic change bilateral chamfer equipment of bearing.
Background
The bearing is an important part in the modern mechanical equipment. Its main function is to support the mechanical rotator, reduce the friction coefficient in its motion process and ensure its rotation precision. After the bearing is manufactured, the bearing needs to be chamfered, and the service performance of the bearing is improved.
The prior bearing chamfering equipment has the following defects:
1. the two sides of the bearing cannot be chamfered synchronously, and the two ends of the bearing can be chamfered one by one, so that the efficiency is low.
2. The cutter designs for fixed time, and inconvenient regulation can't satisfy and carries out the chamfer to the inner circle and the outer lane of bearing, and the practicality remains to promote.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide an automatic change bilateral chamfer equipment of bearing.
To achieve the purpose, the utility model adopts the following technical proposal:
provides an automatic bearing double-side chamfering device, which comprises a base and a supporting plate, wherein the supporting plate is vertically arranged at the top of the base,
also comprises a controller, a feeding mechanism and a chamfering mechanism,
the feeding mechanism is arranged at the top of the base and used for feeding the bearing, the feeding mechanism comprises an electric push rod, a sliding component and a clamping component, the sliding component is arranged at the top of the base, the clamping component is arranged at the top of the sliding component, the electric push rod is fixedly arranged at the top of the base, the output end of the electric push rod is fixedly connected with the sliding component,
the chamfering mechanism is arranged at the top of the base and used for chamfering the bearing, the chamfering mechanism comprises a double-shaft motor, two turning tools and two rotating assemblies, the double-shaft motor is fixedly arranged at the top of the supporting plate, the two rotating assemblies are symmetrically arranged between the top of the base and two output ends of the double-shaft motor, each turning tool is fixedly arranged on one rotating assembly, and the electric push rod, the double-shaft motor and the controller are electrically connected.
Preferably, every rotating component all includes carousel, belt and two synchronizing wheels, and the top of base is the symmetry and is provided with two pole settings, and the articulated shaft has all been inserted at the top of every pole setting, and two synchronizing wheels are fixed respectively and are established on the outer wall of an output of double-shaft motor and one of them articulated shaft, and the belt sleeve is established between two synchronizing wheels, and the carousel is fixed to be established in the articulated shaft and is kept away from the one end of pole setting.
Preferably, the outer wall of carousel is last to be fixed to be equipped with the cylinder, and the fixed installation pole that is equipped with in output of cylinder, the fixed connecting block that is equipped with in top of lathe tool is equipped with the bolt on the connecting block, and the equidistant a plurality of screw that is provided with on the installation pole, bolt and one of them screw threaded connection.
Preferably, the sliding assembly comprises a rectangular frame and four L-shaped rods, two guide rods are fixedly arranged at the top of the base, the four L-shaped rods are arranged on the outer walls of the two guide rods in a sliding mode, the output end of the electric push rod is fixedly connected with one of the L-shaped rods far away from the supporting plate, and the rectangular frame is fixedly arranged between the tops of the four L-shaped rods.
Preferably, the centre gripping subassembly includes micromotor, the double-end lead screw, two slides and the trapezoidal clamping jaw of a plurality of, two slides slide respectively and set up in the top and the bottom of rectangle frame, the fixed two installation pieces that are equipped with on the one end outer wall of rectangle frame, the double-end lead screw rotates and sets up on two installation pieces, the fixed top of establishing at one of them installation piece of micromotor, its output and double-end lead screw's top fixed connection, the one end of every slide all with double-end lead screw's one end threaded connection, the trapezoidal clamping jaw of a plurality of is the symmetry and sets up on the outer wall of two slides, every trapezoidal clamping jaw all passes through connecting rod and slide fixed connection, micromotor and controller electricity are connected.
Preferably, the support plate is provided with an avoidance groove for the rectangular frame and the four L-shaped rods to pass through.
The utility model has the advantages that:
1. the utility model discloses a design chamfering mechanism, biax motor, two lathe tools and two rotating assembly promptly, start biax motor through the controller, it is rotatory to drive two rotating assembly to it is rotatory simultaneously to drive two lathe tools, can accomplish the automatic bilateral chamfer work to the bearing, compares in prior art, need not to chamfer one by one to the both ends of bearing, has promoted chamfer efficiency.
2. The utility model discloses a design installation pole, connecting block, bolt and a plurality of screw, can adjust the mounted position of lathe tool on the installation pole to satisfy the chamfer work to bearing inner race and inner circle outer fringe, compare in prior art, the chamfer is careful inseparable more, has promoted the practicality of this equipment.
3. The utility model discloses a design trapezoidal clamping jaw, can carry out the centre gripping to not unidimensional bearing to satisfy the not bearing of equidimensional all can carry out bilateral chamfer through this equipment, and then promoted the flexibility of this equipment.
4. The utility model discloses a design feed mechanism, including electric putter, slip subassembly and centre gripping subassembly promptly, place a plurality of bearing on the centre gripping subassembly, end when the bilateral chamfer of first bearing, promote the slip subassembly through electric putter and advance, the centre gripping subassembly that is located the slip subassembly top advances to drive follow-up bearing and be close to fast to the lathe tool, compare in prior art, need not through artifical material loading, when further promoting chamfer efficiency, be favorable to realizing the batch chamfer of bearing, promote the income of enterprise.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings in the embodiments of the present invention are briefly described below.

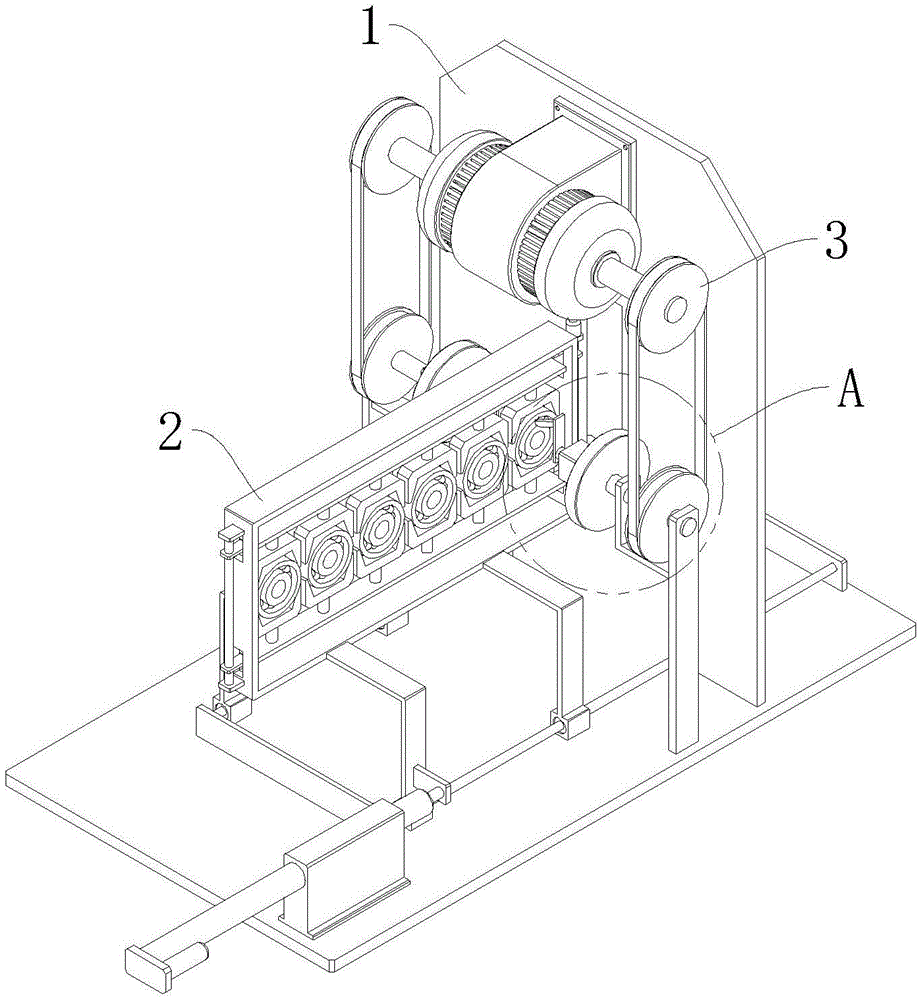

Fig. 1 is a schematic perspective view of the first embodiment of the present invention;
FIG. 2 is an enlarged view taken at A in FIG. 1;
fig. 3 is a schematic perspective view of the second embodiment of the present invention;
FIG. 4 is a schematic perspective exploded view of the turning tool, bolt and mounting rod of the present invention;
fig. 5 is a schematic perspective view of the sliding assembly and the clamping assembly of the present invention;
in the figure: the automatic chamfering device comprises a supporting plate 1, a feeding mechanism 2, a chamfering mechanism 3, an electric push rod 4, a sliding assembly 5, a clamping assembly 6, a double-shaft motor 7, a turning tool 8, a rotating assembly 9, a turntable 10, a belt 11, a synchronizing wheel 12, a cylinder 13, an installation rod 14, a connecting block 15, a bolt 16, a rectangular frame 17, an L-shaped rod 18, a micro motor 19, a double-headed screw rod 20, a sliding plate 21 and a trapezoidal clamping jaw 22.
Detailed Description
The technical scheme of the invention is further explained by the specific implementation mode in combination with the attached drawings.
Wherein the showings are for the purpose of illustration only and are shown by way of illustration only and not in actual form, and are not to be construed as limiting the present patent; to better illustrate the embodiments of the present invention, some components of the drawings may be omitted, enlarged or reduced, and do not represent the size of an actual product.
The utility model provides a technical scheme, referring to figure 1, an automatic bearing double-side chamfering device comprises a base and a support plate 1, wherein the support plate 1 is vertically arranged at the top of the base,
also comprises a controller, a feeding mechanism 2 and a chamfering mechanism 3,
the feeding mechanism 2 is arranged at the top of the base and used for feeding a bearing, the feeding mechanism 2 comprises an electric push rod 4, a sliding component 5 and a clamping component 6, the sliding component 5 is arranged at the top of the base, the clamping component 6 is arranged at the top of the sliding component 5, the electric push rod 4 is fixedly arranged at the top of the base, the output end of the electric push rod is fixedly connected with the sliding component 5,
the chamfering mechanism 3 is arranged at the top of the base and used for chamfering the bearing, the chamfering mechanism 3 comprises a double-shaft motor 7, two turning tools 8 and two rotating assemblies 9, the double-shaft motor 7 is fixedly arranged at the top of the supporting plate 1, the two rotating assemblies 9 are symmetrically arranged between the top of the base and two output ends of the double-shaft motor 7, each turning tool 8 is fixedly arranged on one rotating assembly 9, and the electric push rod 4 and the double-shaft motor 7 are electrically connected with the controller.
Referring to fig. 2, every rotating assembly 9 all includes carousel 10, belt 11 and two synchronizing wheel 12, the top of base is the symmetry and is provided with two pole settings, the articulated shaft has all been inserted at the top of every pole setting, two synchronizing wheel 12 are fixed respectively and are established on the outer wall of an output of double-shaft motor 7 and one of them articulated shaft, belt 11 cover is established between two synchronizing wheel 12, carousel 10 is fixed and is established the one end of keeping away from the pole setting at the articulated shaft, after a plurality of bearing all was fixed, start cylinder 13 through the controller, drive lathe tool 8 through its output and stretch to the bearing, until lathe tool 8 and bearing outer lane contact, double-shaft motor 7, thereby it is rotatory to drive two synchronizing wheel 12 on its output, because other two synchronizing wheel 12 and other two articulated shaft fixed connection, every two synchronizing wheel 12 all cup joints through a belt 11, because every carousel 10 all keeps away from the one end fixed connection of pole setting with the articulated shaft, every lathe tool 8 all passes through cylinder 13 fixed connection with a carousel 10, and then drive two 8 rotations, the bilateral synchronization of bearing chamfer is carried out.
Referring to fig. 2, an air cylinder 13 is fixedly arranged on the outer wall of a rotary table 10, an installation rod 14 is fixedly arranged on the output end of the air cylinder 13, a connecting block 15 is fixedly arranged at the top of a turning tool 8, a bolt 16 is arranged on the connecting block 15, a plurality of screw holes are equidistantly arranged on the installation rod 14, the bolt 16 is in threaded connection with one of the screw holes, when the double-side chamfering of the outer ring of the bearing is finished, the bolt 16 is screwed down manually, the turning tool 8 slides downwards, the installation position of the turning tool 8 and the connecting block 15 at the top of the turning tool on the installation rod 14 is adjusted, when the turning tool 8 slides downwards to be capable of being in contact with the outer edge of the inner ring of the bearing, the bolt 16 penetrates through the connecting block 15 again to be connected with the other screw hole, and the turning tool 8 is fastened.
Referring to fig. 3, the sliding assembly 5 includes a rectangular frame 17 and four L-shaped rods 18, two guide rods are fixedly disposed at the top of the base, the four L-shaped rods 18 are slidably disposed on outer walls of the two guide rods, an output end of the electric push rod 4 is fixedly connected to one of the L-shaped rods 18 far away from the support plate 1, the rectangular frame 17 is fixedly disposed between tops of the four L-shaped rods 18, when both sides of an outer ring and an inner ring of the first bearing are chamfered, the controller starts the air cylinder 13 to drive the turning tool 8 to retract, and then the controller starts the electric push rod 4 to extend the output end of the electric push rod to one end close to the support plate 1, since the output end of the electric push rod is fixedly connected to one of the L-shaped rods 18 far away from the support plate 1, each two L-shaped rods 18 are slidably connected to one of the guide rods, and the rectangular frame 17 is fixedly connected to the tops of the four L-shaped rods 18 to drive the rectangular frame 17 and the bearing clamped inside thereof to slide to one end close to the support plate 1, when an outer edge of the second bearing slides to align to the air cylinder 8, the turning tool is driven by the controller to re-extend into the turning tool 8 until the turning tool is in contact with the outer ring, and the outer ring of the electric push rod 4 to stop the electric push rod 17, and the electric push rod.
Referring to fig. 5, the clamping assembly 6 includes a micro-motor 19, a double-headed lead screw 20, two sliding plates 21 and a plurality of trapezoidal clamping jaws 22, the two sliding plates 21 are respectively slidably disposed at the top and the bottom of a rectangular frame 17, two mounting blocks are fixedly disposed on the outer wall of one end of the rectangular frame 17, the double-headed lead screw 20 is rotatably disposed on the two mounting blocks, the micro-motor 19 is fixedly disposed at the top of one of the mounting blocks, the output end of the micro-motor is fixedly connected with the top end of the double-headed lead screw 20, one end of each sliding plate 21 is connected with one end of the double-headed lead screw 20 through a screw, the plurality of trapezoidal clamping jaws 22 are symmetrically disposed on the outer walls of the two sliding plates 21, each trapezoidal clamping jaw 22 is fixedly connected with the sliding plate 21 through a connecting rod, the micro-motor 19 is electrically connected with a controller, during chamfering, at first, a plurality of bearings are sequentially disposed at the tops of the trapezoidal clamping jaws 22 below the plurality of sliding plates 21, then the micro-motor 19 is started through the controller, because the output end of the micro-motor 19 is fixedly connected with the top end of the double-headed lead screw 20, the double-headed lead screw 20 is rotatably connected with the two mounting blocks, thereby driving the double-headed lead screw 20 to rotate, and the double-headed lead screw 20, and the sliding plates are respectively connected with the sliding bearings through the sliding bearings, and the sliding plates 21, and the sliding clamping jaws 21, and the outer edge of the rectangular clamping jaws are respectively, and the sliding plates 21.
An avoiding groove for the rectangular frame 17 and the four L-shaped rods 18 to pass through is formed in the supporting plate 1, and an avoiding space is provided when the rectangular frame 17 and the four L-shaped rods 18 slide to drive the bearing to feed.
Claims (6)
1. The utility model provides an automatic change bilateral chamfer equipment of bearing, includes base and backup pad (1), backup pad (1) are vertical setting at the top of base, its characterized in that:
also comprises a controller, a feeding mechanism (2) and a chamfering mechanism (3),
the feeding mechanism (2) is arranged at the top of the base and used for feeding the bearing, the feeding mechanism (2) comprises an electric push rod (4), a sliding component (5) and a clamping component (6), the sliding component (5) is arranged at the top of the base, the clamping component (6) is arranged at the top of the sliding component (5), the electric push rod (4) is fixedly arranged at the top of the base, the output end of the electric push rod is fixedly connected with the sliding component (5),
the top of base is established in chamfering mechanism (3) in order to be used for chamfering the bearing, chamfering mechanism (3) include double-shaft motor (7), two lathe tools (8) and two rotating assembly (9), double-shaft motor (7) are fixed to be established at the top of backup pad (1), two rotating assembly (9) are the symmetry and set up between two outputs of the top of base and double-shaft motor (7), every lathe tool (8) are all fixed to be established on a rotating assembly (9), electric putter (4) and double-shaft motor (7) are electric connection with the controller.
2. The automated bearing double-sided chamfering apparatus according to claim 1, wherein: every rotating component (9) all includes carousel (10), belt (11) and two synchronizing wheel (12), and the top of base is the symmetry and is provided with two pole settings, and the top of every pole setting is all inserted and is equipped with the articulated shaft, and two synchronizing wheel (12) are fixed respectively and are established on the outer wall of an output of double-shaft motor (7) and one of them articulated shaft, and belt (11) cover is established between two synchronizing wheel (12), and carousel (10) are fixed to be established in the articulated shaft and are kept away from the one end of pole setting.
3. The automated bearing double-sided chamfering apparatus according to claim 2, wherein: the outer wall of the rotary table (10) is fixedly provided with an air cylinder (13), the output end of the air cylinder (13) is fixedly provided with an installation rod (14), the top of the turning tool (8) is fixedly provided with a connecting block (15), the connecting block (15) is provided with a bolt (16), the installation rod (14) is equidistantly provided with a plurality of screw holes, and the bolt (16) is in threaded connection with one of the screw holes.
4. An automated bearing double-sided chamfering apparatus as claimed in claim 3, wherein: the sliding assembly (5) comprises a rectangular frame (17) and four L-shaped rods (18), two guide rods are fixedly arranged at the top of the base, the four L-shaped rods (18) are arranged on the outer walls of the two guide rods in a sliding mode, the output end of the electric push rod (4) is fixedly connected with one of the L-shaped rods (18) far away from the support plate (1), and the rectangular frame (17) is fixedly arranged between the tops of the four L-shaped rods (18).
5. The automated bearing double-sided chamfering apparatus according to claim 4, wherein: centre gripping subassembly (6) are including micromotor (19), double-end lead screw (20), two slide (21) and a plurality of trapezoidal clamping jaw (22), two slide (21) slide respectively and set up the top and the bottom at rectangle frame (17), the fixed two installation pieces that are equipped with on the one end outer wall of rectangle frame (17), double-end lead screw (20) rotate and set up on two installation pieces, micromotor (19) are fixed to be established at the top of one of them installation piece, the top fixed connection of its output and double-end lead screw (20), the one end of every slide (21) all with the one end threaded connection of double-end lead screw (20), a plurality of trapezoidal clamping jaw (22) are the symmetry and set up on the outer wall of two slide (21), every trapezoidal clamping jaw (22) all through connecting rod and slide (21) fixed connection, micromotor (19) are connected with the controller electricity.
6. The automated bearing double-sided chamfering apparatus according to claim 5, wherein: an avoiding groove for the rectangular frame (17) and the four L-shaped rods (18) to pass through is formed in the supporting plate (1).
