CN218137673U

CN218137673U - Pipeline mounting structure for fire-fighting equipment engineering

Info

Publication number: CN218137673U
Application number: CN202222719108.9U
Authority: CN
Inventors: 杨华; 陶野; 田小强; 李涵旭
Original assignee: Guangdong Yishite Electromechanical Engineering Co ltd
Current assignee: Guangdong Yishite Electromechanical Engineering Co ltd
Priority date: 2022-10-17
Filing date: 2022-10-17
Publication date: 2022-12-27
Anticipated expiration: 2032-10-17

Abstract

The utility model discloses a pipeline mounting structure for fire control facility engineering, the on-line screen storage device comprises a base, the top fixed mounting of base has a supporting bench, a supporting bench's top fixed mounting has the frame, the base top lean on both sides position and frame inner wall top lean on both sides position and all seted up the spout, the center fixed mounting at a supporting bench top has places the seat. This pipeline mounting structure for fire-fighting equipment engineering, through the spout, the fly leaf, the slider, first grip block, the screw rod, the second grip block, the worm, the threaded rod, mutually support of dwang and turbine, at the in-process of installing the pipeline, make the turbine drive the worm through rotatory dwang and rotate, thereby make two first grip blocks relative movement simultaneously, and then make two first grip blocks compress tightly the both sides of pipeline, the rethread rotates the screw rod and can make the second grip block at top compress tightly spacingly to the top of pipeline, the installation is quick and convenient, the effectual steadiness of pipeline after the installation of having guaranteed.

Description

Pipeline mounting structure for fire-fighting equipment engineering

Technical Field

The utility model relates to a piping erection technical field specifically is a pipeline mounting structure for fire control facility engineering.

Background

Fire engineering facilities are an important part in our lives, and particularly in densely populated cities, the possibility of fire hazards is higher, the design of the fire engineering facilities and the engineering has a great influence on the later use, and the fire engineering facilities comprise pipelines which are installed.

For example, chinese granted patent (a pipeline mounting structure for fire protection equipment engineering) with publication number CN217003421U this pipeline mounting structure for fire protection equipment engineering, insert the setting element in the fixed beam, utilize the setting element to place the pipeline, and adjust the position of walking beam through the screw rod, make the walking beam move down and compress tightly the pipeline on the setting element, so accomplish fixedly, the installation is simple, and position control is convenient, can accomplish the installation fast, save time, however, when installing the pipeline, can only compress tightly fixedly the top of pipeline, can not fix the both sides of pipeline, thereby reduced the stability of pipeline after the installation, can't satisfy the market demand.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a pipeline mounting structure for fire control facility engineering to propose when installing the pipeline in solving above-mentioned background art, can only compress tightly fixedly the top of pipeline, can not fix the both sides of pipeline, thereby reduced the stability of pipeline after the installation, can't satisfy the problem of market demand.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a pipeline mounting structure for fire-fighting equipment engineering, includes the base, the top fixed mounting of base has a supporting bench, the top fixed mounting of supporting bench has the frame, the both sides position that leans on of base top and frame inner wall top all has seted up the spout by the both sides position, the central fixed mounting at supporting bench top has placed the seat, center in the supporting bench is provided with the threaded rod, the central fixed mounting on threaded rod surface has the worm, the equal threaded connection in both sides position that leans on the threaded rod surface has a fly leaf, the top and the equal fixed mounting in bottom of two fly leaves have the slider, the equal fixedly connected with connecting rod that leans on the central position of one side that two fly leaves are relative, one side that two connecting rods are relative all is provided with the cushion socket, one side fixedly connected with spring in the cushion socket, the equal fixed mounting in one side that two cushion sockets are relative has first grip block, the central threaded connection at frame top has the screw rod, the outside of screw rod runs through to the frame, the bottom of screw rod is provided with the second grip block, the arc has been seted up at the center at base top, the inside of arc, the dwang, the rear portion of arc wall and the bearing swing joint of surface fixed mounting of arc wall with the worm, the top of worm runs through the arc wall and the outside meshing of the arc and the worm.

Compared with the prior art, the beneficial effects of the utility model are that:

this pipeline mounting structure for fire-fighting equipment engineering, through the spout, the fly leaf, the slider, first grip block, the screw rod, the second grip block, the worm, the threaded rod, mutually support of dwang and turbine, in-process installing the pipeline, make the turbine drive the worm through rotatory dwang and rotate, thereby make two first grip block simultaneous relative movement, and then make two first grip blocks compress tightly the both sides of pipeline, the rethread rotates the screw rod and can make the second grip block at top compress tightly spacingly to the top of pipeline, the installation is quick and convenient, the effectual steadiness of pipeline after the installation of having guaranteed, the cushion sleeve, mutually support of spring and connecting rod, two first grip blocks carry out the in-process of centre gripping to the pipeline, can play the effect of buffering when the atress to the pipeline, avoid making the pipe impaired to the in-process of pipeline centre gripping, market demand has been satisfied.

Drawings

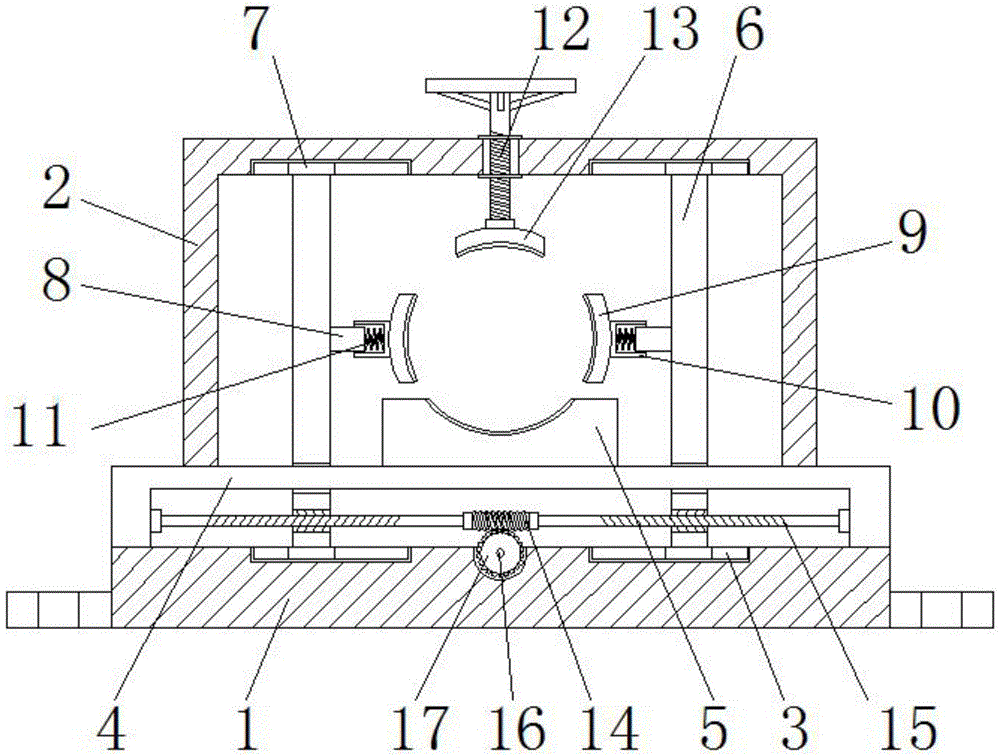

FIG. 1 is a schematic structural view of the present invention;

fig. 2 is a top view of the base of the present invention;

FIG. 3 is a front view of the structure of the present invention;

fig. 4 is a perspective view of the movable plate of the present invention.

In the figure: 1. a base; 2. a frame; 3. a chute; 4. a support table; 5. a placing seat; 6. a movable plate; 7. a slider; 8. a connecting rod; 9. a first clamping plate; 10. a buffer sleeve; 11. a spring; 12. a screw; 13. a second clamping plate; 14. a worm; 15. a threaded rod; 16. rotating the rod; 17. a turbine; 18. a handle.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-4, the present invention provides a technical solution: the utility model provides a pipeline mounting structure for fire fighting equipment engineering, the both ends of threaded rod 15 respectively with 4 inner wall center fixed mounting's of brace table bearing swing joint, positive thread tooth and anti-thread tooth have been seted up respectively to the both sides on threaded rod 15 surface, positive thread tooth and anti-thread tooth have been seted up respectively to the inside of two fly leafs 6, threaded rod 15 can drive two fly leafs 6 relative or back on the back removal when rotating simultaneously.

Grooves are formed in the positions, close to the bottoms, of the front surfaces of the two movable plates 6, and the rear ends of the supporting platform 4 penetrate through the two grooves respectively, so that the movable plates 6 can move along the supporting platform 4.

The four sliders 7 arranged up and down penetrate through the four sliding grooves 3 respectively and are connected with the inner walls of the sliding grooves 3 in a sliding mode, and the sliders 7 can slide in the sliding grooves 3.

One end of the connecting rod 8 penetrates through the inside of the buffer sleeve 10 and is fixedly connected with one side of the spring 11, so that the stability of the spring 11 under stress is ensured.

The bottom of the screw 12 is movably connected with a bearing fixedly arranged at the center of the top of the second clamping plate 13, and the screw 12 can push the second clamping plate 13 to move downwards while rotating downwards, so that the screw 12 is prevented from driving the second clamping plate 13 to rotate simultaneously when rotating.

The equal fixed mounting in bottom at base 1 both sides has the connecting plate, and the mounting hole has all been seted up at the top of two connecting plates, runs through the mounting hole through the bolt and can fix base 1 in assigned position department.

The top of the screw 12 is fixedly provided with a rotating wheel, the front end of the rotating rod 16 penetrates through the outside of the base 1 and is fixedly provided with a handle 18, the screw 12 can drive the second clamping plate 13 to move by rotating the rotating wheel, and the worm wheel 17 can be meshed with the worm 14 to rotate by rotating the handle 18, so that the two first clamping plates 9 are moved.

The working principle is as follows: when the pipeline is installed, firstly, the base 1 is fixed at a designated position, then the pipeline is placed on the placing seat 5, then, firstly, the rotating rod 16 is made to drive the turbine 17 to rotate by rotating the handle 18, the turbine 17 is meshed with the worm 14 so as to drive the threaded rod 15 to rotate, the threaded rod 15 is rotated to drive the two movable plates 6 to simultaneously move relatively, when the first clamping plates 9 on the two movable plates 6 are in contact with the two sides of the pipeline, the springs 11 of the buffer sleeves 10 are compressed, the pipeline can be buffered in the clamping process by the springs 11, after the two ends of the pipeline are fixed, the screw 12 is made to drive the second clamping plate 13 at the bottom to move downwards by rotating the rotating wheel, and therefore the top of the pipeline is compressed and limited.

In summary, the following steps: this pipeline mounting structure for fire-fighting equipment engineering, through spout 3, fly leaf 6, slider 7, first grip block 9, screw rod 12, second grip block 13, worm 14, threaded rod 15, dwang 16 and turbine 17 mutually support, in the process of installing the pipeline, make turbine 17 drive worm 14 through rotatory dwang 16 and rotate, thereby make two first grip block 9 simultaneous relative movement, and then make two first grip block 9 compress tightly the both sides of pipeline, rethread rotates screw rod 12 and can make the second grip block 13 at top compress tightly spacingly to the top of pipeline, the installation is quick and convenient, the effectual steadiness of pipeline after the installation of having guaranteed, buffer sleeve 10, mutually support of spring 11 and connecting rod 8, the in-process of centre gripping is carried out to the pipeline to two first grip block 9, can play the effect of buffering when the atress to the pipeline, avoid making the pipe impaired to the in-process of pipeline centre gripping, market demand has been satisfied.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that various changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a pipeline mounting structure for fire control facility engineering, includes base (1), its characterized in that: the top of the base (1) is fixedly provided with a support table (4), the top of the support table (4) is fixedly provided with a frame (2), the top of the base (1) is provided with sliding grooves (3) at two side positions and the top of the inner wall of the frame (2) at two side positions, the center of the top of the support table (4) is fixedly provided with a placing seat (5), the center of the support table (4) is provided with a threaded rod (15), the center of the surface of the threaded rod (15) is fixedly provided with a worm (14), the surface of the threaded rod (15) is connected with movable plates (6) at two side positions by equal threads, the top and the bottom of the two movable plates (6) are fixedly provided with a sliding block (7), the opposite side of the two movable plates (6) is fixedly connected with a connecting rod (8) at the center position, the opposite side of the two connecting rods (8) is provided with a buffer sleeve (10), one side of the buffer sleeve (10) is fixedly connected with a spring (11), the opposite side of the two buffer sleeve (10) is fixedly provided with a first clamping plate (9), the top of the frame (2) is connected with a screw (12) at the center thread, the bottom of the screw rod (12) penetrates through the bottom of the frame (2), and the arc-shaped groove (13) is provided with a second clamping plate (13), the inside of arc wall is provided with dwang (16), fixed surface's bearing swing joint behind the rear portion of dwang (16) and the arc wall inner wall, the bottom fixed mounting that the surface of dwang (16) corresponds worm (14) has turbine (17), the top of turbine (17) run through to the outside of arc wall and with the bottom meshing of worm (14).

2. The piping installation structure for fire fighting equipment engineering according to claim 1, characterized in that: the two ends of the threaded rod (15) are respectively and fixedly connected with bearings fixedly mounted at the centers of the two sides of the inner wall of the supporting platform (4), positive thread teeth and negative thread teeth are respectively arranged on the two sides of the surface of the threaded rod (15), and the positive thread teeth and the negative thread teeth are respectively arranged in the two movable plates (6).

3. The piping installation structure for fire fighting equipment engineering according to claim 1, characterized in that: grooves are formed in the positions, close to the bottoms, of the front surfaces of the two movable plates (6), and the rear ends of the supporting tables (4) penetrate through the two grooves respectively.

4. The piping installation structure for fire fighting equipment engineering according to claim 1, characterized in that: the four sliding blocks (7) which are arranged from top to bottom respectively penetrate through the interiors of the four sliding grooves (3) and are in sliding connection with the inner walls of the sliding grooves (3).

5. The piping installation structure for fire fighting equipment engineering according to claim 1, characterized in that: one end of the connecting rod (8) penetrates into the buffer sleeve (10) and is fixedly connected with one side of the spring (11).

6. The piping installation structure for fire fighting equipment engineering according to claim 1, characterized in that: the bottom of the screw rod (12) is movably connected with a bearing fixedly arranged at the center of the top of the second clamping plate (13).

7. The piping installation structure for fire fighting equipment engineering according to claim 1, characterized in that: the bottom of base (1) both sides is equal fixed mounting has the connecting plate, and the mounting hole has all been seted up at the top of two connecting plates.

8. The piping installation structure for fire fighting equipment engineering according to claim 1, characterized in that: the top fixed mounting of screw rod (12) has the runner, the front end of dwang (16) runs through to the outside of base (1) and fixed mounting has handle (18).
