Abstract
The utility model discloses a surface smoothness detects frock for PC board production, its technical scheme is: including two installation pieces, two be equipped with optical axis and reciprocal lead screw between the installation piece, it is vice to install the nut on the reciprocal lead screw, the vice fixedly connected with detector main part that goes up of nut, reciprocal lead screw both ends respectively with two installation piece swing joint, optical axis and the vice activity of nut are pegged graft, the optical axis both ends respectively with two installation piece fixed connection, installation piece outer wall is fixedly connected with motor still. The beneficial effects are that: can control the detector main part through starter motor along panel surface reciprocating motion, need not manual slip, labour saving and time saving lifts up the installation piece earlier when needs mobile device in the position on panel surface simultaneously, then rotates the runner and can remove the gyro wheel to the mounting groove outside, utilizes gyro wheel mobile device more laborsaving, is applicable to the surface smoothness detection to great PC panel.
Description
Technical Field
The utility model relates to a roughness detects technical field, concretely relates to surface flatness detects frock for PC board production.
Background
The PC board need detect surface flatness after production, often adopt the roughness detector to realize, the roughness detector generally includes detector main part and mounting bracket, the detector main part can slide along the main part, and then detect different positions, and the detector main part includes physics formula and electronic type, the physics formula detector is provided with mechanical instrument, the change of accessible instrument direct observation flatness data, and the electronic type detector passes through laser rangefinder, except that the display data change can also with data transfer to display terminal.
The existing flatness detector suitable for a large PC board is heavy, the detector is manually moved on the surface of the PC board, and the position of the main body of the detector is also manually moved.
Disclosure of Invention
For this, the utility model provides a surface smoothness detects frock for PC board production, can control the detector main part along panel surface reciprocating motion through starter motor, need not manual slip, time saving and labor saving, simultaneously when the position that needs the mobile device on the panel surface, lift up the installation piece earlier, then rotate the runner and can remove the gyro wheel to the mounting groove outside, it is more laborsaving to utilize the gyro wheel mobile device, be applicable to the surface smoothness detection to great PC panel, it is big to solve current roughness detector weight that is applicable to great PC board, it is manual hard at PC board surface mobile detector, and the equally very hard problem in position of manual mobile detector main part.
In order to achieve the above object, the present invention provides the following technical solutions: a surface flatness detection tool for production of a pc board comprises two installation blocks, wherein an optical shaft and a reciprocating screw rod are arranged between the two installation blocks, a nut pair is installed on the reciprocating screw rod, a detector main body is fixedly connected onto the nut pair, two ends of the reciprocating screw rod are movably connected with the two installation blocks respectively, the optical shaft is movably inserted into the nut pair, two ends of the optical shaft are fixedly connected with the two installation blocks respectively, a motor is fixedly connected to the outer wall of each installation block, and an output shaft of the motor is fixedly connected with the reciprocating screw rod;
two the mounting groove has all been seted up to installation piece bottom, be provided with the removal subassembly in the mounting groove, it includes the screw rod to remove the subassembly, the screw rod top run through installation piece roof and with installation piece roof threaded connection, screw rod top fixedly connected with runner, screw rod bottom swing joint has the square pole, square pole bottom fixedly connected with mounting bracket, the inboard swing joint of mounting bracket has the gyro wheel.
Preferably, the mounting block is provided in a concave shape, and the mounting block is made of steel.
Preferably, the mounting groove is including accomodating groove and square groove, the square groove sets up and is accomodating inslot roof.
Preferably, mounting bracket and gyro wheel setting are in accomodating the inslot, the square bar top extends to the square groove in, the square bar matches with square groove cross sectional shape.
Preferably, the screw is fixedly sleeved with an upper limiting ring, and the upper limiting ring is positioned at the top of the mounting block.
Preferably, the screw is fixedly sleeved with a lower limiting ring, and the lower limiting ring is positioned in the square groove.
Preferably, two the installation piece lateral wall all is equipped with the handle, handle and installation piece swing joint.
Preferably, the bottoms of the two mounting blocks are fixedly connected with rubber pads.
Preferably, two connecting rib rods are further arranged between the two mounting blocks and fixedly connected with the top walls of the mounting blocks through bolts.
The embodiment of the utility model provides an have following advantage:
1. the detection instrument main body can be controlled to move back and forth along the surface of the plate by starting the motor, manual sliding is not needed, time and labor are saved, meanwhile, when the moving device is required to be arranged at the position of the surface of the plate, the mounting block is lifted firstly, then the roller can be moved to the outside of the mounting groove by rotating the rotating wheel, the roller moving device is more labor-saving, and the detection instrument is suitable for detecting the surface flatness of a large PC plate;
2. through set up spacing ring and lower spacing ring on the screw rod, can inject the vertical position of screw rod, and then can guarantee that the position after the gyro wheel removes is the same, and is more convenient, sets up the rubber pad bottom the installation piece, can avoid damaging the PC board surface.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below. It should be apparent that the drawings in the following description are merely exemplary, and that other embodiments can be derived from the drawings provided by those of ordinary skill in the art without inventive effort.
The structure, proportion, size and the like shown in the present specification are only used for matching with the content disclosed in the specification, so as to be known and read by people familiar with the technology, and are not used for limiting the limit conditions which can be implemented by the present invention, so that the present invention has no technical essential significance, and the modification of any structure, the change of proportion relation or the adjustment of size all fall within the scope which can be covered by the technical content disclosed by the present invention without affecting the efficacy and the purpose which can be achieved by the present invention.

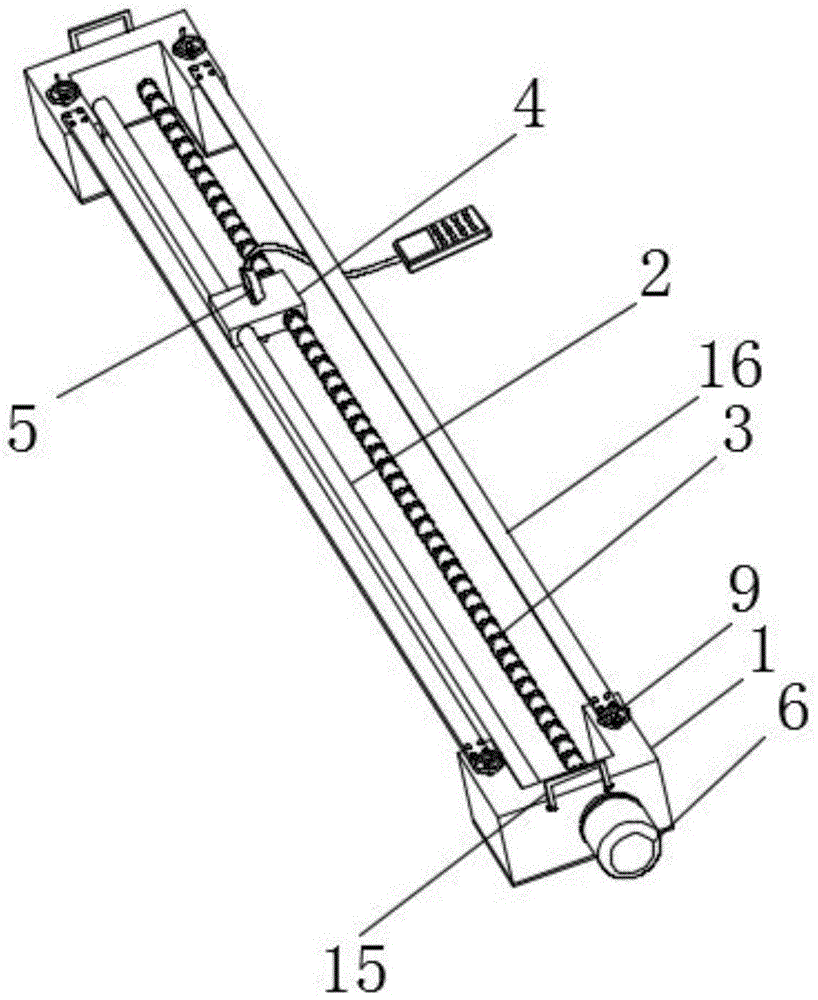

Fig. 1 is a schematic view of the overall structure provided by the present invention;
fig. 2 is a sectional view of the mounting block provided by the present invention;
fig. 3 is a bottom perspective view provided by the present invention;
fig. 4 is a schematic structural diagram of the nut pair provided by the present invention.
In the figure: the device comprises an installation block 1, an optical axis 2, a reciprocating screw rod 3, a nut pair 4, a detector main body 5, a motor 6, an installation groove 7, a storage groove 71, a square groove 72, a screw rod 8, a rotating wheel 9, a square rod 10, an installation frame 11, rollers 12, an upper limiting ring 13, a lower limiting ring 14, a handle 15 and a connecting rib rod 16.
Detailed Description
The present invention is described in terms of specific embodiments, and other advantages and benefits of the present invention will become apparent to those skilled in the art from the following disclosure. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to the attached drawings 1-4, the utility model provides a surface flatness detection tool for PC board production, including two installation blocks 1, be equipped with optical axis 2 and reciprocal lead screw 3 between two installation blocks 1, install nut pair 4 on the reciprocal lead screw 3, fixedly connected with detector main part 5 on the nut pair 4, reciprocal lead screw 3 both ends respectively with two installation blocks 1 swing joint, optical axis 2 and nut pair 4 activity grafting, optical axis 2 both ends respectively with two installation blocks 1 fixed connection, installation block 1 outer wall still fixedly connected with motor 6, motor 6 output shaft and reciprocal lead screw 3 fixed connection;
In this embodiment, motor 6 is fixed on one of them installation piece 1, can control detector main part 5 along panel surface reciprocating motion through starter motor 6, need not manual slip, labour saving and time saving, simultaneously when the position of needs mobile device on panel surface, lift installation piece 1 earlier, then rotate runner 9 and can remove gyro wheel 12 to mounting groove 7 outside, utilize gyro wheel 12 mobile device more laborsaving, be applicable to the surface smoothness detection to great PC panel.
Wherein, in order to realize the purpose of improving the stability of the device, the device adopts the following technical scheme: the mounting block 1 is arranged to be concave, the mounting block 1 is made of steel, and the self weight of the mounting block 1 ensures the stability of the whole device;
wherein, in order to realize the purpose of installation removal subassembly, this device adopts following technical scheme to realize: the mounting groove 7 comprises a storage groove 71 and a square groove 72, the square groove 72 is arranged on the top wall in the storage groove 71, the mounting frame 11 and the roller 12 are arranged in the storage groove 71, the top end of the square rod 10 extends into the square groove 72, and the cross section of the square rod 10 is matched with that of the square groove 72;
in order to achieve the purpose of limiting the position of the roller 12, the device is implemented by adopting the following technical scheme: an upper limit ring 13 is fixedly sleeved on the screw 8, the upper limit ring 13 is positioned at the top of the mounting block 1, a lower limit ring 14 is fixedly sleeved on the screw 8, the lower limit ring 14 is positioned in the square groove 72, in the actual operation, the rotating wheel 9 drives the screw 8 to rotate, the roller 12 moves downwards to the lowest point when the upper limit ring 13 is contacted with the top wall of the mounting block 1, and the roller 12 moves upwards to the highest point when the lower limit ring 14 is contacted with the top wall in the square groove 72;
wherein, in order to realize the purpose of facilitating the mobile device, the device adopts the following technical scheme to realize: the side walls of the two mounting blocks 1 are respectively provided with a handle 15, and the handles 15 are movably connected with the mounting blocks 1;
wherein, in order to realize avoiding damaging the purpose on PC board surface, this device adopts following technical scheme to realize: the bottoms of the two mounting blocks 1 are fixedly connected with rubber pads;
wherein, for the purpose that improves the joint strength of two installation pieces 1, this device adopts following technical scheme to realize: two connecting rib rods 16 are further arranged between the two mounting blocks 1, the connecting rib rods 16 are fixedly connected with the top walls of the mounting blocks 1 through bolts, and the connecting rib rods 16 are preferably made of stainless steel.
The utility model discloses a use as follows: in use the utility model discloses the time, at first handheld handle 15 places the device on the PC board surface, starter motor 6, motor 6 drives reciprocal lead screw 3 and rotates, and then can drive nut pair 4 and detector main part 5 reciprocating motion, and then detect each position of device below, later lift up installation piece 1 through handle 15, rotate runner 9 simultaneously, runner 9 rotates and to drive screw rod 8 rotating downwards, and then can promote square pole 10, mounting bracket 11 and gyro wheel 12 move down, finally make gyro wheel 12 bottom remove to the mounting groove 7 outside, utilize gyro wheel 12 strutting arrangement with this, utilize gyro wheel 12 can roll along the PC board surface, with this adjusting device's position, and then select different check points on the PC board surface, reverse rotation runner 9 can accomodate gyro wheel 12 again to mounting groove 7 in.
The above description is only a preferred embodiment of the present invention, and any person skilled in the art may modify the present invention or modify it into an equivalent technical solution by using the technical solutions described above. Therefore, any simple modifications or equivalent replacements made according to the technical solution of the present invention belong to the scope of protection claimed by the present invention as far as possible.
Claims (9)
1. The utility model provides a surface flatness detects frock for PC board production, includes two installation pieces (1), its characterized in that: an optical axis (2) and a reciprocating screw rod (3) are arranged between the two mounting blocks (1), a nut pair (4) is mounted on the reciprocating screw rod (3), a detector main body (5) is fixedly connected to the nut pair (4), two ends of the reciprocating screw rod (3) are movably connected with the two mounting blocks (1) respectively, the optical axis (2) is movably inserted into the nut pair (4), two ends of the optical axis (2) are fixedly connected with the two mounting blocks (1) respectively, a motor (6) is fixedly connected to the outer wall of each mounting block (1), and an output shaft of the motor (6) is fixedly connected with the reciprocating screw rod (3);
two installation piece (1) bottom has all been seted up mounting groove (7), be provided with the removal subassembly in mounting groove (7), the removal subassembly includes screw rod (8), screw rod (8) top run through installation piece (1) roof and with installation piece (1) roof threaded connection, screw rod (8) top fixedly connected with runner (9), screw rod (8) bottom swing joint has square pole (10), square pole (10) bottom fixedly connected with mounting bracket (11), mounting bracket (11) inboard swing joint has gyro wheel (12).
2. The surface flatness detection tool for PC board production according to claim 1, characterized in that: the mounting block (1) is arranged to be concave, and the mounting block (1) is made of steel.
3. The surface flatness detection tool for PC board production according to claim 1, characterized in that: mounting groove (7) are including accomodating groove (71) and square groove (72), square groove (72) set up and are accomodating the interior roof of groove (71).
4. The surface flatness detection tool for PC board production according to claim 1, characterized in that: mounting bracket (11) and gyro wheel (12) set up in accomodating groove (71), square bar (10) top extends to in square groove (72), square bar (10) and square groove (72) cross sectional shape match.
5. The surface flatness detection tool for PC board production according to claim 1, characterized in that: the screw rod (8) is fixedly sleeved with an upper limiting ring (13), and the upper limiting ring (13) is located at the top of the mounting block (1).
6. The surface flatness detection tool for PC board production according to claim 1, characterized in that: the screw (8) is fixedly sleeved with a lower limiting ring (14), and the lower limiting ring (14) is located in the square groove (72).
7. The surface flatness detection tool for PC board production according to claim 1, characterized in that: two installation piece (1) lateral wall all is equipped with handle (15), handle (15) and installation piece (1) swing joint.
8. The surface flatness detection tool for PC board production according to claim 1, characterized in that: the bottoms of the two mounting blocks (1) are fixedly connected with rubber pads.
9. The surface flatness detection tool for PC board production according to claim 1, characterized in that: two still be equipped with two connection rib poles (16) between installation piece (1), connection rib pole (16) pass through bolt and installation piece (1) roof fixed connection.
