The utility model relates to the technical field of express unmanned aerial vehicles, in particular to an unmanned aerial vehicle express delivery home-entry device, which comprises a box body and a movable door with the front side of the box body capable of being overturned; a push plate for pushing the express out of the storage cavity is arranged in the storage cavity of the box body; the movable door is used for blocking express in a storage cavity of the box body, and electric push rods for driving the movable door to turn upwards are arranged on two side walls of the box body; through the arranged delivery part: the express is placed in the storage cavity in the box body, when the express is delivered to a home of a user by the unmanned aerial vehicle, the push plate moves horizontally and pushes the express to move outwards, meanwhile, the electric push rod pushes the movable door to turn over and expose an opening of the storage cavity, and the push plate can push the express out of the box body to achieve express delivery and home entry; this design is in the box of carrying on unmanned aerial vehicle is arranged the express delivery in when delivering the express delivery for the express delivery is difficult for appearing the situation that drops at the in-process of carrying, has avoided the situation of the express delivery of wetting such as fog simultaneously.
Description
Technical Field
The utility model relates to an express delivery unmanned aerial vehicle technical field specifically is an unmanned aerial vehicle delivers express delivery device of registering one's residence.
Background
The unmanned aerial vehicle delivers the express to the home, namely the unmanned aerial vehicle carries the express and delivers the express to the home of the user, so that the unmanned aerial vehicle has the advantages of labor saving and the like;
the utility model patent with the publication number of cn201922384527.x discloses an express delivery unmanned aerial vehicle with a cargo positioning and protecting structure, which comprises an express delivery unmanned aerial vehicle body, a clamping rod, a cargo body, a first spring and a second spring; a supporting rod is fixedly welded at the lower end of the first spring, a bearing plate is fixed at the lower end of the supporting rod through a bolt, and a cargo body is placed on the upper surface of the bearing plate; the whole device can quickly fix the goods body, so that the total time for the express unmanned aerial vehicle to convey the goods body is shortened, and the transportation efficiency of the express unmanned aerial vehicle is improved;
although this express delivery unmanned aerial vehicle is convenient to deliver after the goods body is fixed, this unmanned aerial vehicle is when delivering the express delivery, and the goods is the snap-on accepting the board, and unmanned aerial vehicle is at the in-process of high-speed flight, and the express delivery very easily appears droing or by the situation that wets such as fog, easily causes the damage of express delivery, in view of this, we provide an unmanned aerial vehicle and deliver express delivery device of registering one's residence.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide an unmanned aerial vehicle delivers express delivery device of registering one's residence to solve the problem that proposes in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme:
an unmanned aerial vehicle express delivery and home entry device comprises an unmanned aerial vehicle and a delivery part;
the unmanned aerial vehicle is used for carrying a delivery part to deliver express to a home, and two connecting frames used for connecting the delivery part are arranged at the bottom end of the unmanned aerial vehicle;
the delivery part is used for loading express, is arranged below the unmanned aerial vehicle and consists of a box body and a movable door with the front side of the box body capable of being turned over; the front end face of the box body is provided with a storage cavity for loading express, a push plate for pushing the express out of the storage cavity is installed in the storage cavity of the box body, a lead screw is connected to the position, close to the upper portion, of the push plate in a threaded mode, and a motor for driving the lead screw to rotate is installed on the rear side wall of the box body; the dodge gate is used for blockking the express delivery in the storing intracavity of box, and the both sides wall department of box all installs the electric putter that is used for driving the dodge gate upset upwards.
As the preferable technical proposal of the utility model, the two side walls of the box body are both provided with the support plates, and the rear end of the electric push rod is hinged with the support plates; the two side walls of the movable door are both provided with pin shafts, and the tail end of a piston rod of the electric push rod is hinged with the pin shafts.
As the utility model discloses preferred technical scheme, all install on the both sides inner wall in the storing chamber of box and be used for carrying out the guide rail that leads to the horizontal motion of push pedal, all offer on the both sides wall of push pedal with guide rail sliding connection's spout.
As the utility model discloses preferred technical scheme, the top surface of box is located the front side edge department and installs two otic placodes, and two lugs are installed to the posterior lateral plate top department of dodge gate, are fixed with between two lugs to rotate the connecting axle of being connected with the otic placode.
As the utility model discloses preferred technical scheme, the loading board is installed to the storing intracavity top surface department of box, and the front end of lead screw is rotated and is installed on the loading board.
As the utility model discloses preferred technical scheme, the link passes through bolt fixed connection with box and unmanned aerial vehicle respectively.
As the preferred technical scheme of the utility model, the size of dodge gate with the opening size looks adaptation in box storing chamber.
Compared with the prior art, the beneficial effects of the utility model are that:
through the arranged delivery part: the express delivery is placed in a storage cavity in the box body, when the express delivery is delivered to a home of a user by the unmanned aerial vehicle, the motor drives the lead screw to rotate, the push plate moves horizontally and pushes the express delivery to move outwards, meanwhile, the electric push rod pushes the movable door to turn over and expose an opening of the storage cavity, and the push plate can push the express delivery out of the box body to achieve express delivery and home entry; this design is in the box of carrying on unmanned aerial vehicle is arranged the express delivery in when delivering the express delivery for the express delivery is difficult for appearing the situation that drops at the in-process of carrying, has avoided the situation of the express delivery of wetting such as fog simultaneously, has played the guard action to the express delivery.
Drawings
Fig. 1 is a schematic view of the overall structure of the present invention;
fig. 2 is a schematic structural view of the connecting frame of the present invention;

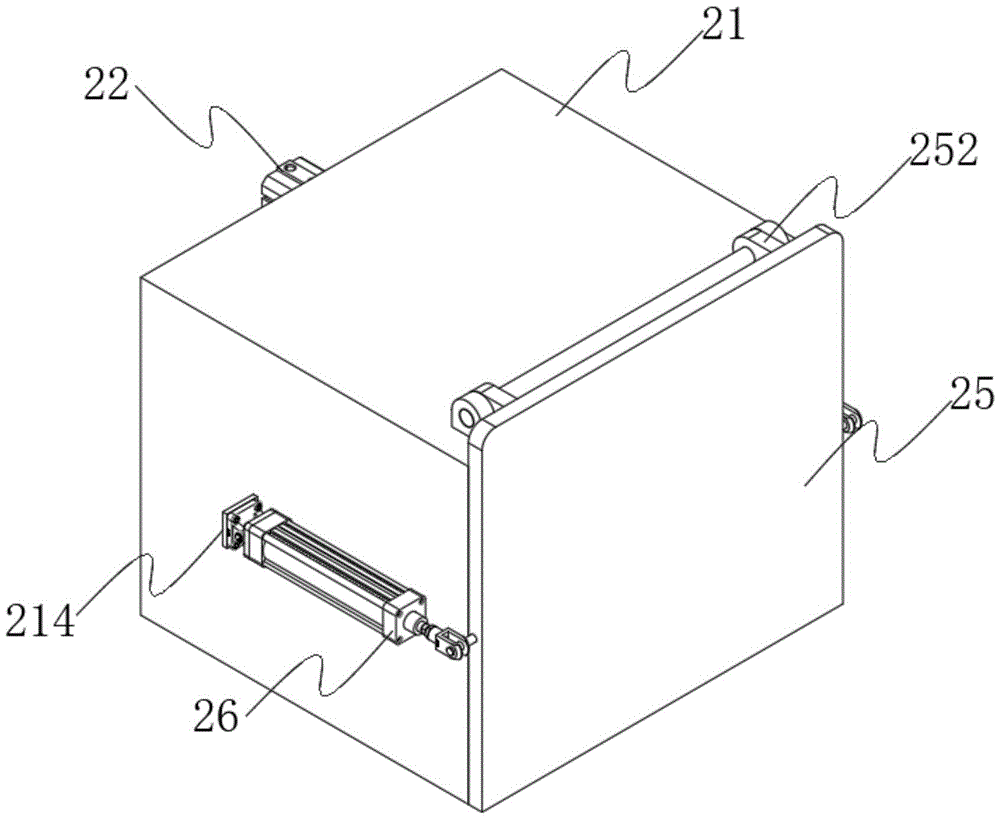

FIG. 3 is a schematic view of the structure of the delivery part of the present invention;
FIG. 4 is a second schematic view of the structure of the delivery part of the present invention;
FIG. 5 is a sectional view of the structure of the middle box body of the present invention;
fig. 6 is a schematic structural view of the middle movable door of the present invention.
In the figure:
1. an unmanned aerial vehicle; 11. a connecting frame;
2. a delivery part; 21. a box body; 211. a carrier plate; 212. a guide rail; 213. an ear plate; 214. a support plate; 22. a motor; 23. a screw rod; 24. pushing the plate; 25. a movable door; 251. a pin shaft; 252. a bump; 253. a connecting shaft; 26. an electric push rod.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
The embodiment provides a technical scheme:
referring to fig. 1-6, an unmanned aerial vehicle express delivery and home entry device includes an unmanned aerial vehicle 1 and a delivery part 2;
the unmanned aerial vehicle 1 is used for carrying the delivery part 2 to deliver express to a home, and two connecting frames 11 used for connecting the delivery part 2 are arranged at the bottom end of the unmanned aerial vehicle;
the delivery part 2 is used for loading express, is arranged below the unmanned aerial vehicle 1 and consists of a box body 21 and a movable door 25, the front side of which can be turned over, of the box body 21; a storage cavity for loading express is formed in the front end face of the box body 21, a push plate 24 for pushing the express out of the storage cavity is installed in the storage cavity of the box body 21, a lead screw 23 is connected to the position, close to the upper portion, of the push plate 24 in a threaded mode, and a motor 22 for driving the lead screw 23 to rotate is installed on the rear side wall of the box body 21; the movable door 25 is used for blocking express delivery in the storage cavity of the box body 21, and electric push rods 26 for driving the movable door 25 to turn upwards are arranged on two side walls of the box body 21; after unmanned aerial vehicle 1 carried delivery portion 2 and entered one's residence, the dodge gate was opened to electric putter 26, and box 21 can be released with the express delivery to push pedal 24 to realize entering one's residence of express delivery.
In this embodiment, the two side walls of the box 21 are both provided with a support plate 214, and the rear end of the electric push rod 26 is hinged with the support plate 214; the two side walls of the movable door 25 are respectively provided with a pin shaft 251, the tail end of the piston rod of the electric push rod 26 is hinged with the pin shaft 251, the support plate 214 is convenient to install the electric push rod 26, and the hinged connection mode is convenient for the electric push rod 26 to push the movable door 25 to overturn.
In this embodiment, the guide rail 212 used for guiding the horizontal movement of the push plate 24 is installed on the inner walls of the two sides of the storage cavity of the box body 21, the sliding grooves connected with the guide rail 212 in a sliding manner are formed in the two side walls of the push plate 24, the guide rail 212 guides the horizontal movement of the push plate 24, and the stability of the push plate 24 during the horizontal movement is ensured.
In this embodiment, two otic placodes 213 are installed to the top surface of box 21 and are located the front side edge department, and two lugs 252 are installed to the posterior lateral plate top department of dodge gate 25, are fixed with between two lugs 252 and rotate the connecting axle 253 of being connected with otic placode 213, and this design is convenient for dodge gate 25 and overturns for dodge gate 25 breaks away from the opening in storing chamber, is convenient for release box 21 with the express delivery in the storing chamber.
In this embodiment, the loading board 211 is installed at the top surface in the storage cavity of the box 21, the front end of the screw rod 23 is rotatably installed on the loading board 211, the front end of the screw rod 23 is rotatably connected with the loading board 211 through a bearing, and the loading board 211 supports and supports the screw rod 23 to facilitate the stable rotation of the screw rod 23.
In this embodiment, link 11 passes through bolt fixed connection with box 21 and unmanned aerial vehicle 1 respectively, and the setting of link 11 plays the effect of connecting and fixing between box 21 and unmanned aerial vehicle 1, conveniently installs box 21 in unmanned aerial vehicle 1's bottom.
In this embodiment, the size of dodge gate 25 and the opening size looks adaptation in box 21 storing chamber, this design is convenient for shelter from the storing chamber opening of box 21 through dodge gate 25 for the express delivery in the box 21 can not break away from the box, plays the guard action to the express delivery.
What need supplement is, when the express delivery was carried on by unmanned aerial vehicle 1 and delivered into the family, need with the steady berth of unmanned aerial vehicle 1 at indoor ground, release box 21 with the express delivery of depositing in the box 21 again, the too high situation that drops appears in express delivery distance ground can be avoided in this design, avoids the express delivery to appear the situation of damage.
It should be noted that the motor 22 and the electric push rod 26 in the present embodiment are conventional in the art, and are not described herein.
During specific use, the express delivery that the user firstly waited to deliver is placed in box 21, and switch on electric putter 26's power, electric putter 26's piston rod contracts and drives dodge 25 upset and shelter from box 21's water storage chamber opening, then the user controls unmanned aerial vehicle 1 flight, unmanned aerial vehicle 1 drives box 21 and flies to the user family promptly, after unmanned aerial vehicle 1 user, user controls unmanned aerial vehicle 1 to descend subaerially at the user family, user switch on electric putter 26's power this moment, electric putter 26's piston rod extends and drives dodge 25 upset upwards, box 21's storing chamber opening is opened promptly, user switch on motor 22's power simultaneously, motor 22 begins work, motor 22's output shaft drives lead screw 23 and rotates, push pedal 24 promptly follows guide rail 212 horizontal motion this moment, push pedal 24 promotes the express delivery motion simultaneously, the express delivery is promptly by push pedal 24 box 21 and falls to ground, the express delivery is accomplished promptly, user switches on motor 22 and electric putter 26's power once more at last, and make dodge 25 and push pedal 24 reset, and control unmanned aerial vehicle 1 to get back to the express delivery point can.
The foregoing shows and describes the general principles, essential features, and advantages of the invention. It should be understood by those skilled in the art that the present invention is not limited by the above embodiments, and the description in the above embodiments and the description is only preferred examples of the present invention, and is not intended to limit the present invention, and that the present invention can have various changes and modifications without departing from the spirit and scope of the present invention, and these changes and modifications all fall into the scope of the claimed invention. The scope of the invention is defined by the appended claims and equivalents thereof.
Claims (7)
1. The utility model provides an unmanned aerial vehicle delivers express delivery device of registering one's residence, includes unmanned aerial vehicle (1) and delivery department (2), its characterized in that:
the unmanned aerial vehicle (1) is used for carrying the delivery part (2) to deliver the express to the home, and two connecting frames (11) used for connecting the delivery part (2) are arranged at the bottom end of the unmanned aerial vehicle;
the delivery part (2) is used for loading express, is arranged below the unmanned aerial vehicle (1), and consists of a box body (21) and a movable door (25) with the front side of the box body (21) capable of being turned over; the front end face of the box body (21) is provided with a storage cavity for loading express, a push plate (24) for pushing the express out of the storage cavity is installed in the storage cavity of the box body (21), a screw rod (23) is connected to the position, close to the upper portion, of the push plate (24) in a threaded mode, and a motor (22) for driving the screw rod (23) to rotate is installed on the rear side wall of the box body (21); the movable door (25) is used for blocking express in a storage cavity of the box body (21), and electric push rods (26) used for driving the movable door (25) to turn upwards are installed on two side walls of the box body (21).
2. The unmanned aerial vehicle delivers express delivery to the home device of claim 1, characterized in that: support plates (214) are mounted on two side walls of the box body (21), and the rear end of the electric push rod (26) is hinged with the support plates (214); the two side walls of the movable door (25) are respectively provided with a pin shaft (251), and the tail end of a piston rod of the electric push rod (26) is hinged with the pin shaft (251).
3. The unmanned aerial vehicle delivers express delivery to home device of claim 1, characterized in that: all install on the both sides inner wall in the storing chamber of box (21) and be used for carrying out guide rail (212) that lead to the horizontal motion of push pedal (24), all offer on the both sides wall of push pedal (24) with guide rail (212) sliding connection's spout.
4. The unmanned aerial vehicle delivers express delivery to the home device of claim 1, characterized in that: two lug plates (213) are arranged at the edge of the front side of the top surface of the box body (21), two convex blocks (252) are arranged above the rear side plate of the movable door (25), and a connecting shaft (253) rotationally connected with the lug plates (213) is fixed between the two convex blocks (252).
5. The unmanned aerial vehicle delivers express delivery to the home device of claim 1, characterized in that: the bearing plate (211) is installed at the top surface of the storage cavity of the box body (21), and the front end of the screw rod (23) is rotatably installed on the bearing plate (211).
6. The unmanned aerial vehicle delivers express delivery to the home device of claim 1, characterized in that: the connecting frame (11) is fixedly connected with the box body (21) and the unmanned aerial vehicle (1) through bolts respectively.
7. The unmanned aerial vehicle delivers express delivery to the home device of claim 1, characterized in that: the size of the movable door (25) is matched with the opening size of the storage cavity of the box body (21).
