Environment-friendly dust removal device with knocking and shaking structure

Technical Field

The utility model relates to an environmental protection dust collector technical field specifically is an environmental protection dust collector with strike and tremble grey structure.

Background

In recent years, with rapid economic development, metallurgical steelmaking electric furnaces and raw coal-fired boilers have increased, and the atmospheric pollutants discharged from these furnaces pose a great hazard to the surrounding environment, so that a technology for removing particulates from a dusty gas to reduce the emission thereof to the atmosphere has become important.

Environmental protection dust collector uses extensively in removing dust, and current environmental protection dust collector is at the in-process of work, and most adopt electrostatic precipitator's mode to get rid of the particulate matter among the dirty gas, because electrostatic precipitator's mode can make the dirt grain adhere to on integrated plate electrode for the dirt grain is not convenient for clear up and collects, and current dust collector's dust-collecting box need artifically empty at the in-process that uses, and work load is great and be unfavorable for staff's health.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide an environmental protection dust collector with strike and tremble grey structure, adopt this device to work, thereby the in-process at work of current environmental protection dust collector in the above-mentioned background has been solved, most adopt electrostatic precipitator's mode to get rid of the particulate matter among the dirty gas, because electrostatic precipitator's mode can make the dirt grain adhere to on the integrated electrode board, make the dirt grain be not convenient for clear up and collect, and current dust collector's dust collection box need artifically empty at the in-process that uses, the great and healthy problem that is unfavorable for the staff of work load.

In order to achieve the above purpose, the utility model provides a technical scheme does: the utility model provides an environmental protection dust collector with strike and tremble grey structure, includes the box and sets up the vibration mechanism on the box, still includes the collection mechanism of setting in the box below, vibration mechanism is including setting up the output subassembly at the box rear, and the one end of output subassembly is provided with strikes the subassembly, and strikes the subassembly and be provided with two sets ofly, collects the mechanism and is provided with the collection subassembly including setting up the removal subassembly in the box below in the removal subassembly.

Preferably, the front of the box body is provided with a fan, the bottom of the box body is fixedly connected with an ash bucket, the bottom of the ash bucket is provided with a dust falling port, the bottom of the ash bucket is fixedly connected with a support, the support is provided with four groups, the front of the ash bucket is provided with a detection door, and the rear of the ash bucket is provided with a dust and air inlet.

Preferably, fixedly connected with dead lever between the both sides inner wall of box, and the dead lever is provided with two sets ofly, two sets of the dead lever on fixedly connected with corona polar plate, the equal fixedly connected with collection board of integrated electricity in inside both sides of box, and the collection board of integrated electricity is located corona polar plate's both sides.

Preferably, the outer wall of the rear of the box body is provided with two sets of sliding grooves, the two sides of the box body are provided with through grooves, and the through grooves are provided with two sets.

Preferably, the output assembly comprises a sliding block which is connected in the sliding groove in a sliding manner, and a toothed ring is fixedly connected to the sliding block.

Preferably, the rear outer wall of box passes through backup pad fixedly connected with first motor, the output fixedly connected with sector gear of first motor, and sector gear is connected with the ring gear meshing.

Preferably, the equal fixedly connected with connecting rod in both sides of sector gear strikes the subassembly and includes the spring of fixed connection in connecting rod one end, is connected with on the spring and strikes the pole, and one side fixedly connected with connecting plate of integrated electricity collection board, and the connecting plate runs through logical groove and corresponding with knocking the pole.

Preferably, the collecting assembly comprises a dust collecting box movably arranged at the bottom of the dust hopper, and a dust outlet is arranged on the dust collecting box and corresponds to the dust falling port.

Preferably, the moving assembly comprises a second motor fixedly connected to one side of the dust collection box, a threaded rod is rotatably connected to the dust collection box, and one end of the threaded rod penetrates through one side of the dust collection box and is fixedly connected with the second motor.

Preferably, the dust collecting box is internally and slidably connected with two groups of sliding plates, the threaded rod is in threaded connection with a movable plate, the sliding plates are fixedly connected with one side of the movable plate, the two ends of the movable plate are fixedly connected with transverse brushes, and the two sides of the movable plate are fixedly connected with side brushes.

Compared with the prior art, the beneficial effects of the utility model are as follows:

1. the utility model discloses an environmental protection dust collector with strike and tremble grey structure, lead to positive electricity through integrated electricity collection board, the corona polar plate leads to negative electricity, dirty gas is when passing through between integrated electricity collection board and the corona polar plate, by the electrical separation, dust particle and anion combine to take on the negative electricity on the back adsorbed integrated electricity collection board, start first motor, make first motor drive sector gear and rotate, it reciprocates to drive the ring gear in the spout, make the knock rod that the connecting rod both sides are connected carry out continuous the striking to the connecting plate, and because connecting plate and integrated electricity collection board fixed connection, make the last adsorbed dust particle of integrated electricity collection board fall into in the ash bucket, make the dust particle that adheres to on the integrated electrode board fall into the ash bucket through beating the vibration, be convenient for clear up the collection to dust particle.

2. The utility model discloses an environmental protection dust collector with strike and tremble grey structure, through the dust mouth that falls, make the dirt grain fall into in the dust collecting box, start the second motor, make the second motor drive the threaded rod and rotate, and because slide sliding connection is in the dust collecting box, movable plate threaded connection is on the threaded rod, make the movable plate round trip movement in the dust collecting box, the setting of side brush simultaneously, be convenient for clear up the adnexed dust in both sides of dust collecting box, and because the setting of cross brush, make and promote the dust of piling up on the inner wall of dust collecting box bottom, make and discharge from the dust mouth, avoided the manual work to empty, it is more convenient.

Drawings

FIG. 1 is an overall structure diagram of the present invention;

FIG. 2 is a structural diagram of a vibration mechanism according to the present invention;

FIG. 3 is a view showing the internal structure of the case body of the present invention;

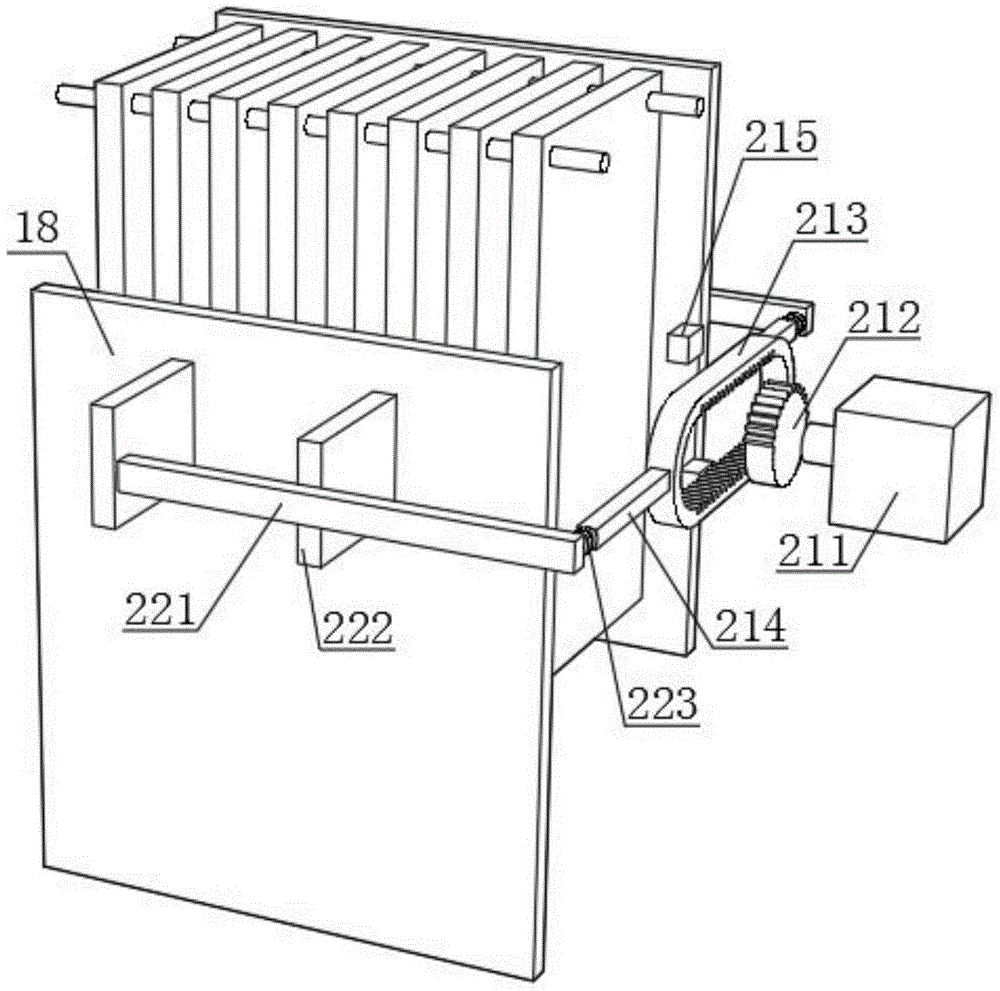

FIG. 4 is a structural diagram of the output assembly and the knocking assembly of the present invention;

FIG. 5 is a structural view of the collecting mechanism of the present invention;

fig. 6 is a structural view of the moving assembly and the collecting assembly of the present invention.

In the figure: 1. a box body; 11. a fan; 12. an ash hopper; 121. a dust falling port; 13. detecting a door; 14. a support; 15. a dust gas inlet; 16. a chute; 17. a through groove; 18. an integrated current collector board; 19. a corona polar plate; 191. a fixing rod; 2. a vibration mechanism; 21. an output component; 211. a first motor; 212. a sector gear; 213. a toothed ring; 214. a connecting rod; 215. a slider; 22. a knocking component; 221. a tapping rod; 222. a connecting plate; 223. a spring; 3. a collection mechanism; 31. a moving assembly; 311. a threaded rod; 312. A second motor; 313. a slide plate; 314. moving the plate; 315. transverse brushing; 316. side brushing; 32. a collection assembly; 321. a dust collecting box; 322. and a dust outlet.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

For a further understanding of the present invention, reference will be made to the following detailed description taken in conjunction with the accompanying drawings.

Combine fig. 1, fig. 2 and fig. 5, an environmental protection dust collector with strike and tremble grey structure, including box 1 and the vibration mechanism 2 of setting on box 1, still including setting up collection mechanism 3 in the box 1 below, vibration mechanism 2 is including setting up the output module 21 in box 1 rear, the one end of output module 21 is provided with strikes the subassembly 22, and strikes the subassembly 22 and be provided with two sets ofly, collect mechanism 3 including setting up the removal subassembly 31 in the box 1 below, be provided with collection subassembly 32 in the removal subassembly 31.

The present invention will be further described with reference to the following examples.

Example 1

Referring to fig. 2, 3 and 4, a fan 11 is disposed in front of a box 1, a dust hopper 12 is fixedly connected to the bottom of the box 1, a dust drop port 121 is disposed in the bottom of the dust hopper 12, a bracket 14 is fixedly connected to the bottom of the dust hopper 12, and the bracket 14 is provided with four sets, and the bracket 14 is located at front, rear, left and right corners of the dust hopper 12, a detection door 13 is disposed in front of the dust hopper 12, a dust air inlet 15 is disposed behind the dust hopper 12, fixing rods 191 are fixedly connected between inner walls of two sides of the box 1, and the fixing rods 191 are provided with two sets, corona plates 19 are fixedly connected to the two sets of fixing rods 191, and the corona plates 19 are negatively charged, integrated plates 18 are fixedly connected to two sides of the inside of the box 1, and the integrated plates 18 are positively charged, and the integrated plates 18 are located at two sides of the corona plates 19, a sliding groove 16 is disposed on an outer wall of the rear of the box 1, and the sliding groove 16 is provided with two sets of sliding grooves 17, and the sliding groove 17 is provided with two sets of the sliding grooves 17, the sliding block 215 is slidably connected to the sliding block 215 in the sliding connection to the sliding block 215, a toothed ring 213 is fixedly connected to the sliding block 213, and the inner side of the toothed ring 213 is connected to the sliding groove 212, and the sliding block 211, and the sliding groove 212 is connected to the sliding block 211, and the sliding groove 214 of the sliding block 211, and the sliding groove 214, and the sliding block 212, and the sliding plate 212 is connected to the sliding block 211, and the sliding plate 214, and the sliding block 211, and the sliding block is connected to the sliding block 211, and the sliding plate 214 is connected to the sliding block 211, and the sliding block 211.

Example 2

Referring to fig. 5 and 6, the collecting assembly 32 includes a dust collecting box 321 movably disposed at the bottom of the dust hopper 12, a dust outlet 322 is disposed on the dust collecting box 321, and the dust outlet 322 corresponds to the dust falling outlet 121, the moving assembly 31 includes a second motor 312 fixedly connected to one side of the dust collecting box 321, a threaded rod 311 is rotatably connected to the dust collecting box 321, one end of the threaded rod 311 penetrates one side of the dust collecting box 321 and is fixedly connected to the second motor 312, sliding plates 313 are slidably connected to the dust collecting box 321, and two sets of sliding plates 313 are disposed on the sliding plate 313, a moving plate 314 is screwed to the threaded rod 311, the sliding plate 313 is fixedly connected to one side of the moving plate 314, lateral brushes 315 are fixedly connected to two ends of the moving plate 314, the lateral brushes 315 are attached to the inner walls of the top of the dust collecting box 321, lateral brushes 316 are fixedly connected to two sides of the moving plate 314, and the lateral brushes 316 are attached to the inner walls of the two sides of the dust collecting box 321.

In summary, the following steps: the utility model discloses an environmental protection dust collector with strike and tremble grey structure, lead to positive electricity through integrated electricity collection board 18, corona polar plate 19 leads to negative electricity, dirty gas is when passing through between integrated electricity collection board 18 and the corona polar plate 19, by the electricity separation, dust particle and anion combine to take on the negative electricity on the back adsorbed on integrated electricity collection board 18, start first motor 211, make first motor 211 drive sector gear 212 and rotate, it reciprocates to slide to drive ring gear 213 in spout 16, make the knock rod 221 that connecting rod 214 both sides are connected carry out continuous knocking to connecting plate 222, and because connecting plate 222 and integrated electricity collection board 18 fixed connection, make adsorbed dust particle fall into in dust hopper 12 on the integrated electricity collection board 18, make the dust particle that attaches to on integrated electrode board fall into dust hopper 12 through knocking vibration dust hopper 12, be convenient for clear up the collection to the dust particle, through dust falling mouth 121, make in the dust particle box 321, start second motor 312, make second motor 312 drive threaded rod 311 and rotate, and because slide 313 sliding connection is at the movable plate in 321, be convenient for the dust brush passes through the dust outlet 321 sets up and the dust outlet 321 sets up the side dust outlet and the dust outlet 321 sets up convenient for dust collection box 321, make the dust collection box 321 sets up the side dust outlet 321 that moves, make dust collection box 321 and push out dust collection box 321 and dump.

It should be noted that, in this document, relational terms such as first and second, and the like are used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides an environmental protection dust collector with strike and tremble grey structure, includes box (1) and sets up vibration mechanism (2) on box (1), still including setting up collection mechanism (3) in box (1) below, its characterized in that: the vibrating mechanism (2) comprises an output assembly (21) arranged behind the box body (1), a knocking assembly (22) is arranged at one end of the output assembly (21), two groups of knocking assemblies (22) are arranged, the collecting mechanism (3) comprises a moving assembly (31) arranged below the box body (1), and a collecting assembly (32) is arranged in the moving assembly (31).

2. The environment-friendly dust removing device with the knocking and ash shaking structure as claimed in claim 1, wherein: the dust collection box is characterized in that a fan (11) is arranged in front of the box body (1), a dust hopper (12) is fixedly connected to the bottom of the box body (1), a dust falling port (121) is formed in the bottom of the dust hopper (12), a support (14) is fixedly connected to the bottom of the dust hopper (12), four groups of supports (14) are arranged, a detection door (13) is arranged in front of the dust hopper (12), and a dust and air inlet (15) is formed in the rear of the dust hopper (12).

3. The environment-friendly dust removing device with the knocking and ash shaking structure as claimed in claim 1, wherein: fixedly connected with dead lever (191) between the both sides inner wall of box (1), and dead lever (191) are provided with two sets ofly, two sets of dead lever (191) on fixedly connected with corona polar plate (19), the equal fixedly connected with integrated electricity collecting plate (18) in inside both sides of box (1), and integrated electricity collecting plate (18) are located the both sides of corona polar plate (19).

4. The environment-friendly dust removing device with the knocking and ash shaking structure as claimed in claim 3, wherein: the rear outer wall of the box body (1) is provided with two sets of sliding grooves (16), the two sides of the box body (1) are provided with through grooves (17), and the through grooves (17) are provided with two sets.

5. The environment-friendly dust removing device with the knocking and ash shaking structure as claimed in claim 4, wherein: the output assembly (21) comprises a sliding block (215) which is connected in the sliding groove (16) in a sliding mode, and a gear ring (213) is fixedly connected to the sliding block (215).

6. The environment-friendly dust removing device with the knocking and ash shaking structure as claimed in claim 5, wherein: the rear outer wall of the box body (1) is fixedly connected with a first motor (211) through a supporting plate, the output end of the first motor (211) is fixedly connected with a sector gear (212), and the sector gear (212) is meshed with a gear ring (213).

7. The environment-friendly dust removing device with the knocking and ash shaking structure as claimed in claim 6, wherein: the equal fixedly connected with connecting rod (214) in both sides of sector gear (212), strike subassembly (22) including spring (223) of fixed connection in connecting rod (214) one end, be connected with on spring (223) and strike pole (221), one side fixedly connected with connecting plate (222) of integrated electricity collection board (18), and connecting plate (222) run through logical groove (17) and with strike pole (221) corresponding.

8. The environment-friendly dust removing device with the knocking and ash shaking structure as claimed in claim 2, wherein: the collection assembly (32) comprises a dust collection box (321) movably arranged at the bottom of the dust hopper (12), a dust outlet (322) is arranged on the dust collection box (321), and the dust outlet (322) corresponds to the dust falling port (121).

9. The environment-friendly dust removing device with the knocking and ash shaking structure as claimed in claim 8, wherein: the moving component (31) comprises a second motor (312) fixedly connected to one side of the dust collection box (321), a threaded rod (311) is rotatably connected in the dust collection box (321), and one end of the threaded rod (311) penetrates through one side of the dust collection box (321) and is fixedly connected with the second motor (312).

10. The environment-friendly dust removing device with the knocking and ash shaking structure as claimed in claim 9, wherein: the dust collection box (321) is connected with sliding plates (313) in a sliding mode, the sliding plates (313) are arranged in two groups, the threaded rod (311) is connected with the moving plate (314) in a threaded mode, the sliding plates (313) are fixedly connected with one side of the moving plate (314), the two ends of the moving plate (314) are fixedly connected with the transverse brushes (315), and the two sides of the moving plate (314) are fixedly connected with the side brushes (316).
