Abstract
The utility model relates to the technical field of machining, a milling machine for lifting platform is disclosed, the on-line screen storage device comprises a base, the inside spout that is provided with in both sides around the base, two the equal threaded connection in inner wall left and right sides of spout has two-way threaded rod, two the equal threaded connection in outer wall both ends of two-way threaded rod has the slider, the top fixedly connected with connecting block one of slider, the middle-end fixedly connected with pivot of connecting block one, the outside of pivot is rotated and is connected with the movable rod, the top of movable rod is rotated and is connected with connecting block two, the top fixedly connected with backup pad of connecting block two, the top fixedly connected with supporting shoe of backup pad. The utility model discloses in, thereby can produce a large amount of cuttings and obtain collecting through mutually supporting of fixed case, square groove, motor and screw post, carousel and connecing the material string bag when making the processing work piece down to realized milling through the pivoted mode.
Description
Technical Field
The utility model relates to the technical field of machining, especially, relate to a knee milling machine.
Background
The milling machine with lifting table is a universal milling machine with wide application, and the milling machine with lifting table can be used for processing various parts by using end milling cutter, cylinder milling cutter, saw blade milling cutter, disk milling cutter, end milling cutter and various formed milling cutters, and can be used for processing plane, groove and various curved surfaces and gears.
The existing milling machine can produce a large amount of cuttings when processing a workpiece, the normal work of the machine can be influenced by the large amount of cuttings, the time consumption is needed during cleaning, the milling can not be carried out in a rotating mode, and the whole device can not be lifted to facilitate the use of workers, so that the milling machine with the lifting table is provided aiming at the defects.
Disclosure of Invention
The utility model aims at solving the defects existing in the prior art and providing a milling machine with a lifting platform.
In order to achieve the above purpose, the utility model adopts the following technical scheme: the utility model provides an elevating platform milling machine, includes the base, inside spout, two of being provided with in both sides around the base the equal threaded connection in inner wall left and right sides of spout has two-way threaded rod, two the equal threaded connection in outer wall both ends of two-way threaded rod has the slider, the top fixedly connected with connecting block one of slider, the middle-end fixedly connected with pivot of connecting block one, the outside of pivot is rotated and is connected with the movable rod, the top of movable rod is rotated and is connected with connecting block two, the top fixedly connected with backup pad of connecting block two, the top fixedly connected with supporting shoe of backup pad, the front end middle part fixedly connected with containing box of supporting shoe, the middle part of containing box is provided with square groove, the bottom fixedly connected with motor in square groove, the drive end fixedly connected with screw thread post of motor, the top fixedly connected with carousel of screw thread post.
As a further description of the above technical solution:
the top fixedly connected with support column of supporting shoe, the top fixedly connected with support of support column, the middle-end fixedly connected with bracing piece of support, the outside fixedly connected with pneumatic cylinder of bracing piece, the drive end fixedly connected with cutter head of pneumatic cylinder.
As a further description of the above technical solution:
the top fixedly connected with of fixed case connects the material string bag, connect the outside of material string bag's middle part through-hole fixed connection at the screw thread post.
As a further description of the above technical solution:
the rear end of the material receiving net bag is fixedly connected to the front end of the supporting block.
As a further description of the above technical solution:
both sides all are provided with the spacing groove around the top of base.
As a further description of the above technical solution:
the other end of the bidirectional threaded rod is fixedly connected with a handle.
As a further description of the above technical solution:
the bottom sliding connection of slider is in the bottom of spout.
The utility model discloses following beneficial effect has:
1. the utility model discloses in, at first through mutually supporting of base, spout, two-way threaded rod, slider and movable rod and fixed axle under to make the backup pad can go up and down, thereby realized that the integrated device can go up and down, also made things convenient for the better use of staff simultaneously.
2. The utility model discloses in, thereby can produce a large amount of cuttings and obtain collecting through mutually supporting of fixed case, square groove, motor and screw post, carousel and connecing the material string bag when making the processing work piece down to realized milling through the pivoted mode.
Drawings

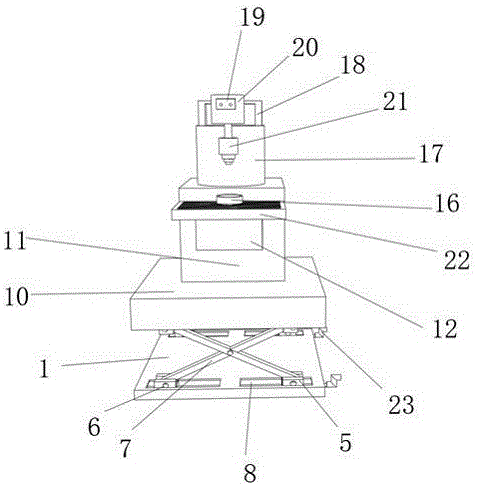

Fig. 1 is a perspective elevation view of a knee milling machine according to the present invention;
fig. 2 is a schematic view of a movable rod structure of a knee milling machine according to the present invention;
fig. 3 is a schematic view of an internal structure of a fixed box of a knee milling machine according to the present invention;
fig. 4 is the utility model provides a receiving net bag structure schematic diagram of a knee-type milling machine.
Illustration of the drawings:
1. a base; 2. a chute; 3. a bidirectional threaded rod; 4. a slider; 5. a first connecting block; 6. a rotating shaft; 7. a movable rod; 8. a limiting groove; 9. a second connecting block; 10. a support plate; 11. a support block; 12. a fixed box; 13. a square groove; 14. a motor; 15. a threaded post; 16. a turntable; 17. a support pillar; 18. a support; 19. a support bar; 20. a hydraulic cylinder; 21. milling the head; 22. receiving a net bag; 23. a handle.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts all belong to the protection scope of the present invention.
Referring to fig. 1-4, the present invention provides an embodiment: a milling machine with a lifting table comprises a base 1, sliding grooves 2 are arranged in the front side and the rear side of the base 1, the sliding grooves 2 are used for stabilizing a bidirectional threaded rod 3 and preventing the bidirectional threaded rod 3 from shaking when rotating, the left side and the right side of the inner wall of each sliding groove 2 are in threaded connection with the bidirectional threaded rod 3, the two-way threaded rods 3 drive the two-end sliding blocks 4 to move mutually, the two ends of the outer wall of the two-way threaded rods 3 are both connected with the sliding blocks 4 in a threaded manner, the first connecting block 5 is driven by the slide block 4, the first connecting block 5 is fixedly connected at the top end of the slide block 4, the first connecting block 5 drives the rotating shaft 6, the rotating shaft 6 is fixedly connected at the middle end of the first connecting block 5, the two movable rods 7 are driven to move mutually by the rotating shaft 6, thereby lifting the supporting plate 10, the outer part of the rotating shaft 6 is rotatably connected with the movable rods 7, the crossed part of the two movable rods 7 is rotatably connected, the top end of the movable rod 7 is rotatably connected with the second connecting block 9, the middle part of the second connecting block 9 is provided with a fixed shaft, the top end of the second connecting block 9 is fixedly connected with the supporting plate 10, thereby the supporting plate 10 is lifted, the supporting block 11 is fixedly connected with the top end of the supporting plate 10, the supporting block 11 is used for fixing the supporting column 17, the fixing box 12 is fixedly connected with the middle part of the front end of the supporting block 11, the fixing box 12 is used for supporting the motor 14, the middle part of the fixing box 12 is provided with the square groove 13, the square groove 13 is used for placing the motor 14, the bottom end of the square groove 13 is fixedly connected with the motor 14, the motor 14 is started, the driving end of the motor 14 drives the threaded column 15 to rotate, the driving end of the motor 14 is fixedly connected with the threaded column 15, the threaded column 15 rotates along with the east turntable 16, therefore, the parts can be milled in a rotating mode, the top end of the threaded column 15 is fixedly connected with the rotary table 16, and the parts can be milled in a rotating mode through the rotation of the rotary table 16.
The top fixedly connected with support column 17 of supporting shoe 11, the effect of support column 17 is the fixed milling device, the top fixedly connected with support 18 of support column 17, the effect of support 18 is support pneumatic cylinder 20, the middle-end fixedly connected with bracing piece 19 of support 18, this pneumatic cylinder 20 is connected to bracing piece 19, the outside fixedly connected with pneumatic cylinder 20 of bracing piece 19, start pneumatic cylinder 20, drive the mill head 21 through the drive end of pneumatic cylinder 20 and descend, just can mill and cut, the drive end fixedly connected with mill head 21 of pneumatic cylinder 20, the effect of mill head 21 mills the part, the top fixedly connected with of fixed box 12 connects material string bag 22, can produce a large amount of cuttings when processing the work piece and obtain collecting through connecing material string bag 22, the middle part through-hole fixed connection that connects material string bag 22 connects in the outside of screw post 15, drive carousel 16 through screw post 15 and rotate, thereby can mill the part through the pivoted mode, the rear end fixed connection that connects material string bag 22 is in the front end of supporting shoe 11, the effect of supporting shoe 11 is fixed support column 17, both sides all are provided with spacing groove 8 around the top of base 1, the other end fixedly connected with threaded rod 23 of two-way, the handle is connected with the handle 23 of slider 4, the bottom end sliding chute 2 that the slider 4 slides when can not rock when the two-way spout 2 that can be firm two-way to connect material spout 2.
The working principle is as follows: firstly, a part is placed in the turntable 16, the motor 14 is started, the driving end of the motor 14 drives the threaded post 15 to rotate, the turntable 16 is driven to rotate through the threaded post 15, so that the part can be milled in a rotating mode, a large amount of chips generated during workpiece processing can be collected through the material receiving net bag 22, the handle 23 drives the bidirectional threaded rod 3 to rotate through rotating the handle 23, the two-end sliders 4 are driven to move mutually through the bidirectional threaded rod 3, the first connecting block 5 is driven through the sliders 4, the first connecting block 5 drives the rotating shaft 6, and the two movable rods 7 are driven to move mutually through the rotating shaft 6, so that the supporting plate 10 is lifted, the integral device can be lifted, meanwhile, the whole device is convenient for a worker to use better, the hydraulic cylinder 20 is started, the milling head 21 is driven to descend through the driving end of the hydraulic cylinder 20, and milling can be performed.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, those skilled in the art can still modify the technical solutions described in the foregoing embodiments or make equivalent substitutions on some technical features, and any modifications, equivalent substitutions, improvements, etc. made within the spirit and principles of the present invention should be included in the scope of the present invention.
Claims (7)
1. The utility model provides a knee milling machine, includes base (1), its characterized in that: the utility model discloses a motor, including base (1), both sides inside be provided with spout (2), two the equal threaded connection in inner wall left and right sides of spout (2) has two-way threaded rod (3), two the equal threaded connection in outer wall both ends of two-way threaded rod (3) has slider (4), the top fixedly connected with connecting block (5) of slider (4), the middle-end fixedly connected with pivot (6) of connecting block (5), the outside of pivot (6) is rotated and is connected with movable rod (7), the top of movable rod (7) is rotated and is connected with connecting block two (9), the top fixedly connected with backup pad (10) of connecting block two (9), the top fixedly connected with supporting shoe (11) of backup pad (10), the front end middle part fixedly connected with headstock (12) of supporting shoe (11), the middle part of headstock (12) is provided with square groove (13), the bottom fixedly connected with motor (14) of square groove (13), the drive end fixedly connected with screw post (15) of motor (14), the top fixedly connected with carousel (16) of screw post (15).
2. A knee milling machine according to claim 1, characterized in that: the top fixedly connected with support column (17) of supporting shoe (11), the top fixedly connected with support (18) of support column (17), middle-end fixedly connected with bracing piece (19) of support (18), outside fixedly connected with pneumatic cylinder (20) of bracing piece (19), the drive end fixedly connected with cutter head (21) of pneumatic cylinder (20).
3. A knee milling machine according to claim 1, wherein: the top fixedly connected with of fixed case (12) connects material string bag (22), connect the outside of material string bag's (22) middle part through-hole fixed connection at screw thread post (15).
4. A knee milling machine according to claim 3, characterized in that: the rear end of the material receiving net bag (22) is fixedly connected with the front end of the supporting block (11).
5. A knee milling machine according to claim 1, wherein: both sides all are provided with spacing groove (8) around the top of base (1).
6. A knee milling machine according to claim 1, wherein: the other end of the bidirectional threaded rod (3) is fixedly connected with a handle (23).
7. A knee milling machine according to claim 1, wherein: the bottom sliding connection of slider (4) is in the bottom of spout (2).
