Abstract
The utility model relates to the technical field of die-cutting machines, in particular to a die-cutting adjusting component of a printing die-cutting machine, which comprises a fixed box, wherein an inner cavity of the fixed box is provided with an adjusting component, the adjusting component extends to the outside of the fixed box and can be slidably adjusted and sleeved on the outside of the fixed box, the left side and the right side of the outer wall of the fixed box are respectively provided with a connecting rod, and the left side and the right side of the outer wall of the adjusting component are respectively detachably sleeved with a die-cutting knife; the adjusting part comprises a sliding component, a second slide way, a connecting rod, a movable frame and a fixed component, the sliding component is arranged in an inner cavity of the fixed box, the second slide way is respectively arranged on the upper side and the lower side of the fixed box, and the left side and the right side of the sliding component are respectively provided with a pair of connecting rods. This printing cross cutting machine cross cutting adjusting part has solved die-cutting rule adjusting device ubiquitous, need take off the bolt of fixed blade and just can adjust, installs back after having transferred again, troublesome poeration's problem.
Description
Technical Field
The utility model relates to a cross cutting machine technical field specifically is a printing cross cutting machine cross cutting adjusting part.
Background
The die-cutting rule is an important component on a die-cutting machine, is commonly used in the field of printing and processing, and is used for rolling and cutting a printed matter or other ring-packed blanks into a required shape under the action of pressure, and is generally provided with a die-cutting rule adjusting device according to the requirements of die-cutting products.
There are multiple die-cutting rule adjusting device in the existing market, but these die-cutting rule adjusting device ubiquitous need take off the bolt of fixed blade and just can adjust, and install back after adjusting, troublesome poeration provides a printing die-cutting machine cross cutting adjusting component to this problem.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a printing die-cutting machine cross cutting adjusting part to solve the problem that proposes among the above-mentioned background art. In order to achieve the above object, the utility model provides a following technical scheme: a die cutting adjusting assembly of a printing die cutting machine comprises a fixed box, wherein an inner cavity of the fixed box is provided with an adjusting assembly, the adjusting assembly extends to the outside of the fixed box and is slidably sleeved on the outside of the fixed box in a sliding manner, fixing rods are respectively arranged on the left side and the right side of the outer wall of the fixed box, and die cutting knives are detachably sleeved on the left side and the right side of the outer wall of the adjusting assembly respectively;
the adjusting part is including slip subassembly, second slide, connecting rod, removal frame and fixed subassembly, the slip subassembly sets up two in the inner chamber of fixed case the upper and lower both sides at fixed case are seted up respectively to the second slide, the left and right sides of slip subassembly is provided with a pair of connecting rod, two remove the frame and cup joint in the outer wall left and right sides of fixed case, two pairs respectively slidable the inner chamber that the connecting rod runs through the second slide is connected with two removal frames respectively, four fixed subassembly sets up respectively at two upper and lower both ends that remove the frame, two die-cutting rule detachable respectively cup joints the outer wall at two carriage release levers.
Preferably, the sliding assembly is including motor, lead screw and slider, the motor sets up the inner chamber right side at fixed case, the one end of lead screw is passed through the bearing and is rotated the inner chamber left side of connecting at fixed case, the other end of lead screw and the output fixed connection of motor, two the slider spiro union is respectively in the outer wall left and right sides of lead screw, two be provided with a pair of connecting rod on the slider respectively.
Preferably, the threads on the left side and the right side of the outer wall of the screw rod are oppositely arranged.
Preferably, each fixed subassembly all includes fixed chamber, baffle, fixed block, first slide, carriage release lever, handle, spacing subassembly and spring, the outer wall at the carriage release frame is seted up in fixed chamber, the baffle sets up the outer wall at fixed frame, the inner chamber at fixed chamber is pegged graft to the fixed block slidable, first slide is seted up in the one side that the baffle was kept away from to fixed intracavity chamber, carriage release lever slidable inlays the inner chamber at first slide in, the handle sets up the one end of keeping away from fixed chamber at the carriage release lever, the one side that the handle was kept away from to the carriage release lever is connected with the outer wall of fixed block, and is a plurality of the one end of spacing subassembly all sets up the inner chamber at fixed chamber, and is a plurality of the other end of spacing subassembly all is connected with the outer wall of fixed block, and is a plurality of the spring cup joints the outer wall at a plurality of spacing subassemblies respectively.
Preferably, the outer wall of the handle is provided with an anti-slip edge.
Preferably, each limiting component comprises a telescopic rod, one end of each telescopic rod is connected with the inner cavity of the fixed cavity, the other end of each telescopic rod is connected with the outer wall of the fixed block, and the spring is sleeved on the outer wall of each telescopic rod.
Preferably, the distance between the baffle and the fixed block is the same as the thickness of the die-cutting rule.
Compared with the prior art, the beneficial effects of the utility model are that:
1. through the arrangement of the sliding assembly, the movable frame can drive the two die-cutting cutters to slide relatively, so that the distance between the two die-cutting cutters can be adjusted, the die-cutting cutters can conveniently die-cut printing product models with different sizes, and the flexibility of the die-cutting machine in use is improved;
2. through the setting of fixed subassembly, can realize the fixed of die-cutting rule, make the stable outer wall of fixing at the removal frame of die-cutting rule, make things convenient for the quick assembly disassembly change of die-cutting rule, easy operation, convenient to use practices thrift the change time of die-cutting rule.
Drawings

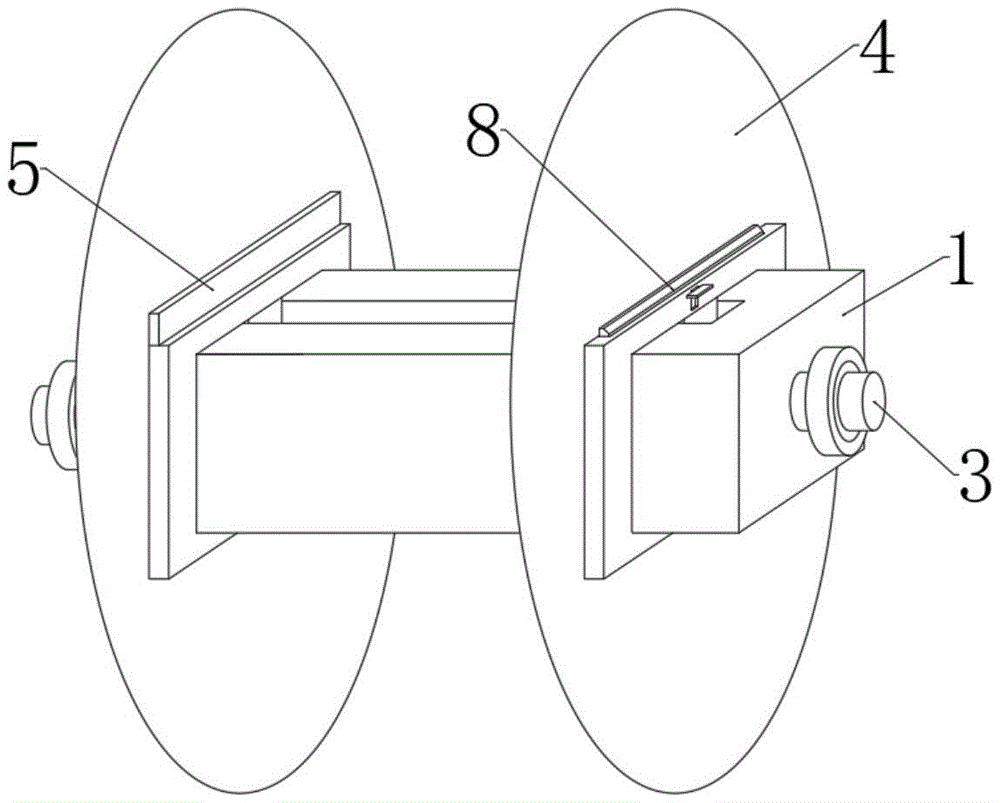

Fig. 1 is a schematic perspective view of the present invention;
fig. 2 is a schematic perspective view of the movable frame of the present invention;
FIG. 3 is a schematic structural view of the die-cutting rule of the present invention;
FIG. 4 is a front sectional view of the fixing box of the present invention;
fig. 5 is an enlarged view of the point a of fig. 4 according to the present invention.
In the figure: 1. a stationary box; 2. moving the frame; 3. fixing the rod; 4. a die-cutting rule; 5. a baffle plate; 6. a fixed cavity; 7. a first slideway; 8. a fixed block; 9. a travel bar; 10. a handle; 11. a telescopic rod; 12. a spring; 13. a motor; 14. a screw rod; 15. a second slideway; 16. a slider; 17. a connecting rod.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by the staff of ordinary skill in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1 to 5, the present invention provides a technical solution: a die cutting adjusting component of a printing die cutting machine comprises a fixed box 1, an adjusting component is arranged in an inner cavity of the fixed box 1, a movable frame 2 can drive two die cutters 4 to slide relatively through the arrangement of a sliding component, so that the distance between the two die cutters 4 can be adjusted, the die cutters 4 can conveniently die cut printing product models with different sizes, the flexibility of the die cutting machine in use is improved, the adjusting component extends to the outside of the fixed box 1 and can be slidably sleeved on the outside of the fixed box 1, fixing rods 3 are respectively arranged on the left side and the right side of the outer wall of the fixed box 1, the fixing rods 3 are in the prior art and are used for connecting the device with the die cutting machine, excessive explanation is not needed, and the die cutters 4 are detachably sleeved on the left side and the right side of the outer wall of the adjusting component respectively;
the adjusting component comprises a sliding component, second slide ways 15, connecting rods 17, moving frames 2 and fixing components, the sliding component is arranged in an inner cavity of the fixed box 1, the two second slide ways 15 are respectively arranged at the upper side and the lower side of the fixed box 1, the left side and the right side of the sliding component are respectively provided with a pair of connecting rods 17, the two moving frames 2 are respectively sheathed at the left side and the right side of the outer wall of the fixed box 1 in a sliding way, the two pairs of connecting rods 17 penetrate through the inner cavity of the second slide ways 15 and are respectively connected with the two moving frames 2, the four fixing components are respectively arranged at the upper end and the lower end of the two moving frames 2, two die-cutting rule 4 detachable cup joints the outer wall at two carriage release levers 9 respectively, setting through slip subassembly, can make and remove frame 2 and drive two die-cutting rule 4 and carry out the relative slip, and then realize the regulation to the distance between two die-cutting rule 4, make things convenient for die-cutting rule 4 to not unidimensional printing product model cross cutting, the flexibility of cross cutting machine when using has been improved, setting through fixed subassembly, can realize the fixed of die-cutting rule 4, make the stable outer wall at removal frame 2 of fixing of die-cutting rule 4, make things convenient for the quick assembly disassembly change of die-cutting rule 4, and the operation is simple, high durability and convenient use, practice thrift die-cutting rule 4's change time.
In this embodiment, the sliding assembly is including motor 13, lead screw 14 and slider 16, motor 13 sets up the inner chamber right side at fixed case 1, the inner chamber left side at fixed case 1 is connected through bearing rotation to the one end of lead screw 14, the other end of lead screw 14 and motor 13's output fixed connection, two sliders 16 are spiro union respectively in the outer wall left and right sides of lead screw 14, be provided with a pair of connecting rod 17 on two sliders 16 respectively, can start motor 13, make motor 13 drive lead screw 14 rotate, and then make the relative screw thread in the outer wall left and right sides of lead screw 14 produce relative screw thread revolving force, make two sliders 16 drive two pairs of connecting rod 17 and two and remove frame 2 relative slip, and then make the distance between two die-cutting rule 4 obtain adjusting, make things convenient for the die-cutting rule 4 to the not unidimensional printing product model cross cutting, the flexibility of die-cutting machine when using has been improved.
In this embodiment, the threads on the left and right sides of the outer wall of the screw rod 14 are oppositely disposed, so that the threads on the left and right sides of the outer wall of the screw rod 14 generate opposite threads when the screw rod rotates, and the two sliders 16 can slide relatively at the same time.
In this embodiment, each fixing component includes a fixing cavity 6, a baffle 5, a fixing block 8, a first slideway 7, a moving rod 9, a handle 10, a limiting component and a spring 12, the fixing cavity 6 is arranged on the outer wall of the moving frame 2, the baffle 5 is arranged on the outer wall of the fixing frame, the fixing block 8 is slidably inserted into the inner cavity of the fixing cavity 6, the first slideway 7 is arranged on one side of the inner cavity of the fixing cavity 6, which is far away from the baffle 5, the moving rod 9 is slidably embedded into the inner cavity of the first slideway 7, the handle 10 is arranged on one end of the moving rod 9, which is far away from the fixing cavity 6, one side of the moving rod 9, which is far away from the handle 10, is connected with the outer wall of the fixing block 8, one ends of a plurality of limiting components are arranged in the inner cavity of the fixing cavity 6, the other ends of the plurality of limiting components are connected with the outer wall of the fixing block 8, the plurality of springs 12 are respectively sleeved on the outer walls of the plurality of limiting components, when the die-cutting knife 4 needs to be replaced, the handle 10 is pulled, the handle 10 drives the moving rod 9 and the fixed block 8 to contract to the inner cavity of the fixed cavity 6 along a straight line under the limiting action of the telescopic rod 11, so that the fixed block 8 is not fixed to the die-cutting knife 4, the spring 12 is extruded by the fixed block 8 to generate corresponding elastic deformation, and further has certain elastic force, at the moment, the die-cutting knife 4 is taken down, a new die-cutting knife 4 is sleeved on the outer wall of the moving frame 2, the handle 10 is loosened, the fixed block 8 can restore to the original position along the straight line under the limiting action of the telescopic rod 11 under the elastic force action of the spring 12, the fixing of the die-cutting knife 4 is realized under the interaction between the baffle 5 and the fixed block 8, the die-cutting knife 4 is convenient to replace, and the situation that a plurality of bolts are detached and installed in a short time when the die-cutting knife 4 is replaced is avoided, time is saved.
In this embodiment, the outer wall of the handle 10 is provided with the anti-slip ribs, so that the friction force between the handle 10 and the fingers can be increased, the condition of hand drop can be prevented when the handle 10 is pulled, and the stability of the fixing component in use is improved.
In this embodiment, each spacing subassembly all includes telescopic link 11, and the one end of telescopic link 11 is connected with the inner chamber in fixed chamber 6, and the other end and the 8 outer wall connections of fixed block of telescopic link 11, spring 12 cup joint at the outer wall of telescopic link 11, through the setting of telescopic link 11, can make fixed block 8 slide from top to bottom along the straight line all the time, has improved fixed subassembly's stability.
In this embodiment, the distance between baffle 5 and fixed block 8 is the same with the thickness of cutting rule 4, can make fixed block 8 and baffle 5 fix cutting rule 4 at the outer wall of removal frame 2.
The utility model discloses a use method and advantage: when in use, the working process is as follows:
when the distance between the two die-cutting tools 4 is adjusted, the motor 13 can be started, the motor 13 drives the screw rod 14 to rotate, and further opposite threads on the left side and the right side of the outer wall of the screw rod 14 generate opposite thread rotating forces, the two sliders 16 drive the two pairs of connecting rods 17 and the two movable frames 2 to slide relatively, so that the distance between the two die-cutting tools 4 is adjusted, the die-cutting tools 4 can conveniently die-cut printing product models with different sizes, the flexibility of the die-cutting machine in use is improved, when the die-cutting tools 4 need to be replaced, the handle 10 is pulled, the handle 10 drives the movable rod 9 and the fixed block 8 to shrink to the inner cavity of the fixed cavity 6 along a straight line under the limiting action of the telescopic rod 11, so that the fixed block 8 is released from fixing the die-cutting tools 4, the spring 12 is extruded by the fixed block 8 to generate corresponding elastic deformation, and further has certain elasticity, at the moment, the die-cutting tools 4 are taken down, a new die-cutting tool 4 is sleeved on the outer wall of the movable frame 2, the spring 12 under the elastic action, the limiting action of the fixed block 8, the bolt can be conveniently replaced along the straight line, and a large amount of bolts can be saved when the telescopic rod 4 is replaced, and the telescopic rod is convenient for replacing, and the replacement of the telescopic rod 4.
The foregoing shows and describes the basic principles, essential features, and advantages of the invention. It should be understood by those skilled in the art that the present invention is not limited by the above embodiments, and the description in the above embodiments and the description is only preferred examples of the present invention, and is not intended to limit the present invention, and that there may be various changes and modifications without departing from the spirit and scope of the present invention, and these changes and modifications all fall within the scope of the claimed invention. The scope of the invention is defined by the appended claims and equivalents thereof.
Claims (7)
1. The utility model provides a printing die cutting machine cross cutting adjusting part, includes fixed case (1), its characterized in that: an adjusting component is arranged in an inner cavity of the fixed box (1), the adjusting component extends to the outside of the fixed box (1) and can be slidably sleeved on the outside of the fixed box (1), fixing rods (3) are respectively arranged on the left side and the right side of the outer wall of the fixed box (1), and die cutters (4) are detachably sleeved on the left side and the right side of the outer wall of the adjusting component respectively;
the adjusting part is including slip subassembly, second slide (15), connecting rod (17), removal frame (2) and fixed subassembly, the slip subassembly sets up in the inner chamber of fixed case (1), two the upper and lower both sides at fixed case (1) are seted up respectively in second slide (15), the left and right sides of slip subassembly is provided with a pair of connecting rod (17), two respectively remove frame (2) slidable respectively and cup joint in the outer wall left and right sides of fixed case (1), two pairs the inner chamber that connecting rod (17) run through second slide (15) is connected with two removal frames (2) respectively, four fixed subassembly sets up respectively at the upper and lower both ends of two removal frames (2), two die-cutting rule (4) detachable cup joints the outer wall at two movable rods (9) respectively.
2. The printing die cutter die cutting adjustment assembly of claim 1, wherein: the sliding assembly comprises a motor (13), a screw rod (14) and a sliding block (16), the motor (13) is arranged on the right side of an inner cavity of the fixed box (1), one end of the screw rod (14) is rotatably connected to the left side of the inner cavity of the fixed box (1) through a bearing, the other end of the screw rod (14) is fixedly connected with the output end of the motor (13), the sliding block (16) is in threaded connection with the left side and the right side of the outer wall of the screw rod (14) respectively, and a pair of connecting rods (17) are arranged on the sliding block (16) respectively.
3. The printing die-cutting machine die-cutting adjustment assembly of claim 2, wherein: the left and right threads of the outer wall of the screw rod (14) are oppositely arranged.
4. The printing die-cutting machine die-cutting adjustment assembly of claim 1, wherein: each fixed subassembly all includes fixed chamber (6), baffle (5), fixed block (8), first slide (7), carriage release lever (9), handle (10), spacing subassembly and spring (12), the outer wall at removal frame (2) is seted up in fixed chamber (6), baffle (5) set up the outer wall at fixed frame, fixed block (8) slidable is pegged graft in the inner chamber of fixed chamber (6), one side of keeping away from baffle (5) in fixed chamber (6) inner chamber is seted up in first slide (7), carriage release lever (9) slidable inlays the inner chamber at first slide (7), handle (10) set up the one end of keeping away from fixed chamber (6) in carriage release lever (9), one side that handle (10) were kept away from in carriage release lever (9) is connected with the outer wall of fixed block (8), and is a plurality of the one end of spacing subassembly all sets up the inner chamber at fixed chamber (6), and is a plurality of the other end of spacing subassembly all is connected with the outer wall of fixed block (8), and a plurality of cup joints at a plurality of spacing subassembly respectively outer wall.
5. The printing die-cutting machine die-cutting adjustment assembly of claim 4, wherein: the outer wall of the handle (10) is provided with an anti-slip edge.
6. The printing die cutter die cutting adjustment assembly of claim 4, wherein: each limiting component comprises a telescopic rod (11), one end of each telescopic rod (11) is connected with the inner cavity of the corresponding fixed cavity (6), the other end of each telescopic rod (11) is connected with the outer wall of the corresponding fixed block (8), and the springs (12) are sleeved on the outer walls of the telescopic rods (11).
7. The printing die-cutting machine die-cutting adjustment assembly of claim 4, wherein: the distance between the baffle (5) and the fixing block (8) is the same as the thickness of the die-cutting rule (4).
