Abstract
The utility model discloses a high accuracy is noise treatment and heat abstractor for machining center belongs to machining center machinery technical field. A noise treatment and heat dissipation device for a high-precision machining center comprises a shell and an exhaust fan fixedly arranged on the shell, wherein the input end of the exhaust fan is communicated with the shell through an air inlet pipe, a middle pipe fixedly connected to the output end of the exhaust fan is fixedly connected to the shell, one end of the cooling component is communicated with the middle pipe, and the other end of the cooling component is communicated with the shell; the inner wall of the shell is fixedly connected with silencing cotton; the utility model discloses an install the air exhauster on the casing, set up the heat dissipation case at the air exhauster output and cool down the hot gas of extraction, can cool down the heat of casing on the one hand, on the other hand can realize the air convection in the casing, help improving the radiating effect; by providing the housing to be approximately sealed and installing the noise reducing cotton in the housing, most of the noise can be absorbed, contributing to the reduction of noise pollution.
Description
Technical Field
The utility model relates to a machining center machinery technical field especially relates to a noise treatment and heat abstractor for high accuracy machining center.
Background
The high-precision horizontal machining center is a machining center with the axis of a main shaft parallel to a workbench and is mainly suitable for machining box parts. After the workpiece is clamped once in a machining center, different cutters can be automatically selected by a computer, and then machining of multiple procedures is completed, and production efficiency is greatly improved.
The existing high-precision horizontal machining center usually generates large noise and a large amount of heat when working, the noise can influence the machining environment and damage the hearing of workers, and the generated heat can shorten the service life of equipment.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the problem that the horizontal machining center of prior art high accuracy gets up working and often can produce great noise and a large amount of heats, and the noise treatment and heat abstractor for high accuracy machining center who provides.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides a high accuracy is noise treatment and heat abstractor for machining center, is in including casing and fixed the air exhauster on the casing, the air exhauster input is linked together through intake pipe and casing, still includes: the intermediate pipe is fixedly connected to the output end of the exhaust fan, wherein a cooling assembly is fixedly connected to the shell, one end of the cooling assembly is communicated with the intermediate pipe, and the other end of the cooling assembly is communicated with the shell; the inner wall of the shell is fixedly connected with silencing cotton.
In order to improve the heat dissipation effect, preferably, the cooling assembly includes: the heat dissipation box is fixedly arranged on the shell, wherein one end of the heat dissipation box is communicated with the middle pipe, the other end of the heat dissipation box is communicated with the shell through an exhaust pipe, and the top of the heat dissipation box is fixedly connected with a heat dissipation fin; the fixed setting is in the cooling plate of heat dissipation incasement, wherein, the water conservancy diversion passageway has been seted up on the cooling plate, heat dissipation incasement inlet tube and wet return, inlet tube and wet return all are linked together with the water conservancy diversion passageway, just the outlet has been seted up to heat dissipation incasement bottom, the outlet is linked together with the wet return.
In order to save water, a water inlet and a water return opening are respectively arranged at two ends of the flow guide channel, the water inlet is communicated with the water inlet pipe, and the water return opening is communicated with the water return pipe.
In order to reduce the dust and pile up in air exhauster or radiator box, preferably, the casing internal fixation is provided with the filtration storehouse, the one end that the air exhauster was kept away from to the intake pipe is linked together with the filtration storehouse, filtration storehouse import department fixedly connected with filter screen, be provided with the subassembly that cleans that is used for clearing up the filter screen on the filtration storehouse.
In order to clean the filter screen, furtherly, clean the subassembly and set up including rotating filter storehouse interior pivot, wherein, fixedly connected with helical blade in the pivot, the pivot extends filter storehouse's the reciprocal lead screw of one end fixedly connected with, threaded connection has the push pedal on the reciprocal lead screw, push pedal one end offsets with the amortization cotton, fixedly connected with scraper blade on the push pedal other end, the scraper blade top offsets with the filter screen.
In order to improve the cleaning effect, furthermore, the cross-sectional shape of the push plate is L-shaped, and the scrapers are provided with a plurality of groups.
Compared with the prior art, the utility model provides a high accuracy is noise treatment and heat abstractor for machining center possesses following beneficial effect:
1. according to the noise treatment and heat dissipation device for the high-precision machining center, the exhaust fan is mounted on the shell, hot air in the shell can be extracted, the heat dissipation box is arranged at the output end of the exhaust fan to cool the extracted hot air, and then the cooled air is delivered into the shell again, so that on one hand, heat of the shell can be cooled, on the other hand, air convection in the shell can be realized, and the heat dissipation effect can be improved;
2. according to the noise treatment and heat dissipation device for the high-precision machining center, the shell is approximately sealed, and the silencing cotton is arranged in the shell, so that most of noise can be absorbed, and noise pollution can be reduced;
3. this noise treatment and heat abstractor for high accuracy machining center cleans the subassembly through setting up in filter screen department, can clean the filter screen, can reduce the dust and pile up on the filter screen, helps improving the convulsions effect of air exhauster.
The part of the device which is not involved is the same as the prior art or can be realized by the prior art, the utility model discloses through installing the exhaust fan on the shell, the hot air in the shell can be extracted, the heat dissipation box is arranged at the output end of the exhaust fan to cool the extracted hot air, and then the cooled air is sent to the shell again, on one hand, the heat of the shell can be cooled, on the other hand, the air convection in the shell can be realized, which is helpful for improving the heat dissipation effect; by providing the housing to be approximately sealed and installing the noise reducing cotton in the housing, most of the noise can be absorbed, contributing to the reduction of noise pollution.
Drawings

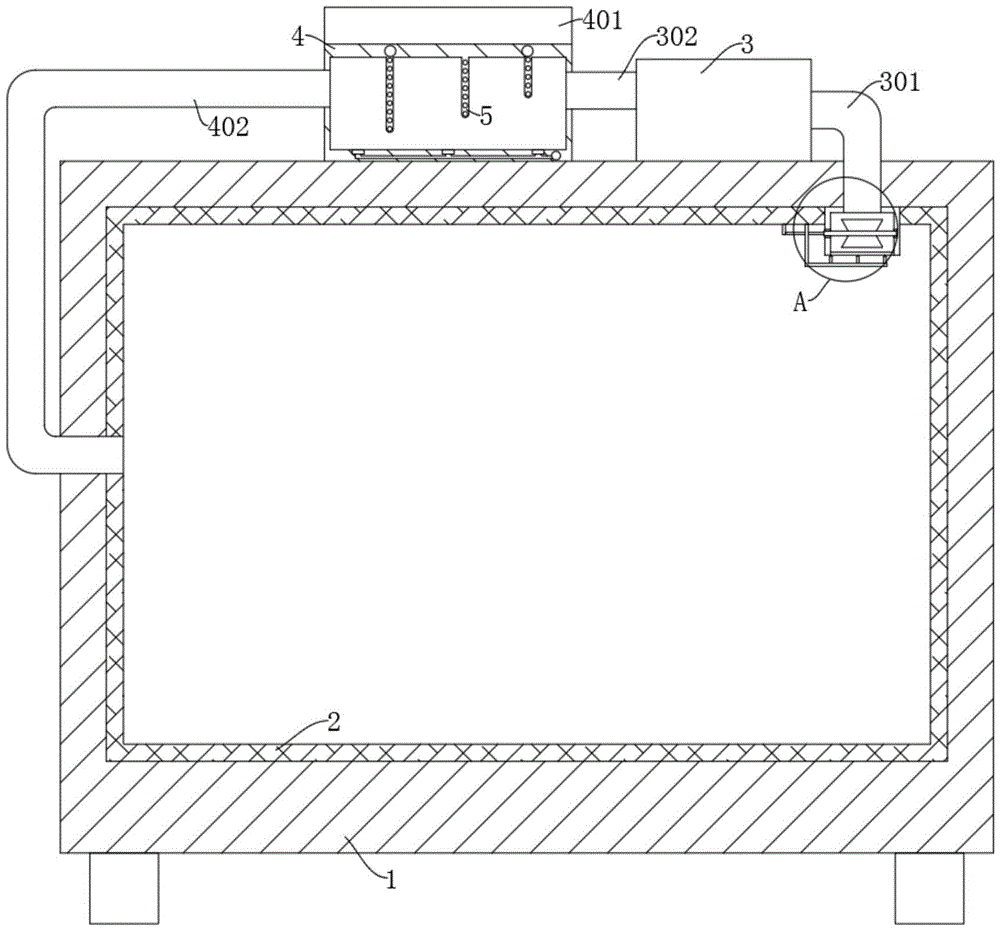

Fig. 1 is a front view of a noise processing and heat dissipating device for a high precision machining center according to the present invention;
fig. 2 is an enlarged view of a portion a in fig. 1 of the noise processing and heat dissipating device for a high precision machining center according to the present invention;
fig. 3 is a schematic structural view of a noise processing and heat dissipating device for a high precision machining center according to the present invention;
fig. 4 is a schematic structural view of a heat dissipation box of the noise processing and heat dissipation device for a high-precision machining center according to the present invention;
fig. 5 is a schematic structural view of a noise processing and heat dissipating device cooling plate for a high precision machining center.
In the figure: 1. a housing; 2. silencing cotton; 3. an exhaust fan; 301. an air inlet pipe; 302. an intermediate pipe; 4. a heat dissipation box; 401. a heat sink; 402. an exhaust pipe; 403. a water inlet pipe; 404. a water return pipe; 405. a water outlet; 5. a cooling plate; 501. a flow guide channel; 502. a water inlet; 503. a water return port; 6. a filtering bin; 601. a filter screen; 7. a rotating shaft; 701. a helical blade; 702. a reciprocating screw; 703. pushing the plate; 704. a scraper.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.
The embodiment is as follows:
referring to fig. 1-5, a noise treatment and heat abstractor for high accuracy machining center, including casing 1 and the fixed air exhauster 3 that sets up on casing 1, air exhauster 3 input is linked together through intake pipe 301 and casing 1, can extract the heat in casing 1 through intake pipe 301 through utilizing air exhauster 3, can reduce the heat in casing 1 and pile up, helps the heat dissipation, still includes: the middle pipe 302 is fixedly connected to the output end of the exhaust fan 3, the extracted hot air can be exhausted through the middle pipe 302, wherein in order to further reduce volatilization of the hot air, a cooling assembly is fixedly connected to the shell 1, one end of the cooling assembly is communicated with the middle pipe 302, the other end of the cooling assembly is communicated with the shell 1, the hot air enters the cooling assembly through the middle pipe 302, the cooling assembly can effectively cool and radiate the hot air, and the air cooled by the cooling assembly is sent to the shell 1 again, so that on one hand, heat of the shell 1 can be cooled, on the other hand, convection of the air in the shell 1 can be realized, and the improvement of the heat radiation effect is facilitated; fixedly connected with amortization cotton 2 on the 1 inner wall of casing, in order to reduce the noise that produces man-hour, can make approximate encapsulated situation with casing 1, set up double glazing or double-deck transparent ya keli board on emergency exit and left and right sides observation window and give sound insulation, most noise can be absorbed to its inside amortization cotton 2, and the amortization cotton 2 removes dust easily moreover, maintains simply, and dirty department also can be cleaned with the towel with adding water and detergent.
The cooling subassembly includes: the heat dissipation box 4 is fixedly arranged on the shell 1, wherein one end of the heat dissipation box 4 is communicated with the middle pipe 302, the other end of the heat dissipation box 4 is communicated with the shell 1 through an exhaust pipe 402, and the top of the heat dissipation box 4 is fixedly connected with a heat dissipation fin 401; cooling plate 5 fixed in heat dissipation box 4, wherein cooling plate 5 has multiple sets, and the height of cooling plate 5 increases gradually from the position near middle pipe 302, so as to make hot air stay in heat dissipation box 4 as much as possible, which is helpful for improving heat dissipation effect, wherein, a diversion channel 501 is provided on cooling plate 5, a water inlet pipe 403 and a water return pipe 404 are provided in heat dissipation box 4, water cooling system is provided outside water inlet pipe 403, water return pipe 404 is also communicated with water cooling system, and a water outlet 405 is provided at the bottom of heat dissipation box 4, water outlet 405 is communicated with water return pipe 404, both ends of diversion channel 501 are respectively provided with a water inlet 502 and a water return opening 503, water inlet 502 is communicated with water inlet pipe 403, water return opening 503 is communicated with water return pipe 404, when in use, hot air in housing 1 is extracted by an exhaust fan 3 and conveyed to heat dissipation box 4, hot air is cooled by cooling plate 5 after entering heat dissipation box 4, flowing cooling water is filled in diversion channel 501 in cooling plate 5, cooling plate 5 can be cooled, temperature of cooling plate 5 is lowered, moisture content in cooling housing 1 can be reduced, and moisture content of hot air can be reduced from liquefied air flowing through heat dissipation box 4, and water flow, moisture in heat dissipation box 1 can be reduced, moisture content of heat dissipation box 1, and moisture can be reduced, moisture content of housing 1 can be reduced again, and water flow, moisture in cooling shell, moisture can be recovered by liquefied air, moisture in heat dissipation box 1, and water source, moisture in heat dissipation box 1, moisture can be recovered, moisture content of housing 1, moisture can be reduced, and heat dissipation box 1, moisture content of housing 1, moisture can be recovered, further increasing the heat dissipation effect.
The filter bin 6 is fixedly arranged in the shell 1, one end, far away from the exhaust fan 3, of the air inlet pipe 301 is communicated with the filter bin 6, the filter screen 601 is fixedly connected to the inlet of the filter bin 6, a cleaning assembly used for cleaning the filter screen 601 is arranged on the filter bin 6, when the air inlet pipe 301 is used, the exhaust fan 3 is started to extract hot air in the shell 1 through the air inlet pipe 301, the hot air does not contain moisture, and dust generated by cutting workpieces is also arranged, in the process, the dust and part of the water in the hot air can be blocked by the filter screen 601, the accumulation of the dust in the exhaust fan 3 or the heat dissipation box 4 can be reduced, the blockage of the exhaust fan 3 or the heat dissipation box 4 is avoided, the service life of the exhaust fan 3 or the heat dissipation box 4 is prolonged, the cleaning period can be properly prolonged, the downtime is reduced, the machining production efficiency is increased, in use, the dust can be adhered to the filter screen 601, if the filter screen 601 is not cleaned, the blockage of the filter screen 601 can be avoided, and the heat dissipation effect is further influenced, and the cleaning assembly can clean the filter screen 601, and the accumulation of the dust can be reduced.
Clean the subassembly and can utilize the manual work to carry out periodic cleaning, perhaps adopt drive assembly drive pivot 7 such as motor to clean, clean the subassembly according to the in service behavior here and set up to: the rotating shaft 7 is rotatably arranged in the filter bin 6, wherein the rotating shaft 7 is fixedly connected with a helical blade 701, one end of the rotating shaft 7, extending out of the filter bin 6, is fixedly connected with a reciprocating lead screw 702, the reciprocating lead screw 702 is connected with a push plate 703 in a threaded manner, one end of the push plate 703 abuts against silencing cotton 2, the push plate 703 can be limited, the push plate 703 is prevented from overturning in the sliding process, the other end of the push plate 703 is fixedly connected with a scraper 704, the top of the scraper 704 abuts against the filter screen 601, the cross section of the push plate 703 is L-shaped, and a plurality of groups of scrapers 704 are arranged, when the air exhauster 3 exhausts air, the air enters the air inlet pipe 301 through the filter bin 6, in the process, the air can push the helical blade 701 to rotate, the rotating shaft 7 can drive the reciprocating lead screw 702 to rotate, at the moment, the push plate 703 can drive the scraper 704 to do reciprocating motion, the scraper 704 can hang dust on the filter screen 601 in the process, and the dust accumulation on the filter screen 601 is reduced.
The utility model discloses in, when using, air exhauster 3 takes out the steam in casing 1 and carries in heat dissipation case 4, steam gets into behind heat dissipation case 4 and can be blocked by cooling plate 5, the mobile cooling water is equipped with in the water conservancy diversion passageway 501 in the cooling plate 5, can cool down cooling plate 5, make the temperature of cooling plate 5 lower, steam and cooling plate 5 contact the back, moisture can liquefy on cooling plate 5 in the steam, moisture after the liquefaction can come off then along cooling plate 5 drippage to the bottom of heat dissipation case 4 in the steam, get back to the water cooling system through outlet 405, help retrieving the water source, reduce the waste at water source, the temperature of steam also can be along with reducing, and moisture content in the steam also can reduce, and then can reduce the inside moisture content of casing 1, can reduce the erosion of moisture to casing 1 internals, air after heat dissipation case 4 cools down is sent to casing 1 inside through blast pipe 402 again, can further cool down to steam in the casing 1, and can increase the circulation of heat in the casing 1, further ground increases the radiating effect.
The above, only be the embodiment of the preferred of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, which are designed to be replaced or changed equally, all should be covered within the protection scope of the present invention.
Claims (6)
1. The utility model provides a high accuracy is noise treatment and heat abstractor for machining center, is in including casing (1) and fixed the setting air exhauster (3) on casing (1), its characterized in that, air exhauster (3) input is linked together through intake pipe (301) and casing (1), still includes:
a middle pipe (302) fixedly connected with the output end of the exhaust fan (3),
the cooling device comprises a shell (1), a middle pipe (302), a cooling component, a cooling pipe and a cooling pipe, wherein the shell (1) is fixedly connected with the cooling component, one end of the cooling component is communicated with the middle pipe, and the other end of the cooling component is communicated with the shell (1);
the inner wall of the shell (1) is fixedly connected with silencing cotton (2).
2. The noise treatment and heat dissipation device for a high precision machining center according to claim 1, wherein the cooling assembly comprises:
a heat dissipation box (4) fixedly arranged on the shell (1),
one end of the heat dissipation box (4) is communicated with the middle pipe (302), the other end of the heat dissipation box (4) is communicated with the shell (1) through an exhaust pipe (402), and the top of the heat dissipation box (4) is fixedly connected with a heat dissipation fin (401);
a cooling plate (5) fixedly arranged in the heat dissipation box (4),
wherein, water conservancy diversion passageway (501) have been seted up on cooling plate (5), inlet tube (403) and wet return (404) in heat dissipation case (4), inlet tube (403) and wet return (404) all are linked together with water conservancy diversion passageway (501), just bottom has seted up outlet (405) in heat dissipation case (4), outlet (405) are linked together with wet return (404).
3. The noise treatment and heat dissipation device for the machining center with high precision of claim 2, wherein the two ends of the flow guide channel (501) are respectively provided with a water inlet (502) and a water return (503), the water inlet (502) is communicated with the water inlet pipe (403), and the water return (503) is communicated with the water return pipe (404).
4. The noise treatment and heat dissipation device for the high-precision machining center according to claim 1, wherein a filtering bin (6) is fixedly arranged in the housing (1), one end of the air inlet pipe (301) far away from the exhaust fan (3) is communicated with the filtering bin (6), a filtering net (601) is fixedly connected to an inlet of the filtering bin (6), and a cleaning assembly for cleaning the filtering net (601) is arranged on the filtering bin (6).
5. The noise treatment and heat dissipation device as claimed in claim 4, wherein the cleaning assembly comprises
A rotating shaft (7) which is rotatably arranged in the filtering bin (6),
the improved filter screen is characterized in that a spiral blade (701) is fixedly connected to the rotating shaft (7), a reciprocating lead screw (702) is fixedly connected to one end, extending out of the filter bin (6), of the rotating shaft (7), a push plate (703) is connected to the reciprocating lead screw (702) in a threaded manner, one end of the push plate (703) abuts against the silencing cotton (2), a scraper blade (704) is fixedly connected to the other end of the push plate (703), and the top of the scraper blade (704) abuts against the filter screen (601).
6. The noise treatment and heat dissipation device for a high precision machining center according to claim 5, wherein the cross-sectional shape of the push plate (703) is L-shaped, and the plurality of sets of the scrapers (704) are provided.
