CN213904244U - Heat abstractor is used in computer software development - Google Patents
Heat abstractor is used in computer software development Download PDFInfo
- Publication number
- CN213904244U CN213904244U CN202120130840.5U CN202120130840U CN213904244U CN 213904244 U CN213904244 U CN 213904244U CN 202120130840 U CN202120130840 U CN 202120130840U CN 213904244 U CN213904244 U CN 213904244U
- Authority
- CN
- China
- Prior art keywords
- box
- dust
- rotating rod
- wall
- software development
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Abstract
The utility model discloses a heat abstractor is used in computer software development relates to software development technical field. This heat abstractor for computer software development, the power distribution box comprises a box body, the adjacent inner wall connection of box has the mounting panel, is provided with the hole on the mounting panel, and one side outer wall connection of box has the protecting crust, and the inside of box is provided with heat dissipation cooling mechanism, and the inside of box is provided with U type case, and the top of U type case and the bottom of mounting panel are connected, and the inside of U type case is provided with the dust removal and filters the collection mechanism, and the bottom fixed mounting of box has the rubber pad, and the articulated glass door that installs in front side of box. The utility model discloses can the box in electronic component dispel the heat fast, clear up filtration treatment to the dust in the box simultaneously, avoid the dust to the damage that the electronic component in the box caused to increased electronic component's life, effectively satisfied the user demand, just with using widely.
Description
Technical Field
The utility model relates to a software development technical field specifically is a heat abstractor for computer software development.
Background
At present, a computer used for software development can generate a large amount of heat energy when working, and the machine body can be damaged by untimely heat dissipation, so that the unstable operation of a system can be caused, and the service life of the computer is shortened. The computer uses can the silting a large amount of dusts for a long time, and the dust can enter into inside along with the gap of computer to the phenomenon of computer inner member damage can appear, be unfavorable for using widely.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a heat abstractor is used in computer software development to solve at least one problem that proposes in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a heat abstractor for computer software development, includes the box, the adjacent inner wall connection of box has the mounting panel, is provided with the hole on the mounting panel, and one side outer wall connection of box has the protecting crust, and the inside of box is provided with heat dissipation cooling mechanism, and the inside of box is provided with U type case, and the top of U type case and the bottom of mounting panel are connected, and the inside of U type case is provided with dust removal filtration and collects the mechanism, and the bottom fixed mounting of box has the rubber pad, and the articulated glass door that installs in front side of box.
Preferably, the inner wall of the box body is fixedly provided with a silencing cotton layer.
Preferably, a cooling plate is arranged on the mounting plate.
Preferably, heat dissipation cooling mechanism includes the motor, first dwang, drive pulley, the second dwang, driven pulley, belt and flabellum, one side inner wall fixed mounting of protecting crust has the motor, one side inner wall of box rotates and installs first dwang, the output shaft of motor passes through the shaft coupling and is connected with first dwang, the surface of first dwang is connected with drive pulley, one side inner wall of protecting crust rotates and installs the second dwang, first dwang and second dwang are parallel arrangement, the surface of second dwang is connected with driven pulley, the cover is equipped with the belt on drive pulley and the driven pulley, the free end of first dwang and second dwang is connected with the flabellum.
Preferably, the dust removal filters and collects the mechanism and includes the slide bar, hollow sliding block, the brush, the dust absorption fill, electric putter, the dust catcher, the dust absorption pipeline, go out the dirt pipeline, rose box and filter screen, the adjacent inner wall of U type case is connected with the slide bar, the inside of U type case is provided with hollow sliding block, the slide bar transversely runs through hollow sliding block and cooperates hollow sliding block sliding connection setting, brush and dust absorption fill are installed at the top of hollow sliding block, one side inner wall fixed mounting of U type case has electric putter, electric putter's free end and one side outer wall connection of hollow sliding block, the inboard bottom fixed mounting of box has the dust catcher, the dust absorption pipeline is installed to the end of induced drafting of dust catcher, the free end and the dust absorption fill fixed connection of dust absorption pipeline, the play dirt pipeline is installed to the air-out end of dust catcher.
Preferably, the outer wall of one side of box is connected with the rose box, and the rose box is established ties in a dirt pipeline, and the filter screen is installed to the inboard top and the inboard bottom joint of rose box.
Compared with the prior art, the beneficial effects of the utility model are that:
(1) this heat abstractor for computer software development uses through the cooperation of cooling panel, can give out air conditioning to the box in to electronic component to in the box cools down, uses through the cooperation of motor, first dwang, drive pulley, second dwang, driven pulley, belt and flabellum, thereby dispels the heat fast to electronic component in the box, makes air conditioning flow simultaneously, has improved the radiating effect.
(2) This heat abstractor is used in computer software development uses through the cooperation of electric putter, hollow sliding block and brush, can effectively clean the dust on the mounting panel, prevents that the dust from piling up.
(3) This heat abstractor is used in computer software development, through the cooperation of dust catcher, dust absorption fill, dust absorption pipeline and play dirt pipeline, can take out from the dust after cleaning, avoid the dust to the damage that the electronic component in the box caused to increased electronic component's life, effectively satisfied the user demand, use through the cooperation of rose box and filter screen, filter the dust of taking out from, conveniently handle.
Drawings

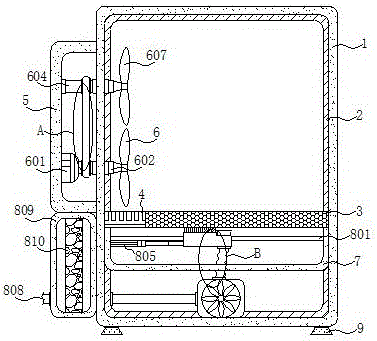

Fig. 1 is a cross-sectional view of the present invention;
FIG. 2 is an enlarged view of part A of the present invention;
FIG. 3 is an enlarged view of the portion B of the present invention;
fig. 4 is a front view of the present invention.
In the figure: the device comprises a box body 1, a noise reduction cotton layer 2, a mounting plate 3, a cooling plate 4, a protective shell 5, a heat dissipation and cooling mechanism 6, a motor 601, a first rotating rod 602, a driving belt pulley 603, a second rotating rod 604, a driven belt pulley 605, a belt 606, fan blades 607, a 7U-shaped box, a dust removal and filtration and collection mechanism 8, a sliding rod 801, a hollow sliding block 802, a hairbrush 803, a dust suction hopper 804, an electric push rod 805, a dust suction machine 806, a dust suction pipeline 807, a dust outlet pipeline 808, a 809 filtration box 810, a filtration screen 810, a rubber pad 9 and a glass door 10.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, the present invention provides a technical solution: the utility model provides a heat abstractor for computer software development, includes box 1, and the inner wall fixed mounting of box 1 has cotton layer 2 of amortization, and the adjacent inner wall of box 1 is connected with mounting panel 3, is provided with the hole on the mounting panel 3, is provided with cooling plate 4 on the mounting panel 3, and the bottom fixed mounting of box 1 has rubber pad 9, and the articulated glass door 10 that installs in front side of box 1. .
The outer wall of one side of the box body 1 is connected with a protective shell 5, the interior of the box body 1 is provided with a heat dissipation and cooling mechanism 6, the heat dissipation and cooling mechanism 6 comprises a motor 601, a first rotating rod 602, a driving belt pulley 603, a second rotating rod 604, a driven belt pulley 605, a belt 606 and fan blades 607, the inner wall of one side of the protective shell 5 is fixedly provided with the motor 601, the inner wall of one side of the box body 1 is rotatably provided with the first rotating rod 602, the output shaft of the motor 601 is connected with the first rotating rod 602 through a coupler, the outer surface of the first rotating rod 602 is connected with the driving belt pulley 603, the inner wall of one side of the protective shell 5 is rotatably provided with the second rotating rod 604, the first rotating rod 602 and the second rotating rod 604 are arranged in parallel, the outer surface of the second rotating rod 604 is connected with the driven belt pulley 605, the driving belt 603 and the driven belt pulley 605 are sleeved with the belt 606, so that the driving pulley 603 and the driven pulley 605 are drivingly connected by a belt 606. The free ends of the first rotating rod 602 and the second rotating rod 604 are connected with fan blades 607.
The inside of box 1 is provided with U type case 7, and the bottom of the top of U type case 7 and mounting panel 3 is connected, and the inside of U type case 7 is provided with dust removal filtration collection mechanism 8.
Specifically, the dust removing, filtering and collecting mechanism 8 comprises a sliding rod 801, a hollow sliding block 802, a brush 803, a dust collecting hopper 804, an electric push rod 805, a dust collector 806, a dust collecting pipeline 807, a dust outlet pipeline 808, a filter box 809 and a filter screen 810, the adjacent inner walls of the U-shaped box 7 are connected with the sliding rod 801, the hollow sliding block 802 is arranged inside the U-shaped box 7, and the sliding rod 801 transversely penetrates through the hollow sliding block 802 and is matched with the hollow sliding block 802 to be slidably connected. The top of the hollow sliding block 802 is provided with a brush 803 and a dust collection hopper 804, the inner wall of one side of the U-shaped box 7 is fixedly provided with an electric push rod 805, and the free end of the electric push rod 805 is connected with the outer wall of one side of the hollow sliding block 802. A dust suction pipeline 807 is installed at the air suction end of the dust collector 806, the free end of the dust suction pipeline 807 is fixedly connected with the dust suction hopper 804, and a dust outlet pipeline 808 is installed at the air outlet end of the dust collector 806.
The outer wall of one side of box 1 is connected with filter box 809, and filter box 809 is connected in series in a dirt pipeline 808, and specifically, dirt pipeline 808 includes two tube segments, and filter box 809 and dust catcher 806 are connected respectively to one of them tube segment, and filter box 809 is connected to another tube segment, and two tube segments are located the both sides of filter box 809 respectively. Filter screen 810 is installed to the inboard top of filter box 809 and inboard bottom joint, uses through the cooperation of filter box 809 and filter screen 810, filters the dust of taking out, conveniently handles.
When in use, through the cooperation of the cooling plate 4, cold air can be emitted from the box body 1, so as to cool the electronic components in the box body 1, the motor 601 is driven, the motor 601 drives the first rotating rod 602 to rotate, the first rotating rod 602 rotates to drive the driving pulley 603, the driving pulley 603 drives the driven pulley 605 to rotate through the belt 606, the driven pulley 605 rotates to drive the second rotating rod 604 to rotate, the first rotating rod 602 and the second rotating rod 604 rotate simultaneously to drive the fan 607 to rotate, so as to rapidly dissipate heat of the electronic components in the box body 1, and at the same time, the cold air flows, so as to drive the electric push rod 805, the electric push rod 805 drives the hollow sliding block 802 to transversely move, the hollow sliding block 802 longitudinally moves to drive the brush 803 to transversely move, so as to effectively clean dust on the mounting plate 3, and drive the dust collector 806, through the cooperation of dust absorption fill 804, dust absorption pipeline 807 and play dirt pipeline 808, can take out the dust after cleaning, through the cooperation of rose box 809 and filter screen 810, filter the dust of taking out.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. A heat abstractor for computer software development, includes box (1), its characterized in that: the utility model discloses a solar energy water heater, including box (1), the adjacent inner wall connection of box (1) has mounting panel (3), be provided with the hole on mounting panel (3), one side outer wall connection of box (1) has protecting crust (5), the inside of box (1) is provided with heat dissipation cooling mechanism (6), the inside of box (1) is provided with U type case (7), the top of U type case (7) is connected with the bottom of mounting panel (3), the inside of U type case (7) is provided with dust removal filtration collection mechanism (8), the bottom fixed mounting of box (1) has rubber pad (9), the articulated glass door (10) of installing in the front side of box (1).
2. The heat sink for computer software development according to claim 1, wherein: the inner wall of the box body (1) is fixedly provided with a silencing cotton layer (2).
3. The heat sink for computer software development according to claim 1, wherein: and a cooling plate (4) is arranged on the mounting plate (3).
4. The heat sink for computer software development according to claim 3, wherein: the heat dissipation and cooling mechanism (6) comprises a motor (601), a first rotating rod (602), a driving belt pulley (603), a second rotating rod (604), a driven belt pulley (605), a belt (606) and fan blades (607), wherein the motor (601) is fixedly installed on the inner wall of one side of the protective shell (5), the first rotating rod (602) is installed on the inner wall of one side of the box body (1) in a rotating mode, the output shaft of the motor (601) is connected with the first rotating rod (602) through a coupler, the outer surface of the first rotating rod (602) is connected with the driving belt pulley (603), the second rotating rod (604) is installed on the inner wall of one side of the protective shell (5) in a rotating mode, the first rotating rod (602) and the second rotating rod (604) are arranged in parallel, the outer surface of the second rotating rod (604) is connected with the driven belt pulley (605), and the driving belt pulley (603) and the driven belt pulley (605) are sleeved with the belt (606), the free ends of the first rotating rod (602) and the second rotating rod (604) are connected with fan blades (607).
5. The heat sink for computer software development according to claim 1, wherein: the dust removal, filtration and collection mechanism (8) comprises a sliding rod (801), a hollow sliding block (802), a brush (803), a dust collection hopper (804), an electric push rod (805), a dust collector (806), a dust collection pipeline (807), a dust outlet pipeline (808), a filter box (809) and a filter screen (810), the adjacent inner wall of the U-shaped box (7) is connected with the sliding rod (801), the hollow sliding block (802) is arranged inside the U-shaped box (7), the sliding rod (801) transversely penetrates through the hollow sliding block (802) and is matched with the hollow sliding block (802) to be in sliding connection, the brush (803) and the dust collection hopper (804) are installed at the top of the hollow sliding block (802), the electric push rod (805) is fixedly installed on the inner wall of one side of the U-shaped box (7), the free end of the electric push rod (805) is connected with the outer wall of one side of the hollow sliding block (802), the dust collector (806) is fixedly installed at the bottom of the inner side of the box body (1), the air suction end of the dust collector (806) is provided with a dust suction pipeline (807), the free end of the dust suction pipeline (807) is fixedly connected with the dust suction hopper (804), and the air outlet end of the dust collector (806) is provided with a dust outlet pipeline (808).
6. The heat sink for computer software development according to claim 5, wherein: the outer wall of one side of the box body (1) is connected with a filter box (809), the filter box (809) is connected in series with a dust outlet pipeline (808), and the inside top and the inside bottom of the filter box (809) are clamped and provided with a filter screen (810).
