A wall attachment device of a construction elevator comprises a connecting frame and a wall connecting mechanism, wherein one end of the connecting frame is connected with a guide rail frame, and the other end of the connecting frame is connected with a building through the wall connecting mechanism; the wall connecting mechanism comprises a hoop capable of surrounding a building, the hoop is formed by connecting four hoop plates end to end, the hoop plates comprise connecting sections which are symmetrically arranged, connecting ends of the connecting sections are provided with connecting plates, connecting holes are formed in the connecting plates, and the two connecting sections of the hoop plates are connected through screws. The utility model discloses the principle: the staple bolt is the rectangle, and it is similar with the stand shape, can hold the cylindricality building tightly through bolt locking, and when attaching the wall, the one end and the guide rail frame of link are connected, and the other end and the staple bolt of link are articulated to effectively solve beam column structure building and attach the wall and be difficult to adnexed problem.
Description
Technical Field
The utility model belongs to the technical field of the construction and specifically relates to a construction elevator attaches wall device.
Background
Most of the existing construction elevators can only be installed on a building floor slab or a building structure beam, such as a length-adjustable wall-attached frame for a construction elevator with the Chinese patent publication number of CN112794179A, which comprises an installation base, a wall-attached base and a connecting frame, wherein the connecting frame comprises a first frame body connected with the installation base, a second frame body connected with the wall-attached base, a plurality of first adjusting holes arranged on the first frame body at intervals, and at least two second adjusting holes arranged on the second frame body, the first frame body and the second frame body can slide relatively along the arrangement direction of the first adjusting holes, the second adjusting holes can respectively correspond to at least two of the first adjusting holes in the sliding process of the second frame body, and the wall-attached frame further comprises at least two locking pieces respectively penetrating through the corresponding first adjusting holes and the second adjusting holes. The wall-attached frame cannot be installed by using a standard wall-attached frame when meeting some buildings with special structures, such as special building structures with rectangular upright posts.
Disclosure of Invention
The utility model aims to solve the technical problem that a construction elevator attaches wall device is provided, can effectively solve beam column structure building and attach the wall and be difficult to adnexed problem.
In order to solve the technical problem, the technical scheme of the utility model is that: a wall attachment device of a construction elevator comprises a connecting frame and a wall connecting mechanism, wherein one end of the connecting frame is connected with a guide rail frame, and the other end of the connecting frame is connected with a building through the wall connecting mechanism; the wall connecting mechanism comprises a hoop capable of surrounding a building, the hoop is formed by connecting four hoop plates end to end, the hoop plates comprise connecting sections arranged in a bisymmetry mode, connecting ends of the connecting sections are provided with connecting plates, connecting holes are formed in the connecting plates, and the two connecting sections of the hoop plates are connected through screws. The utility model discloses the principle: the staple bolt is the rectangle, and it is similar with the stand shape, can hold the cylindricality building tightly through bolt locking, and when attaching the wall, the one end and the guide rail frame of link are connected, and the other end and the staple bolt of link are articulated to effectively solve beam column structure building and attach the wall and be difficult to adnexed problem.
As an improvement, the hoop plate positioned on the front side is provided with a wall-attached connecting lug, and the connecting frame is hinged with the wall-attached connecting lug.
As an improvement, the wall-attached connecting lugs are respectively arranged on the two connecting sections.
As an improvement, a reinforcing plate is arranged between the connecting section and the connecting plate.
As an improvement, the hoop plates on two sides are provided with elongated holes.
As an improvement, the connecting section is a channel steel, and welding plates are arranged at the tops of the channel steels on the front and the back.
As an improvement, the building is a rectangular upright post.
Compared with the prior art, the utility model the beneficial effect who brings is:
the staple bolt is the rectangle, and it is similar with the stand shape, can hold the cylindricality building tightly through bolt locking, and when attaching the wall, the one end and the guide rail frame of link are connected, and the other end and the staple bolt of link are articulated to effectively solve beam column structure building and attach the wall and be difficult to adnexed problem.
Drawings

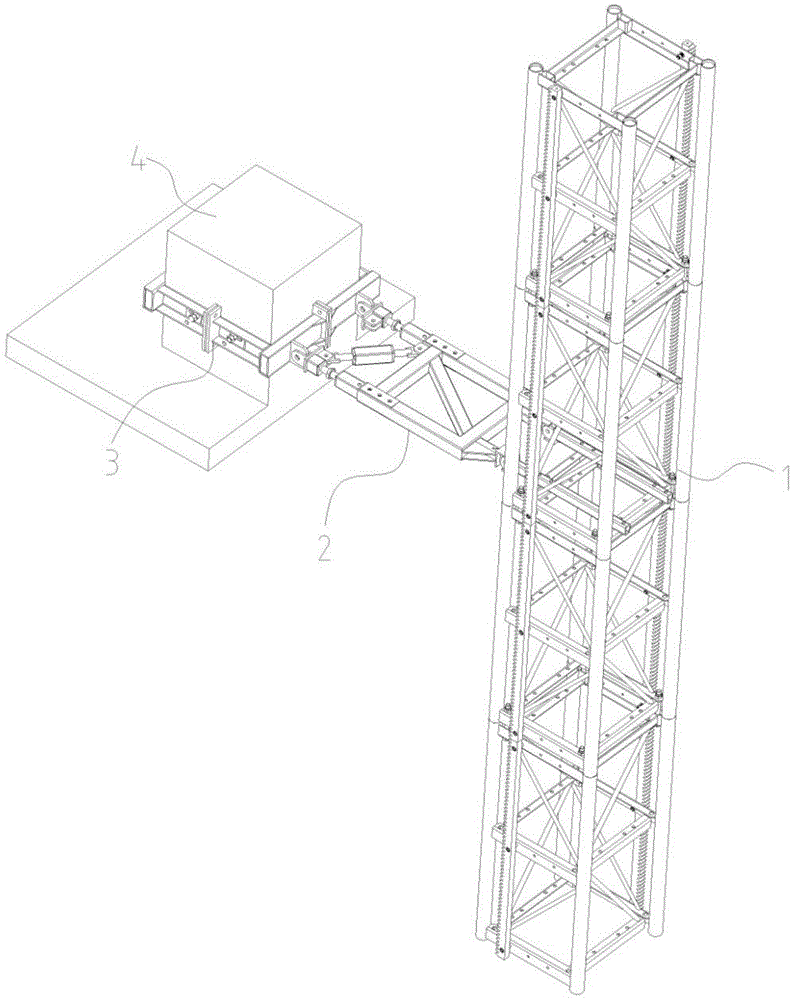

Fig. 1 is a schematic view of a guide rail bracket attached to a wall.
Fig. 2 is a view of the wall connecting mechanism.
Detailed Description
The present invention will be further explained with reference to the drawings.
As shown in fig. 1, a wall attachment device of a construction elevator comprises a connecting frame 2 and a wall connecting mechanism, wherein one end of the connecting frame 2 is connected with a guide rail frame 1, and the other end of the connecting frame 2 is connected with a building 4 through the wall connecting mechanism; the present embodiment is directed to a building 4 that is a rectangular column. As shown in fig. 2, the wall connecting mechanism includes a hoop 3 capable of surrounding a building 4, the hoop 3 is formed by connecting four hoop plates 31 end to end, in this embodiment, the adjacent hoop plates 31 are perpendicular to each other and are connected by welding; the hoop connecting plate 31 comprises two symmetrically arranged connecting sections 311, the connecting sections 311 are channel steel, connecting plates 312 are arranged at connecting ends of the connecting sections 311, connecting holes are formed in the connecting plates 312, the two connecting sections 311 of the hoop connecting plate 31 are connected through screws, and gaps between the two connecting plates 312 are adjustable to change the length of the hoop connecting plate 31 and further adapt to holding of columns of different sizes. Because the hoop plate 31 on the front and the back is stressed greatly, the welding plate 315 is also arranged on the connecting section 311 of the hoop plate 31, and the welding plate 315 is welded on the top of the channel steel, so that the section of the connecting section 311 forms a rectangular structure, and the structural strength of the connecting section is enhanced; the connecting section 311 on the front side is provided with a wall-attached connecting lug 314, the wall-attached connecting lug 314 is vertically welded on the welding plate 315, and the connecting frame 2 is hinged with the wall-attached connecting lug 314; a reinforcing plate 313 is arranged between the connecting section 311 and the connecting plate 312; the hoop plates 31 on two sides are provided with elongated holes 316, the two sides of the building 4 are provided with embedded nuts, and after the hoop 3 tightly holds the building 4, the hoop plates 31 on the side surfaces are locked on the building 4 by using bolts.
The utility model discloses the principle: staple bolt 3 is the rectangle, and it is similar with the stand shape, can hold cylindricality building 4 tightly through bolt locking, when attaching the wall, the one end and the guide rail frame 1 of link 2 are connected, and the other end and the staple bolt 3 of link 2 are articulated to effectively solve beam column structure building 4 and attach the wall and be difficult to adnexed problem.
Claims (7)
1. A wall attachment device of a construction elevator comprises a connecting frame and a wall connecting mechanism, wherein one end of the connecting frame is connected with a guide rail frame, and the other end of the connecting frame is connected with a building through the wall connecting mechanism; the method is characterized in that: the wall connecting mechanism comprises a hoop capable of surrounding a building, the hoop is formed by connecting four hoop plates end to end, the hoop plates comprise connecting sections which are symmetrically arranged, connecting ends of the connecting sections are provided with connecting plates, connecting holes are formed in the connecting plates, and the two connecting sections of the hoop plates are connected through screws.
2. The construction elevator wall attachment device according to claim 1, wherein: the hoop plate on the front is provided with a wall-attached connecting lug, and the connecting frame is hinged with the wall-attached connecting lug.
3. The construction elevator wall attachment device according to claim 2, wherein: the wall-attached connecting lugs are respectively arranged on the two connecting sections.
4. The construction elevator wall attachment device according to claim 1, wherein: and a reinforcing plate is arranged between the connecting section and the connecting plate.
5. The construction elevator wall attachment device according to claim 1, wherein: the hoop plates at two sides are provided with elongated holes.
6. The construction elevator wall attachment device according to claim 1, wherein: the connecting section is a channel steel, and the top of the channel steel positioned on the front side and the back side is provided with a welding plate.
7. The construction elevator wall attachment device according to claim 1, wherein: the building is a rectangular upright post.
