Abstract

The utility model discloses an easy-to-maintain solar power station, which comprises a support column, a support plate and a casing. The support plate is fixed on the top of the support column, a hinge seat is installed on one side of the top of the support plate, and an adjustment mechanism is arranged on the top of the support column. , and the top of the adjustment mechanism is provided with a casing, the interior of the casing is provided with a solar power generation panel, both sides of the solar power generation panel are provided with loading and unloading structures, and the top of the casing is provided with a cleaning structure. The utility model leaves the inside of the installation frame by pulling the fixing pin, so that the installation frame can slide inside the casing, thereby driving the solar power generation panel to leave the inside of the casing, and disassembling the solar power generation panel, thereby realizing the easy maintenance function of the device. The shell is convenient to be disassembled, the staff is convenient to maintain and check the shell, the time lost for dismantling the device is reduced, and the convenience of the device is improved.

Description

An easy-to-maintain solar power plant

technical field

The utility model relates to the technical field of solar power stations, in particular to an easy-to-maintain solar power station.

Background technique

With the development of society, the use of fossil energy has increased, which has aggravated the pollution of the environment. Therefore, people urgently need a clean and pollution-free energy source, so that solar power stations can be born. Solar power stations can directly convert light energy into electrical energy. It will produce bad pollution, so it is sought after by people, but there are many problems and defects in the existing solar power plants;

Traditional solar power plants are inconvenient to maintain during use, which makes the disassembly process of the device cumbersome, and it is not convenient for the staff to maintain and check the solar power generation, resulting in weak convenience of the device.

Utility model content

(1) Technical problems to be solved

The purpose of the present utility model is to provide an easy-to-maintain solar power station to solve the problem of inconvenient maintenance in the above-mentioned background technology.

(2) Contents of utility model

In order to solve the above technical problems, the utility model provides the following technical solutions: an easy-to-maintain solar power station, including a support column, a support plate and a casing, the top of the support column is fixed with a support plate, and one side of the top of the support plate is A hinge seat is installed, the top of the support column is provided with an adjustment mechanism, and the top of the adjustment mechanism is provided with a casing, the inside of the casing is provided with a solar power generation panel, and both sides of the solar power generation panel are provided with loading and unloading structures, so The top of the housing is provided with a cleaning structure.

The easy-to-maintain solar power station using this technical solution supports the device through support columns and support plates, converts light into electrical energy through solar power generation panels to generate electricity, cleans the dust on the surface of solar power generation panels through the cleaning structure, and facilitates maintenance through the loading and unloading structure. The solar power generation panel is maintained, and the angle of the device is conveniently adjusted through the adjustment mechanism.

Preferably, the loading and unloading structure includes a housing, a telescopic spring, a fixing pin, rollers and a mounting frame, the housing is fixed inside the bottom end of the housing, a telescopic spring is installed inside the housing and the top end of the telescopic spring is fixed The fixed pin is provided with a mounting frame at the top of the fixed pin, and a roller is mounted on one side of the mounting frame. By pulling the fixing pin to leave the inside of the installation frame, the installation frame slides inside the casing and drives the solar power generation panel to leave the inside of the casing, and the solar power generation panel is disassembled.

Preferably, the fixing pin extends to the outside of the telescopic spring to connect with the installation frame, and a rotating structure is formed between the roller and the installation frame. The friction force between the mounting frame and the housing is reduced by rolling the rollers inside the housing.

Preferably, the cleaning structure includes a guide groove, a handle, a connecting plate, a brush and a moving block, the guide groove is fixed on both sides of the top of the housing, a moving block is installed inside the guide groove, and one of the moving blocks A connecting plate is fixed on the side, a handle is fixed on the top of the connecting plate, and a brush is installed on the bottom of the connecting plate. By pulling the handle, the brush moves on the surface of the solar power generation panel to sweep away the dust on the surface of the solar power generation panel, and at the same time, the moving block slides inside the guide groove to guide the moving direction of the connecting plate.

Preferably, several groups of brushes are arranged at the bottom end of the connecting plate, and several groups of brushes are distributed at equal intervals at the bottom end of the connecting plate.

Preferably, the adjustment mechanism includes a support arm, a casing, a motor, a screw rod and a screw block, the casing is fixed on the top of the support plate, the inside of the casing is inserted with a screw rod, and the outside of the screw rod A screw block is sheathed, a motor is installed on one side of the casing, and a support arm is hinged at the top of the screw block. The motor drives the screw to rotate inside the screw, and then the screw moves back and forth along the surface of the screw, and at the same time, the screw drives the support arm to move, so that the support arm turns over to lift the shell, and the shell rotates around the hinge to adjust the angle .

Preferably, a rotating structure is formed between the support arm and the housing, and internal threads are provided on the inner wall of the screw block. It is convenient for the screw block to move back and forth along the surface of the screw rod through the engagement of the thread.

(3) Beneficial effects

Compared with the prior art, the beneficial effect of the utility model is that the easy-to-maintain solar power station has a reasonable structure and has the following advantages:

(1) By pulling the fixing pin away from the inside of the installation frame, the installation frame can slide inside the casing, thereby driving the solar power generation panel to leave the inside of the casing, and disassembling the solar power generation panel, thereby realizing the easy maintenance function of the device, It is easy to disassemble the shell, which makes it easy for the staff to maintain and check the shell, reduces the time spent on dismantling the device, and improves the convenience of the device;

(2) The motor drives the screw to rotate, so that the screw moves back and forth along the surface of the screw, and at the same time, the screw drives the support arm to lift the shell, so that the shell rotates to adjust the angle, thereby realizing the angle adjustment function of the device. It is convenient to adjust the angle of the solar power generation panel, so that the solar power generation panel can be more seasonally changed, and the adjustment angle of the response improves the power generation efficiency of the device;

(3) By pulling the handle, the brush sweeps away the dust on the surface of the solar power generation panel, and at the same time, the moving block slides inside the guide groove to guide the moving direction of the connecting plate, thereby realizing the surface cleaning function of the device and facilitating cleaning of solar energy The dust on the surface of the power generation panel makes it easy for sunlight to shine on the solar power generation panel.

Description of drawings

In order to more clearly illustrate the technical solutions in the embodiments of the present invention or the prior art, the following will briefly introduce the accompanying drawings that need to be used in the description of the embodiments or the prior art. Obviously, the accompanying drawings in the following description These are some embodiments of the present utility model. Those skilled in the art can also obtain other drawings based on these drawings without any creative work.

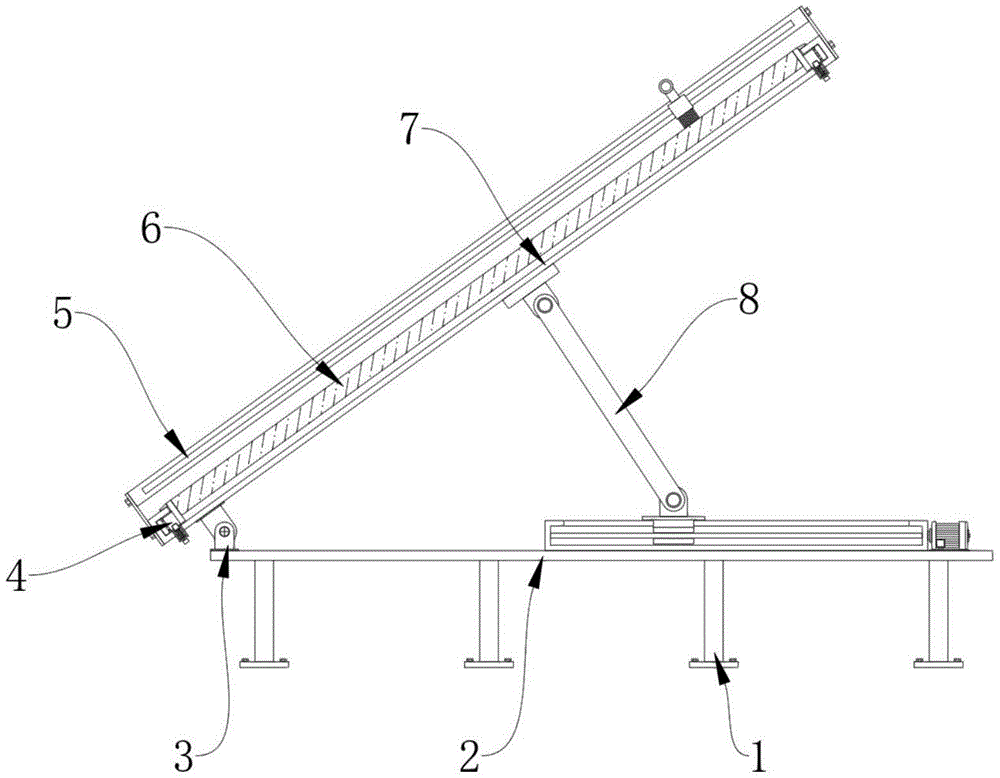

Fig. 1 is the front view sectional structure schematic diagram of the utility model;

Fig. 2 is the top view structural representation of the utility model;

Fig. 3 is a front view sectional structure schematic diagram of the loading and unloading structure of the utility model;

Fig. 4 is a schematic diagram of a three-dimensional cross-sectional structure of a cleaning structure of the present invention;

Fig. 5 is a front view sectional structure schematic diagram of the adjustment mechanism of the present invention.

Explanation of the reference numerals in the figure: 1, support column; 2, support plate; 3, hinged seat; 4, loading and unloading structure; 401, shell; 402, telescopic spring; 403, fixed pin; 404, roller; 405, installation Frame; 5, cleaning structure; 501, guide groove; 502, handle; 503, connecting plate; 504, brush; 505, moving block; 6, solar power generation panel; 7, shell; ; 802, casing; 803, motor; 804, screw mandrel; 805, screw block.

detailed description

In order to make the purpose, technical solutions and advantages of the embodiments of the utility model more clear, the technical solutions in the embodiments of the utility model will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the utility model. Obviously, the described The embodiments are some embodiments of the present utility model, but not all embodiments. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without creative work belong to the scope of protection of the present utility model.

In the description of the present utility model, it should be noted that, unless otherwise clearly stipulated and limited, the terms "installation", "connection" and "connection" should be understood in a broad sense, for example, it can be a fixed connection or a flexible connection. Detachable connection, or integral connection; it can be mechanical connection or electrical connection; it can be direct connection or indirect connection through an intermediary, and it can be the internal communication of two components. Those of ordinary skill in the art can understand the specific meanings of the above terms in the present utility model in specific situations.

Embodiment one

Please refer to Fig. 1-5, an easy-to-maintain solar power station provided by the utility model includes a support column 1, a support plate 2 and a casing 7, the top of the support column 1 is fixed with a support plate 2, and one side of the top of the support plate 2 The hinged seat 3 is installed, the top of the support column 1 is provided with an adjustment mechanism 8, and the top of the adjustment mechanism 8 is provided with a casing 7, and the inside of the casing 7 is provided with a solar power generation panel 6, and both sides of the solar power generation panel 6 are provided with loading and unloading structures 4. The top of the housing 7 is provided with a cleaning structure 5. The loading and unloading structure 4 includes a housing 401, a telescopic spring 402, a fixing pin 403, a roller 404 and a mounting frame 405. The housing 401 is fixed inside the bottom of the housing 7. The housing 401 A telescopic spring 402 is installed inside, and the top of the telescopic spring 402 is fixed with a fixed pin 403. The top of the fixed pin 403 is provided with a mounting frame 405, and a roller 404 is installed on one side of the mounting frame 405. The fixed pin 403 extends to the outside of the telescopic spring 402. It is connected with the mounting frame 405, and a rotating structure is formed between the roller 404 and the mounting frame 405.

The working principle of the easy-to-maintain solar power station based on Embodiment 1 is: the device is supported by the support column 1 and the support plate 2, the light is converted into electric energy by the solar power generation panel 6 for power generation, and the surface of the solar power generation panel 6 is cleaned by the cleaning structure 5 It is convenient to maintain the solar power generation panel 6 through the loading and unloading structure 4, and it is convenient to adjust the angle of the device through the adjustment mechanism 8. By pulling the fixing pin 403, the fixing pin 403 is left from the inside of the mounting frame 405, so that the mounting frame 405 can be in the shell 7 Then pull the installation frame 405, so that the installation frame 405 drives the solar power generation panel 6 to leave the inside of the shell 7, disassemble the solar power generation panel 6, roll the inside of the shell 7 by the roller 404, and lower the installation frame 405 and the shell 7 of friction.

Embodiment two

This embodiment includes: the cleaning structure 5 includes a guide groove 501, a handle 502, a connecting plate 503, a hair brush 504 and a moving block 505, the guide groove 501 is fixed on both sides of the top of the casing 7, and the inside of the guide groove 501 is equipped with a moving block 505 , and one side of the moving block 505 is fixed with a connecting plate 503, the top of the connecting plate 503 is fixed with a handle 502, the bottom of the connecting plate 503 is equipped with a brush 504, and the brush 504 is provided with a number of brushes at the bottom of the connecting plate 503. group, and several groups of brushes 504 are distributed at equal intervals on the bottom end of the connecting plate 503 .

In this embodiment, the connecting plate 503 drives the brush 504 to move on the surface of the solar power generation panel 6 by pulling the handle 502, so that the brush 504 sweeps away the dust on the surface of the solar power generation panel 6, while the moving block 505 slides inside the guide groove 501 , to guide the moving direction of the connecting plate 503 .

Embodiment three

This embodiment includes: the adjustment mechanism 8 includes a support arm 801, a casing 802, a motor 803, a screw mandrel 804 and a screw block 805, the casing 802 is fixed on the top of the support plate 2, and the inside of the casing 802 is inserted with a screw rod 804 , and the outer side of the screw rod 804 is covered with a screw block 805, and a motor 803 is installed on one side of the casing 802. The top end of the screw block 805 is hinged with a support arm 801, and a rotating structure is formed between the support arm 801 and the shell 7. The screw block The inner wall of 805 is provided with internal thread.

In this embodiment, by starting the motor 803, the motor 803 drives the screw rod 804 to rotate inside the screw block 805, and then the screw block 805 moves back and forth along the surface of the screw rod 804 through the engagement of the thread, and at the same time the screw block 805 drives the support The arm 801 moves so that the support arm 801 turns over to lift the shell 7, and the shell 7 rotates around the hinge seat 3 to adjust the angle, and the turning angle of the shell 7 is controlled by moving the screw block 805 left and right.

In the description of the present utility model, it should be noted that, unless otherwise clearly stipulated and limited, the terms "installation", "connection" and "connection" should be understood in a broad sense, for example, it can be a fixed connection or a flexible connection. Detachable connection, or integral connection; it can be mechanical connection or electrical connection; it can be direct connection or indirect connection through an intermediary, and it can be the internal communication of two components. Those of ordinary skill in the art can understand the specific meanings of the above terms in the present utility model in specific situations.

The device embodiments described above are only illustrative, and the units described as separate components may or may not be physically separated, and the components shown as units may or may not be physical units, that is, they may be located in One place, or it can be distributed to multiple network elements. Part or all of the modules can be selected according to actual needs to achieve the purpose of the solution of this embodiment. It can be understood and implemented by those skilled in the art without any creative effort.

Finally, it should be noted that: the above embodiments are only used to illustrate the technical solutions of the present utility model, and are not intended to limit it; although the utility model has been described in detail with reference to the foregoing embodiments, those of ordinary skill in the art should understand that: It is still possible to modify the technical solutions recorded in the foregoing embodiments, or perform equivalent replacements for some of the technical features; and these modifications or replacements do not make the essence of the corresponding technical solutions deviate from the spirit of the technical solutions of the various embodiments of the present invention. and range.

Claims (7)

1. A solar power plant that is easy to maintain, comprising a support column (1), a support plate (2) and a casing (7), characterized in that: the top of the support column (1) is fixed with a support plate (2); One side of the top of the support plate (2) is equipped with a hinged seat (3), the top of the support column (1) is provided with an adjustment mechanism (8), and the top of the adjustment mechanism (8) is provided with a housing (7) ; The inside of the housing (7) is provided with a solar power generation panel (6), both sides of the solar power generation board (6) are provided with loading and unloading structures (4), and the top of the housing (7) is provided with a cleaning structure (5 ). 2. An easy-to-maintain solar power station according to claim 1, characterized in that: the loading and unloading structure (4) includes a housing (401), telescopic springs (402), fixing pins (403), rollers (404 ) and mounting frame (405), the housing (401) is fixed inside the bottom end of the shell (7), the inside of the housing (401) is equipped with a telescopic spring (402) and the top of the telescopic spring (402) is fixed There is a fixed pin (403), the top end of the fixed pin (403) is provided with a mounting frame (405), and a roller (404) is mounted on one side of the mounting frame (405). 3. An easy-to-maintain solar power station according to claim 2, characterized in that: the fixed pin (403) extends to the outside of the telescopic spring (402) to connect with the mounting frame (405), and the roller ( 404) and the installation frame (405) form a rotating structure. 4. An easy-to-maintain solar power station according to claim 1, characterized in that: the cleaning structure (5) includes a guide groove (501), a handle (502), a connecting plate (503), a brush (504 ) and a moving block (505), the guide groove (501) is fixed on both sides of the top of the casing (7), the inside of the guide groove (501) is equipped with a moving block (505), and the moving block (505) A connecting plate (503) is fixed on one side, a handle (502) is fixed on the top of the connecting plate (503), and a brush (504) is installed on the bottom of the connecting plate (503). 5. An easy-to-maintain solar power station according to claim 4, characterized in that: several groups of brushes (504) are arranged at the bottom end of the connecting plate (503), and several groups of brushes (504) The bottom ends of the connecting plates (503) are equally spaced. 6. An easy-to-maintain solar power station according to claim 1, characterized in that: the adjustment mechanism (8) includes a support arm (801), a casing (802), a motor (803), a screw rod (804 ) and screw block (805), the casing (802) is fixed on the top of the support plate (2), the inside of the casing (802) is inserted with a screw (804), and the screw (804) A screw block (805) is sheathed on the outside, a motor (803) is installed on one side of the casing (802), and a support arm (801) is hinged to the top of the screw block (805). 7. An easy-to-maintain solar power station according to claim 6, characterized in that: a rotating structure is formed between the support arm (801) and the casing (7), and the inner wall of the screw block (805) is provided with internal thread.
